Overview

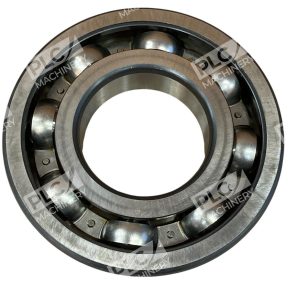

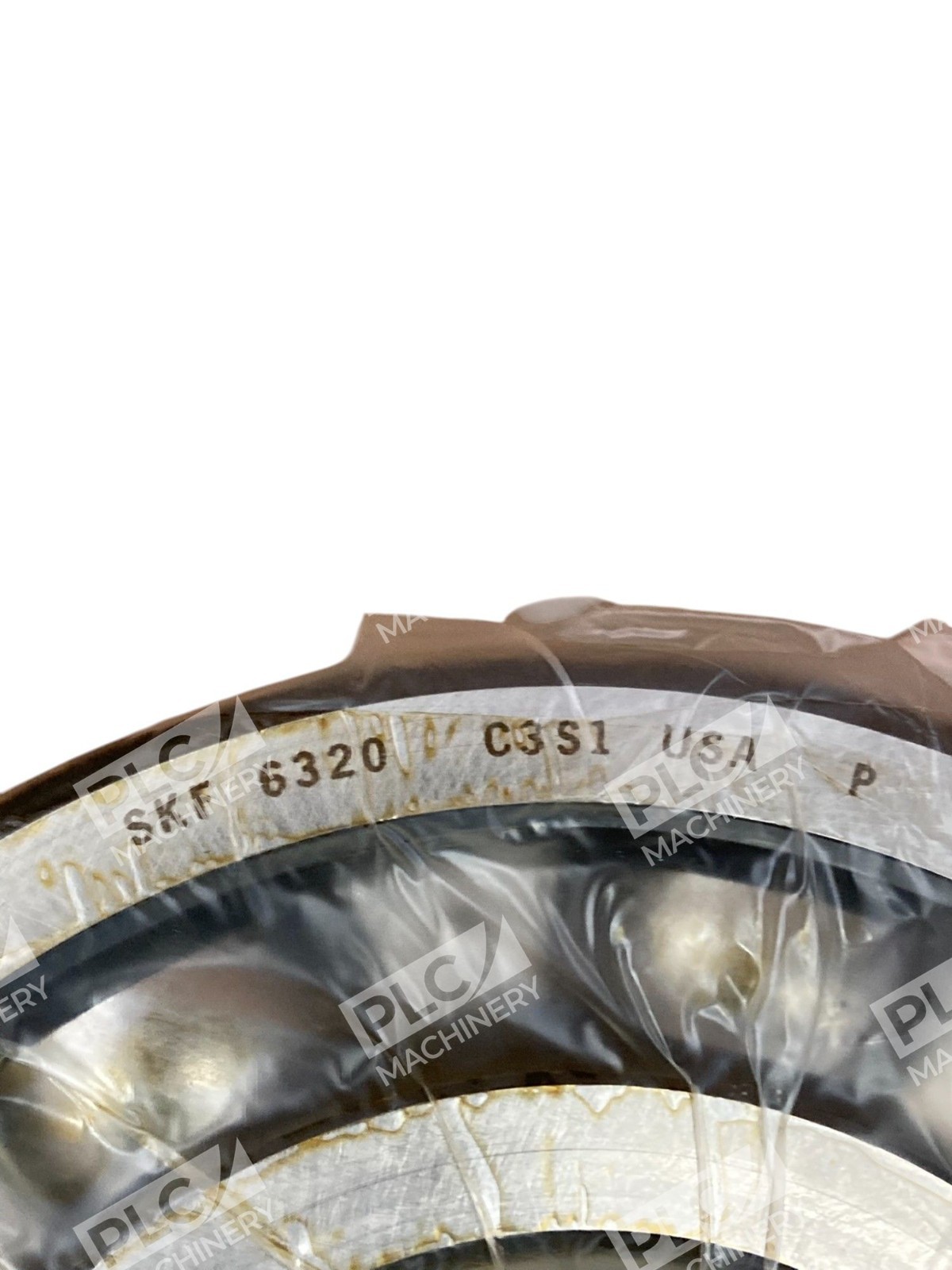

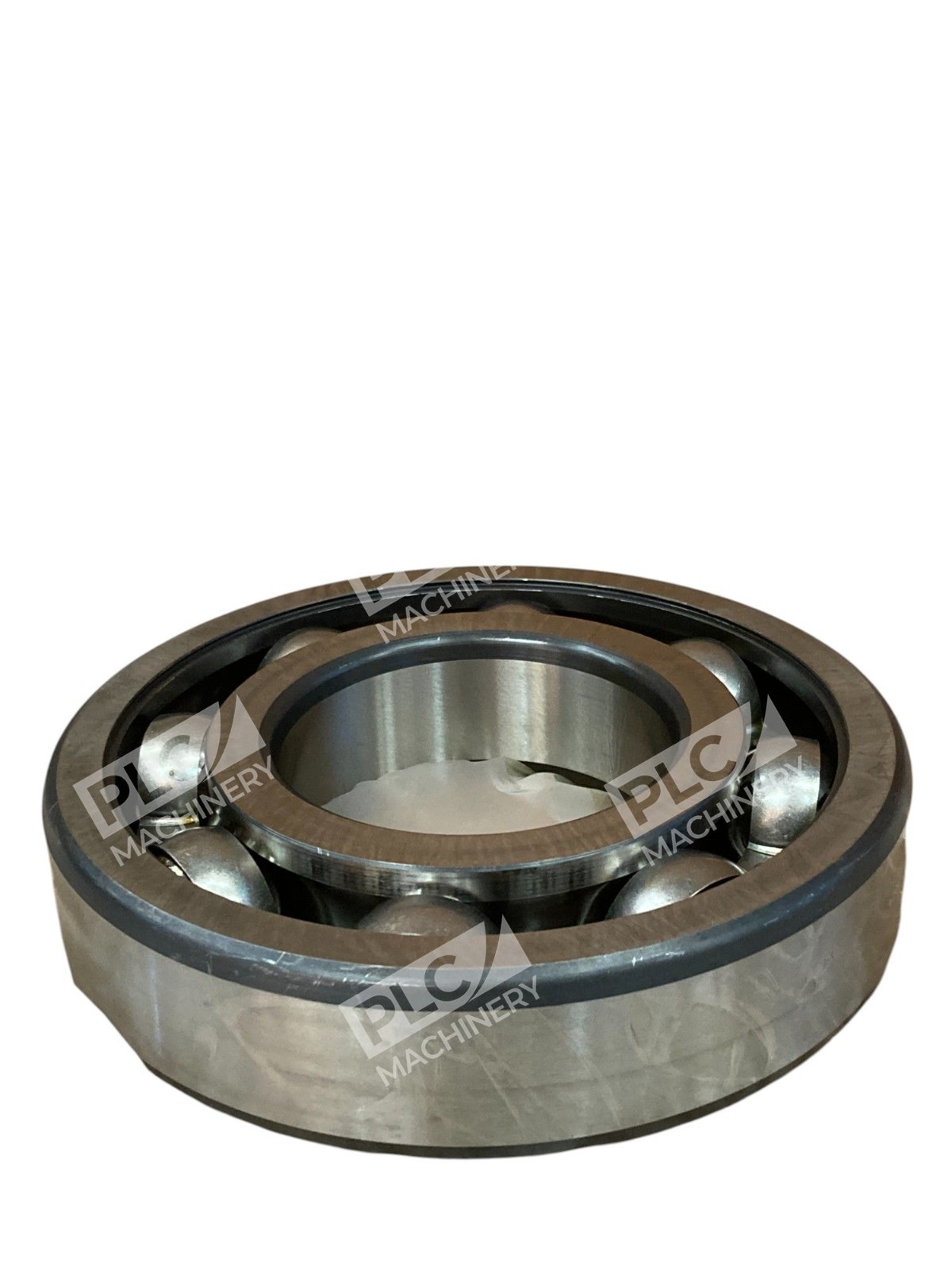

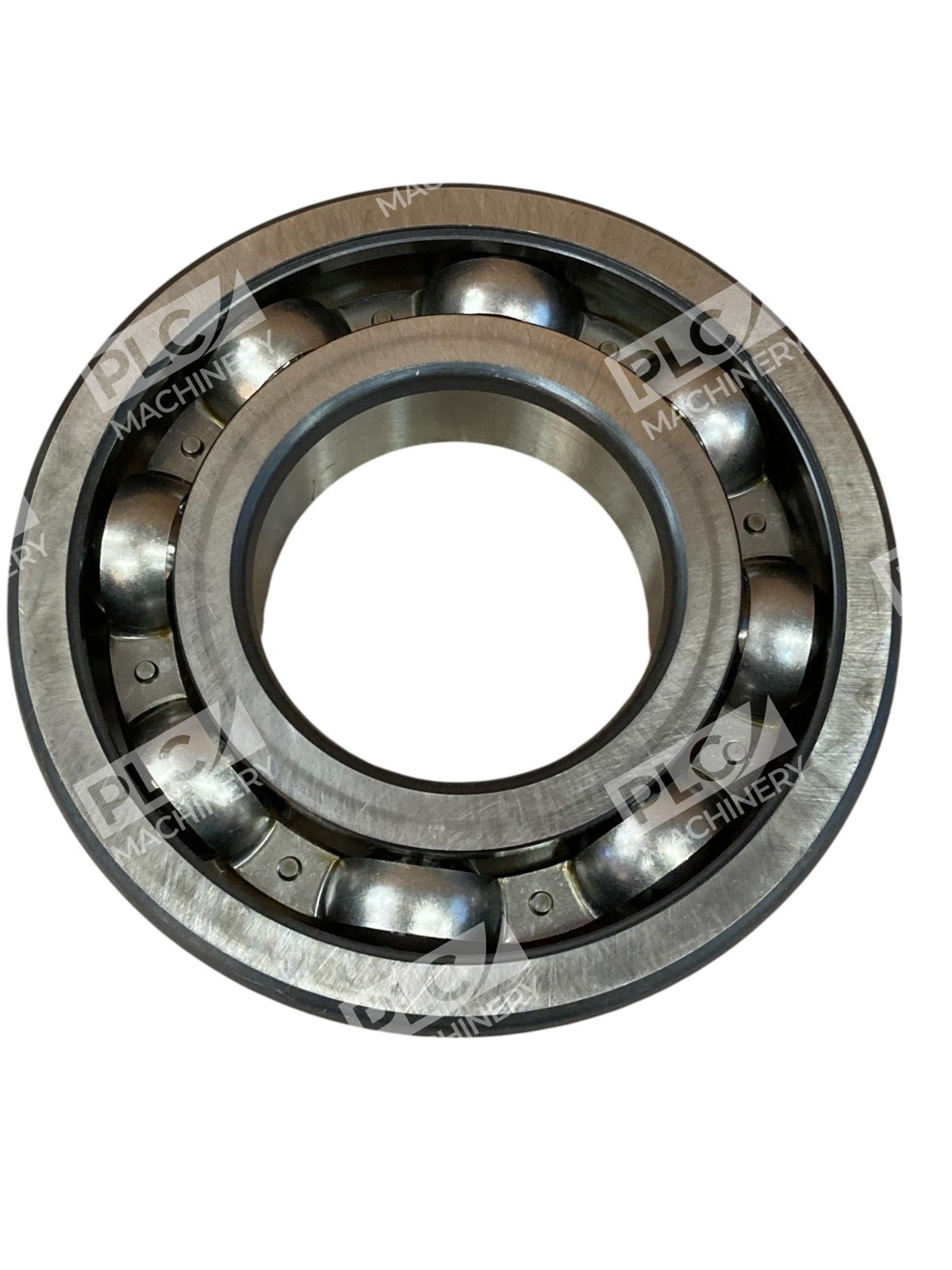

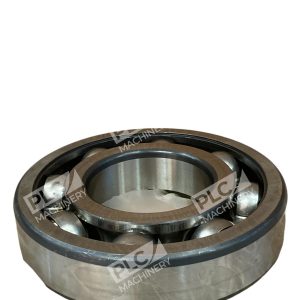

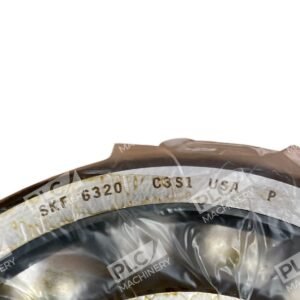

The SKF 6320 C3S1 is a precision deep groove radial ball bearing engineered for high-speed applications requiring low friction, minimal noise, and consistent performance. With an inner diameter of 100 mm, outer diameter of 215 mm and thickness of 47 mm, this bearing accommodates both radial and axial loads in dual directions, making it versatile for demanding industrial environments.
Key Features
- Deep groove ball bearings are widely used, featuring low friction and optimization for low noise and low vibration enabling high rotational speeds
- Accommodate radial and axial loads in both directions, are easy to mount and require less maintenance than other bearing types
- C3 suffix indicates increased internal clearance, often referred to as high-speed, meaning the bearing is designed for high rotational speeds and moderately high temperatures
- Open design provides maximum cooling and is suitable for clean, controlled environments
- Chrome steel construction ensures durability and corrosion resistance
Technical Specifications
- Bore Diameter (ID): 100 mm
- Outer Diameter (OD): 215 mm
- Width (W): 47 mm
- Dynamic Load Capacity: 174 kN; Static Load Capacity: 140 kN
- Bearing Type: Deep Groove Radial Ball Bearing
- Clearance Class: C3 (Increased)
- Tolerance Class: ABEC 1 | ISO P0
- Design: Open (No seals or shields)
- Cage Material: Steel
- Weight: 7040g (7.04 kg)
Typical Applications
In industrial settings, the 6320 C3S1 bearing is widely used in heavy machinery like pumps and compressors, thanks to its robust radial load capacity. In automotive applications, such as wheel hubs and transmissions, the C3 clearance accommodates thermal expansion. The bearing excels in conveyor systems and agricultural equipment, handling high radial loads with ease. Additional uses include electric motors, gearboxes, and industrial automation equipment where high-speed operation and reliable radial load support are critical.
Compatibility & Replacements
Compatible With
- Industrial machinery requiring 100mm bore deep groove bearings
- High-speed rotating equipment (motors, pumps, compressors)
- Automotive drivetrain and wheel hub assemblies
- Conveyor and power transmission systems
- Agricultural and heavy equipment gearboxes
Replaces / Drop-In Replacement For
- SKF 6320 (standard clearance)
- SKF 6320/C3 (equivalent open design)
- FAG 6320 C3 (compatible geometry)
- Other 100x215x47mm deep groove ball bearing variants
Works With
- Shaft mounting systems with 100mm nominal bore
- Housing designs accommodating 215mm OD journals
- High-speed spindle and motor applications
- Industrial automation and machinery control systems
- Standard bearing lubrication systems (grease or oil)
