Overview

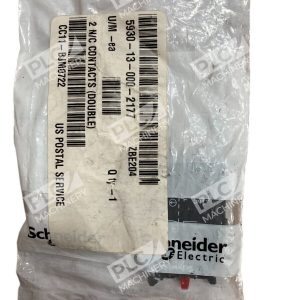

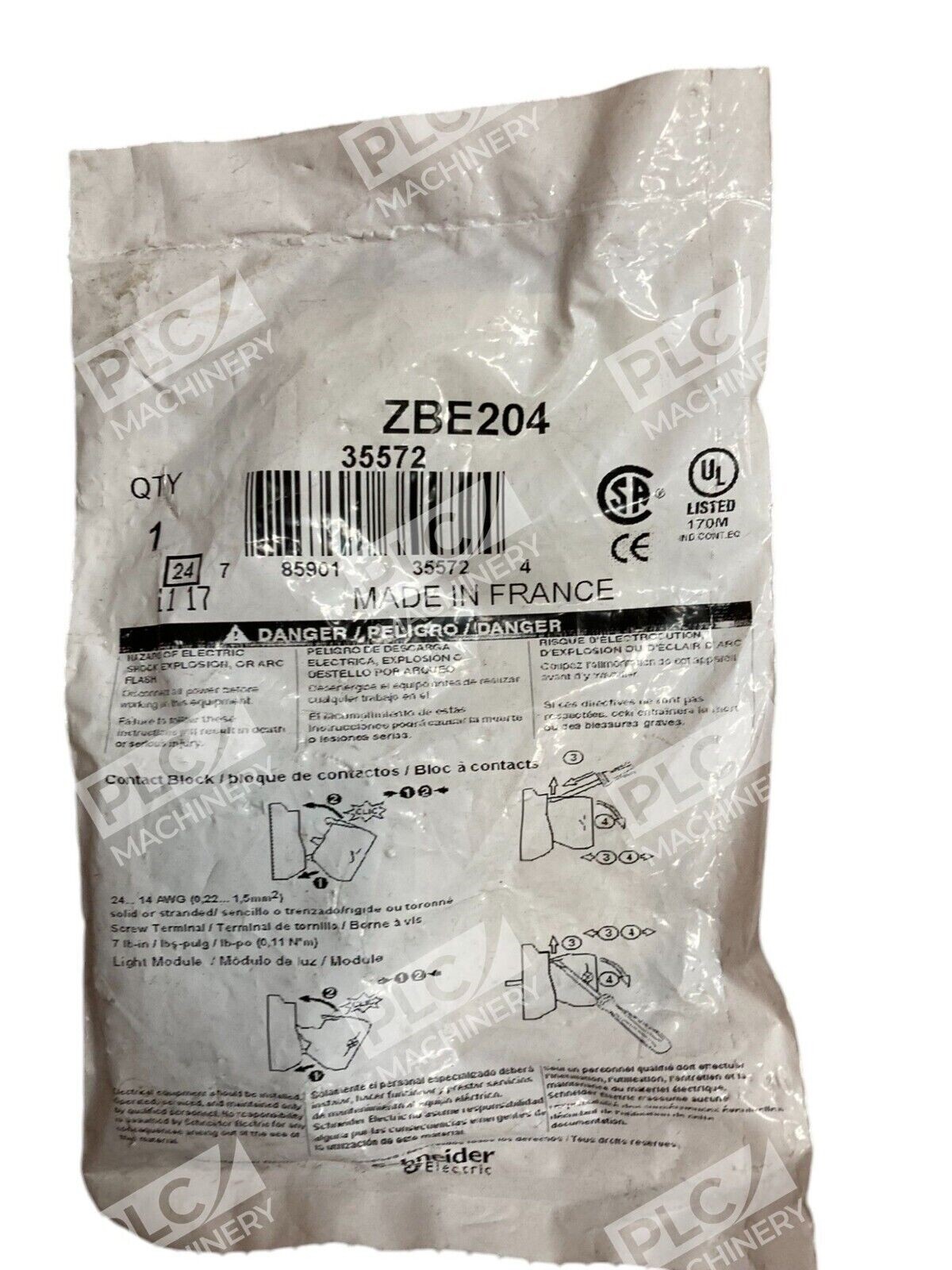

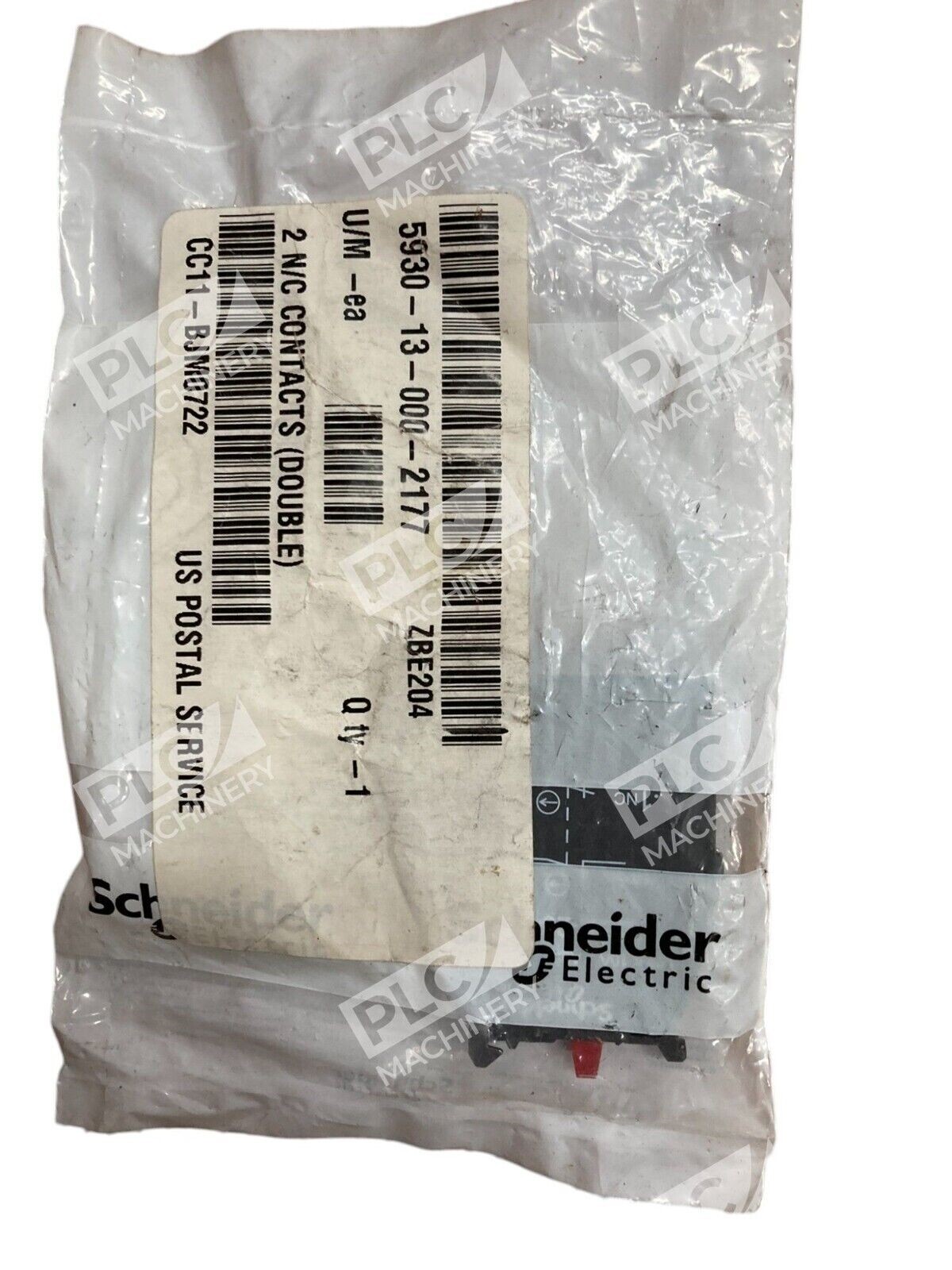

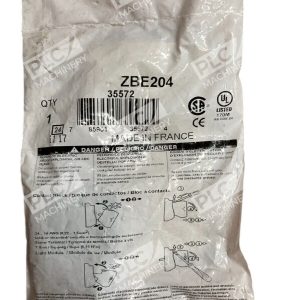

The Schneider Electric ZBE204 is a double electrical component contact block engineered for industrial control and signaling applications. Part of the Harmony ZB series, this 22 mm contact block features 2NC (Normally Closed) silver alloy contacts with screw clamp terminals for secure electrical connections. Rated at 10A at 600V AC, the ZBE204 delivers reliable performance across demanding industrial environments.
Key Features
- 2NC Contact Configuration: 2-pole Contact Block with screw clamp terminals and silver alloy (Ag/Ni) 2 NC slow-break contacts
- High Endurance Rating: 1 million cycle high endurance under 6A load allows less maintenance and damage in your installation
- IP20 Protection: Protects operators from unexpected contact with live circuits thanks to its IP20 protection index
- Easy Installation: Easily installed and replaced on XB4 and XB5 complete push-button units and selector switches and connects to control circuits with simple screw-clamp connections
- Color-Coded Design: Clear color scheme for NO and NC contact block types
- Wide Temperature Range: Operating temperatures from -40°C to 70°C allows versatility in usage of product
Technical Specifications
- Contact Configuration: 2NC (Normally Closed)
- Ampere Rating: 10A at 600V AC
- Contact Material: Silver Alloy (Ag/Ni)
- Contact Operation: Slow Break, Momentary Action
- Terminal Type: Screw Clamp
- Block Size: 22 mm
- Mounting: Front mounting on pushbutton collar
- Operating Temperature: -40°C to 70°C
- Mechanical Endurance: 1 million cycles at 6A
- Protection Index: IP20
- Certifications: EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520/852, UL 508, CSA C22.2 14
- Country of Origin: France
- Series: ZBE (Harmony)
Typical Applications
The ZBE204 is widely used in manufacturing, packaging, and process control systems. Common applications include:
- Pushbutton control circuits with Harmony XB4 and XB5 units
- Selector switch configurations for industrial machinery
- Emergency stop and safety circuit blocks
- Motor control and automation systems requiring fast circuit switching
- Industrial signaling and alarm systems
Compatibility & Replacements
Compatible With
- Harmony XB4 and XB5 control and signaling units
- Harmony ZB series pushbutton and selector switch platforms
- 22 mm pushbutton collar mounting systems
- Standard industrial control panel wiring (600V AC circuits)
Replaces / Drop-In Replacement For
- Legacy ZBE204 contact blocks in existing Harmony installations
- Earlier generation double contact blocks on compatible XB4/XB5 units
- Field replacement for worn or damaged contact blocks on active control systems
Works With
- Harmony XB4 pushbutton series (all sizes)
- Harmony XB5 LED-integrated control units
- Standard screw-clamp wiring terminals and industrial control panels
- EN/IEC 60947-5-1 compliant control circuits
- Pushbutton and selector switch assemblies in manufacturing and process automation
