Overview

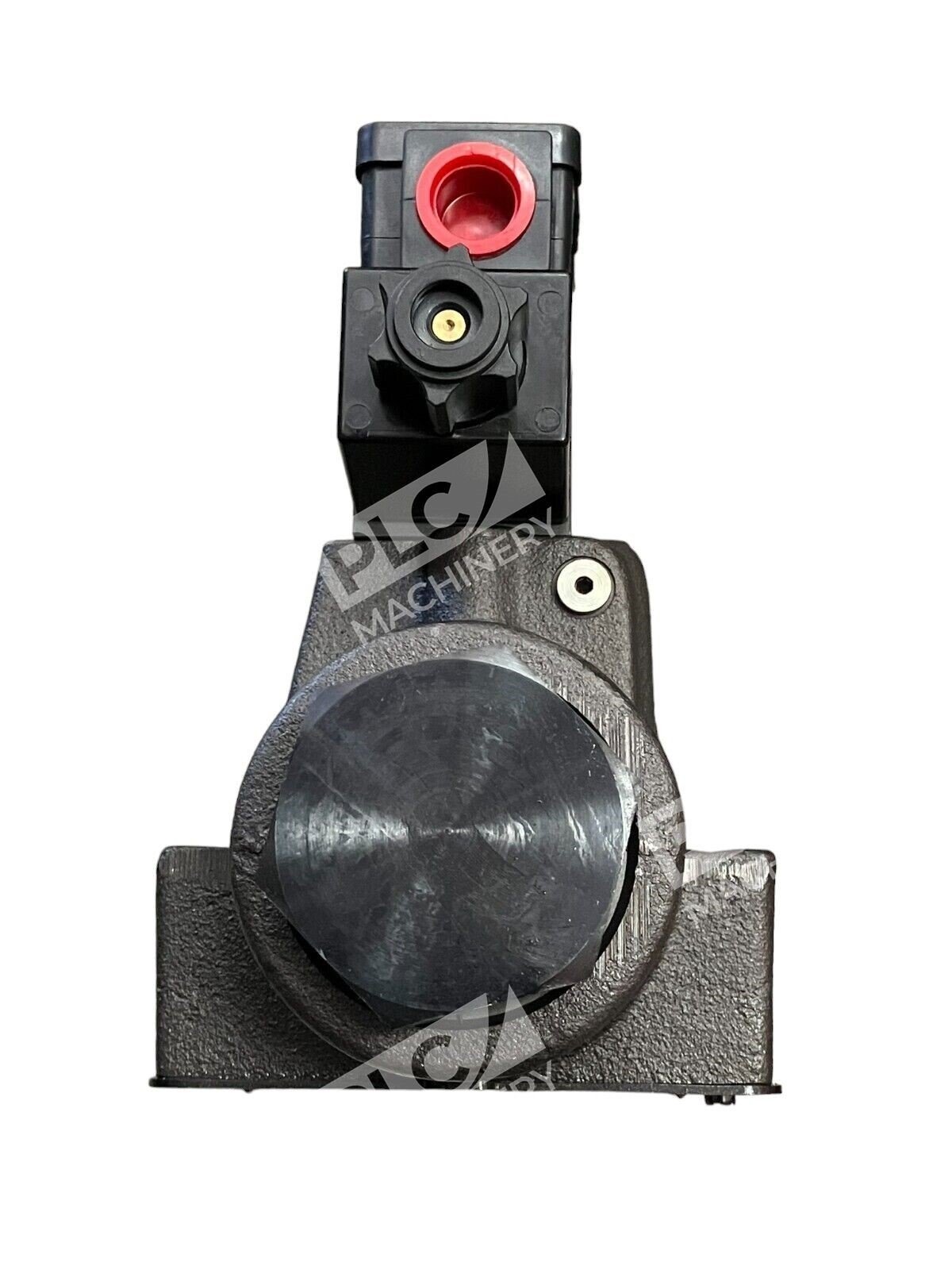

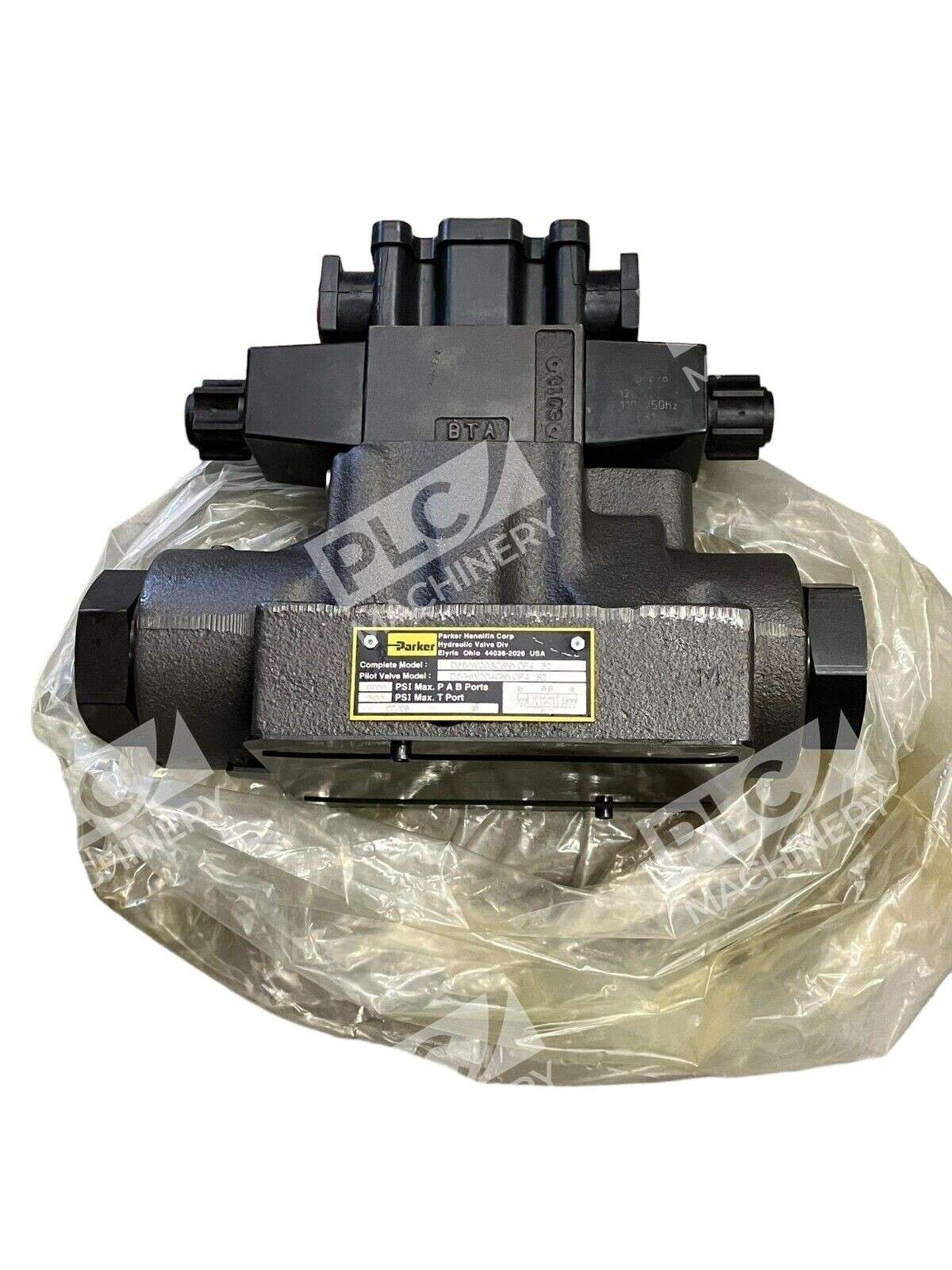

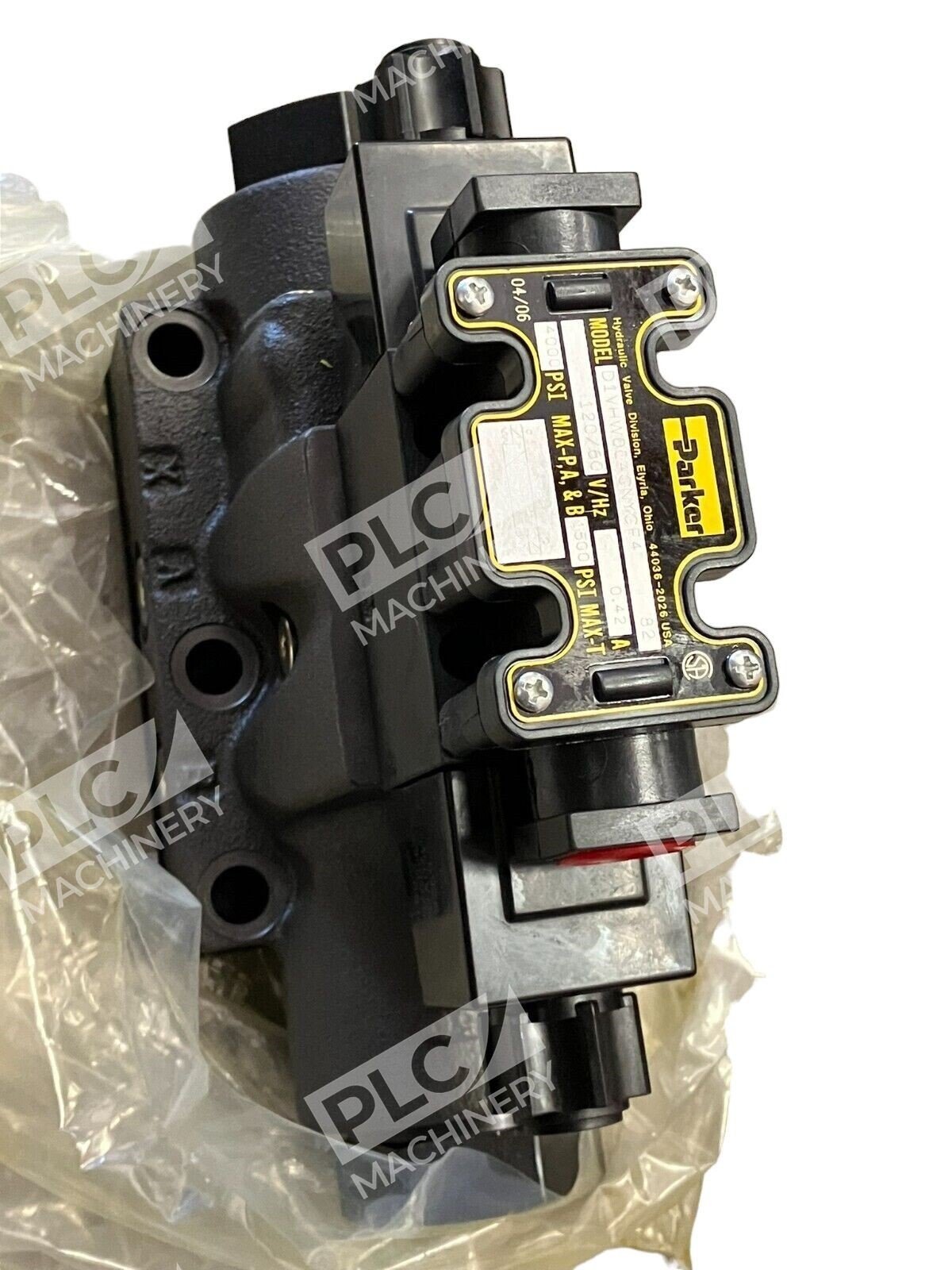

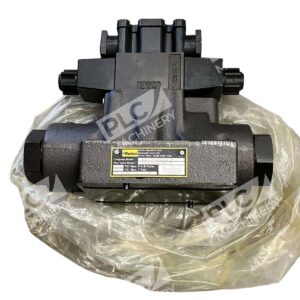

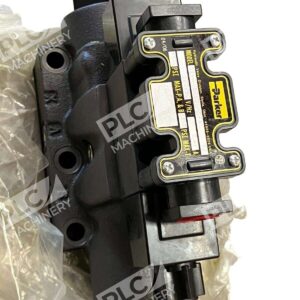

The Parker D61VW008C6NYCF4 is a five-chamber, pilot-operated, solenoid-controlled directional control valve designed for high-performance hydraulic systems. This valve belongs to Parker’s D61VW series, offering reliable flow direction control for industrial applications requiring precise hydraulic actuation.
Key Features
- Five-chamber pilot-operated design with case-hardened sliding spool
- Solenoid-controlled 4-way directional control
- Available in 2 or 3 position configurations
- Manifold or subplate mounting with NFPA D08/CETOP 8 compatibility
- Robust four-land spool design for durability and minimal leakage
- UL 429 certification compliance
Technical Specifications
- Maximum Operating Pressure: 210 bar (3000 PSI)
- Nominal Flow: 189 liters/min (50 GPM)
- Maximum Flow: Up to 380 liters/min (100 GPM) depending on spool configuration
- Mounting Pattern: NFPA D08 / CETOP 8, NG25
- Minimum Pilot Pressure: 5.1 bar (75 PSI)
- Maximum Tank Line Pressure: 205 bar (3000 PSI)
- Spool Options: 001, 002, 004, 011, and 014 configurations available
Typical Applications
The D61VW series is widely used in:
- Mobile hydraulic equipment (cranes, loaders, excavators)
- Industrial machinery requiring proportional flow control
- Agricultural equipment hydraulic systems
- Construction and material handling operations
- Two-stage hydraulic systems with pilot-operated actuation
Compatibility & Replacements
Compatible With
- NFPA D08/CETOP 8, NG25 manifold mounting patterns
- Parker hydraulic system components and manifolds
- Standard ISO 4401 directional control valve installations

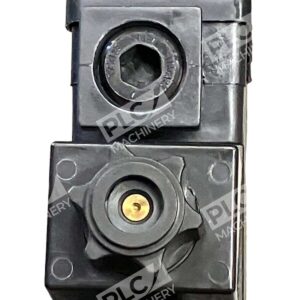

- Solenoid coil kits: Manaplug (Mini and Micro) 5-pin connectors
Replaces / Drop-In Replacement For

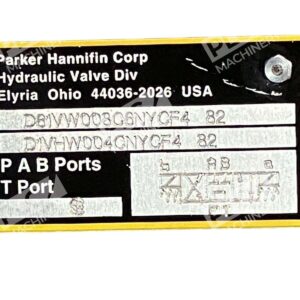

Contact Parker Hannifin Hydraulic Valve Division for legacy/obsolete valve cross-reference information and confirmed replacements at 520 Ternes Lane, Elyria, OH 44035.
Works With
- Parker hydraulic pump systems
- ISO VG 32–68 mineral oil hydraulics
- Pressure relief and flow control valve networks
- Pilot-operated spool valve cartridge systems
- Industrial 24 VDC solenoid activation systems
