Overview

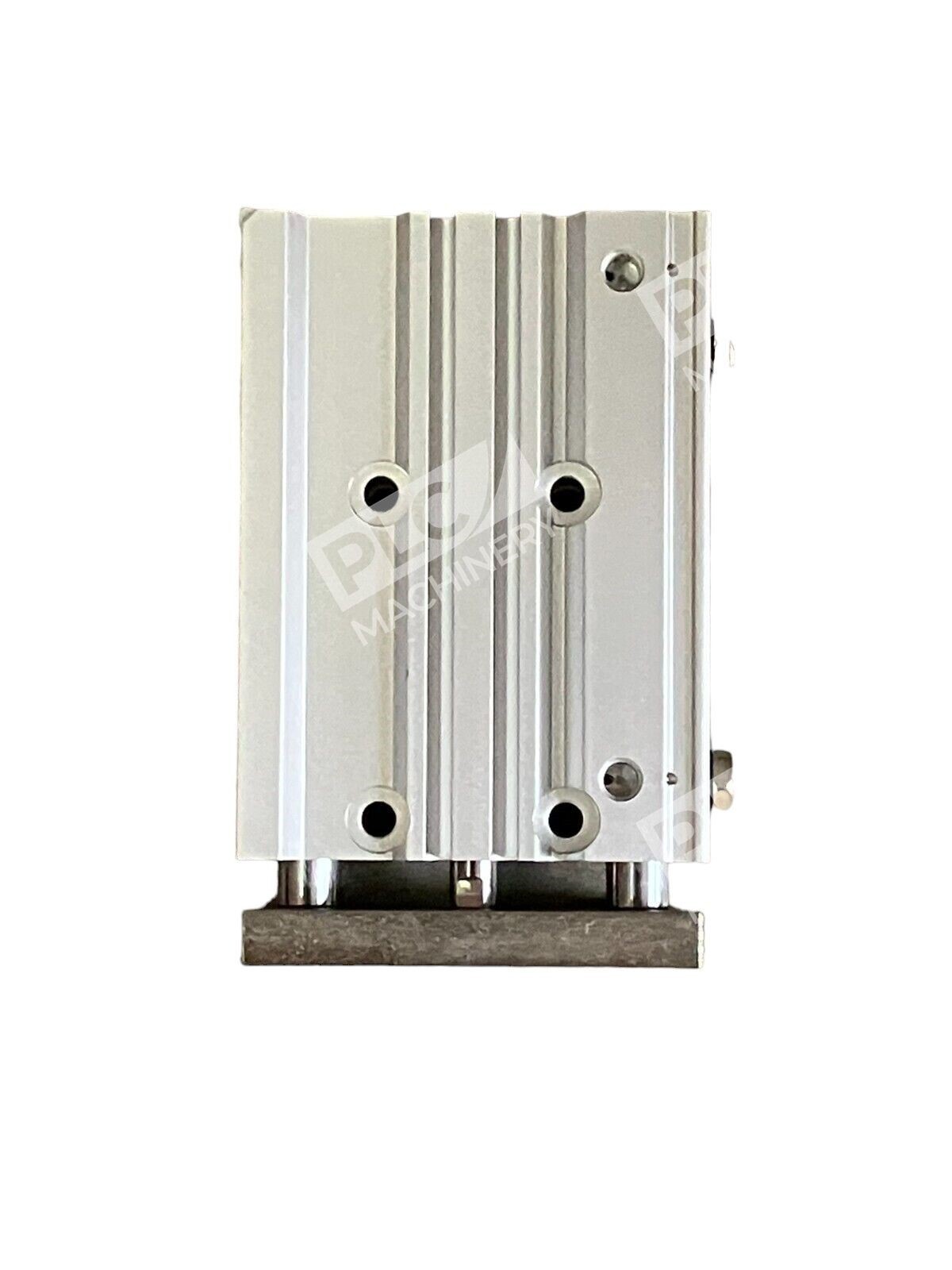

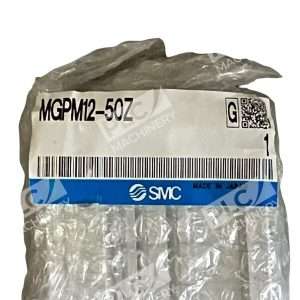

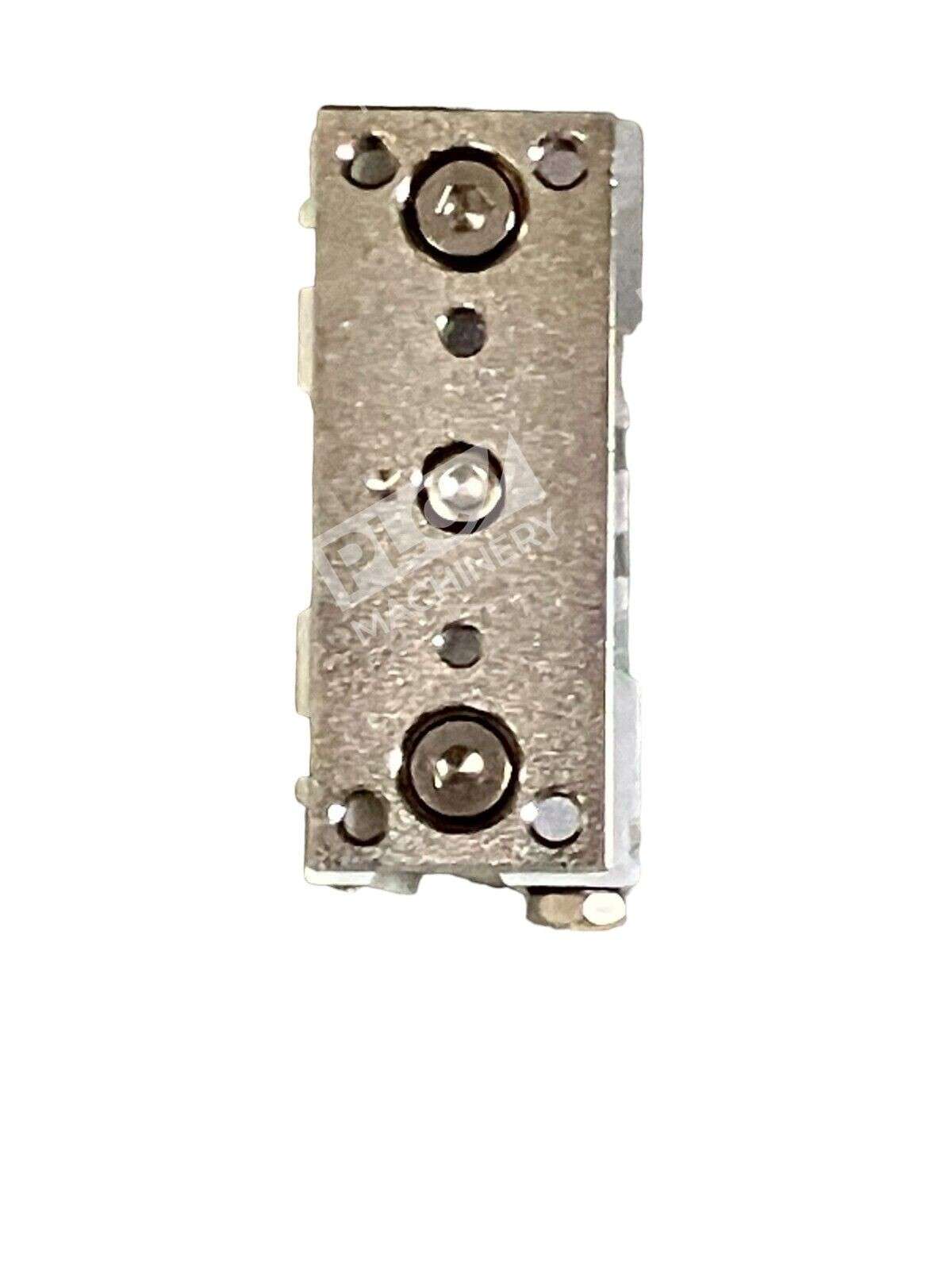

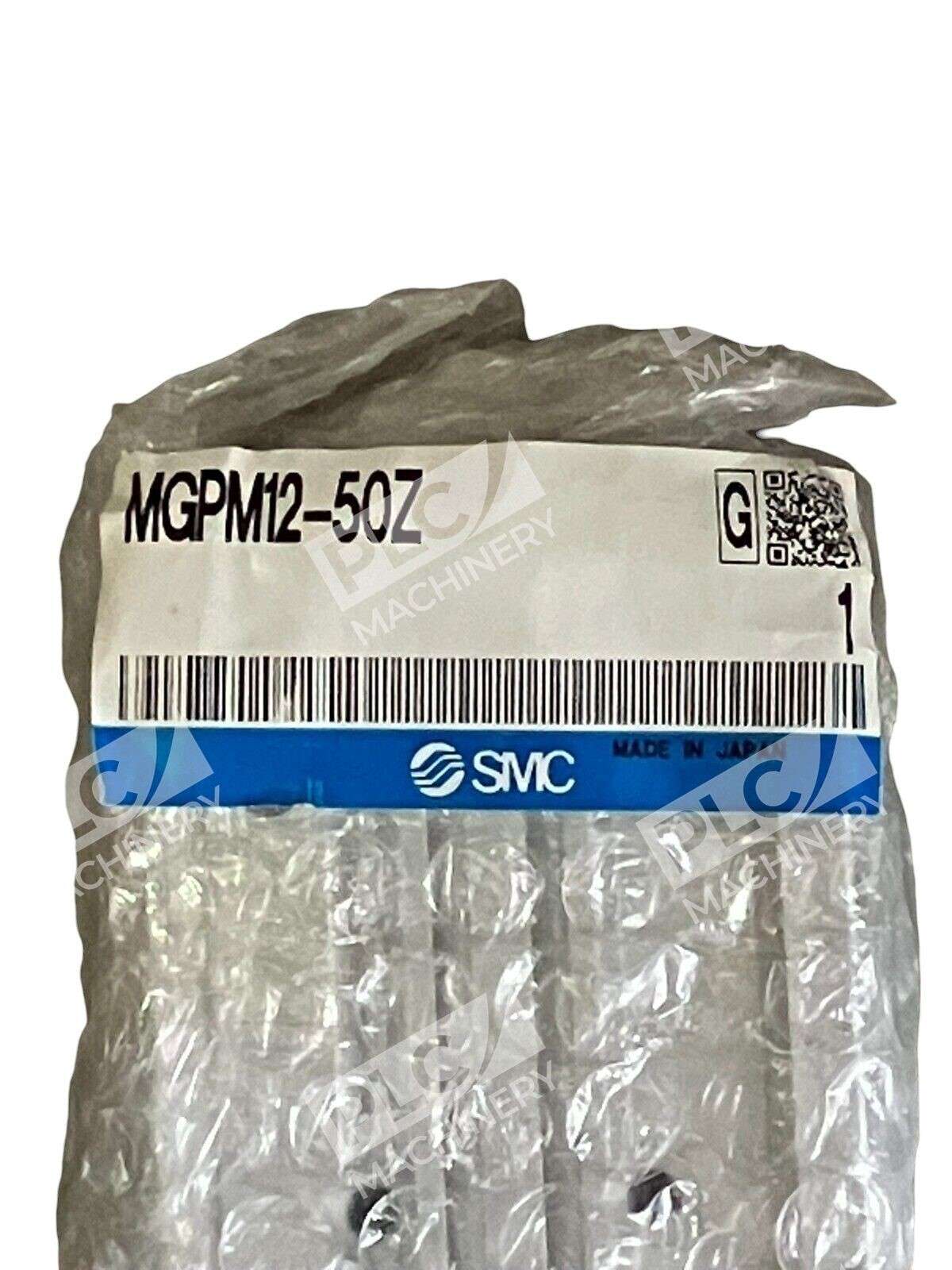

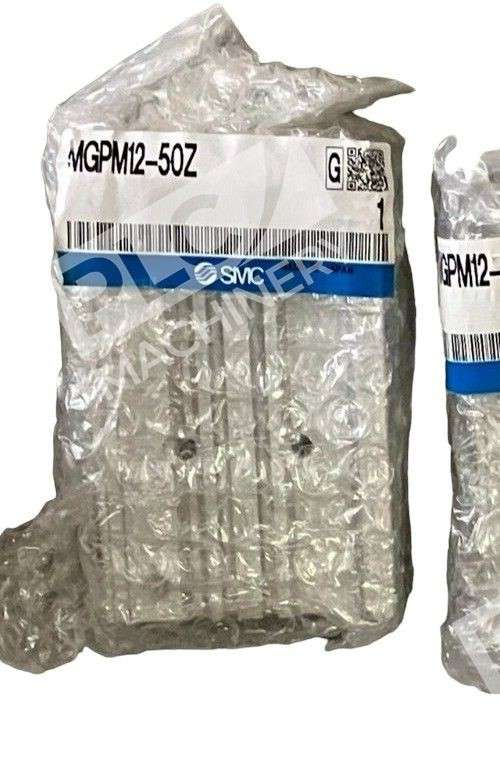

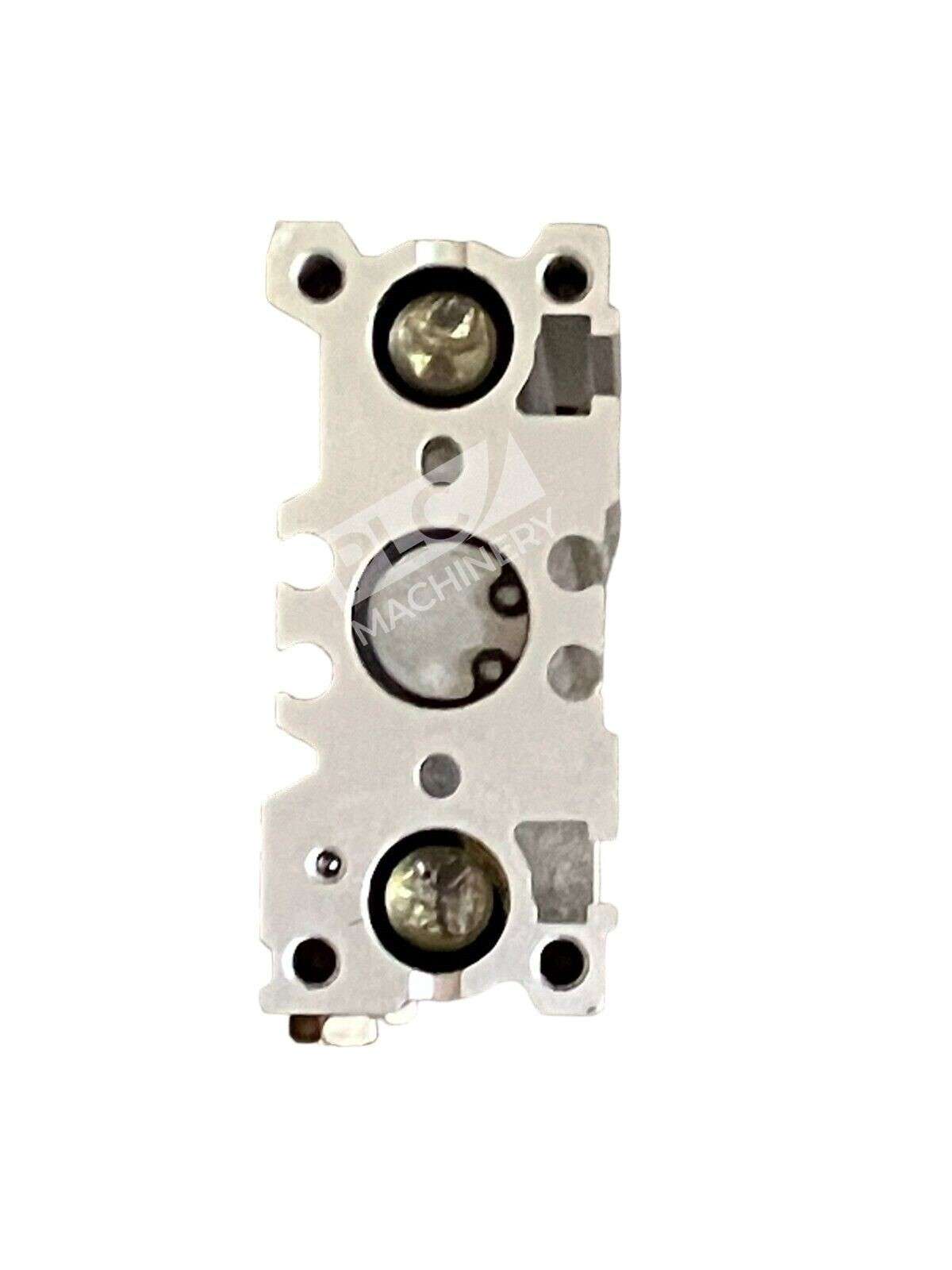

The SMC MGPM12-50Z is a guided compact pneumatic actuator designed for precision positioning and load-bearing applications. The MGPM is a compact body actuator integrated with internal guide shafts to isolate the load bearing from the movement of the actuator’s rod and seals. This 12 mm bore cylinder with 50 mm stroke delivers lateral stability and eliminates rod deflection under side loads.
Key Features
- Weight reduced by up to 24% with a shorter guide rod and thinner plate
- Guide rod length reduced by maximum 22 mm, reducing machining required to create space between the bottom of the cylinder body and equipment
- Carbon steel alloy slide bearing provides lateral stability protecting it from side load impacts, suitable for stopping applications
- Round auto switches and strong magnetic field resistant auto switches can be directly mounted without spacers
- 4 types of mounting possible
- Piping from either direction
Technical Specifications
- Bore Size: 12 mm
- Stroke: Standard Stroke 50 mm
- Bearing Type: Slide Bearing
- Port Thread Type: M5X0.8
- Weight: 472g
- Non-Rotating Accuracy: +/-0.08° for 12 & 16 mm bore
Typical Applications
The SMC MGPM12-50Z is ideal for applications requiring guided linear motion with lateral load resistance, including:
- Precision stop and clamp operations
- Press and assembly fixtures
- Machine tool actuators
- Automated material handling systems
- Industrial automation positioning
Compatibility & Replacements
Compatible With
- Standard pneumatic control systems
- Pressure range: Typical pneumatic pressure (verify system specifications)
- Direct mounting to aluminum or steel frames
- Industry-standard auto switches and sensors
Replaces / Drop-In Replacement For
The base model MGPM12-50Z interfaces with multiple OEM configurations including MGPM12-50Z-M9B, MGPM12-50Z-M9PL, MGPM12-50Z-M9BW, MGPM12-50Z-XB6, and MGPM12-50Z-M9PWSDPC. Verify compatibility with your system integrator before ordering to confirm auto switch and port configurations match your application.
Works With
- Solid-state and mechanical auto switches
- 2-wire and 3-wire PNP sensors
- Grommet and inline connector mounting options
- DC5V, 12V, and 24V auto switch power supplies
- Standard Rc port pneumatic manifolds and fittings
