Overview

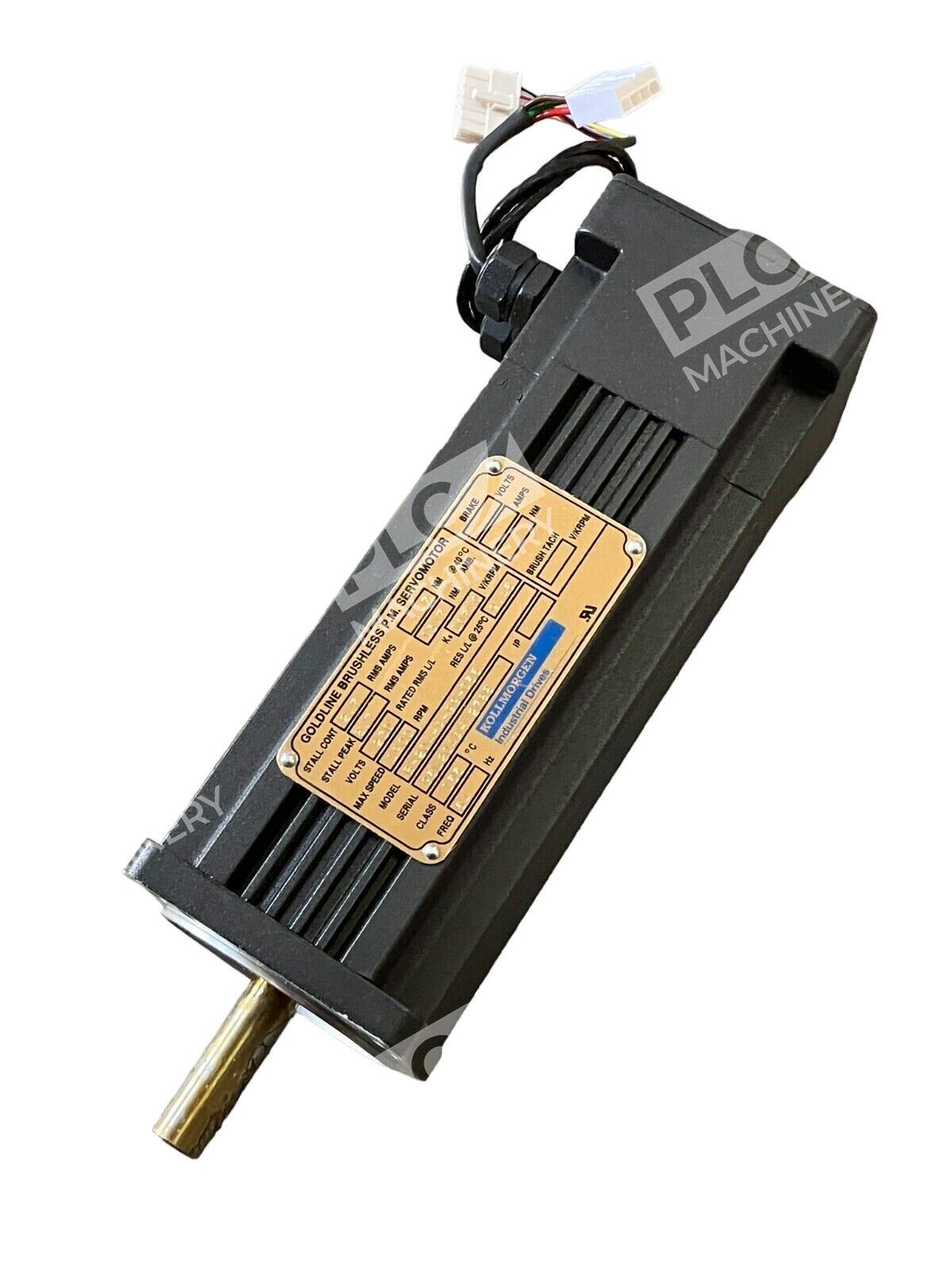

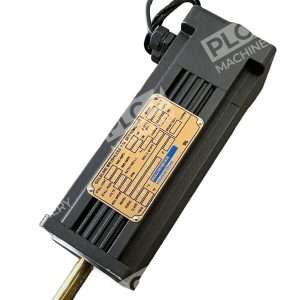

The Kollmorgen B-204-A-99-056 is a brushless permanent magnet servomotor engineered for high-performance motion control in demanding industrial applications. Part of Kollmorgen’s trusted Goldline series, this motor delivers exceptional torque and power density in a compact, low-inertia design. Operating on 230 VAC line power, it reaches 1900 RPM with a continuous power output of 0.82 kW, making it ideal for rapid acceleration/deceleration cycles and precision point-to-point positioning tasks.
Key Features
- Interior permanent magnet design: Delivers high torque density with low inertia (0.0001729 kgm²), minimizing settling time and improving response accuracy
- Rugged IP67 protection: Sealed against dust and low-pressure water jets, suitable for washdown and harsh industrial environments
- Integrated thermal management: Built-in thermostat monitors winding temperature; Class H insulation rated to 180°C
- Resolver feedback: Inbuilt resolver and servo amplifier interface enable reliable closed-loop position control
- Compact form factor: 13.6 kg mass with high torque-to-volume ratio simplifies space-constrained machine designs
- Optional fail-safe braking: Compatible with fail-safe brakes and front-mounted gearheads for extended functionality

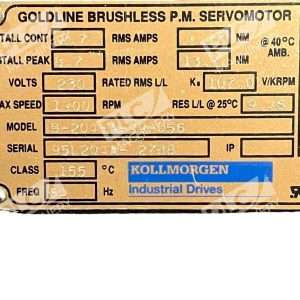

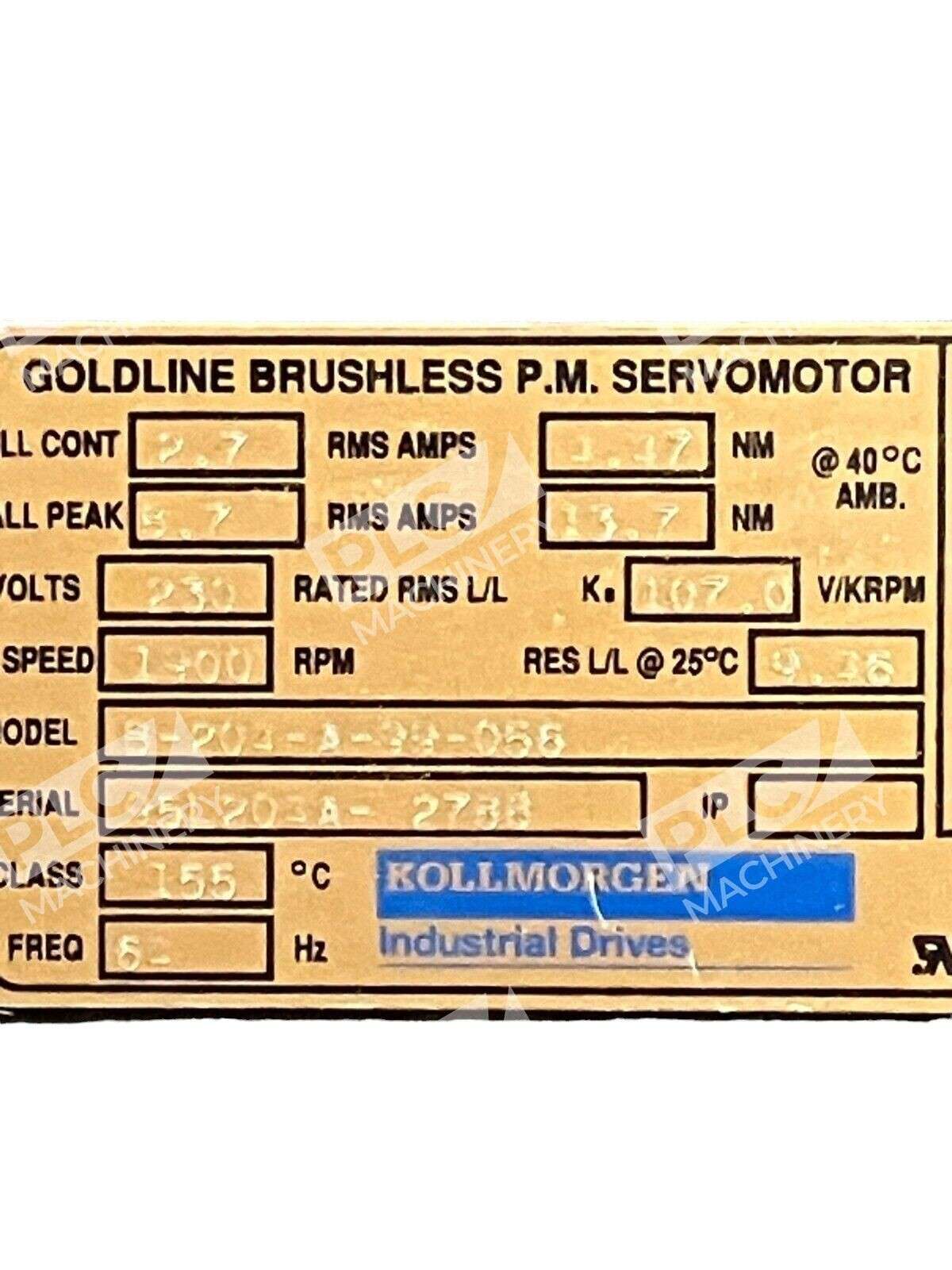

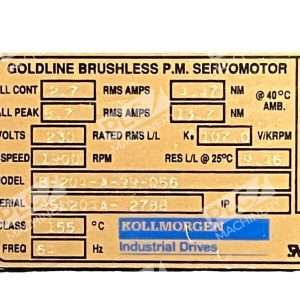

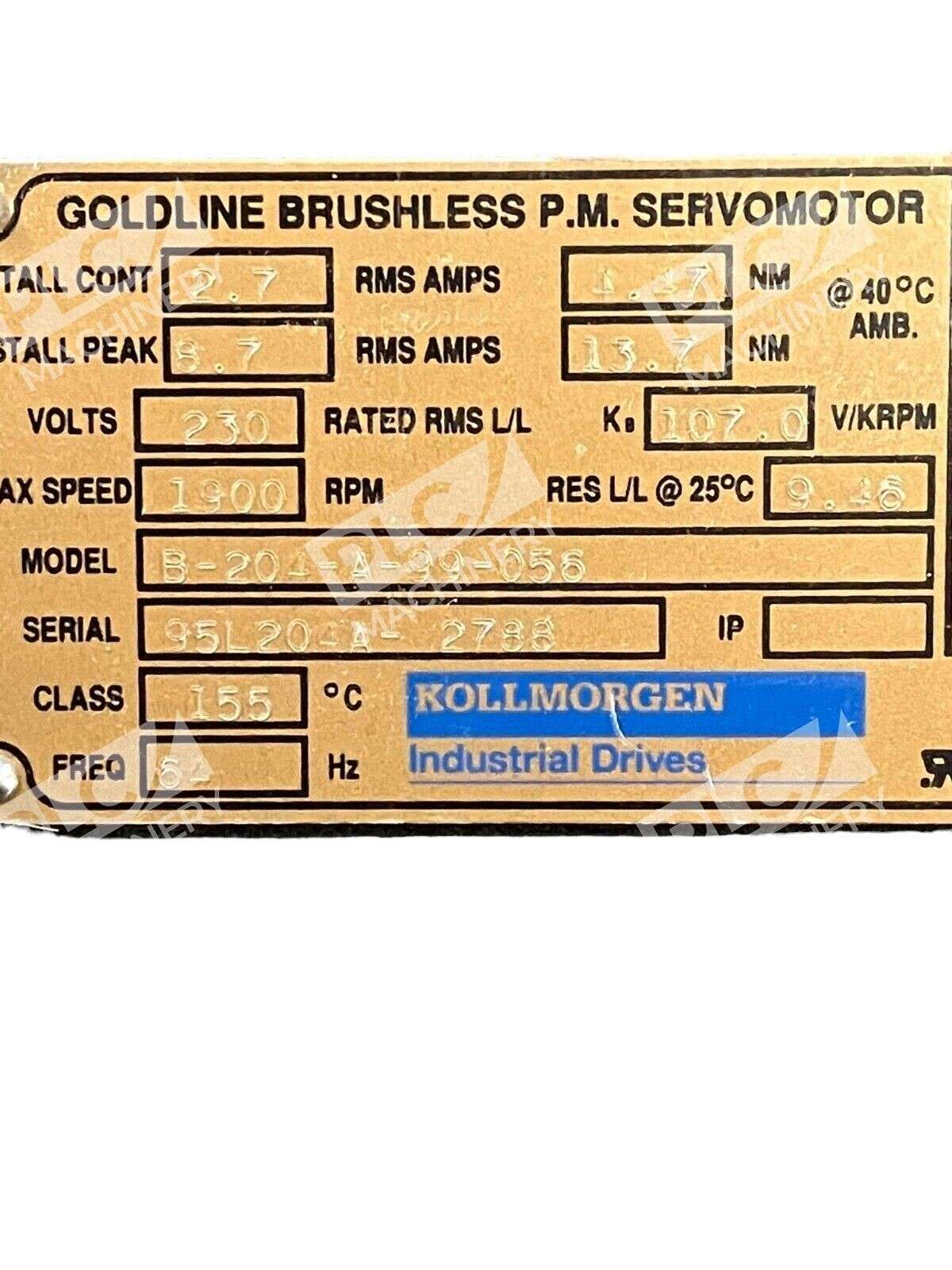

Technical Specifications
- Rated Power: 0.82 kW (continuous)
- Maximum Speed: 1900 RPM at 64 Hz
- Maximum Torque: 13.7 Nm (61.1 lb-in stall torque)
- Moment of Inertia: 0.0001729 kgm²
- Input Voltage: 230 VAC, single-phase
- Max Bus Voltage: 320 VDC
- Acceleration Rate: 79,200 rad/sec²
- Insulation Class: H (180°C continuous)
- Protection Rating: IP67
- Mass: 13.6 kg
- Feedback Device: Integrated resolver
- Series: Goldline B (low-inertia brushless)
Typical Applications
- Rapid-cycle packaging machinery and automated assembly systems
- Printing and converting equipment with high-speed indexing requirements
- Medical device manufacturing and test automation
- Printing heads, spindles, and rotary motion in precision positioning
- Robotics and material handling with compliant or large-inertia loads
- Semiconductor and electronics manufacturing processes
- Food and beverage production lines requiring washdown protection
Compatibility & Replacements
Compatible With
- Kollmorgen ServoStar brushless amplifiers and drives
- Industrial servo control systems supporting resolver feedback
- CNC, motion control, and industrial automation PLCs
- Systems requiring 230 VAC single-phase motor input
- Servo-based machinery with point-to-point or continuous motion profiles
Replaces / Drop-In Replacement For
- This model is the base B-204 frame; verify specific variant requirements (suffix codes) before ordering as replacements
- Consult Kollmorgen’s cross-reference documentation or your system integrator for legacy motor model upgrades
- Common B-series alternatives: B-206 (medium-inertia), M-205 (medium-inertia variant)
Works With
- Kollmorgen brushless servo drives and motion controllers
- Resolver-based feedback and encoder-compatible servo amplifiers
- 230 VAC industrial power distribution systems
- Fail-safe brake modules and front-mounted gearhead options
- Custom shaft, keyway, and mounting configurations available through Kollmorgen engineering
