<h2>Overview</h2>

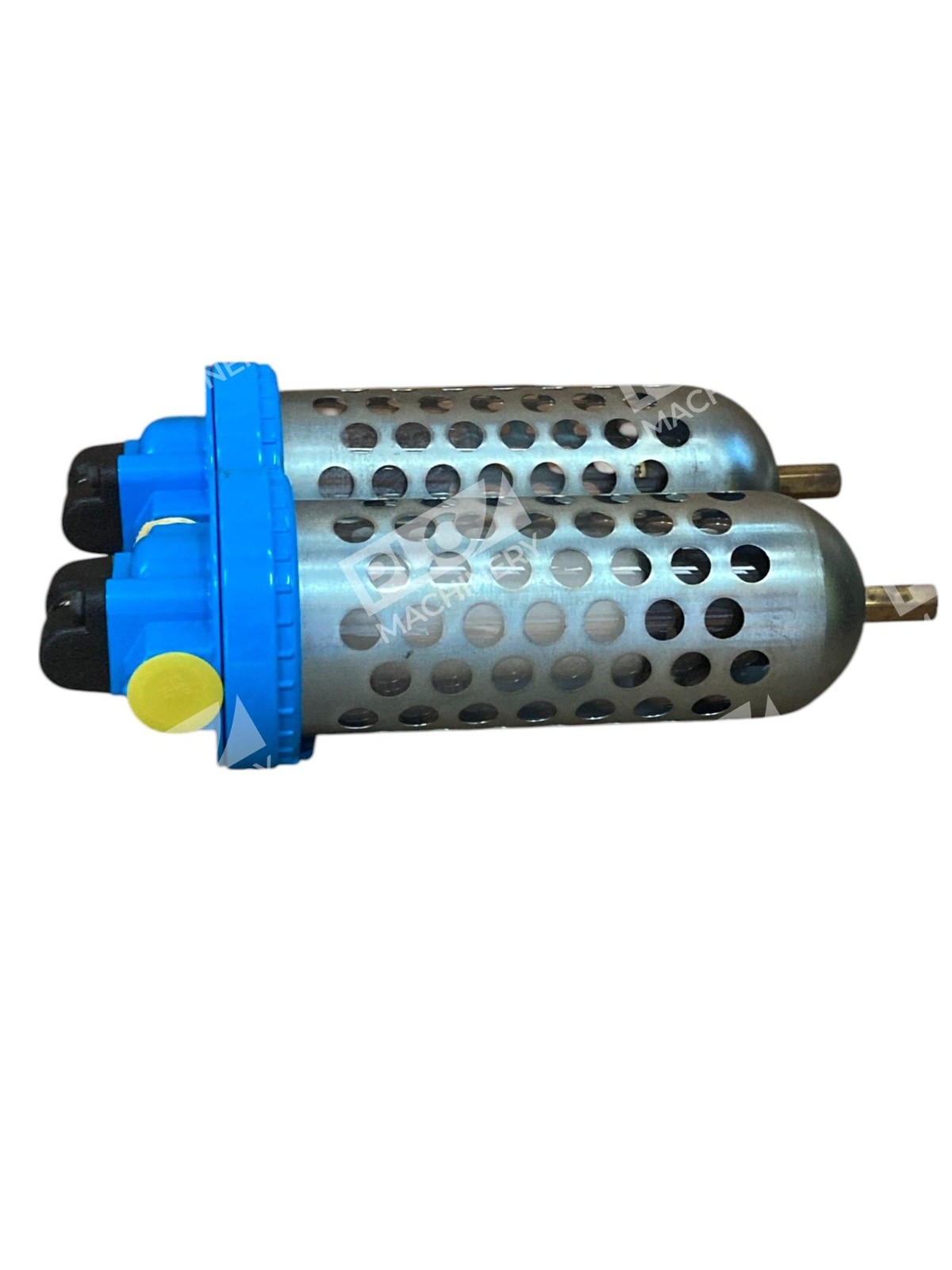

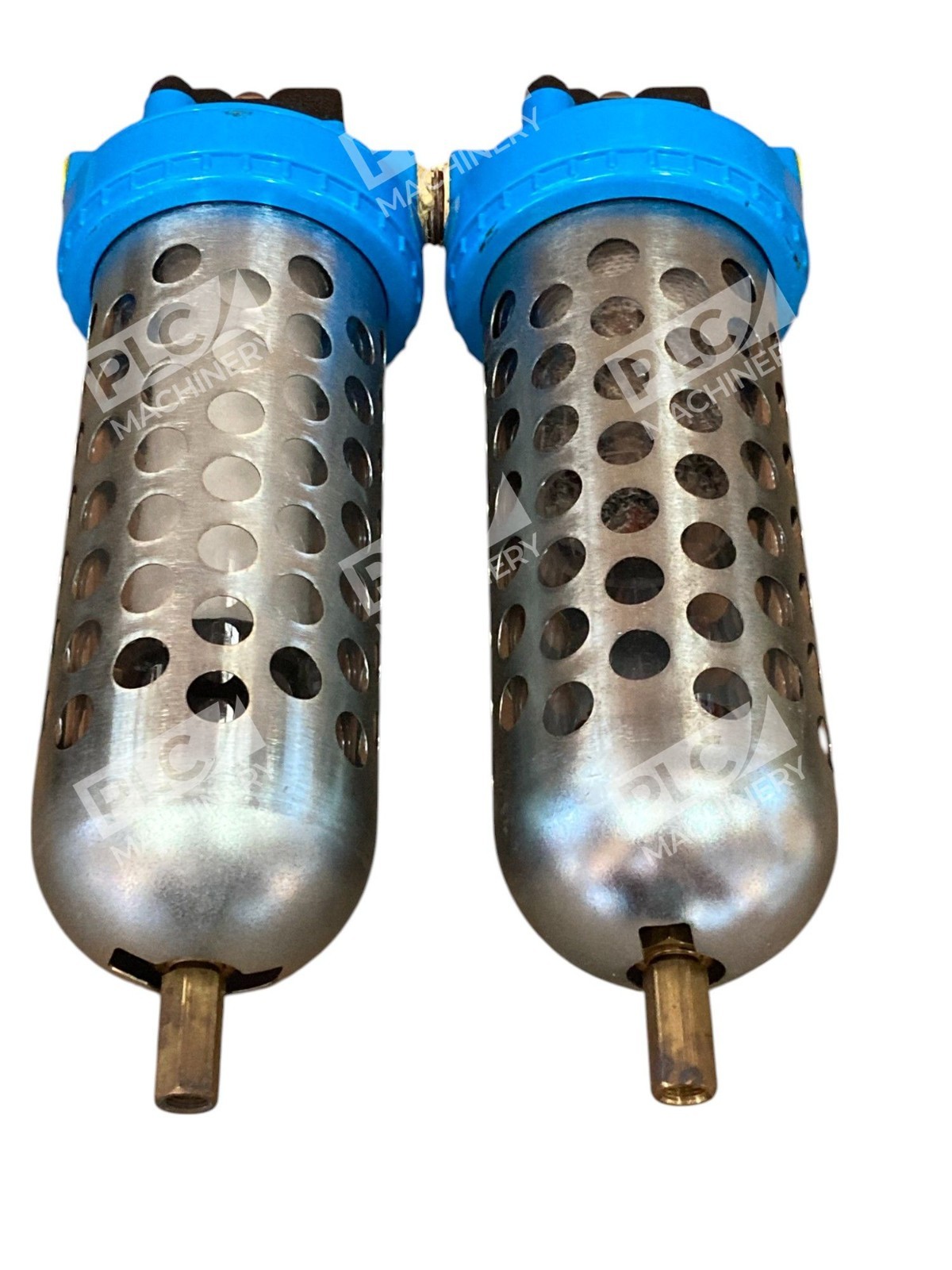

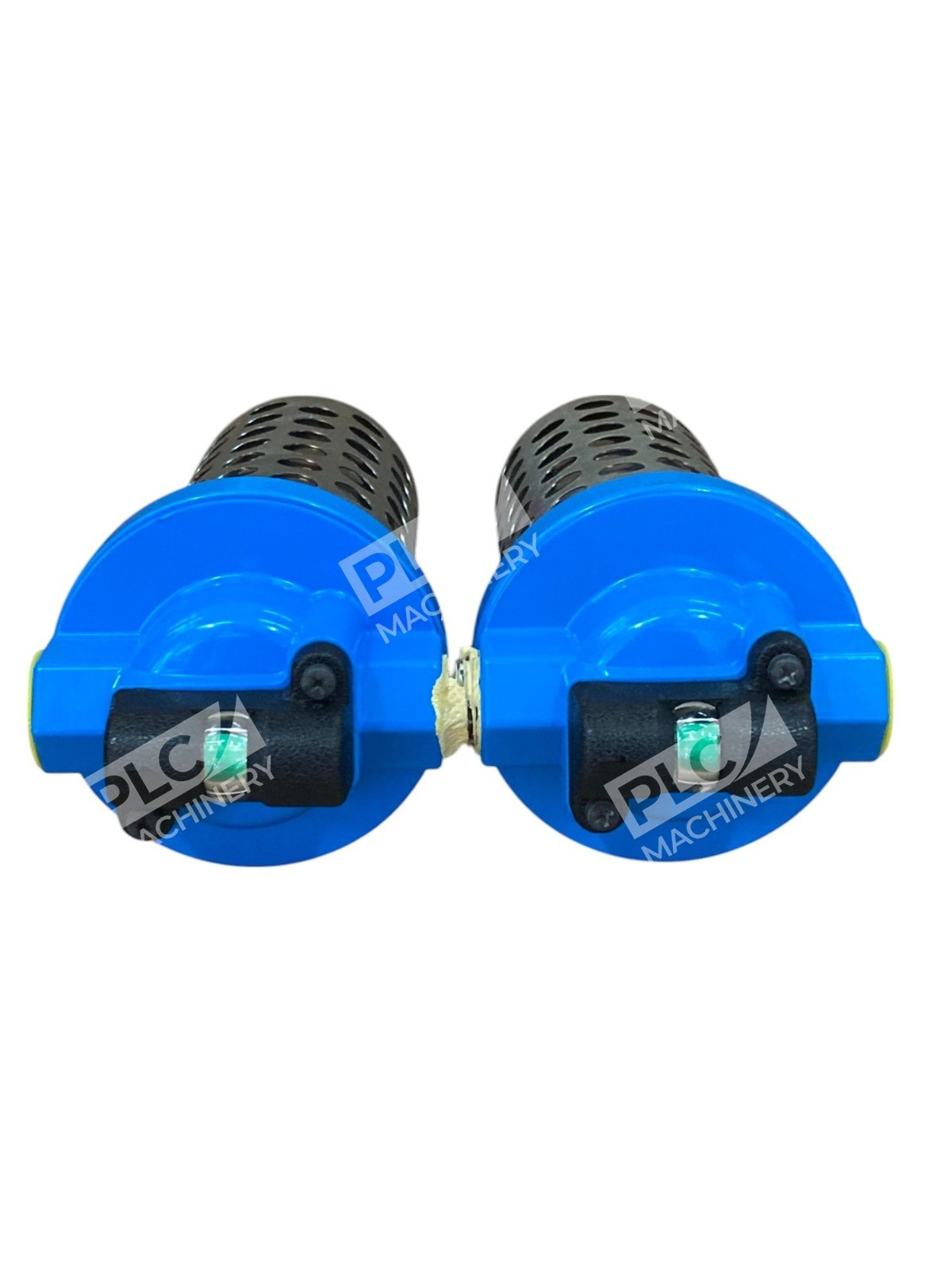

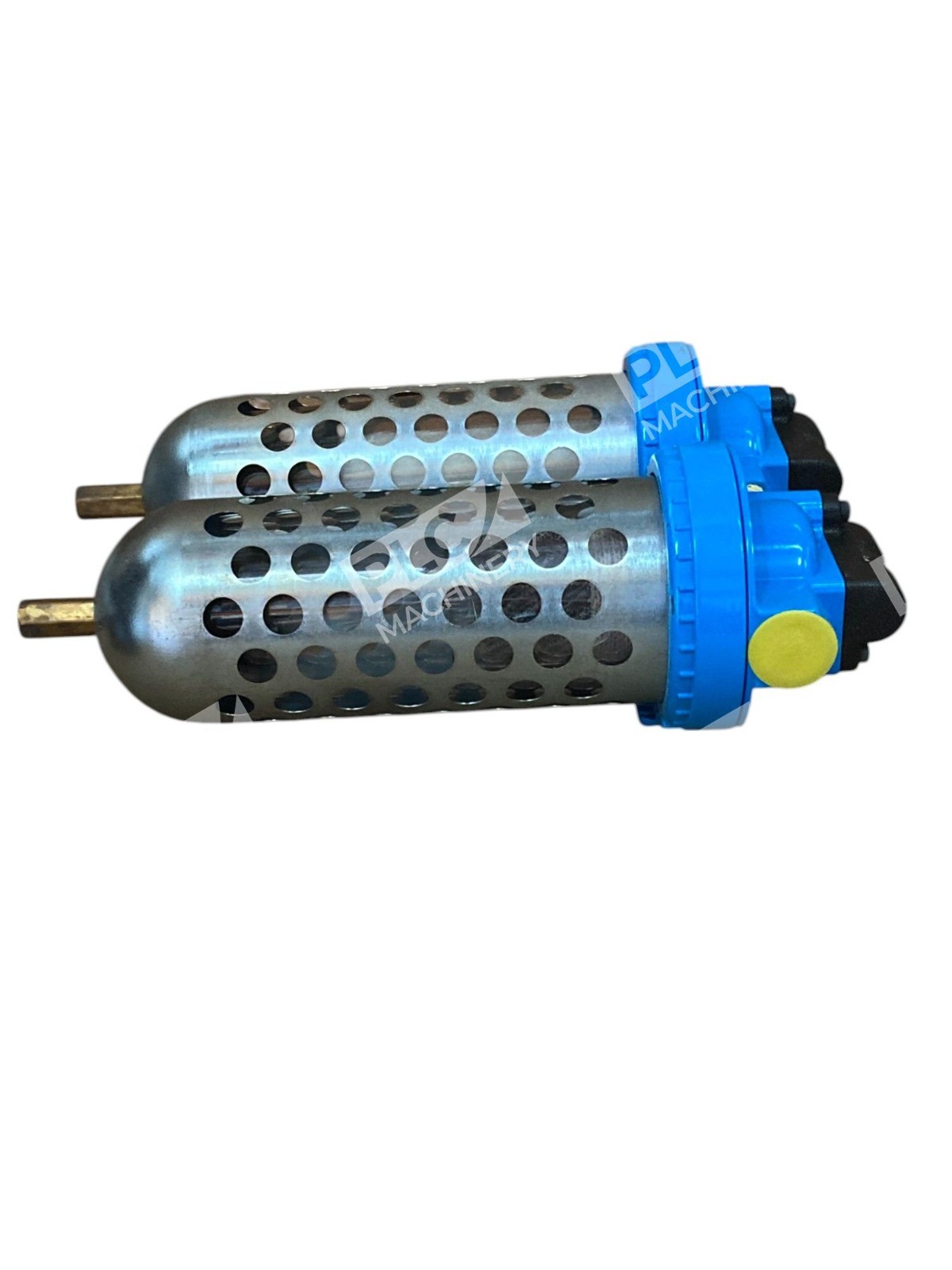

<p>The <strong>RTi Eliminizer 3P-060-P04-DCI</strong> is a proven two-stage pneumatic combination unit designed for industrial compressed air systems. This combo assembly integrates an Eliminizer filter-dryer with a high-efficiency coalescer stage to deliver ISO Class 1 air quality (particulate and oil). The unit uses RTi’s patented Inverse-Flow® technology with dual-stage filtration—stainless steel mesh and cotton/polyester packing—ensuring excellent capture of moisture, oil aerosols, and particulates down to 0.01 micron.</p>
<h2>Key Features</h2>
<ul>
<li>Two-stage design combines filter-dryer and 0.01µm coalescer for superior contamination removal</li>
<li>99.99998% efficiency at 0.01 micron—ISO Class 1 Particulate/Oil certification</li>
<li>RTi Inverse-Flow® technology with stainless steel mesh and cotton/polyester filter media</li>

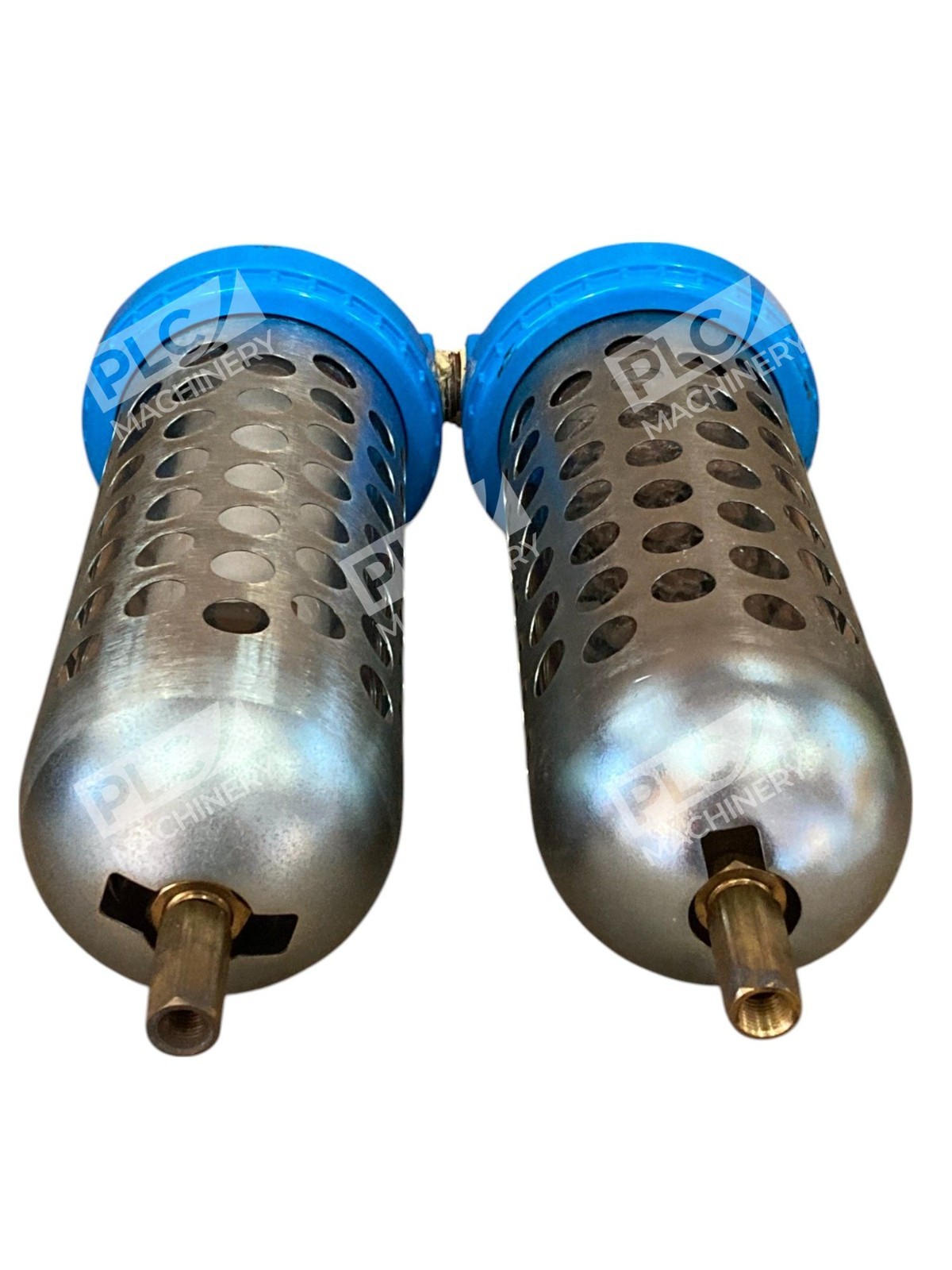

<li>Automatic float drain for hands-off condensate removal</li>

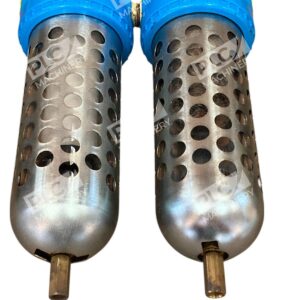

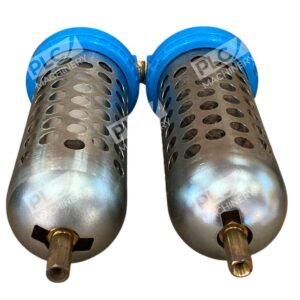

<li>Polycarbonate bowl with metal guard for visual inspection and impact resistance</li>
<li>Compact footprint—8.5″ W × 11.5″ H—suitable for point-of-use or main line mounting</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Flow Capacity:</strong> 60 SCFM @ 100 PSI</li>
<li><strong>Maximum Pressure:</strong> 150 PSIG</li>
<li><strong>Port Size:</strong> 1/2″ NPT (male)</li>
<li><strong>Filtration Rating:</strong> 0.01 micron (99.99998% efficiency)</li>
<li><strong>Air Quality Standard:</strong> ISO Class 1 Particulate/Oil</li>
<li><strong>Bowl Material:</strong> Polycarbonate with stainless steel hardware</li>
<li><strong>Drain Type:</strong> Automatic float drain</li>
<li><strong>Differential Pressure:</strong> < 3.0 PSID at rated flow</li>
<li><strong>Dimensions:</strong> 8.5″ W × 11.5″ H</li>
<li><strong>Operating Temperature:</strong> +125°F maximum</li>
<li><strong>Filter Media:</strong> Stainless steel mesh and cotton/polyester dual-stage</li>
</ul>
<h2>Typical Applications</h2>
<p>The 3P-060-P04-DCI is ideal for manufacturing, pneumatic tool operation, laboratory air supply, medical gas systems, and any process requiring clean, dry ISO Class 1 compressed air. Its dual-stage design excels in applications where both liquid water removal and fine oil mist elimination are critical, including automotive spray systems, food and beverage processing, electronics assembly, and precision instrumentation networks.</p>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Standard compressed air lines with 1/2″ NPT male threaded connections</li>
<li>Pneumatic systems operating 60–150 PSIG</li>
<li>RTi filter element replacement cartridges (standard size)</li>
<li>ISO 1217 certified pneumatic compressor networks</li>
<li>Manual and automated condensate management systems</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<ul>
<li>RTi 3P-060-P04-P (Eliminizer filter-dryer without coalescer stage)</li>
<li>Earlier generation RTi combo units with similar 60 SCFM/150 PSIG ratings</li>
<li>Verify exact compatibility with system integrator before ordering alternate models.</li>
</ul>
<h3>Works With</h3>
<ul>
<li>RTi replacement filter cartridges and coalescer elements</li>
<li>Standard pneumatic plumbing (hose, tubing, fittings) with 1/2″ NPT ports</li>
<li>Compressed air quality monitoring equipment (differential pressure gauges, oil-in-air indicators)</li>
<li>Downstream pneumatic tools and equipment requiring ISO 1 air</li>
</ul>
