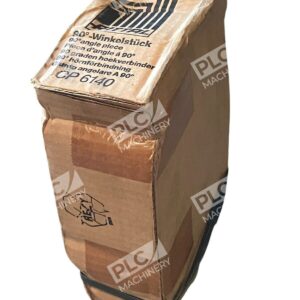

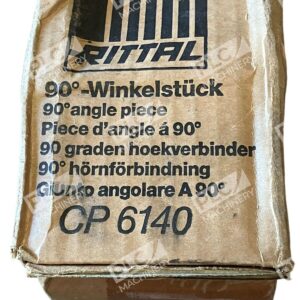

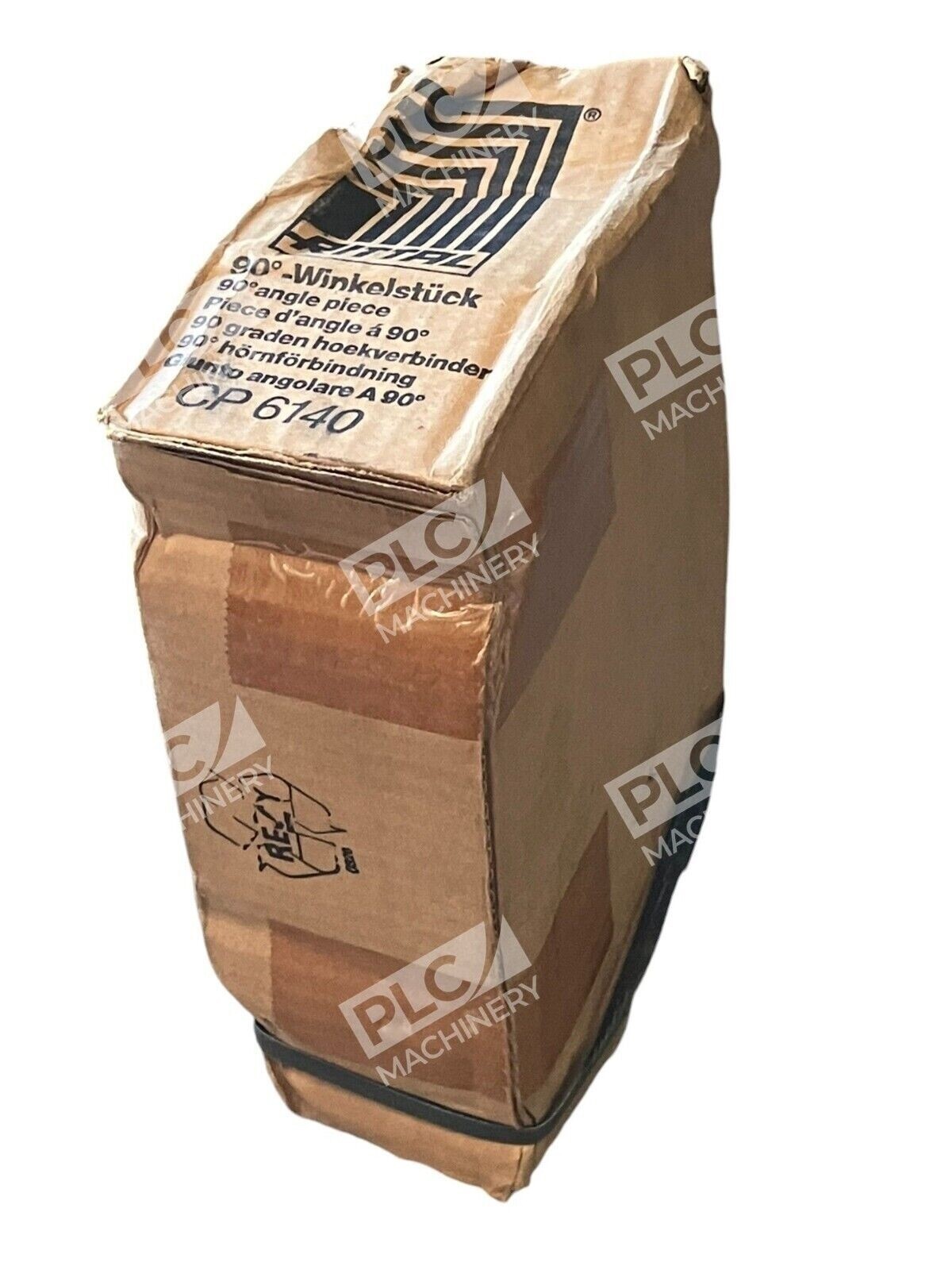

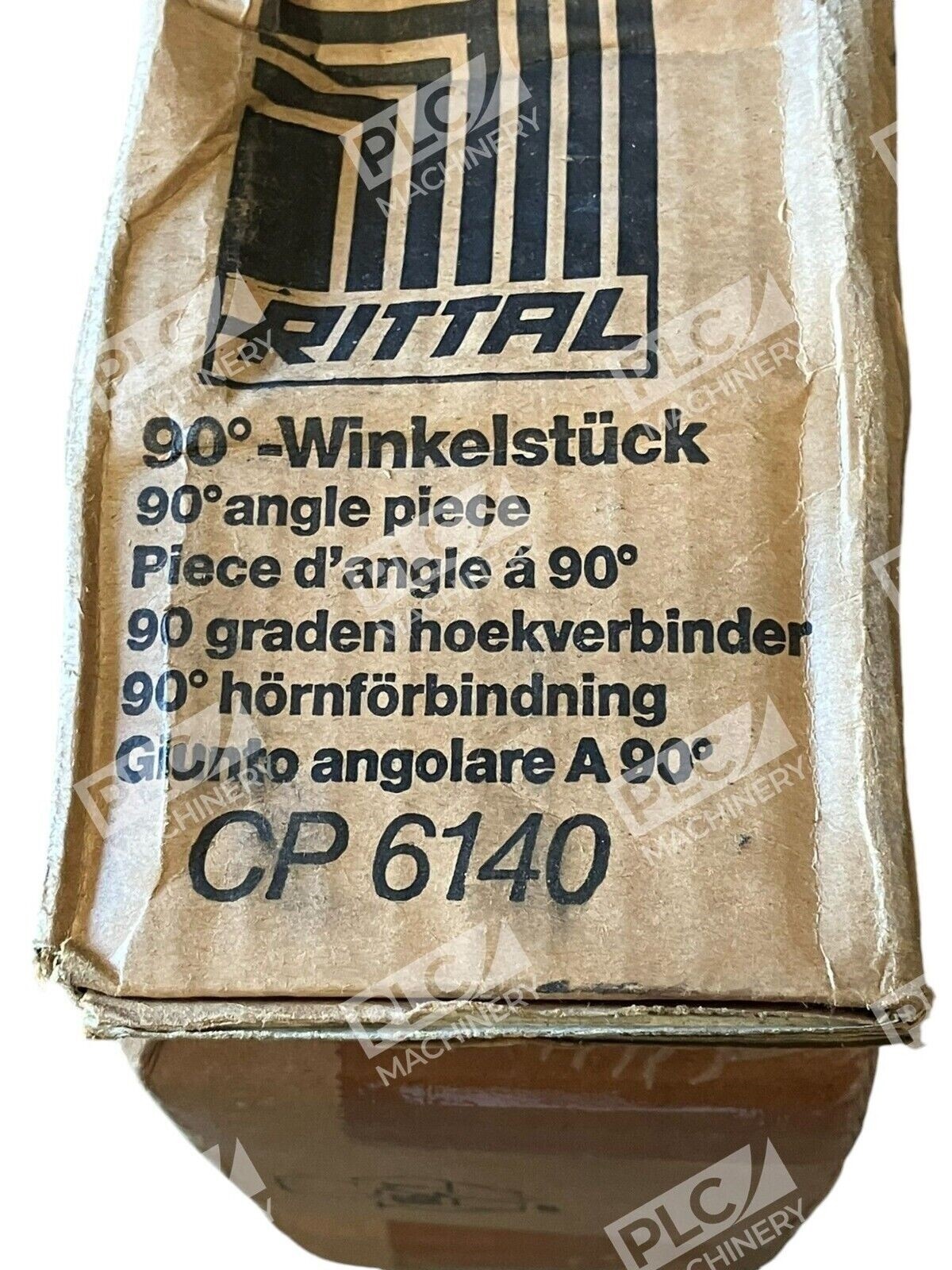

Rittal CP-6140 — a 90-degree angle piece accessory for the Rittal CP support arm system. This component enables the connection of horizontal and vertical support arm sections in industrial enclosure and control panel applications.
Overview
The Rittal CP-6140 angle piece is part of Rittal’s modular support arm system, designed for routing and organizing cables and support structures within industrial control environments. The 90-degree geometry allows installers to change direction while maintaining structural integrity and cable organization. This accessory is essential for flexible system layouts and space-constrained installations.
Key Features
- 90-degree angle configuration for horizontal-to-vertical transitions
- Compatible with Rittal CP series support arm systems
- Modular design enables customizable system configurations
- Removable cover design for simplified cable routing and maintenance access
- Durable construction rated for static load applications
- Includes seals and fastening hardware
Technical Specifications
- Component Type: 90-degree angle piece
- Series: Rittal CP Support Arm System
- Material: Cast aluminum with plastic cover
- Color: RAL 7035 (angle piece), RAL 7024 (cover)
- Load Rating: Suitable for static loads in cable management applications
- Hardware Included: Seals, adjusting screws, self-tapping fasteners
- Removable Cover: Yes — for easy cable entry and maintenance
Typical Applications
- Industrial control panels and electrical enclosures
- Cable routing and support arm system layouts
- Factory automation equipment installations
- Machinery guard rails and support structures
- DIN rail and mounting system configurations
Compatibility & Replacements
Compatible With
- Rittal CP series support arm system components
- Rittal modular enclosure and panel systems
- Standard industrial cable management installations
- DIN-mounted and wall-mounted support configurations
Replaces / Drop-In Replacement For
- Original equipment manufacturer angle pieces in CP series support systems
- Verify compatibility with your system integrator or installer before ordering
Works With
- Rittal support arm sections (CP 40, CP 60, CP 120, CP 180)
- Rittal enclosure accessories and mounting hardware
- Industrial cable management and routing systems
- Standard industrial mounting standards and practices
