Overview

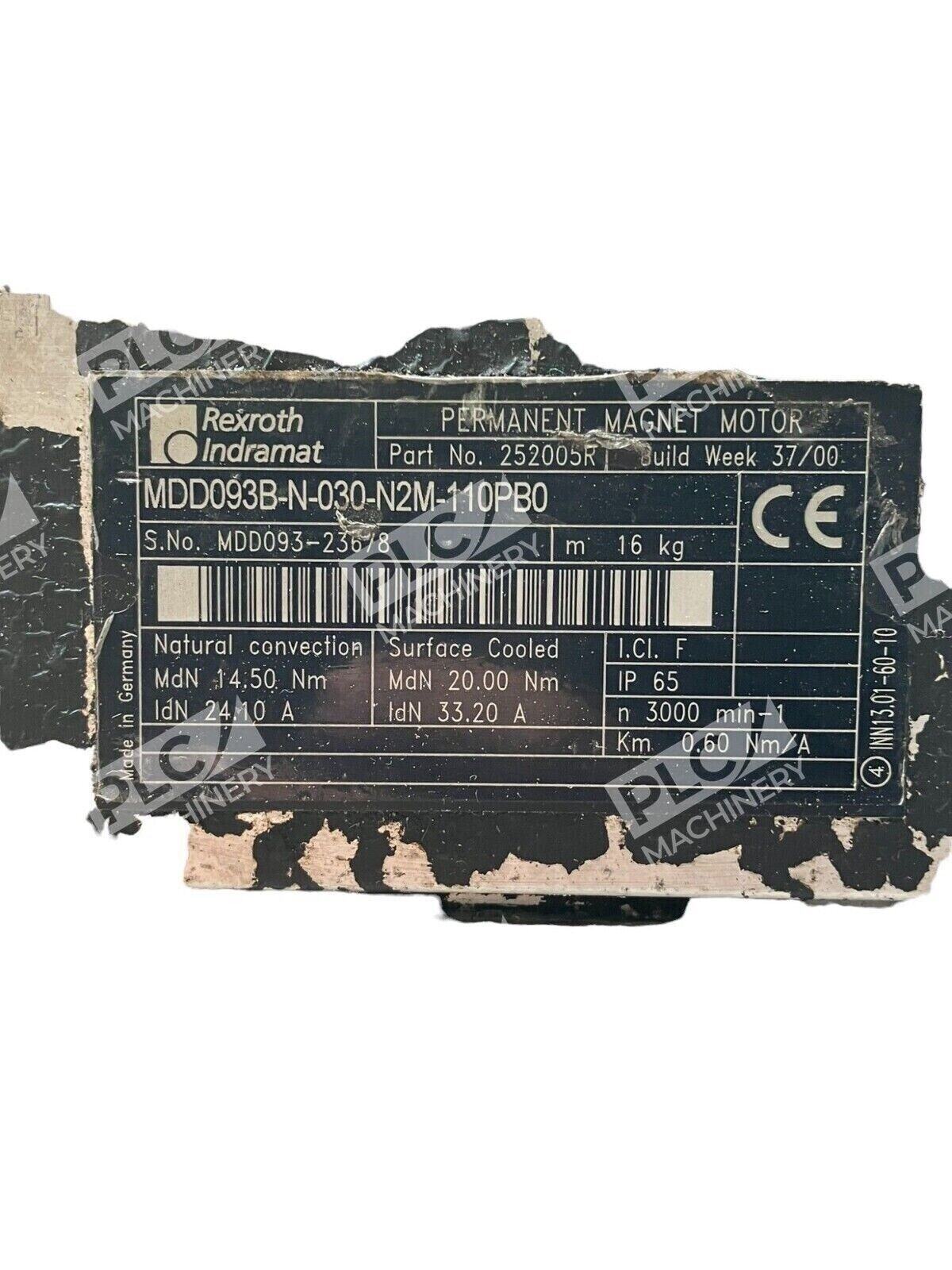

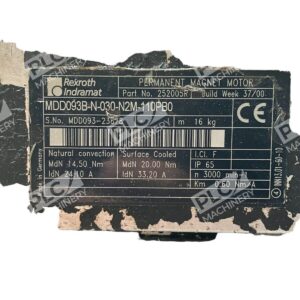

The Rexroth MDD093B-N-030-N2M-110PB0 is a precision permanent magnet, digital AC servo motor manufactured by Bosch Rexroth Indramat. Part of the proven MDD synchronous motor series, this unit delivers consistent 14.5 Nm continuous torque at standstill with a 3000 min nominal speed. Its integrated multiturn absolute encoder and digital servo feedback system enable repeatable, high-accuracy motion control without requiring a separate incremental encoder.
Key Features
- 14.5 Nm continuous torque at standstill with high power density
- Digital servo feedback with integrated multiturn absolute encoder
- Electronic commutation design eliminates brushes, reducing mechanical wear and maintenance

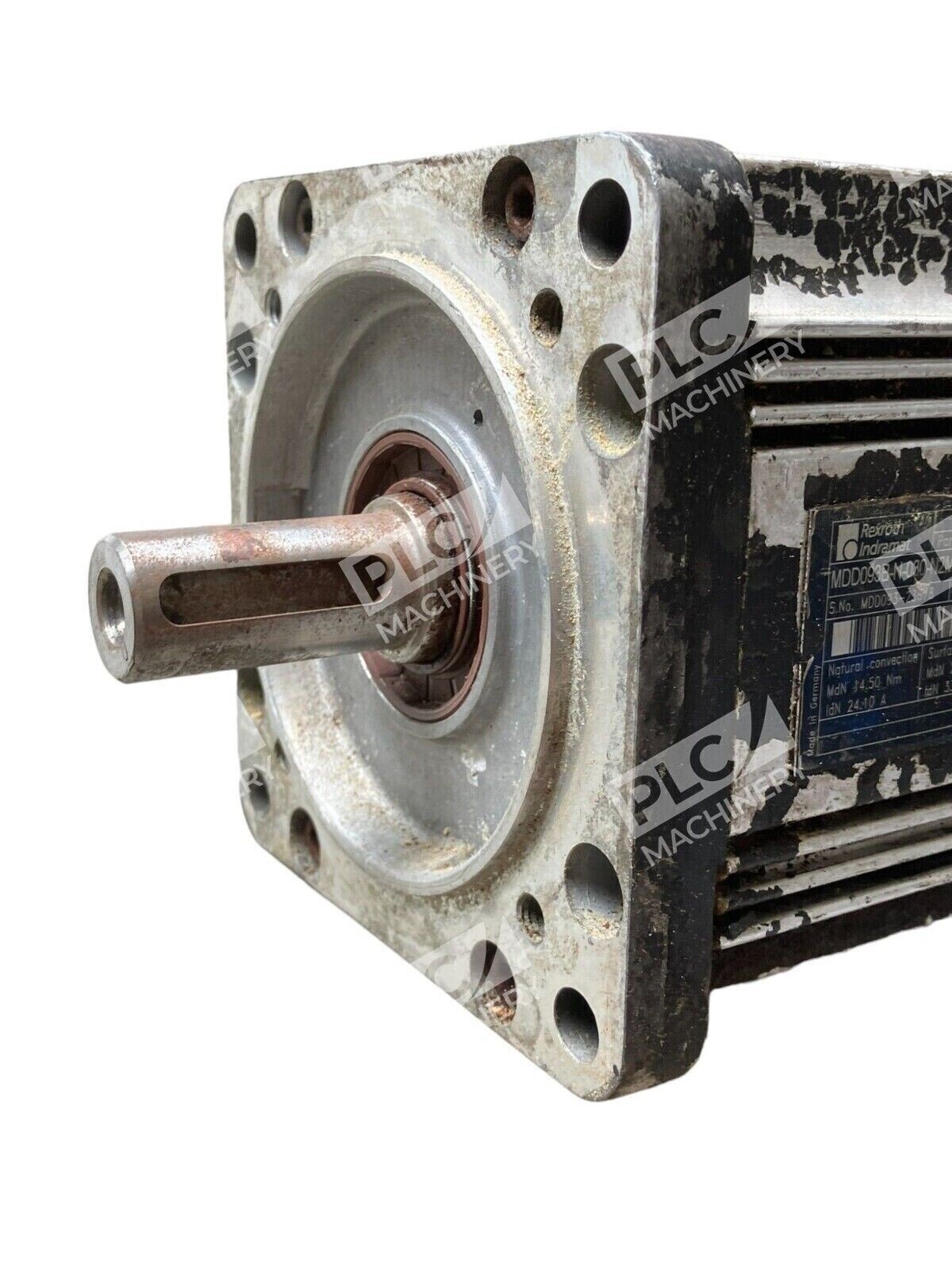

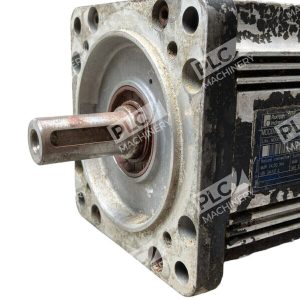

- Keyway output shaft with 110 mm centering diameter for standard coupling interfaces

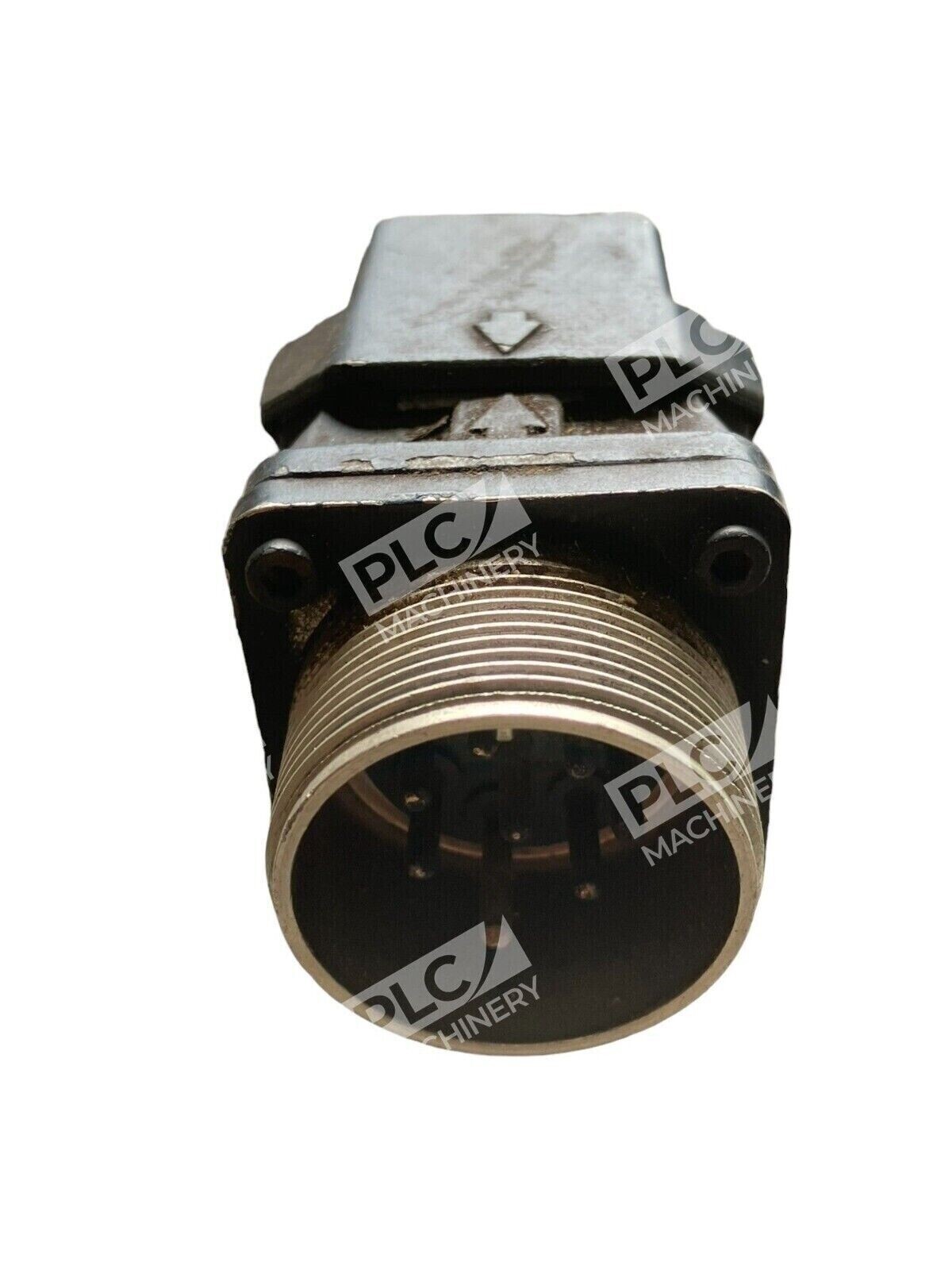

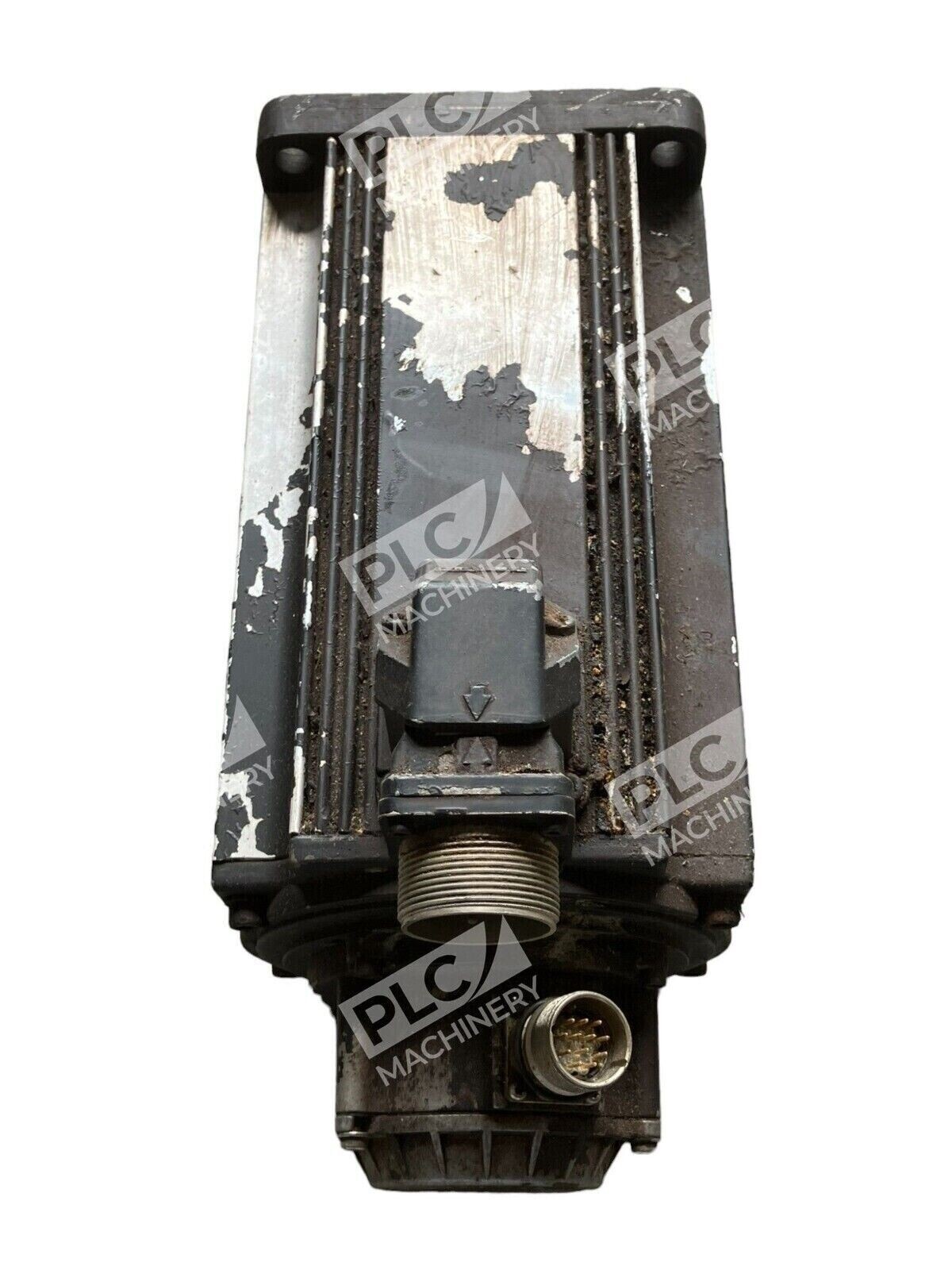

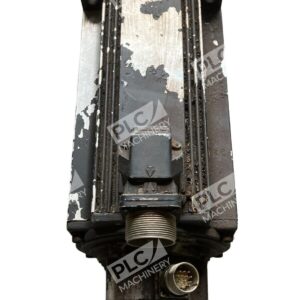

- Side B connector for straightforward integration with Rexroth Indramat digital drive controllers
- Class F insulation rated to 155°C with built-in temperature monitoring for safe operation
- DIN 40050 protection housing safeguards against moisture and contaminants
- No blocking brake — standard housing configuration for cost-effective deployment
- Greased lubricated bearings extend operational life and minimize downtime
Technical Specifications
- Motor Type: Digital AC servo motor, permanent magnet
- Continuous Torque: 14.5 Nm at standstill
- Nominal Speed: 3000 rpm
- Centering Diameter: 110 mm
- Output Shaft: Keyway (DIN 6885-1)

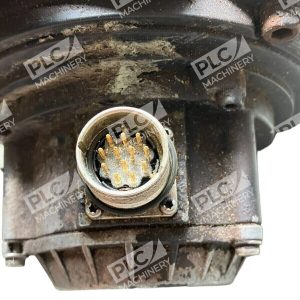

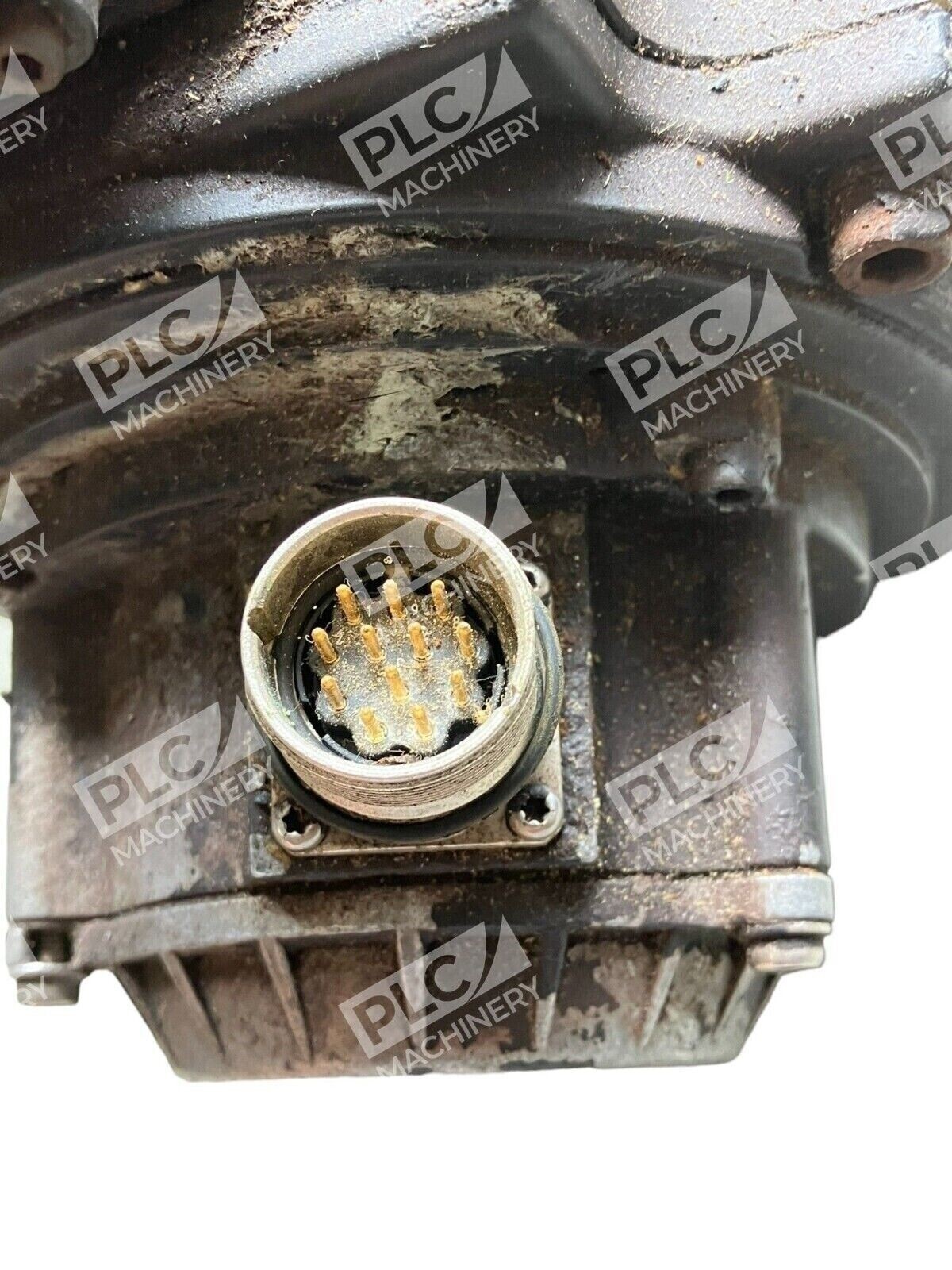

- Feedback System: Multiturn absolute encoder (digital servo feedback)
- Brake Equipped: No (none)
- Power Connector: Side B (flanged socket)
- Insulation Class: F (rated to 155°C)
- Protection Rating: DIN 40050 compliant
- Bearing Type: Greased lubricated
- Thermal Time Constant: 50 minutes
- Operating Temperature Range: 0°C to +45°C
- Storage Temperature Range: −20°C to +80°C
- Max. Installation Height: 1000 m above sea level
- Cooling Method: Natural convection and surface cooling
Typical Applications
Rexroth MDD093B servo motors excel in high-precision, dynamic automation tasks:
- Packaging machinery: precise film feeds, label placement, carton handling
- Printing equipment: roller feeds, color registration, tool changing
- Textile processing: yarn tension control, web handling
- Metal fabrication: punch press feeds, nibbling machines, roller feeds
- Robotics and handling systems: arm servo, tool changer drives, positioning
- Transfer equipment: inline product transfers with high contouring accuracy
The motor’s electronic commutation, low inertia, and digital feedback deliver the fast response times and precision required for competitive feed rates and tight tolerances.
Compatibility & Replacements
Compatible With
- Bosch Rexroth Indramat DCS drive controllers
- Rexroth Indramat digital servo drive systems with Side B connector interface
- MDD series multi-axis motion control systems
- Standard industrial 3-phase AC power supplies (consult drive controller specs)
- Machines designed for MDD093B frame size and 110 mm centering diameter
Replaces / Drop-In Replacement For
- MDD093A-N-030-N2M-110PB0 (earlier generation MDD series, verify torque curves)
- Verify specific predecessor models with your system integrator; frame compatibility required
Works With
- Indramat digital servo feedback protocols (absolute encoder multiturn)
- Rexroth motion control software and commissioning tools
- Standard industrial couplings (keyway interface, DIN 6885-1)
- Third-party motion controllers supporting Indramat-compatible encoder feedback (consult drive manufacturer)
