Overview

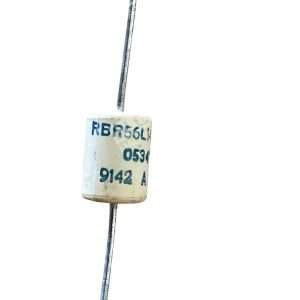

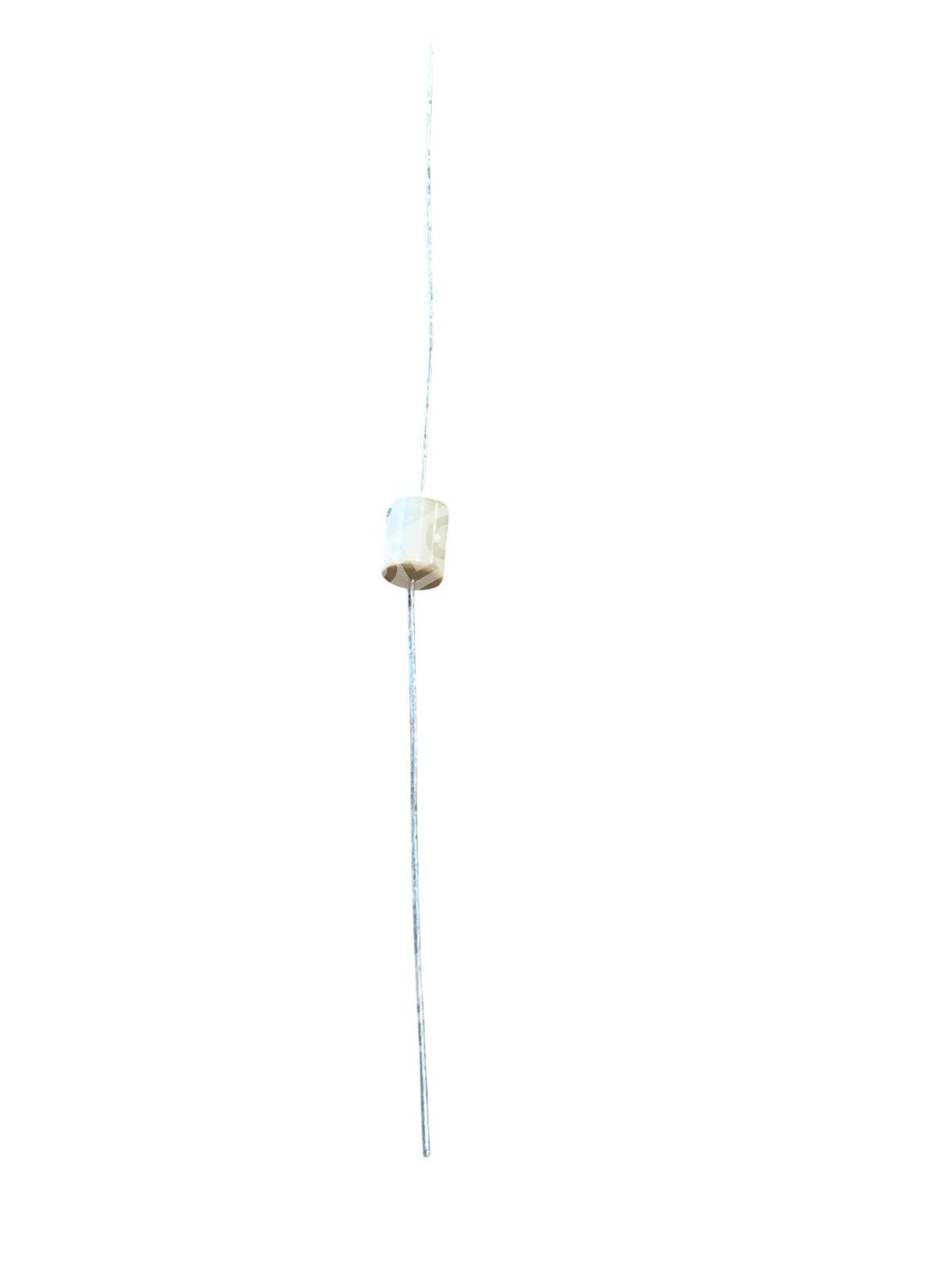

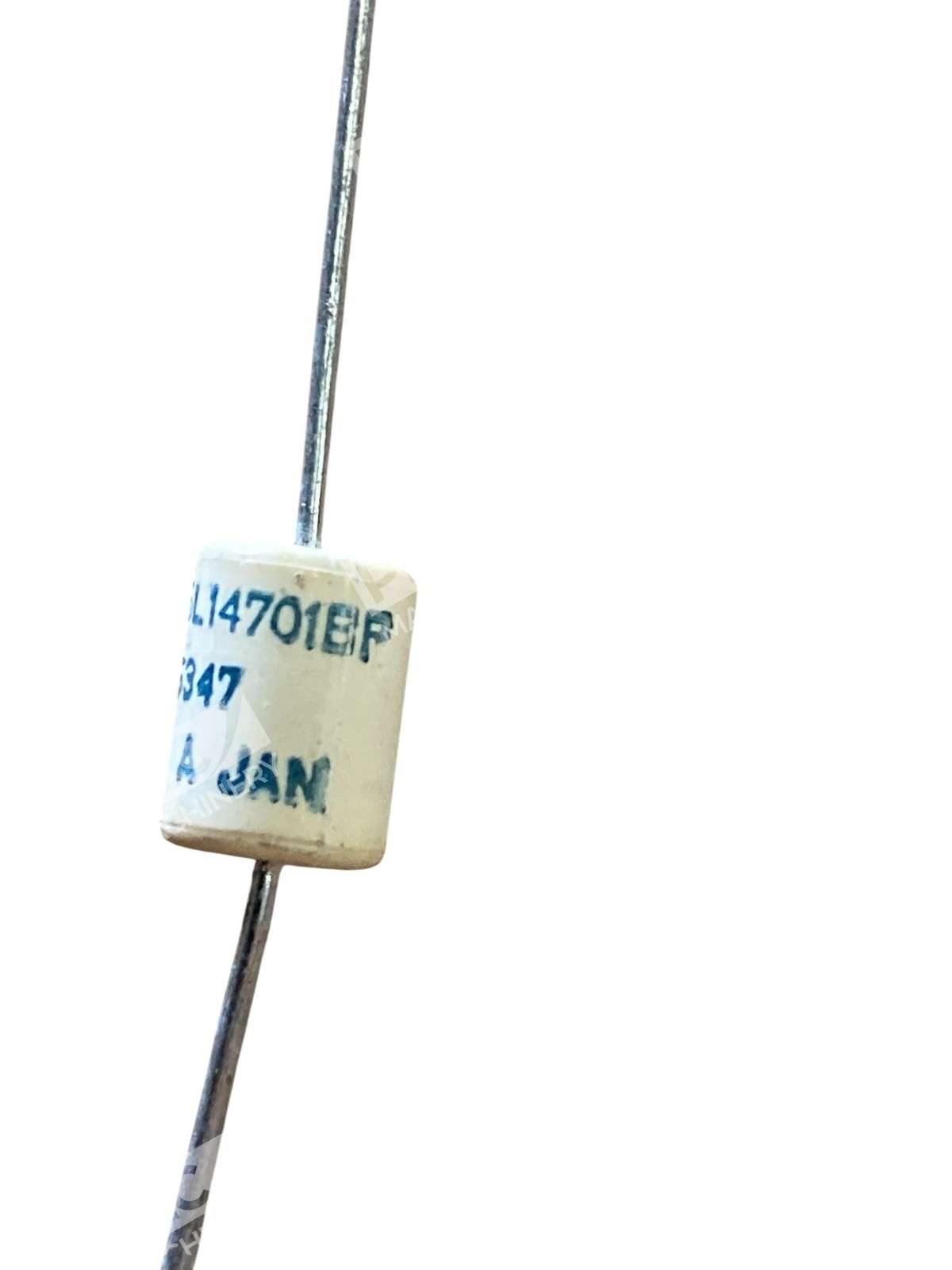

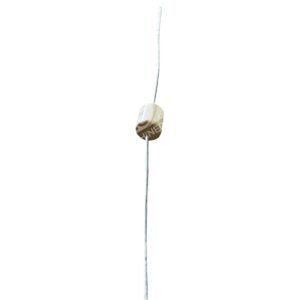

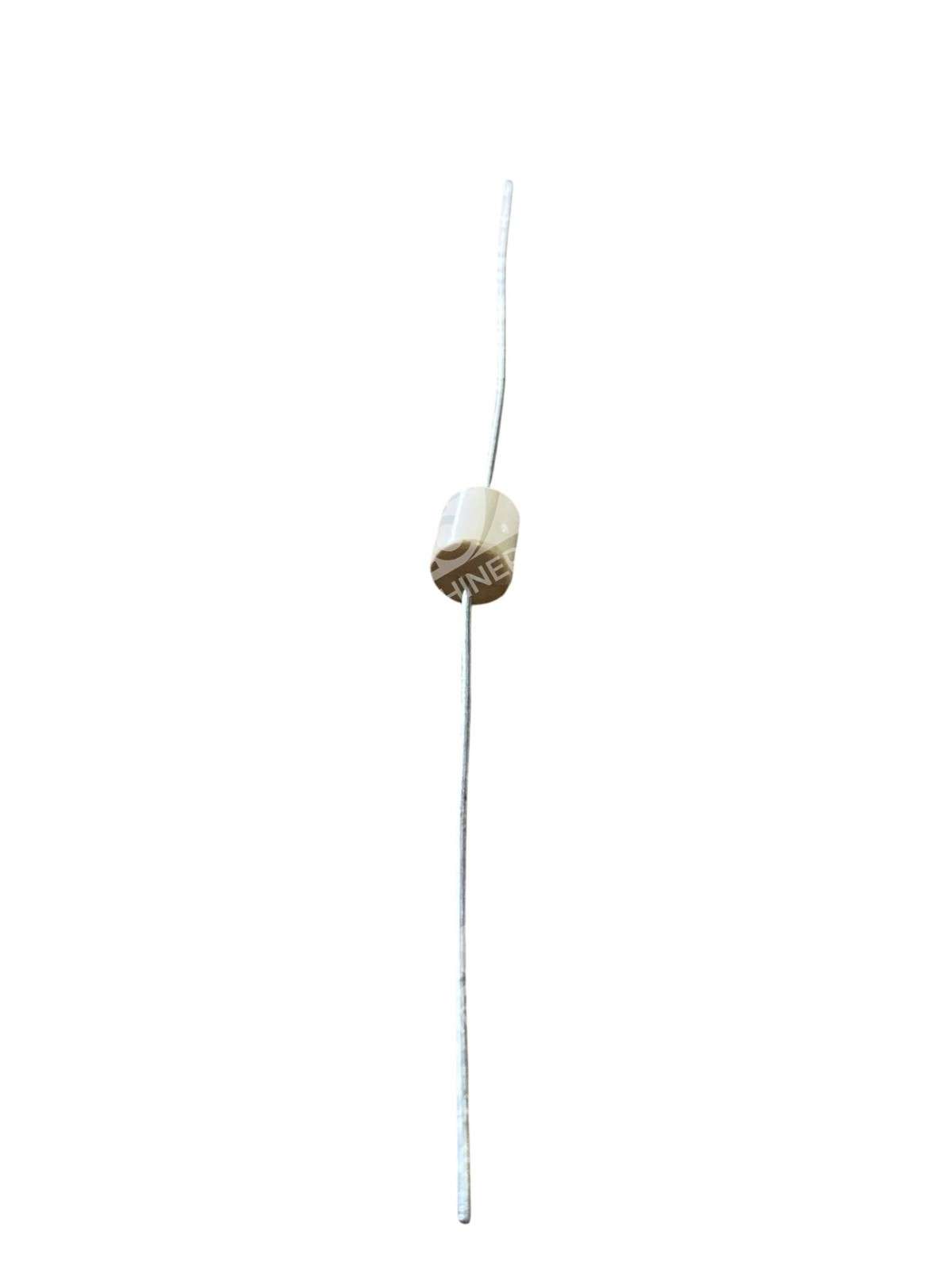

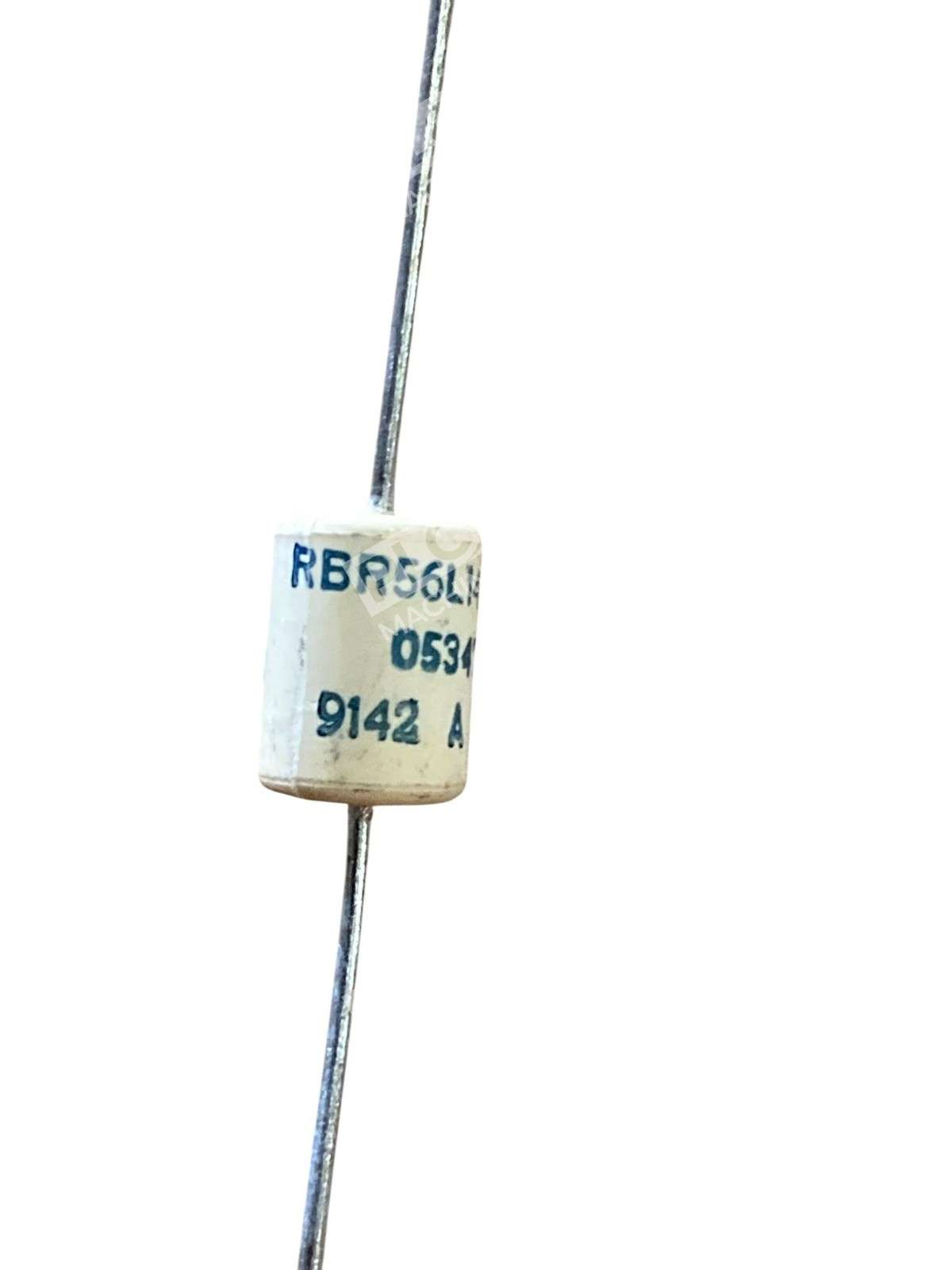

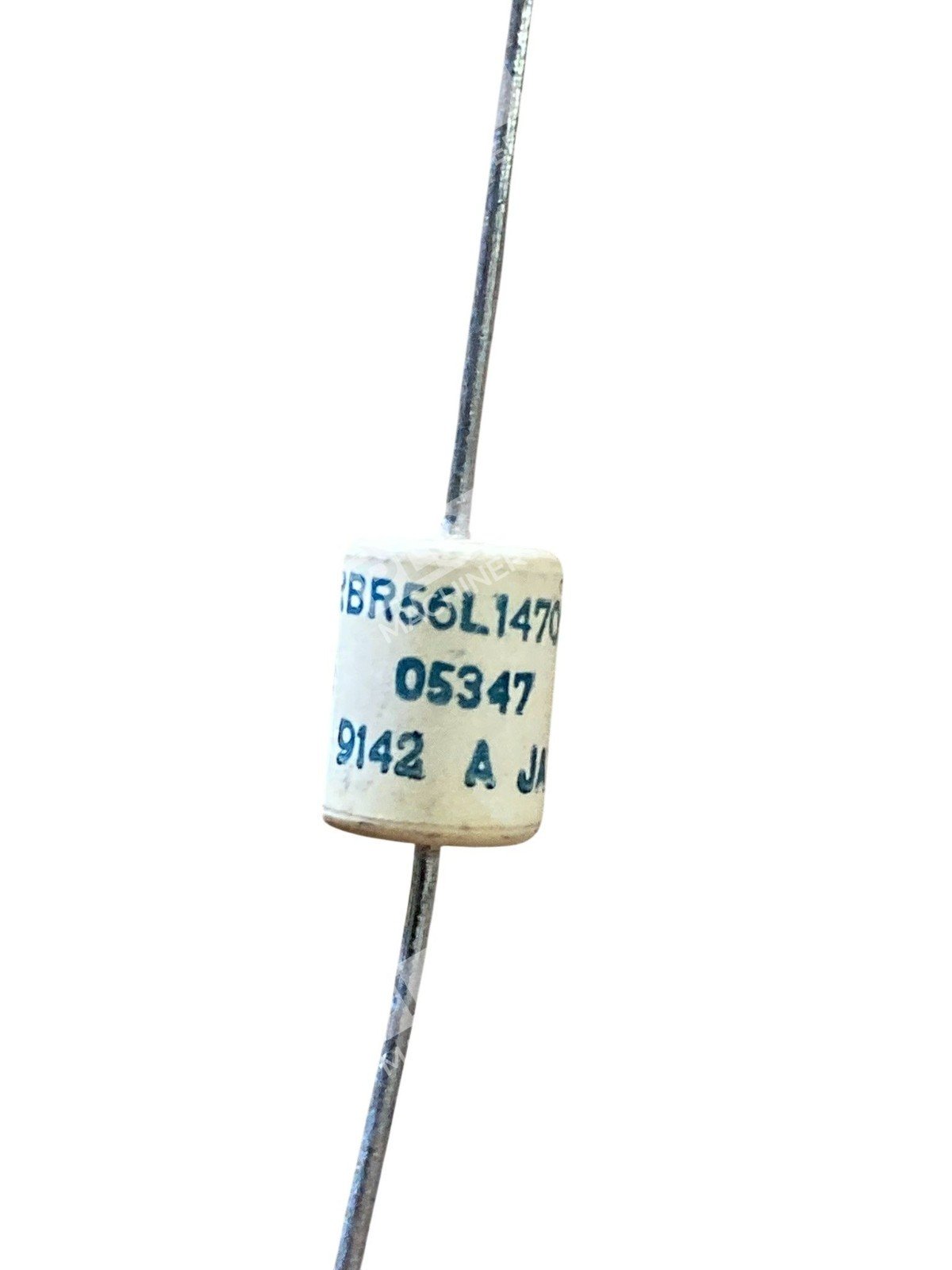

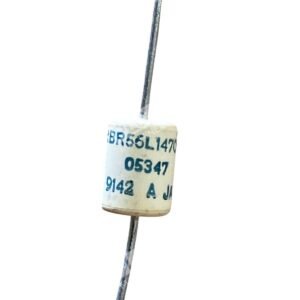

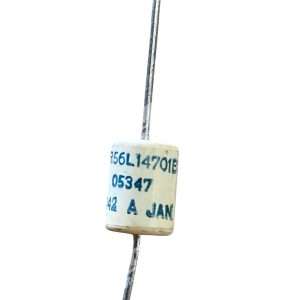

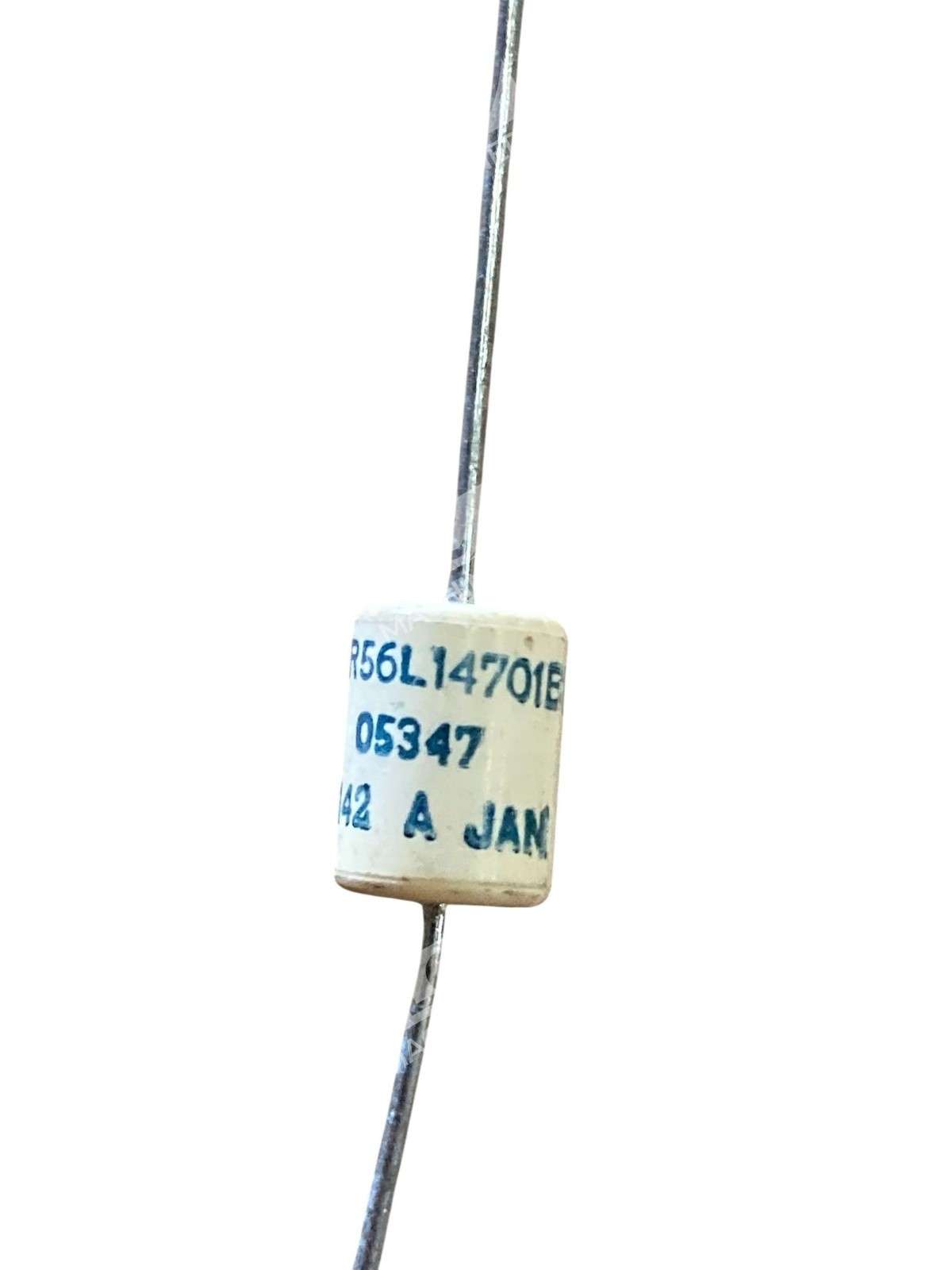

The RBR56L14701BP is an axial lead precision wirewound resistor built to MIL-Spec standards. This component delivers high stability and accurate resistance values required in precision circuits, test equipment, and control systems. The RBR56L14701BP is engineered for applications where resistance accuracy and long-term stability are critical.
Key Features
- Axial lead termination for standard PCB mounting
- MIL-Spec rated for aerospace, defense, and industrial applications
- High precision tolerance and low temperature coefficient of resistance (TCR)
- Welded internal construction for reliability and stability
- Protective epoxy coating for environmental protection
- Bulk available in quantities for system integration
Technical Specifications
Detailed specifications for the RBR56L14701BP can be found in the manufacturer’s MIL-Spec datasheet. Key operating parameters include axial lead geometry, hermetic sealing for moisture protection, and temperature range suitable for industrial and aerospace environments. Resistance value, tolerance, temperature coefficient, and power rating are encoded in the part number suffix and should be verified against the official datasheet for your specific application.
Typical Applications
- Precision measurement instruments and test equipment
- Aerospace and defense electronics
- Industrial control systems and PLC circuits
- Data acquisition systems requiring stable reference resistances
- Temperature compensation circuits
- Current-limiting and load-balancing networks
Compatibility & Replacements
Compatible With
- Standard PCB layouts with axial component footprints
- Through-hole soldering processes
- Precision analog circuits and measurement systems
- Industrial control and automation equipment
Replaces / Drop-In Replacement For
The RBR56L14701BP is a specific variant within the RBR56L series. For direct replacement confirmation, verify the resistance value, tolerance, and power rating against your original component specification. Consult the MIL-Spec datasheet to confirm interchangeability with related RBR56L variants.
Works With
- Standard PCB assembly equipment and wave soldering
- Axial component insertion and placement machines
- Epoxy and solder-compatible mounting methods
- Industrial test and measurement instrumentation
