Overview

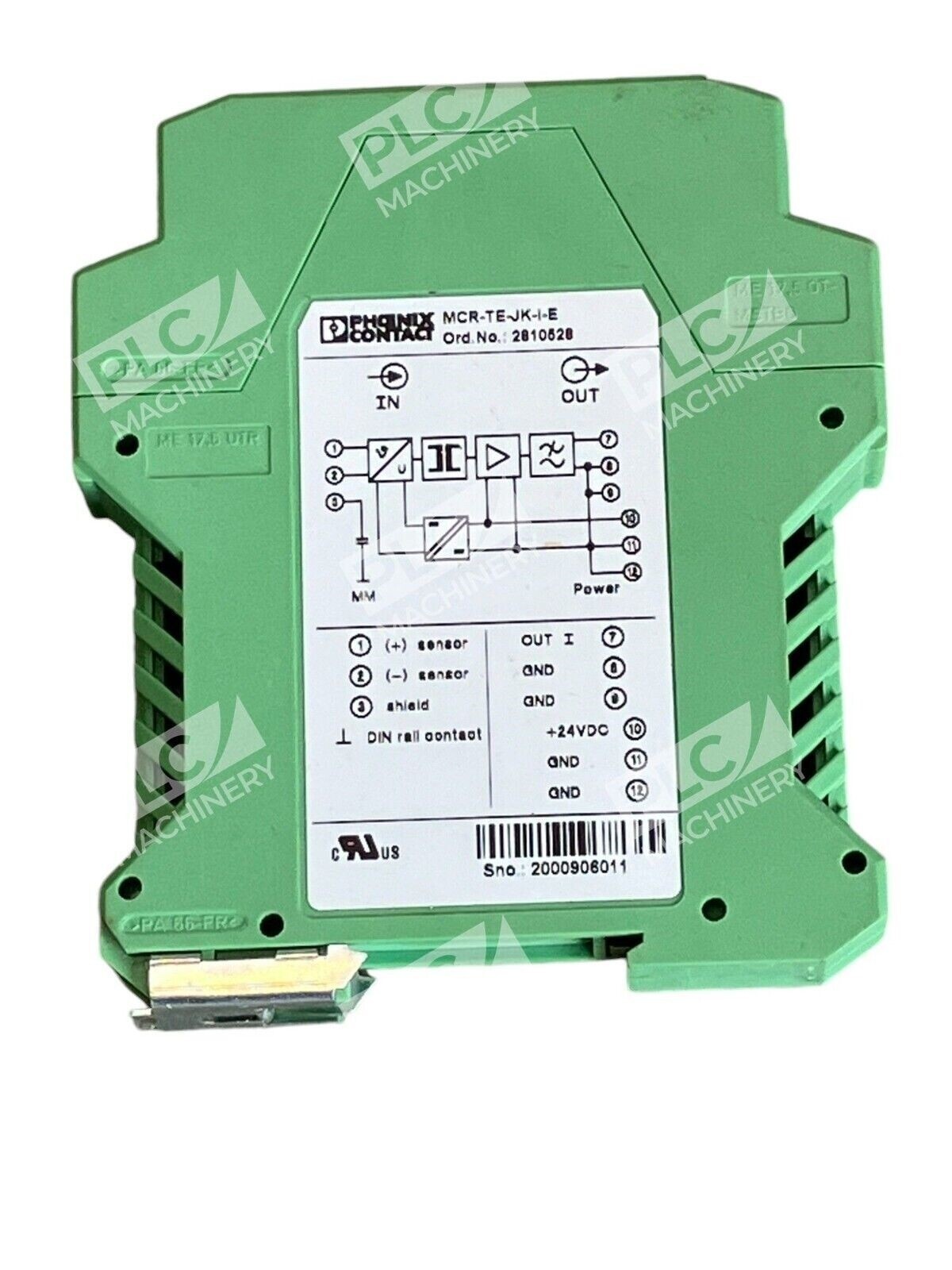

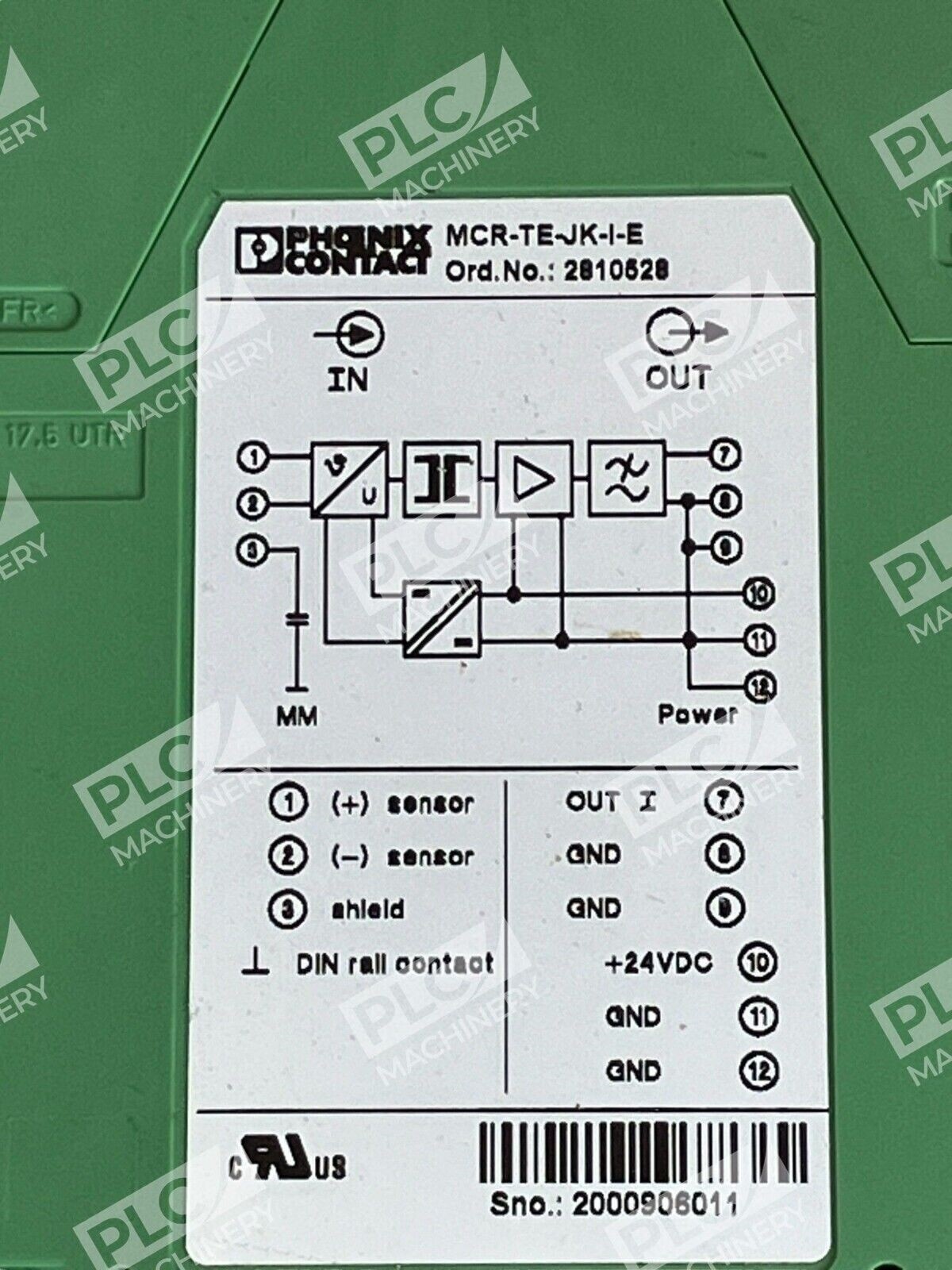

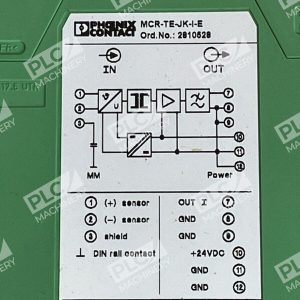

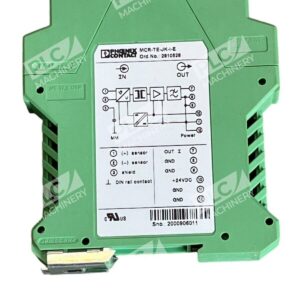

The Phoenix Contact MCR-TE-JK-I-E (part number 2810528) is a precision thermocouple measuring transducer designed to convert Type J and K thermocouple signals into standardized 4–20 mA analog current output. This device ensures precise temperature monitoring and control in industrial applications by providing electrically isolated output signals, enhancing system safety and reliability. The module supports multiple fixed temperature ranges and is ideal for OEM equipment, process control systems, and industrial monitoring applications requiring signal conditioning and isolation.
Key Features
- Input for thermocouples type J, K with selectable ranges: 0–400°C, 0–800°C, 0–1000°C, 0–1200°C
- Electrically isolated input with output signal 0(4)–20 mA
- Compact design with 17.5 mm width for efficient control panel integration
- Electrical isolation between input and output reduces noise and interference
- Transmission error ≤1.2% of end value for Type K; up to 2.5% for Type J depending on temperature range
Technical Specifications
The MCR-TE-JK-I-E provides robust industrial-grade performance with the following electrical and physical characteristics:
Typical Applications
- Process heating and furnace temperature control
- Kilns, ovens, and high-temperature industrial processes
- HVAC systems and thermal monitoring
- Food processing and batch heating applications
- Manufacturing equipment with thermocouple inputs
- DCS and PLC-based monitoring systems requiring 4–20 mA analog input cards
Compatibility & Replacements
Compatible With
- Any industrial controller with 4–20 mA analog input capability (PLCs, DCS, data acquisition systems)
- Type J and Type K thermocouple sensors (standard industrial thermocouples)
- 24 VDC control systems requiring analog temperature transducers
- Standard DIN rail or surface mounting in control enclosures
Replaces / Drop-In Replacement For
- MCR-TE-JK-I (non-isolated variant, part 2810544) — verify isolation requirements before substitution
- MCR-TE-JK-U-E (0–10 V output variant, part 2810515) — requires different analog input module
Works With
- Allen-Bradley CompactLogix and ControlLogix analog input modules
- Siemens S7-1200, S7-1500 with analog input cards
- Mitsubishi MELSEC with 4–20 mA input modules
- Omron CJ-series PLCs with analog input units
- Any DCS with standard 4–20 mA signal conditioning
