Overview

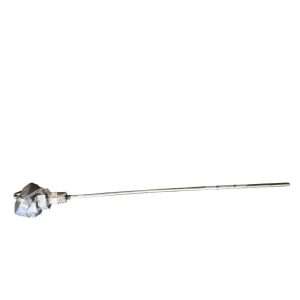

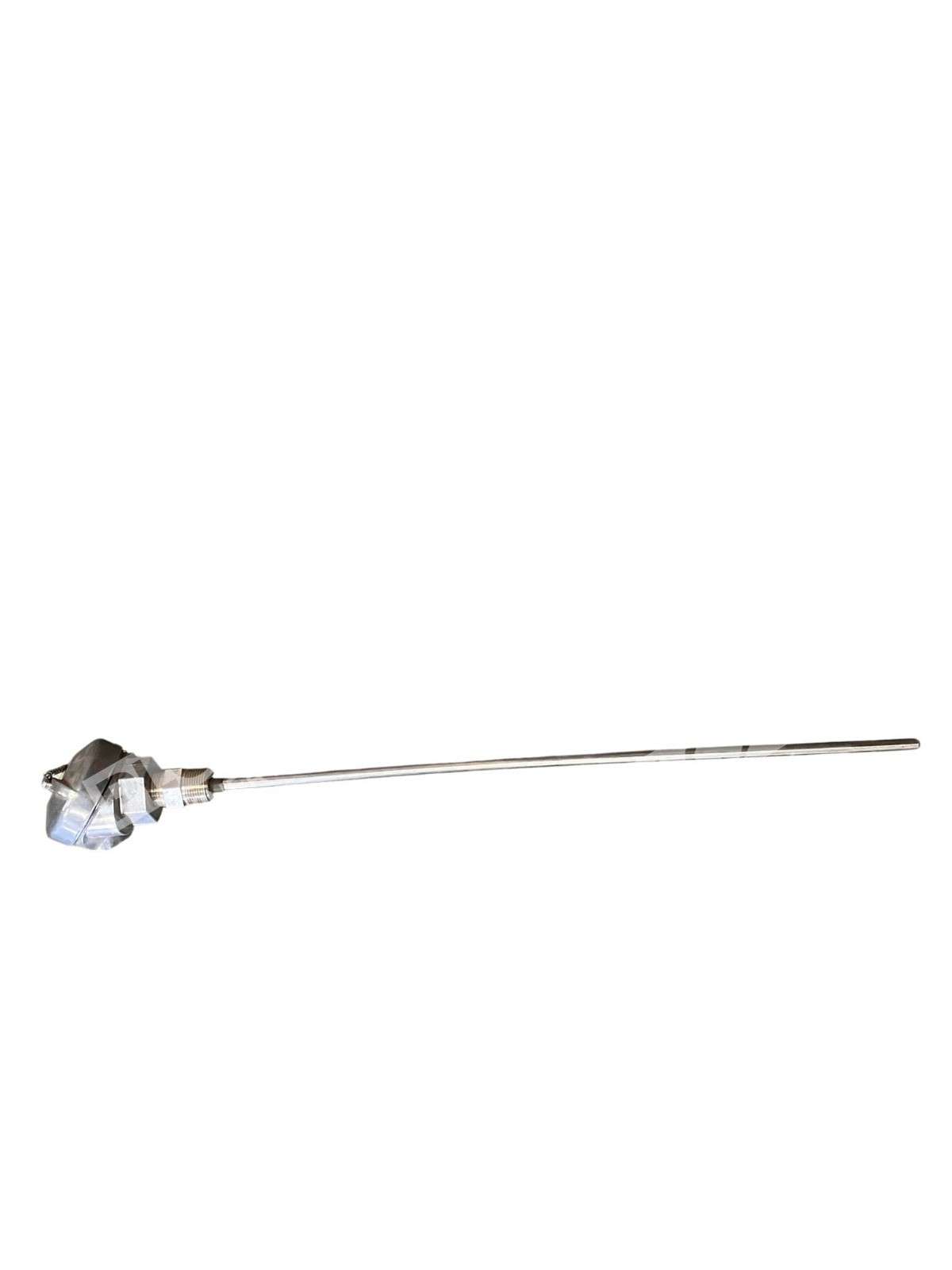

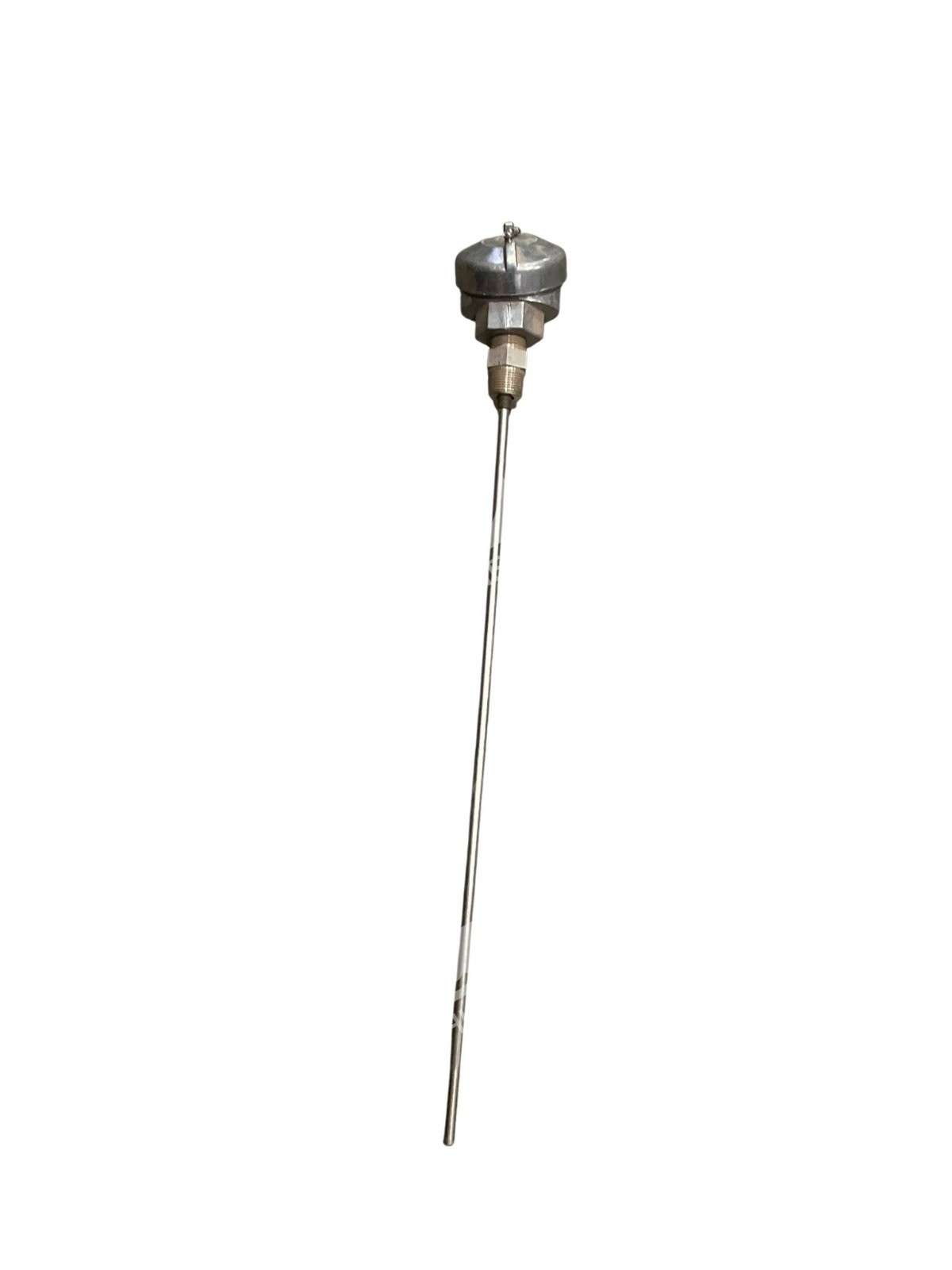

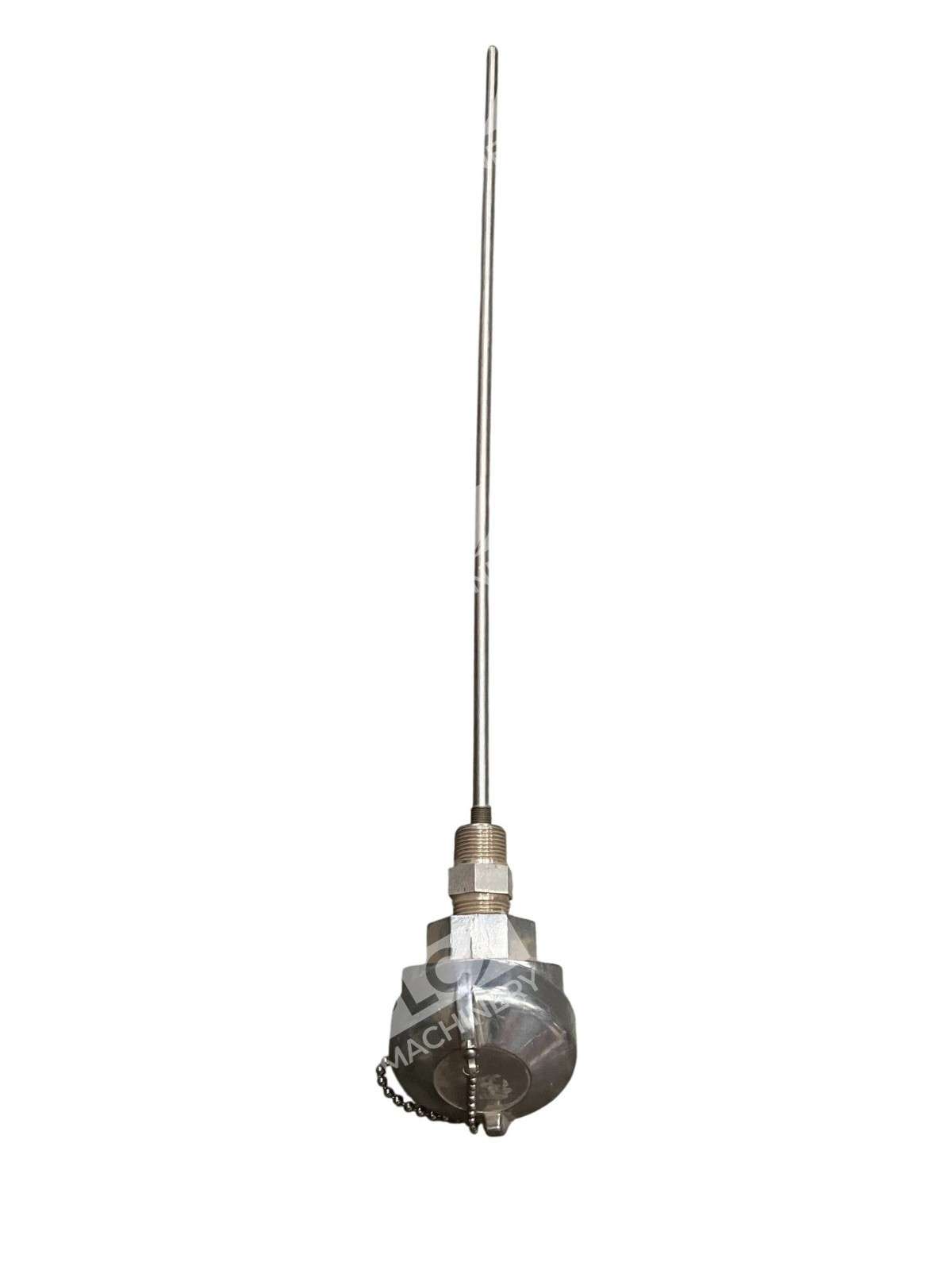

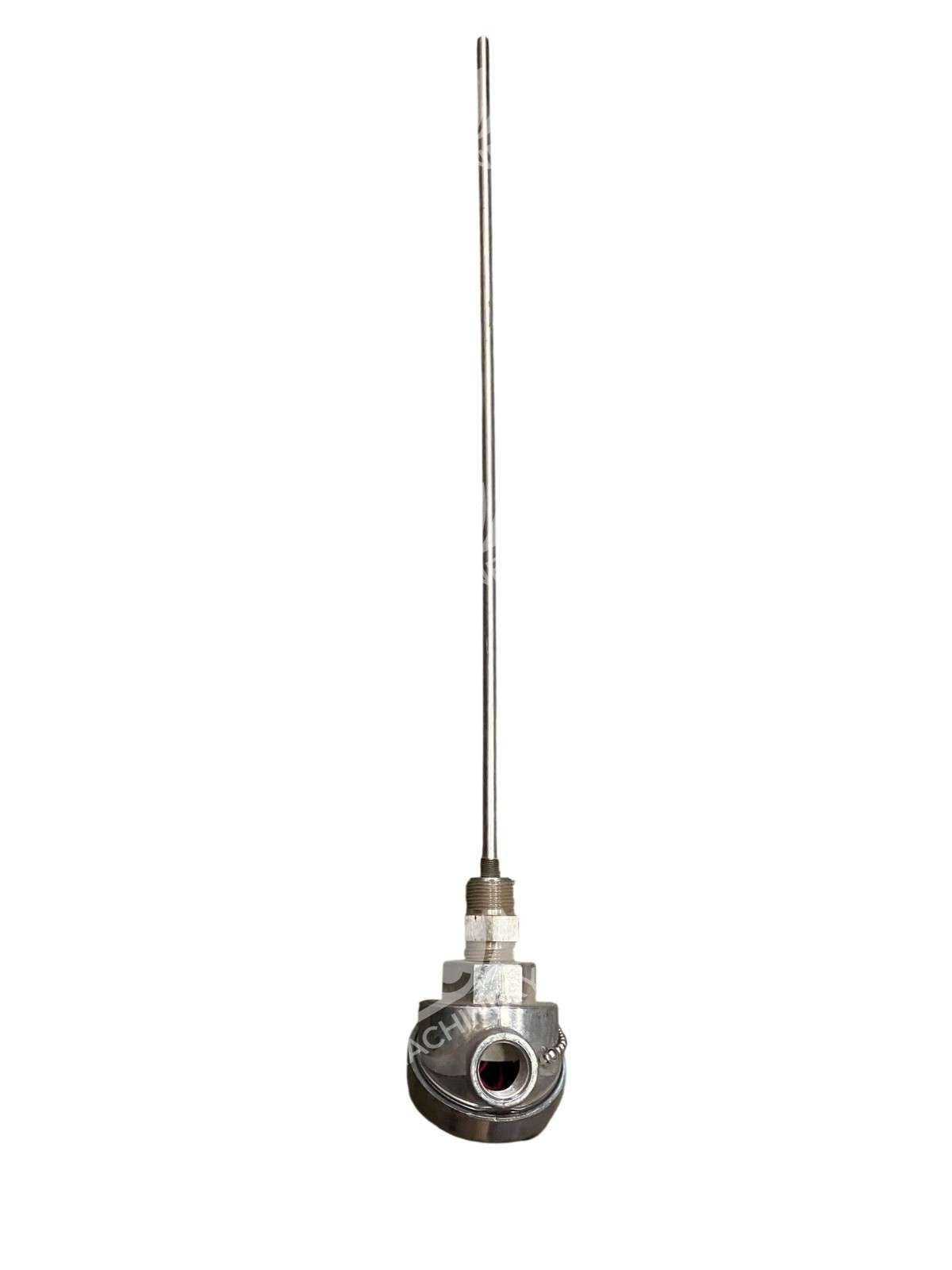

The thermocouple connection head is an essential component in industrial temperature measurement systems. This protective housing creates a sealed, clean transition point between the temperature sensor probe and the control system’s lead wires or terminal connections. The connection head protects internal electrical connections and mounting hardware from moisture, chemicals, steam, dust, and other harsh process conditions that could compromise signal integrity or cause premature failure.
Key Features
- Sealed protective enclosure for terminal blocks and transmitter mounting
- NEMA 4X rated protection against environmental contaminants
- Compatible with standard industrial thermocouple probes (Type K, J, T, N)
- Accepts 4-position or 6-position terminal blocks
- Durable cast aluminum or cast iron construction
- NPT threaded sensor and conduit connections
Technical Specifications
The exact specifications for model C-1-1-66 should be verified with your supplier or system integrator, as manufacturer documentation was not accessible during research. Standard thermocouple connection heads typically feature:
- Mounting hole patterns compatible with DIN-size transmitters
- Operating temperature range: -40°C to +80°C (standard ambient range)
- Probe connection: ½” NPT standard
- Conduit connection: ¾” NPT standard
- Material: Cast aluminum, cast iron, or polypropylene depending on application
- NEMA rating: NEMA 4X (corrosion resistant)
- IP rating: IP66 or higher for sealed heads
Typical Applications
Thermocouple connection heads are used across a broad range of industrial sectors where temperature monitoring is critical:
- Process Control: Chemical plants, refineries, and batch reactors requiring precise temperature feedback
- Manufacturing: Ovens, furnaces, kilns, and heat-treat equipment
- HVAC & Utilities: Boiler monitoring, cooling systems, and building automation
- Food & Beverage: Sterilization, cooking, and cold-chain monitoring (FDA-approved variants available)
- Hazardous Locations: Explosion-proof heads (FM/CSA/ATEX certified) for Class I or Class II environments
- Marine & Offshore: Salt-spray resistant aluminum or stainless steel variants
Compatibility & Replacements
Compatible With
- Type K thermocouples (most common industrial standard)
- Type J, T, N, R, S, and B thermocouple types
- Standard DIN-rail mounted temperature transmitters
- 4-position and 6-position ceramic terminal blocks
- ½” NPT threaded sensor probes
- Industrial control systems and PLCs via transmitter output
- EtherNet/IP, PROFINET, or analog 4-20mA signal conditioning modules
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. SKU C-1-1-66 specifications should be cross-referenced with original equipment documentation to confirm direct replacement capability. Common replacement scenarios include worn rubber seals, corroded terminal blocks, or damaged probe adapters.
Works With
- Analog signal conditioning (4-20mA transmitter output)
- Allen-Bradley CompactLogix, ControlLogix, and Micro800 PLCs
- Siemens S7-300, S7-1200, and S7-1500 controllers with analog input modules
- Omron, Mitsubishi, and general industrial automation platforms
- NIST-traceable calibration standards for verification and adjustment
- Data acquisition systems (DAQ) with thermocouple input modules
