Overview

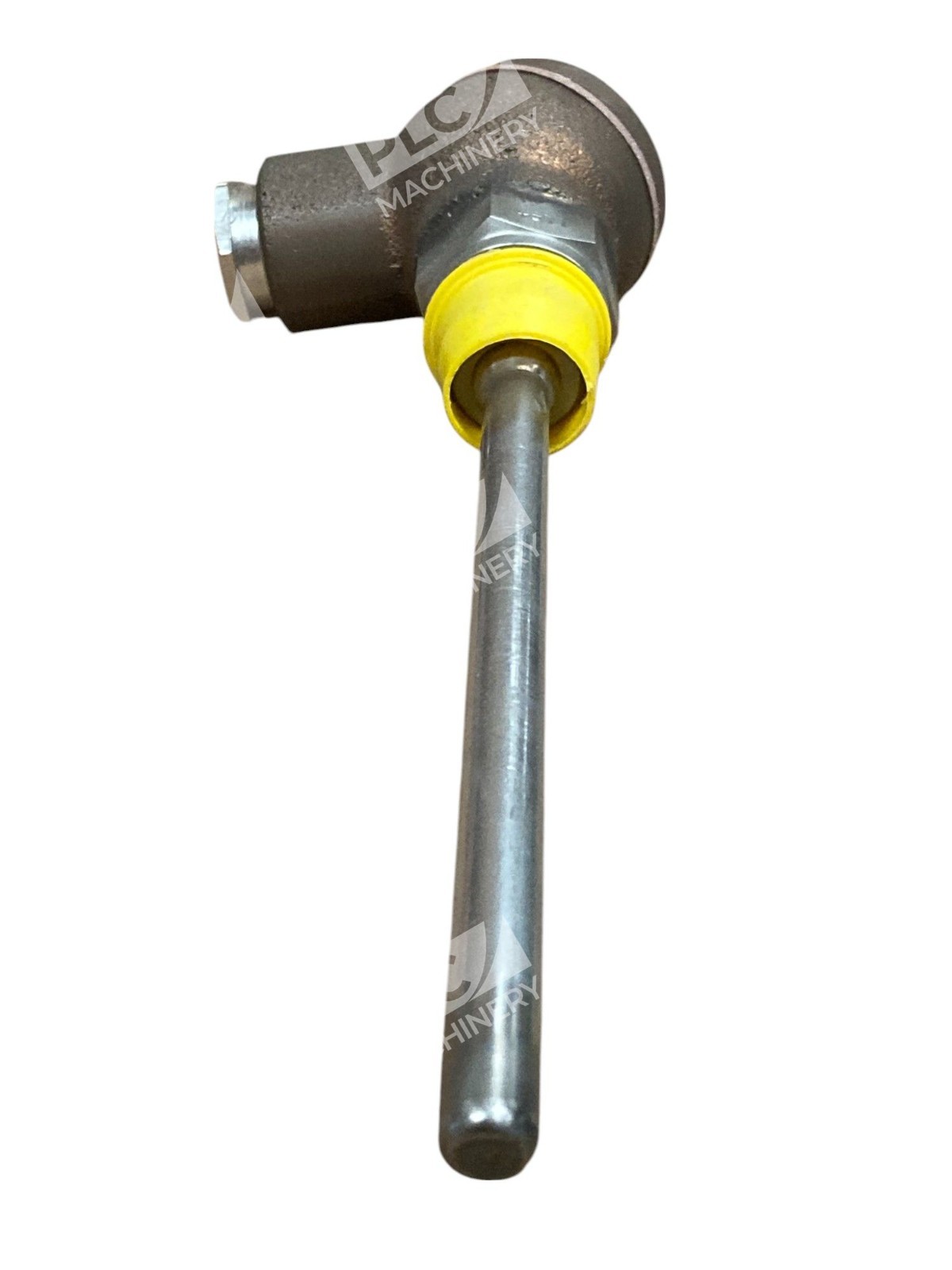

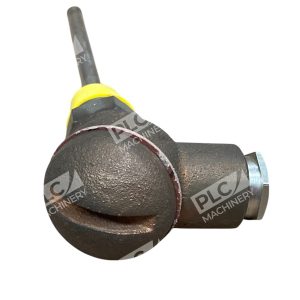

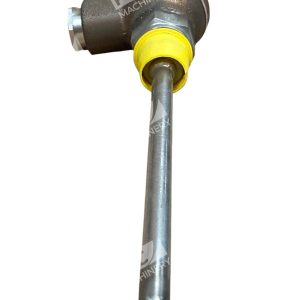

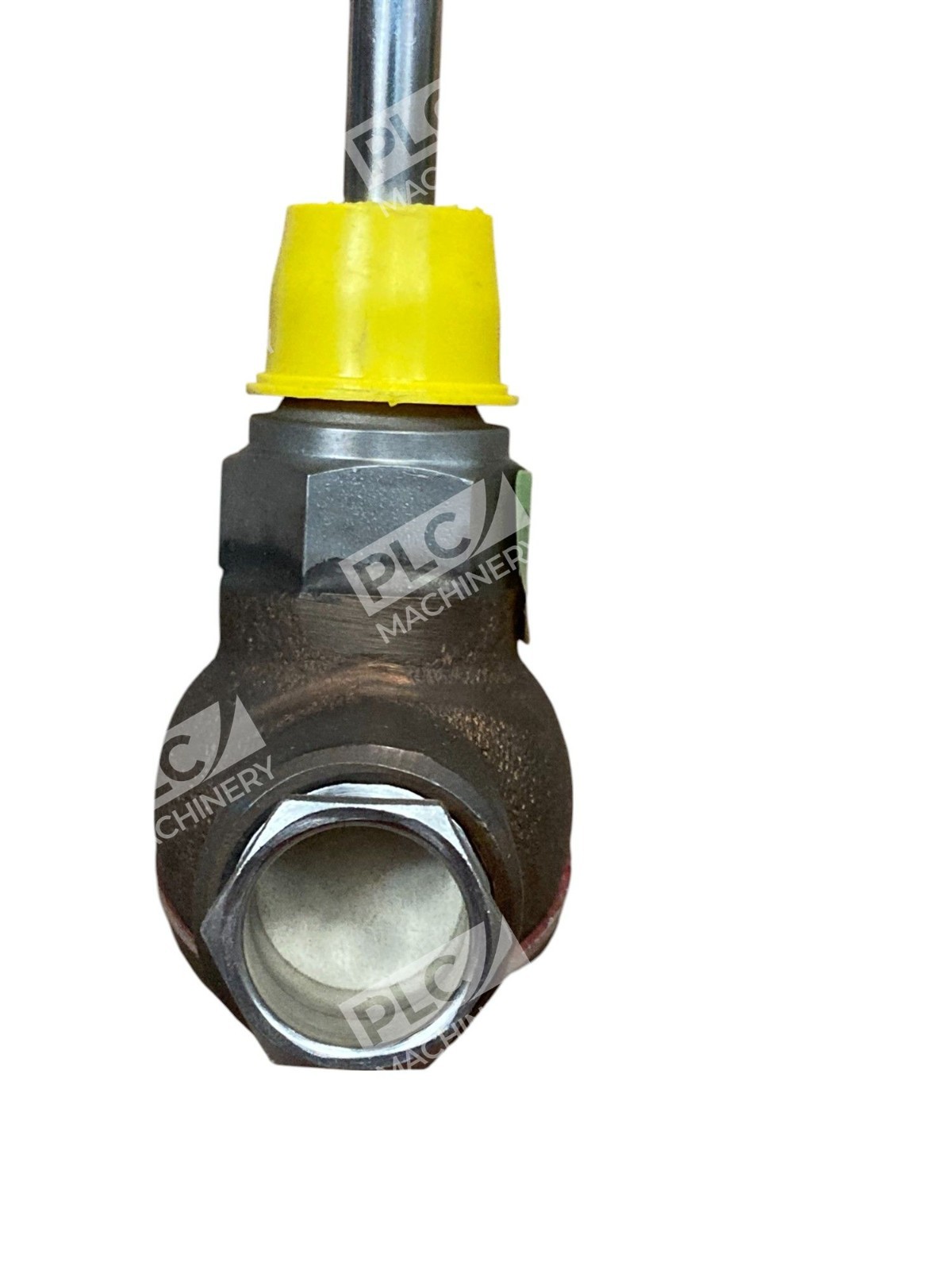

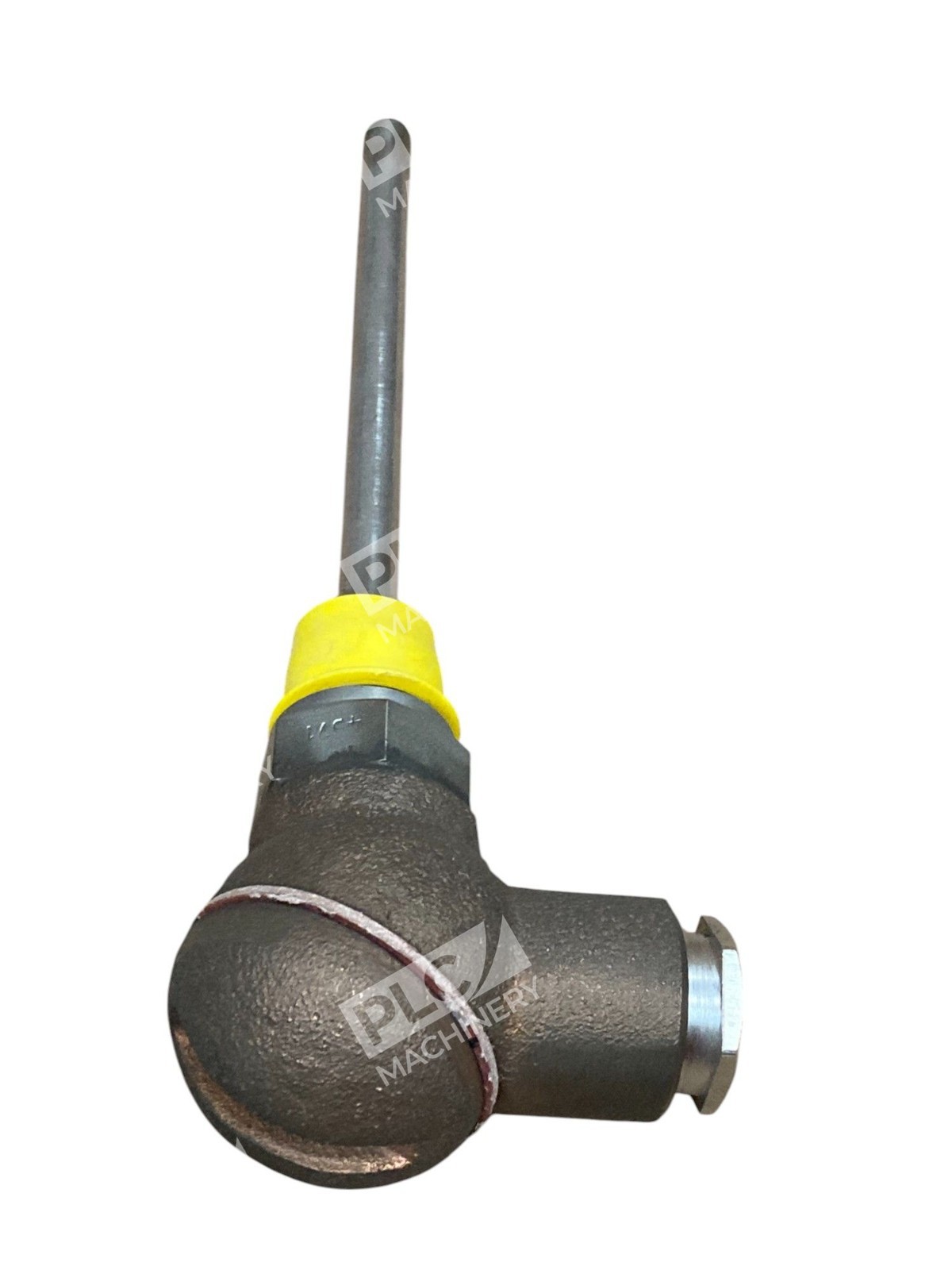

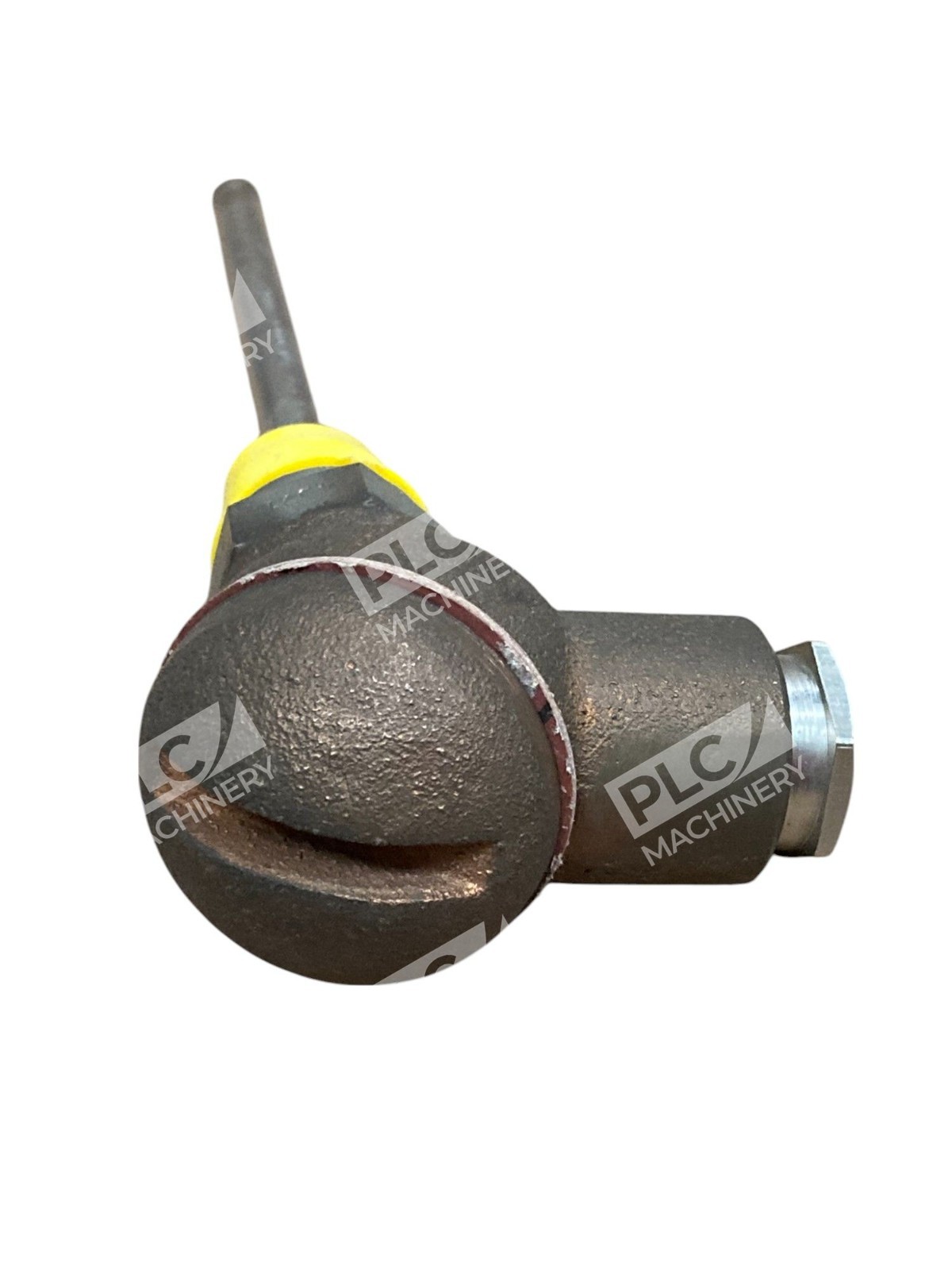

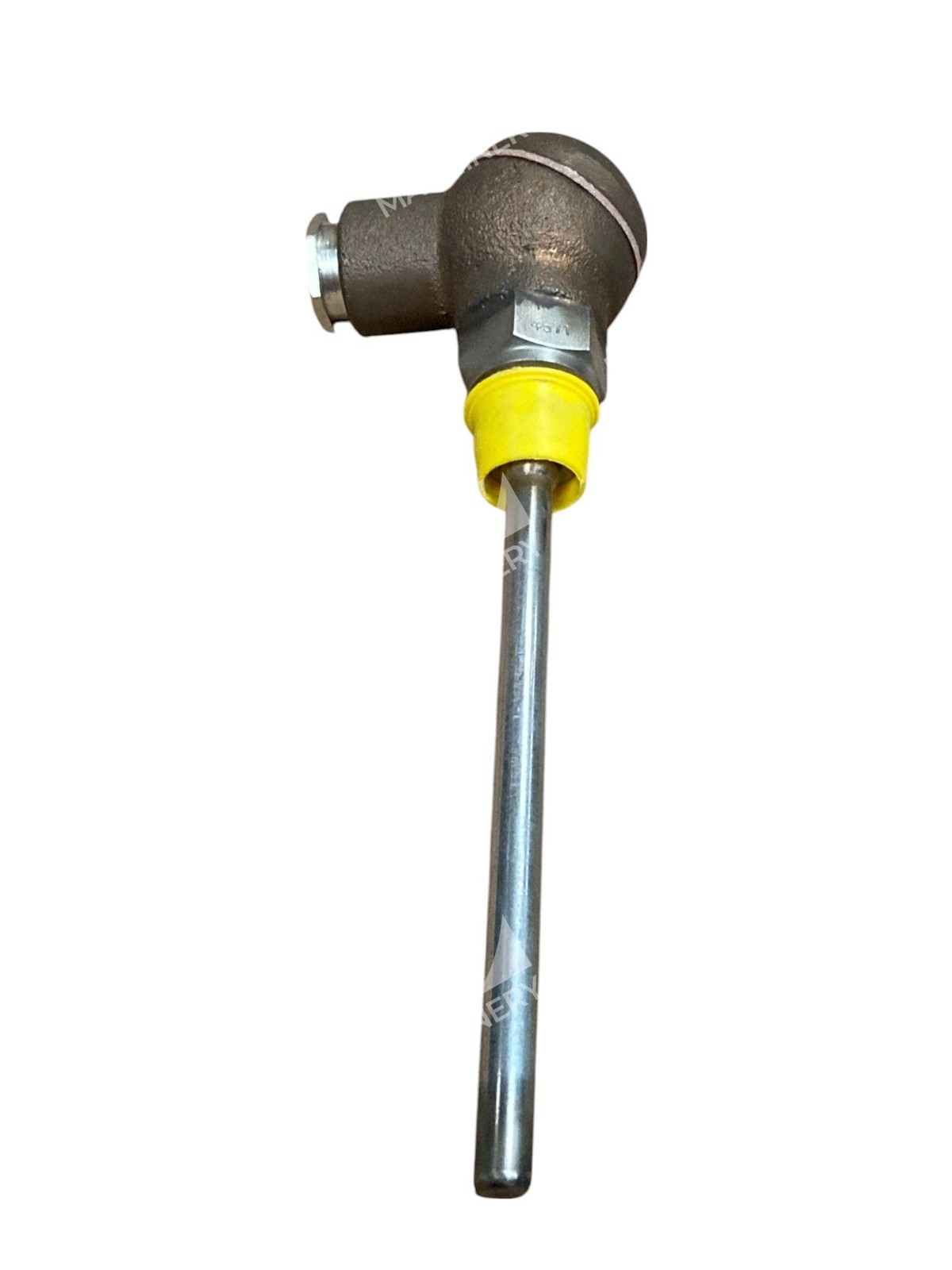

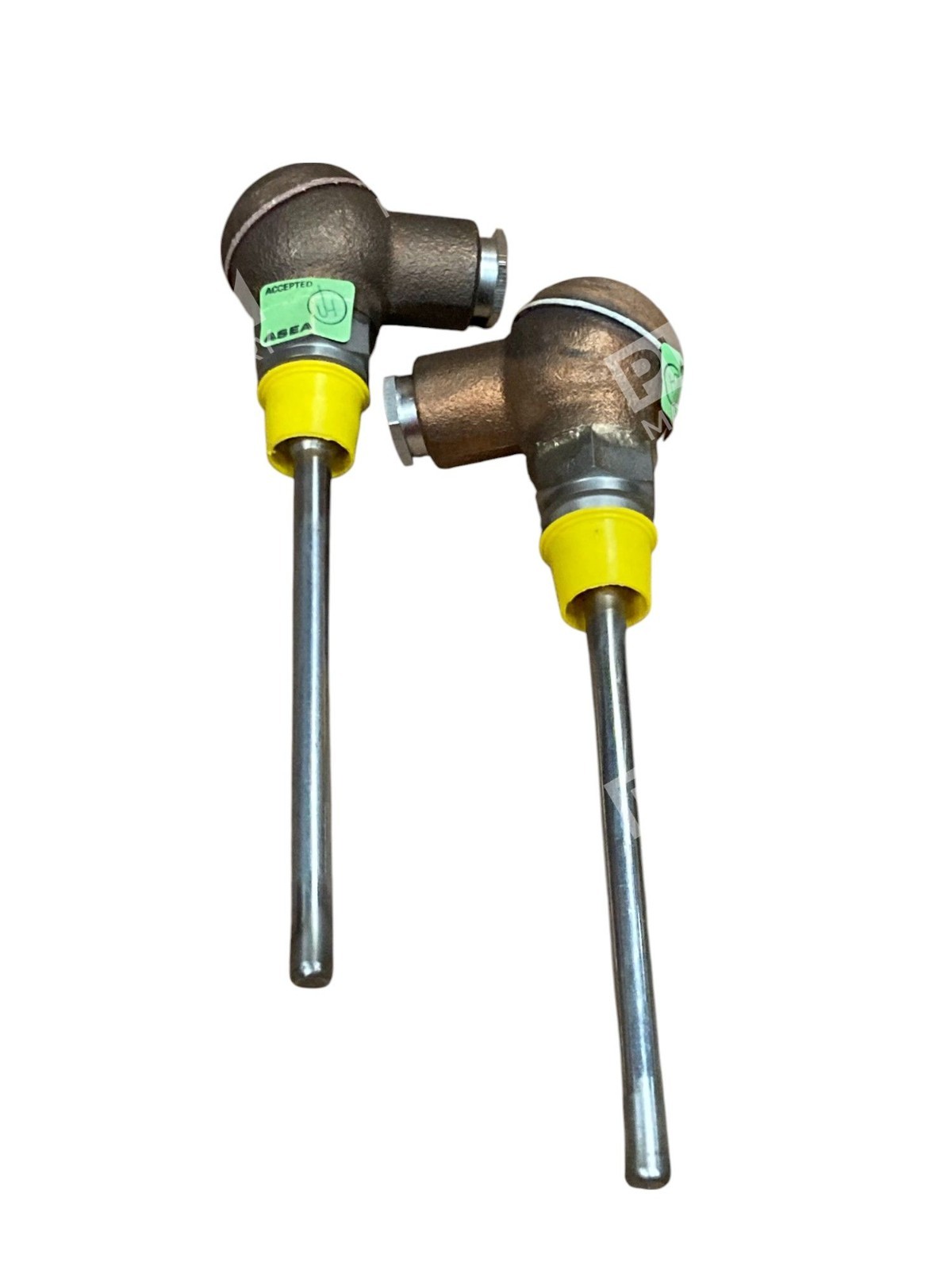

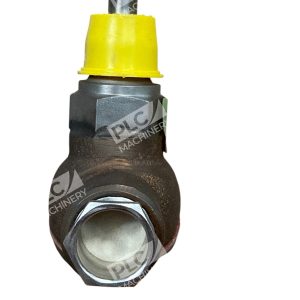

The ABB 5695471-6 is a Type K thermocouple RTD (Resistance Temperature Detector) sensor engineered for precise temperature measurement in air environments. This industrial-grade sensor integrates thermocouple technology with RTD measurement capability, making it suitable for applications requiring both high responsiveness and accuracy. The unit complies with international standards and is commonly deployed in process control, monitoring, and automation systems across manufacturing and industrial facilities.
Key Features
- Type K thermocouple technology with RTD capability for dual-mode temperature sensing
- IEC 60584 compliance ensures standardized accuracy and reliability
- Designed for air temperature measurement with fast thermal response
- Rugged industrial construction suitable for harsh process environments
- Direct integration with standard temperature transmitters and control systems

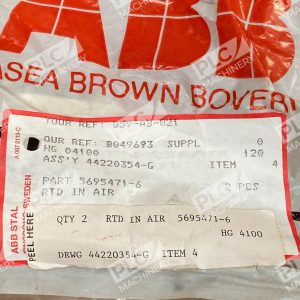

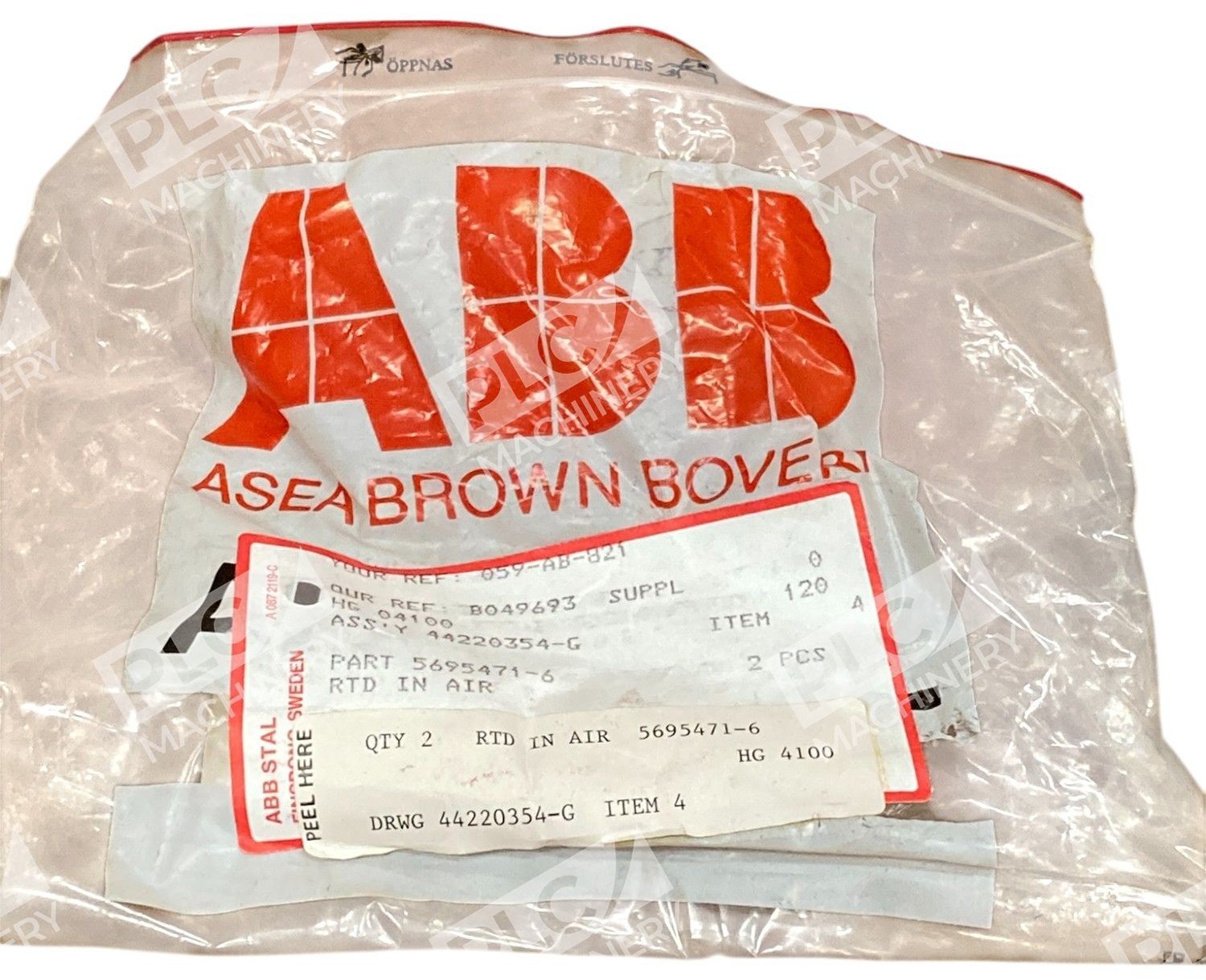

- New condition, factory sealed in original packaging
Technical Specifications
Specifications are based on ABB’s thermocouple product standards and the StalTM product line specifications:
- Sensor Type: Type K Thermocouple / RTD
- Temperature Range: 0 to 1000°C (32 to 1832°F)
- Measurement Medium: Air
- Standards Compliance: IEC 60584 / ASTM E230
- Model Series: Stal HG 04100 RS PRO
- Condition: New in Box
- Manufacturer: ABB
Typical Applications
- Process temperature monitoring in industrial automation systems
- Air temperature measurement in furnaces, ovens, and heating equipment
- HVAC and environmental control system sensors
- Research and development thermal analysis
- Petrochemical and manufacturing process control
- Integration with standard temperature transmitters (4-20 mA output)
Compatibility & Replacements
The ABB 5695471-6 thermocouple RTD integrates with standard industrial control systems and temperature transmitters manufactured by ABB and compatible third-party equipment. It is designed as a direct replacement for equivalent Type K thermocouple sensors in ABB’s StalTM family. This sensor works with ABB’s TTH200 head-mounted transmitters, TTR200 rail-mounted transmitters, and TSP100 series field-mounted devices. Confirm compatibility with your existing sensor head or transmitter before ordering to ensure proper electrical connection and signal conditioning.
