Overview

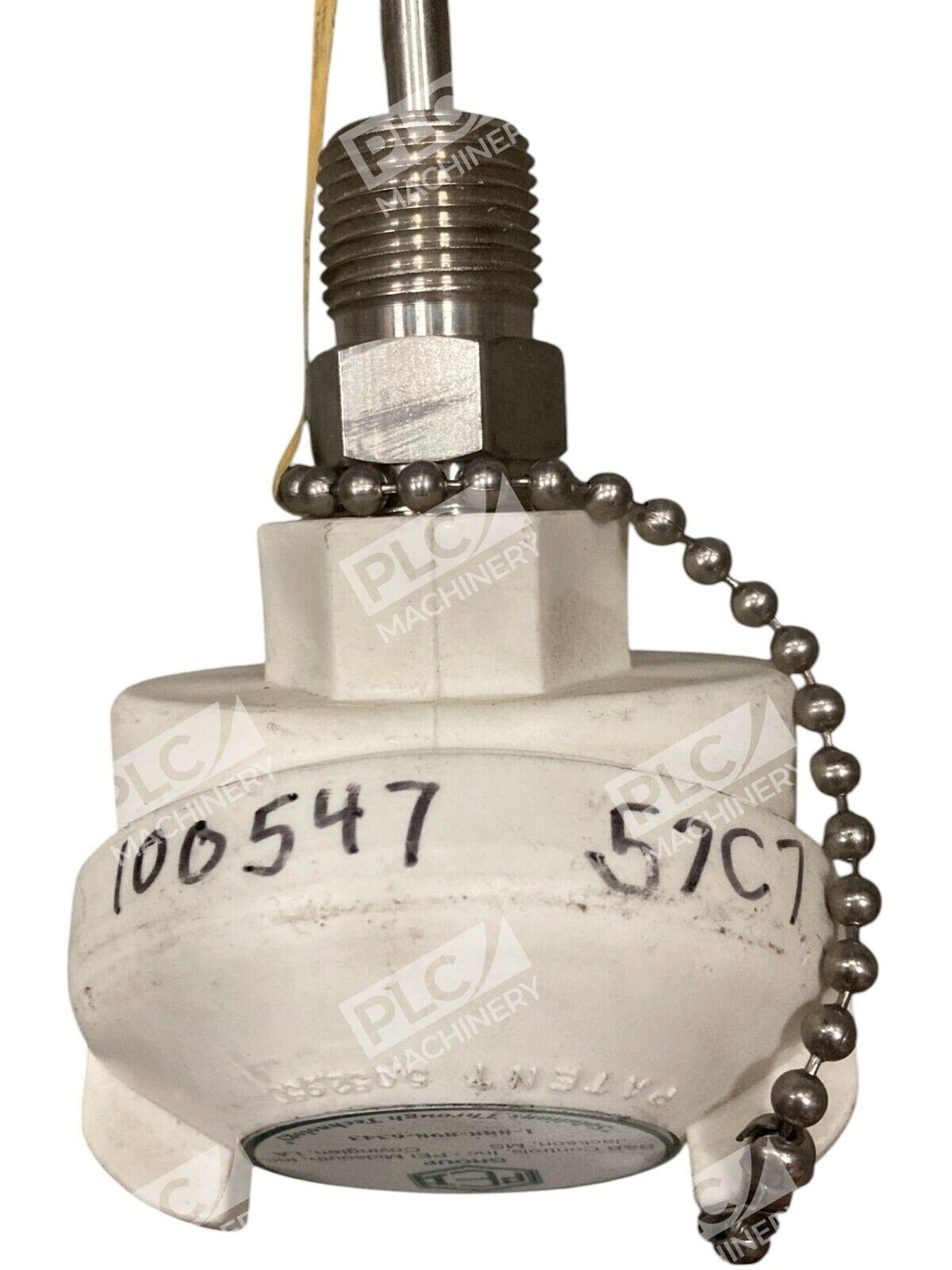

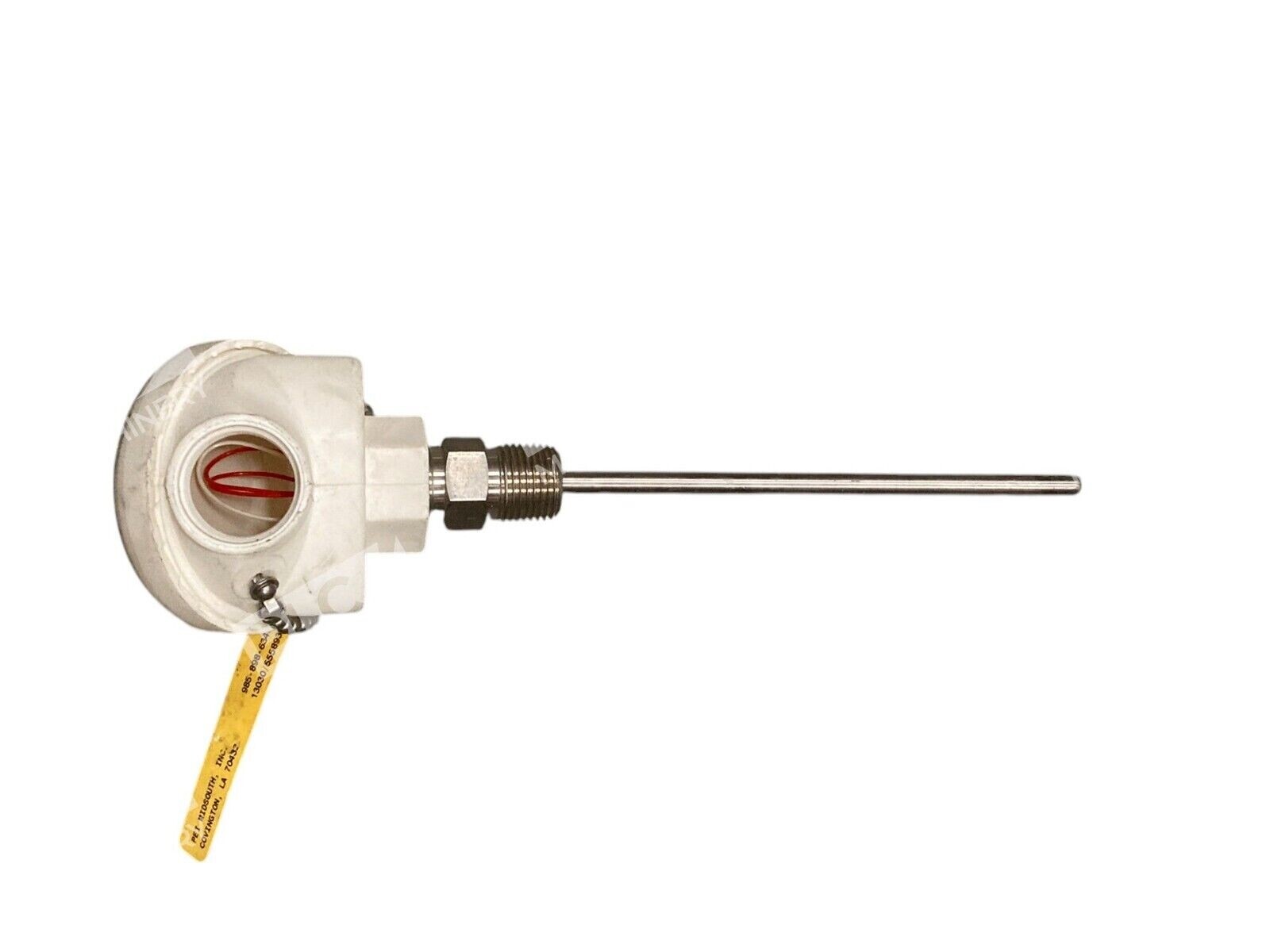

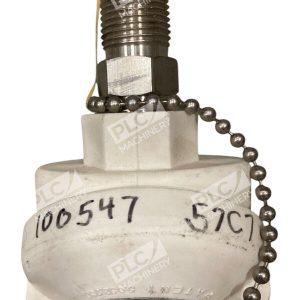

The PEI Group 13030/555893 RTD PT100 temperature sensor is a precision resistance temperature detector designed for accurate thermal monitoring in industrial automation, process control, and motion control systems. With a verified accuracy of ±0.15°C and screw terminal connectivity, this sensor integrates easily into control systems requiring reliable temperature feedback.
Key Features
- High Accuracy — ±0.15°C repeatability across the operating range
- PT100 Element — Platinum RTD delivers stability and wide temperature range capability
- Screw Terminal Design — Direct wire connection for rapid installation without connectors
- Industrial Grade — Built for machinery, process equipment, and control cabinet integration
- Solid-State Construction — Durable, field-proven DC sensor technology
Technical Specifications
Verify all specifications with the manufacturer before final integration:
- Sensor Type: RTD PT100 (Platinum Resistance Temperature Detector)
- Accuracy: ±0.15°C
- Termination: Screw terminal
- Sensor Element: Platinum RTD (IEC 60751 Class A typical)
- Operating Principle: DC solid-state resistance-based
- Typical Range: −50°C to +250°C (common for PT100)
Typical Applications
- Industrial automation and motion control systems
- Process temperature monitoring in manufacturing equipment
- Control cabinet thermal supervision
- Machine tool spindle and drive temperature feedback
- HVAC and climate control systems
- Machinery protection and alarm circuits
Compatibility & Replacements
Compatible With
- Allen-Bradley temperature monitoring modules and I/O
- Siemens S7-1200/1500 analog input cards (RTD-capable)
- Mitsubishi PLCs with RTD input modules
- Omron CQM1/CS-series temperature input units
- Schneider Electric M221/M241 analog inputs
- Standard industrial RTD receiver/transmitter modules
- 4-20 mA RTD transmitters (adapter-dependent)
Replaces / Drop-In Replacement For
This specific model (13030/555893, part number 100547, variant 57C7) is a PEI Group OEM component. Verify compatibility with your system integrator before ordering replacement units, as pin-out and screw terminal configuration may vary across equivalent models. Contact the original equipment manufacturer or your automation supplier for exact cross-reference.
Works With
- RTD-input capable analog modules (all major PLC platforms)
- Industrial temperature transmitters (4-20 mA output)
- Temperature controllers and data acquisition systems
- IEC 60751 compliant RTD receivers
- HVAC building automation systems
