Overview

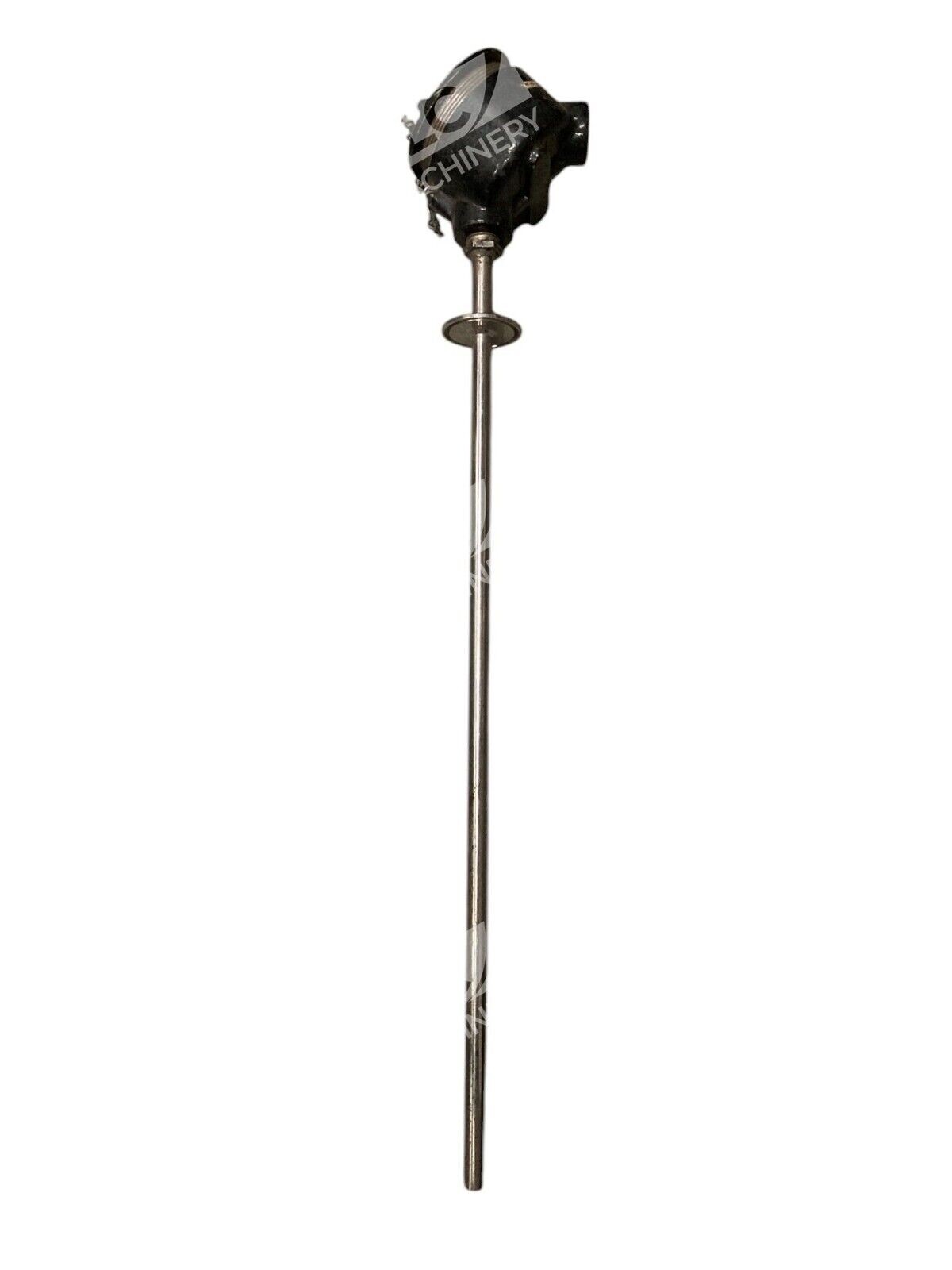

The Adalet PT100 RTD 13R00F3C&D is a platinum-based resistance temperature detector engineered for industrial automation, HVAC systems, and process measurement applications. The PT100 uses a small strip of platinum with a resistance of 100 ohms at 0°C, providing proven accuracy and repeatability across demanding environments.
Key Features
- PT100 Platinum Element: PT100 RTDs are much more stable and precise than NTC/PTC thermistors and have developed a reputation for accuracy, repeatability, and stability
- Analog Output: Direct resistance-based signal compatible with standard RTD transmitters and signal conditioning modules
- Industrial Grade: Designed for temperature monitoring in motion control, HVAC, and automation systems
- Wide Temperature Range: Suitable for applications in the temperature range of -50°C to +250°C for most industrial uses
- DC Power Operation: Low-power sensing suitable for battery-backed or limited-power installations
Technical Specifications
- Sensor Type: Platinum Resistance Temperature Detector (RTD)
- Sensing Element: PT100 (100 Ω @ 0°C)
- Output Signal: Analog resistance
- Power Supply: DC
- Part Number: 13R00F3C&D
- Manufacturer: Adalet
- Application Class: Industrial Automation, Temperature Monitoring
Typical Applications
- Industrial HVAC temperature control
- Process heating and cooling systems
- Equipment temperature monitoring
- Automation and motion control feedback
- Machine and motor thermal protection
Compatibility & Replacements
Compatible With
- RTD transmitters and signal conditioning modules with PT100 inputs
- Industrial PLC analog input modules (4-20mA or 0-10V with appropriate transmitter)
- Temperature monitoring relays and controllers
- HVAC control systems supporting PT100 measurement
- Factory automation and control networks
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Adalet RTD sensors of equivalent PT100 specification may share similar form factors and connection schemes depending on installation configuration.
Works With
- Standard RTD 3-wire and 4-wire configurations
- DC measurement systems and analog acquisition
- Temperature transmitters (4-20mA output modules)
- Industrial controllers and data loggers with RTD input cards
