Overview

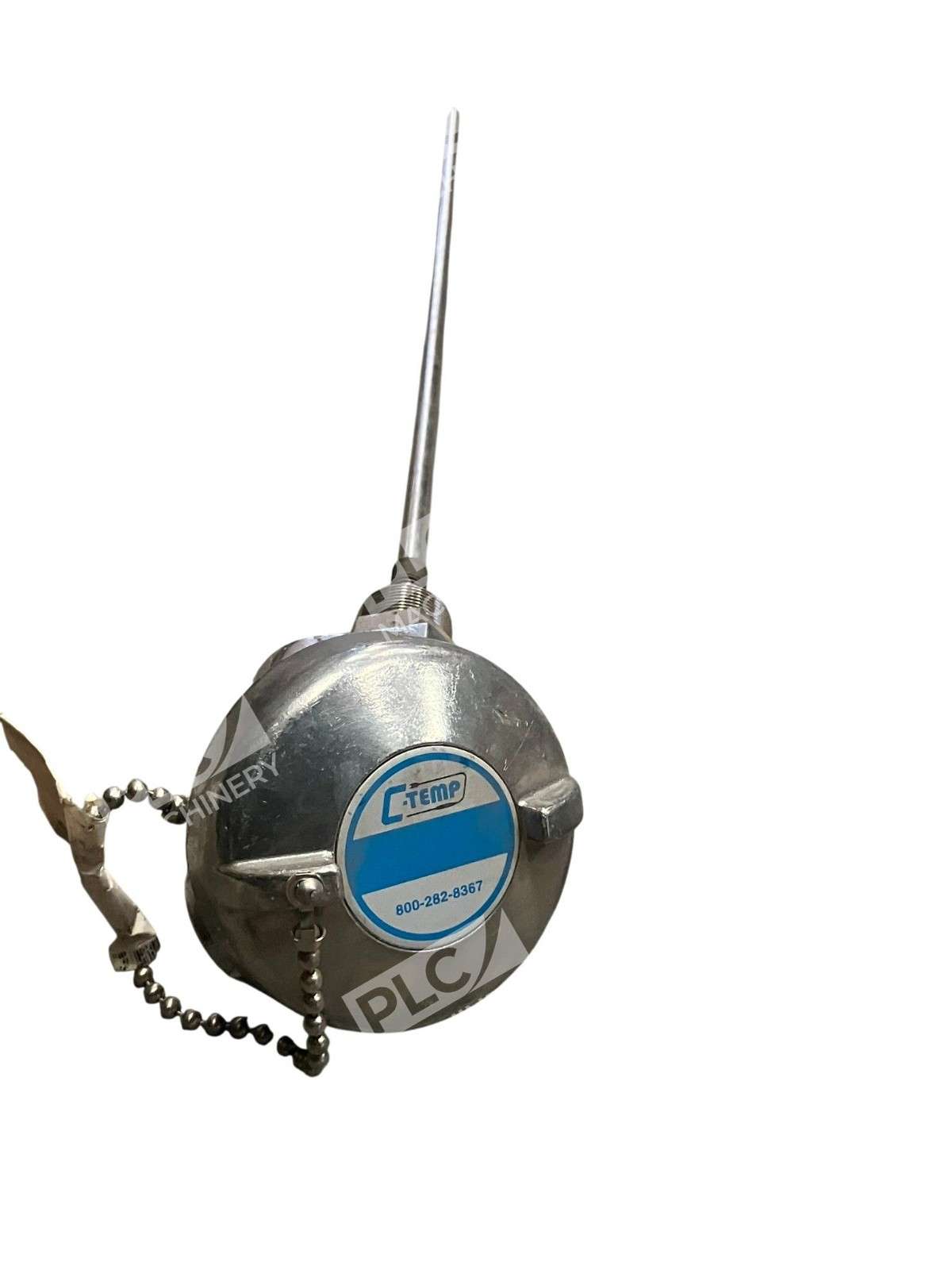

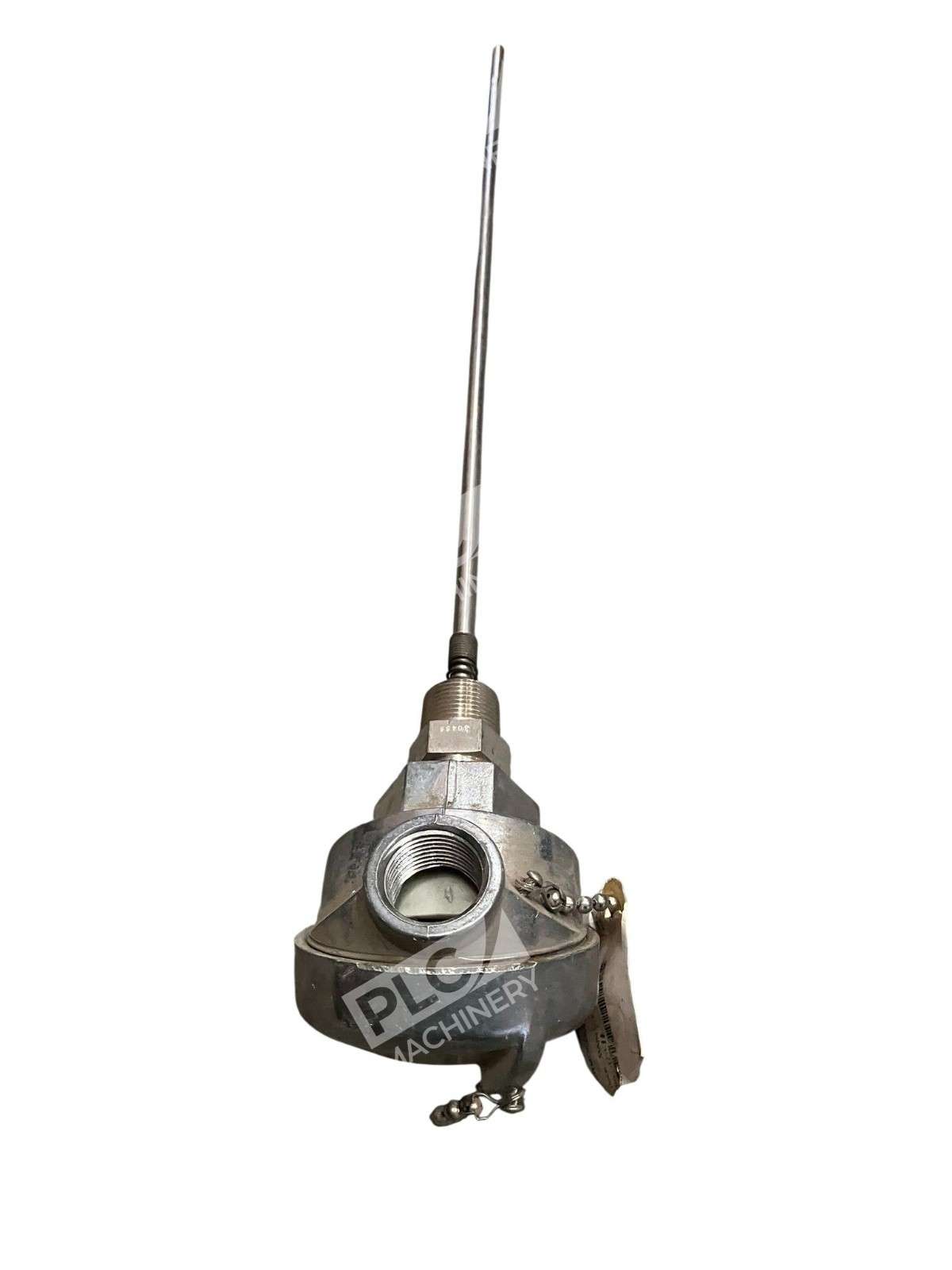

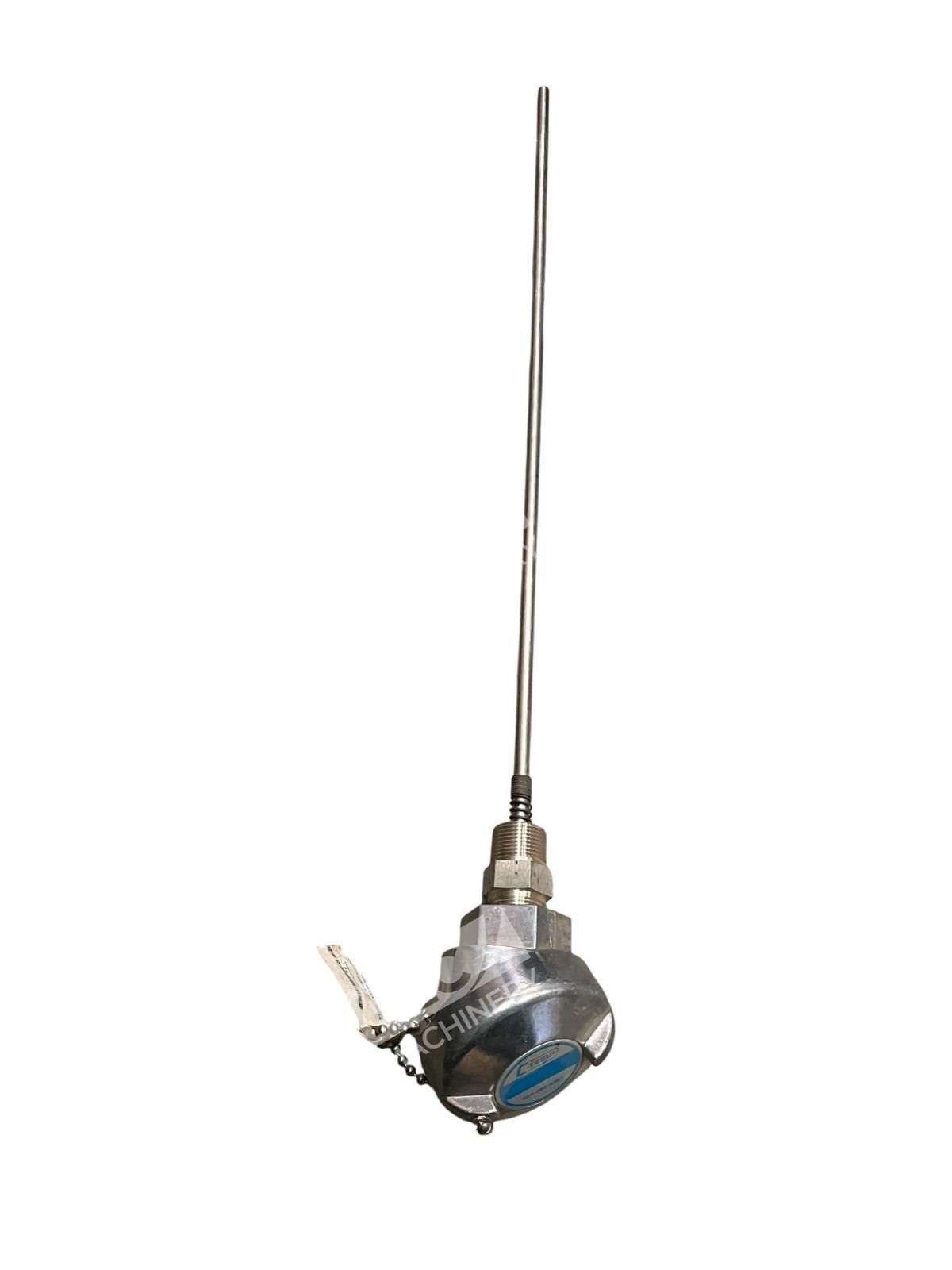

The C-Temp head mount temperature transmitter is a compact industrial temperature sensor designed for direct mounting in thermowell connection heads. This unit converts temperature inputs into standardized 4-20 mA analog signals for integration with programmable logic controllers (PLCs), distributed control systems (DCS), and industrial instrumentation networks. Head mount configuration eliminates separate terminal boxes and reduces installation footprint in tight spaces.
Key Features
- Compact head-mount design for direct installation in standard DIN connection heads
- Universal input compatibility with RTD, thermocouple, resistance, and millivolt sensors
- 4-20 mA output for seamless PLC and DCS integration
- Front-panel programmable settings for span and zero adjustment
- LED display for real-time temperature verification
- Industrial-grade construction for harsh plant environments
Technical Specifications
Verify detailed electrical ratings, input ranges, and environmental specifications with the manufacturer or your system integrator before installation. Key parameters include input types supported (RTD Pt100/Pt1000, Type J/K thermocouples, resistance, mV), output signal type (4-20 mA loop powered or externally powered), accuracy tolerance, and operating temperature range.
Typical Applications
- Process temperature monitoring in chemical reactors and batch systems
- Thermal management in industrial ovens and furnaces
- Cooling system monitoring in manufacturing equipment
- HVAC and environmental control systems in industrial facilities
- Quality control and data logging in production lines
Compatibility & Replacements
Compatible With
- Standard DIN B and DIN A thermowell connection heads
- Industrial PLC platforms (Allen-Bradley CompactLogix, MicroLogix, ControlLogix; Siemens S7-1200, S7-1500; Mitsubishi FX series)
- Distributed control systems from major manufacturers
- 4-20 mA analog input modules and signal conditioning cards
- SCADA and monitoring software supporting standard analog inputs
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Confirm that any replaced unit matches input type, output signal, and connection head dimensions of this transmitter.
Works With
- Studio 5000 (Allen-Bradley analog input configuration)
- TIA Portal (Siemens PLC programming for analog acquisition)
- GX Works (Mitsubishi PLC platforms)
- Sysmac Studio (Omron CX-series controllers)
- Standard 4-20 mA loop powered and externally powered circuits
- Temperature calibration and diagnostic tools
