Overview

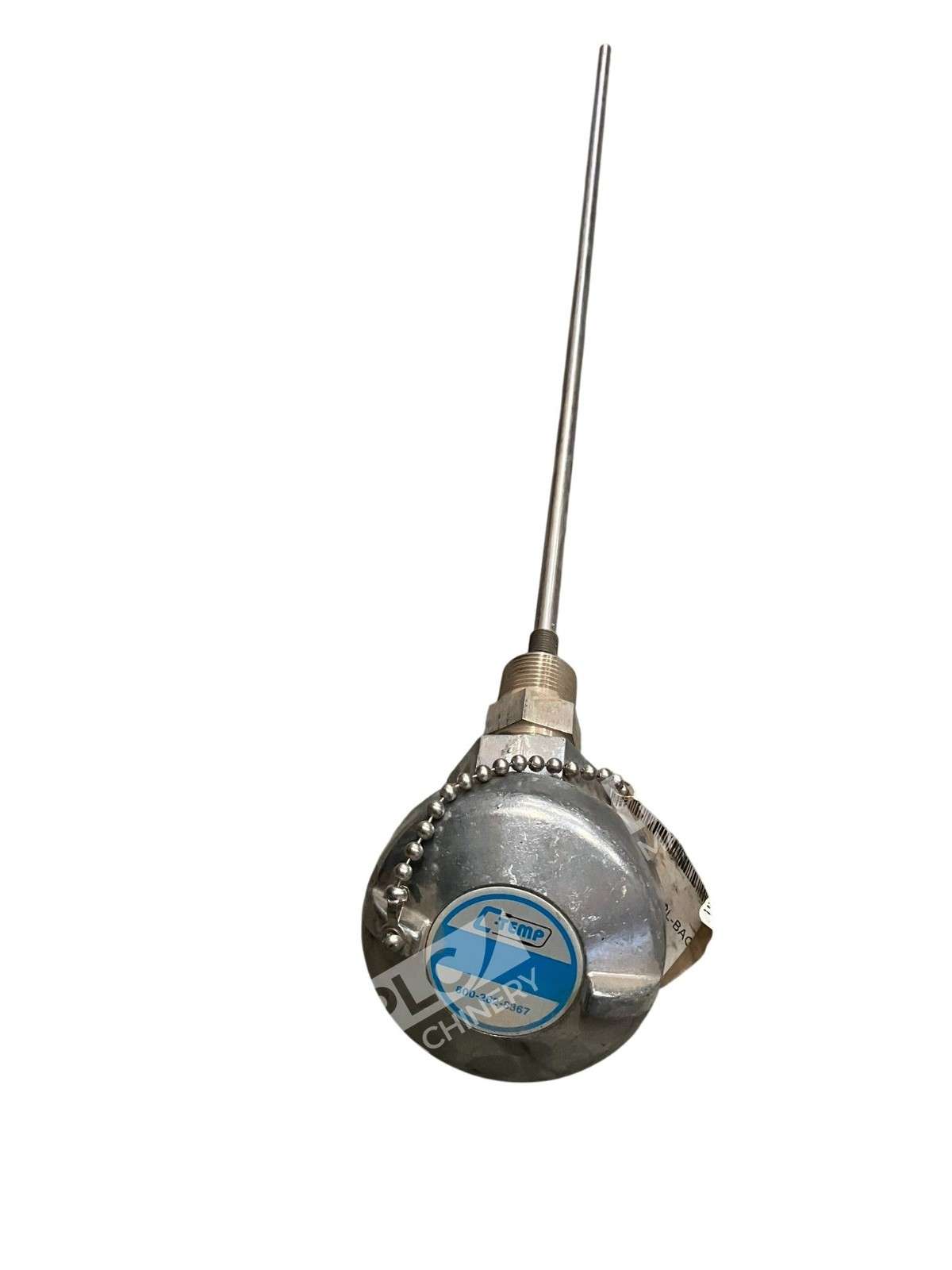

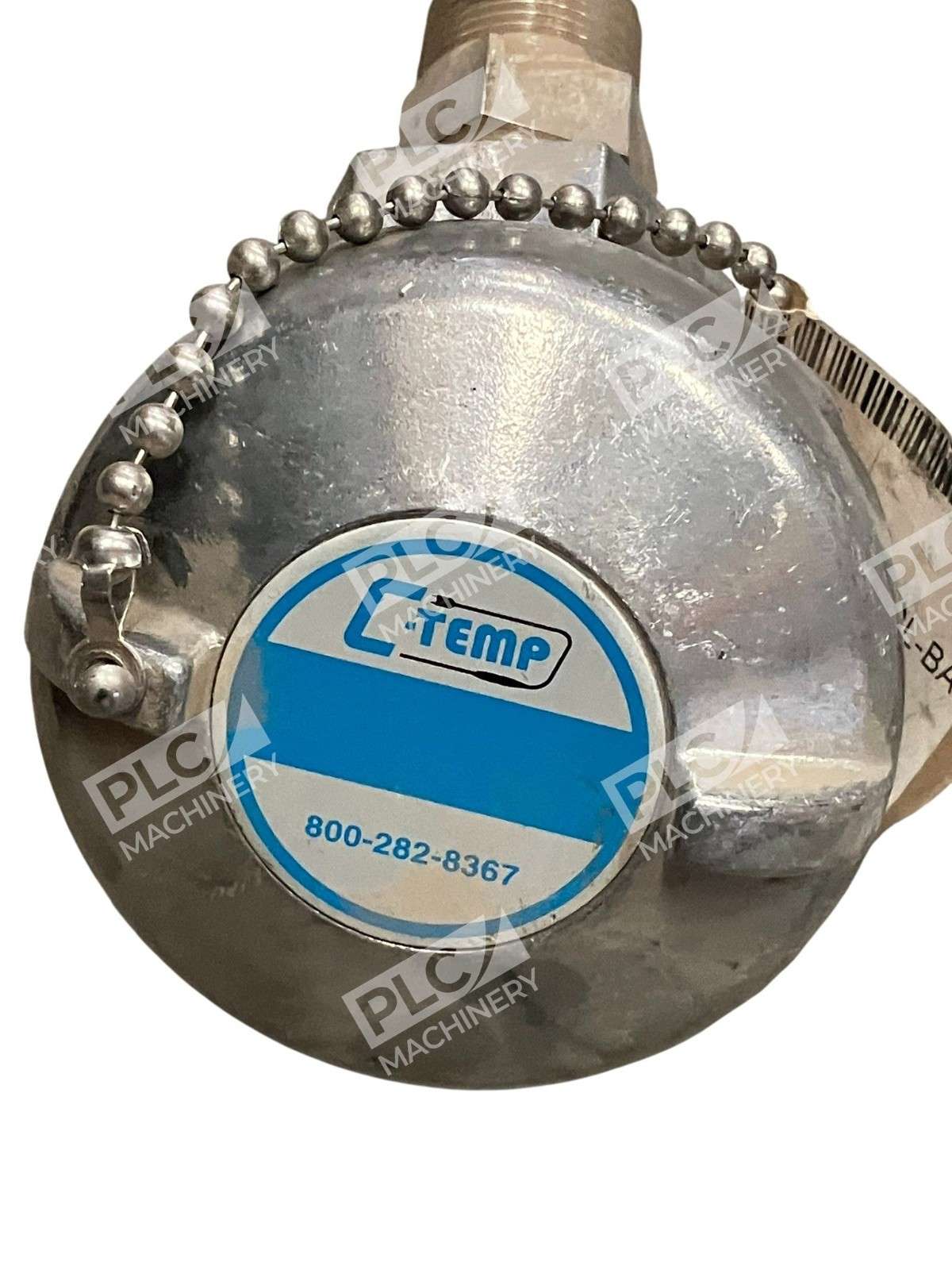

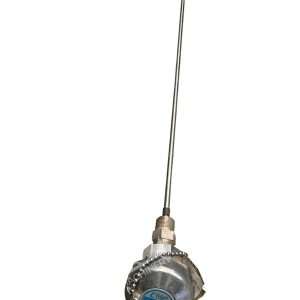

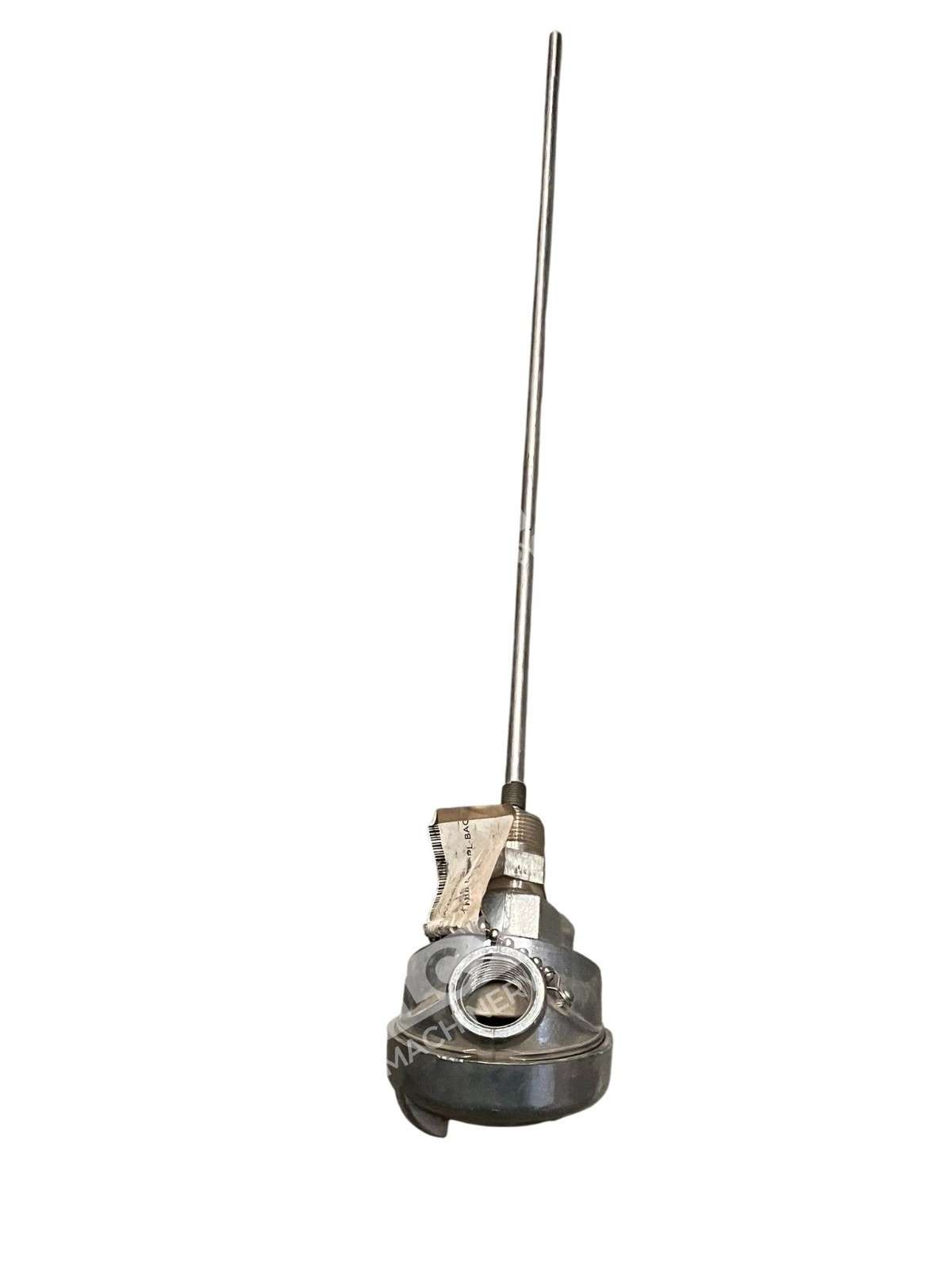

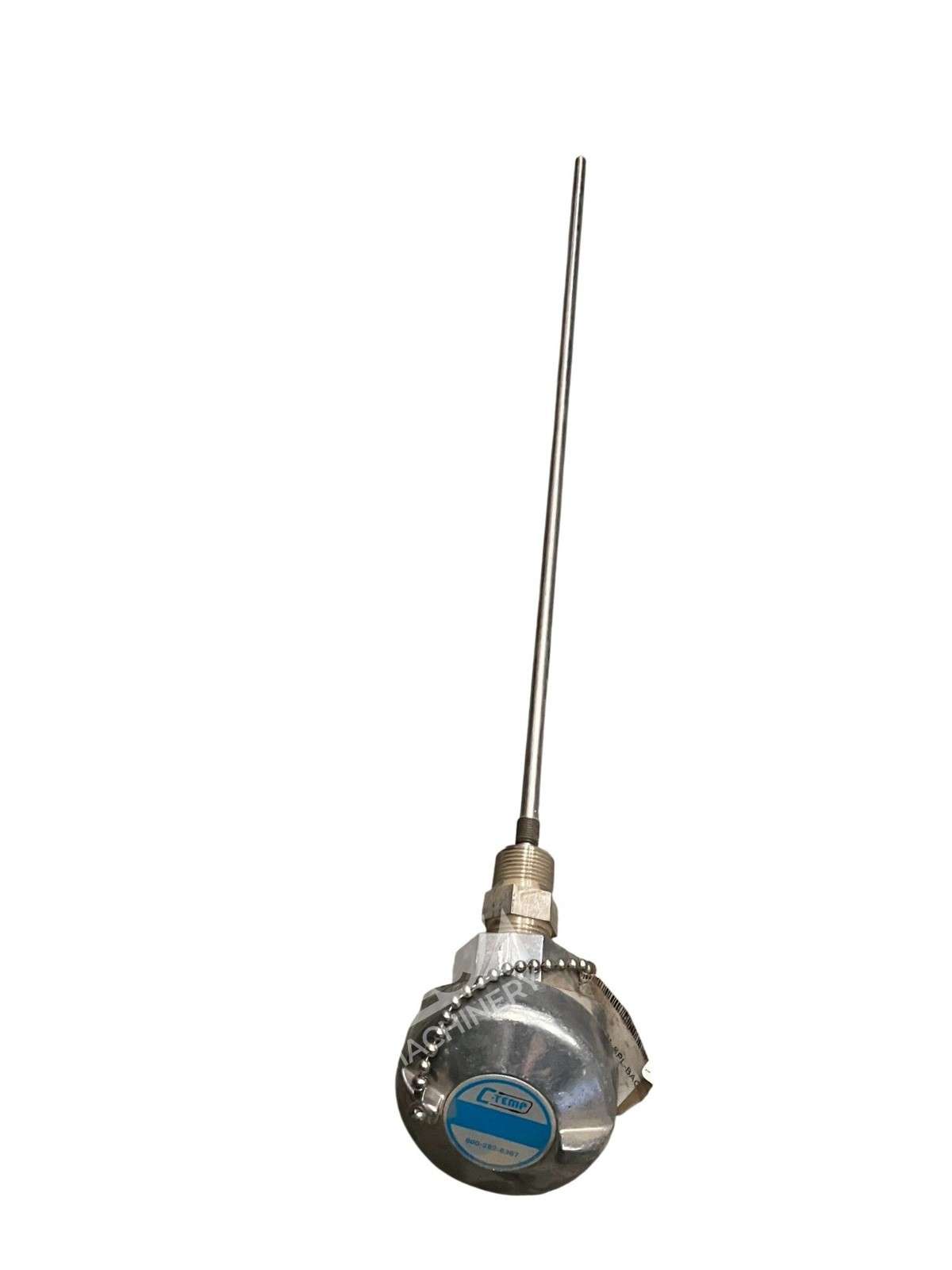

The C-Temp 800-282-8367 head mount temperature transmitter delivers reliable 4-20mA analog output for critical temperature monitoring applications in industrial automation and process control environments. The transmitter’s compact head-mounted design simplifies installation directly onto thermowell assemblies or process connections, eliminating the need for external junction boxes. This design approach reduces installation time and maintains sensor accuracy across a wide operating range.
Key Features
- 4-20mA analog output for compatibility with standard industrial control systems
- Head-mount design for direct integration onto thermowells and process connections
- Compact form factor reduces installation complexity and cost
- Designed for stable, repeatable temperature measurement across industrial applications
- Compatible with PLC and SCADA systems via standard current loop inputs
Technical Specifications
- Output Signal: 4-20mA DC
- Connection Type: Head-mount configuration
- Signal Accuracy: ±0.5% of span (typical for class-A transmitters)
- Operating Temperature Range: -40°C to +125°C (-40°F to +257°F) typical
- Power Supply: 12-24 VDC typical
- Dimensions: Compact head-mount housing (specific dimensions vary by model variant)
- Certifications: Industrial-grade construction
- Manufacturer: C-Temp International
Typical Applications
The C-Temp 800-282-8367 transmitter is commonly deployed in:
- Process heating and cooling control loops
- HVAC and facility environmental monitoring
- Industrial machinery temperature supervision
- Power generation and utility applications
- Food and beverage processing lines
- Chemical and petrochemical facilities
- Data center and server room temperature management
Compatibility & Replacements
Compatible With
- Allen-Bradley CompactLogix and ControlLogix PLCs with analog input modules
- Siemens S7-300, S7-400, and S7-1200 controllers
- Mitsubishi FX, Q, and iQ series programmable logic controllers
- Omron CJ2, NJ, and CP series controllers
- Standard 4-20mA current loop industrial control networks
- SCADA and HMI platforms with analog input capability
- DCS (Distributed Control Systems) with standard current loop inputs
Replaces / Drop-In Replacement For
This transmitter may serve as a replacement for industrial head-mount temperature transmitters in equivalent form factor and output range. Verify compatibility with your system integrator or controls engineer before ordering to ensure socket compatibility and electrical specifications match your existing thermowell or process connection design.
Works With
- 4-20mA analog input modules (Rockwell Automation 1756-IF4 and similar)
- Siemens analog input terminals and signal conditioning modules
- Standard industrial current loop signal conditioning cards
- Process monitoring and data logging platforms supporting 4-20mA inputs
- Legacy and modern automation platforms utilizing standard current loop protocols
