Overview

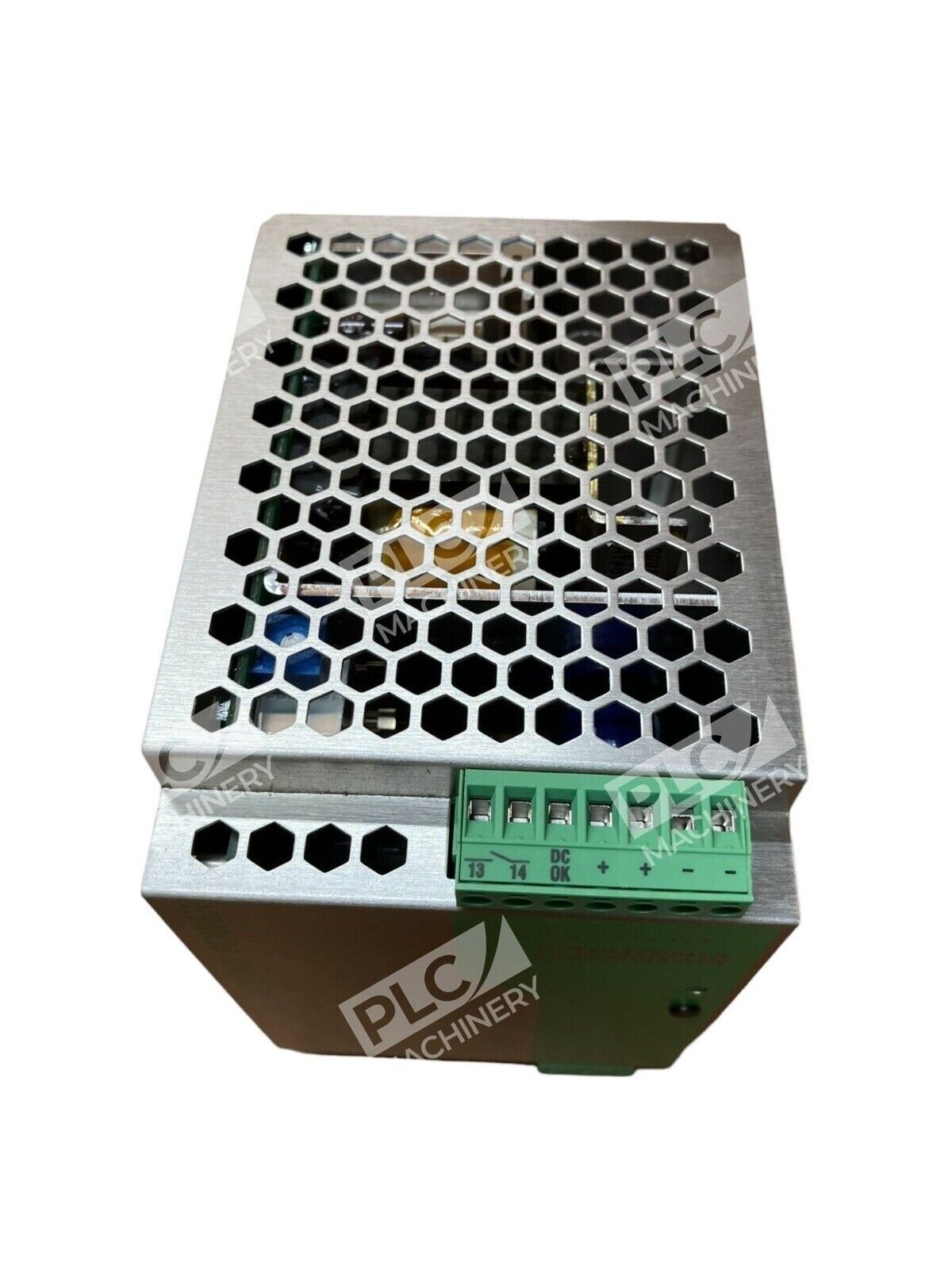

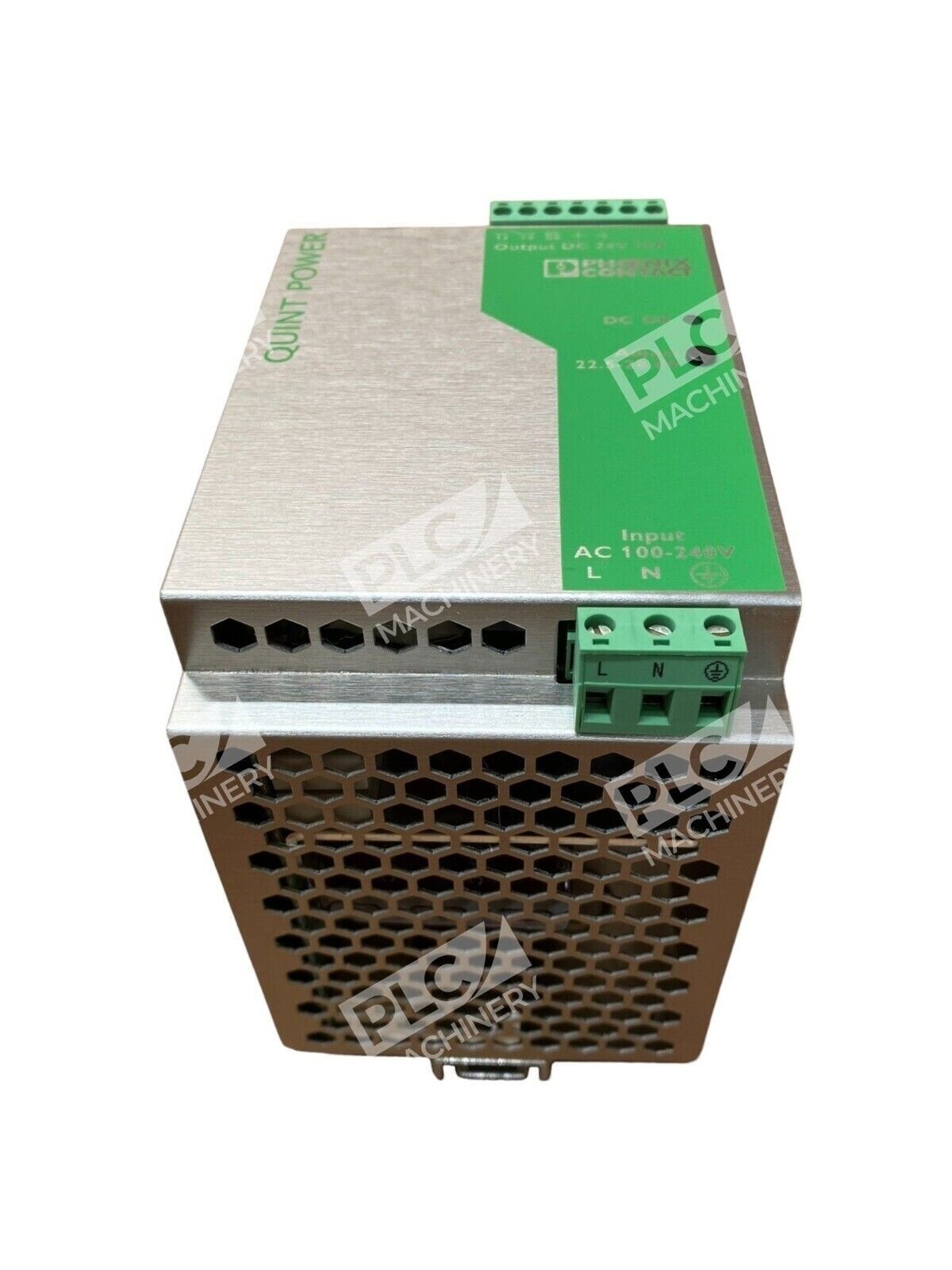

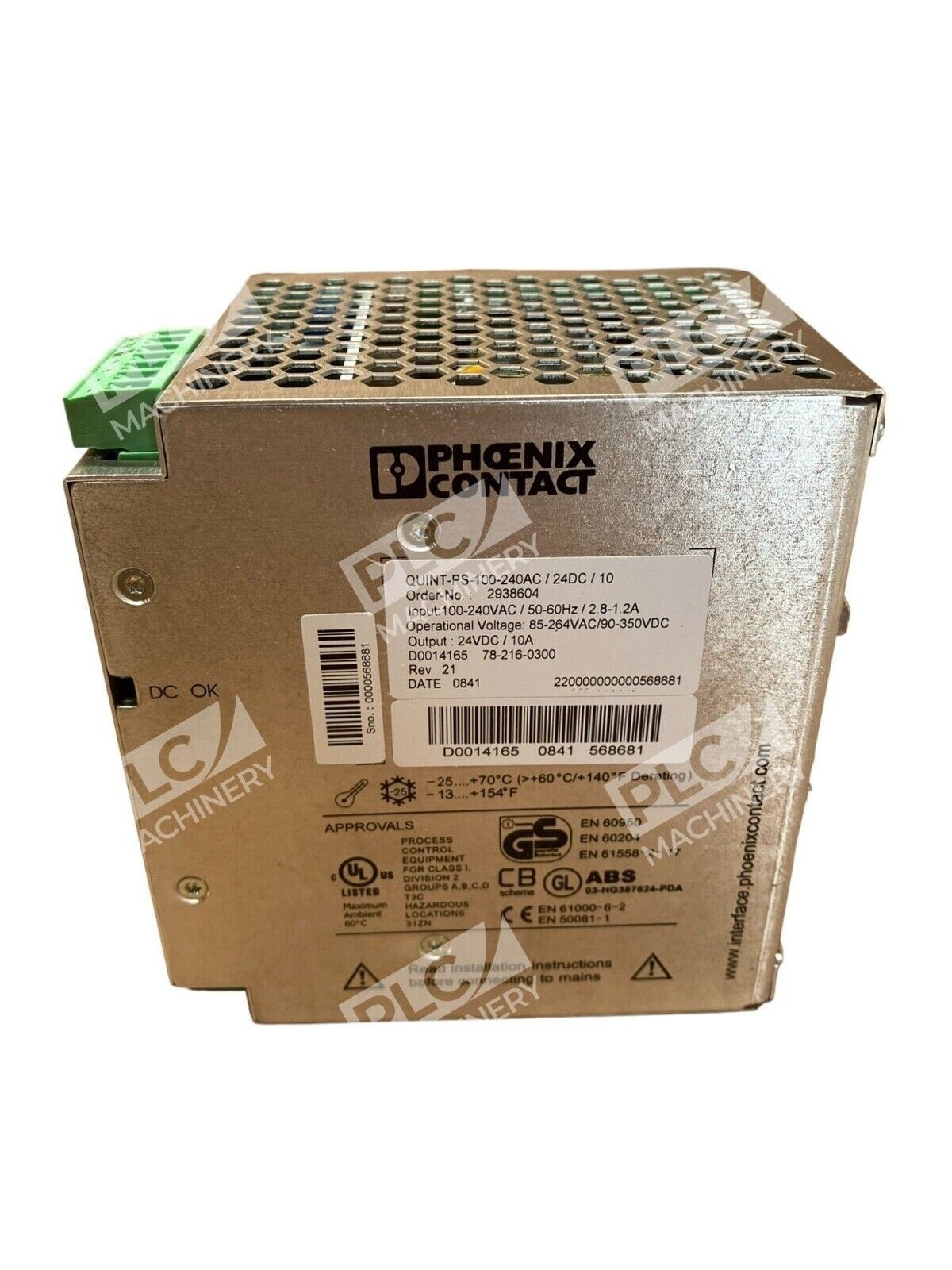

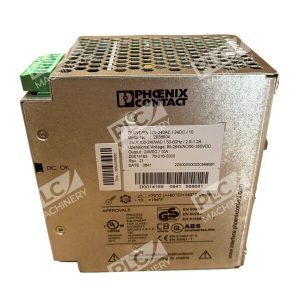

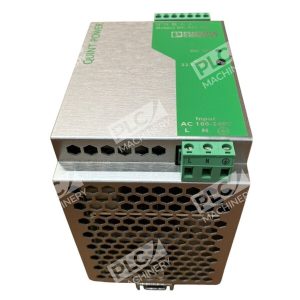

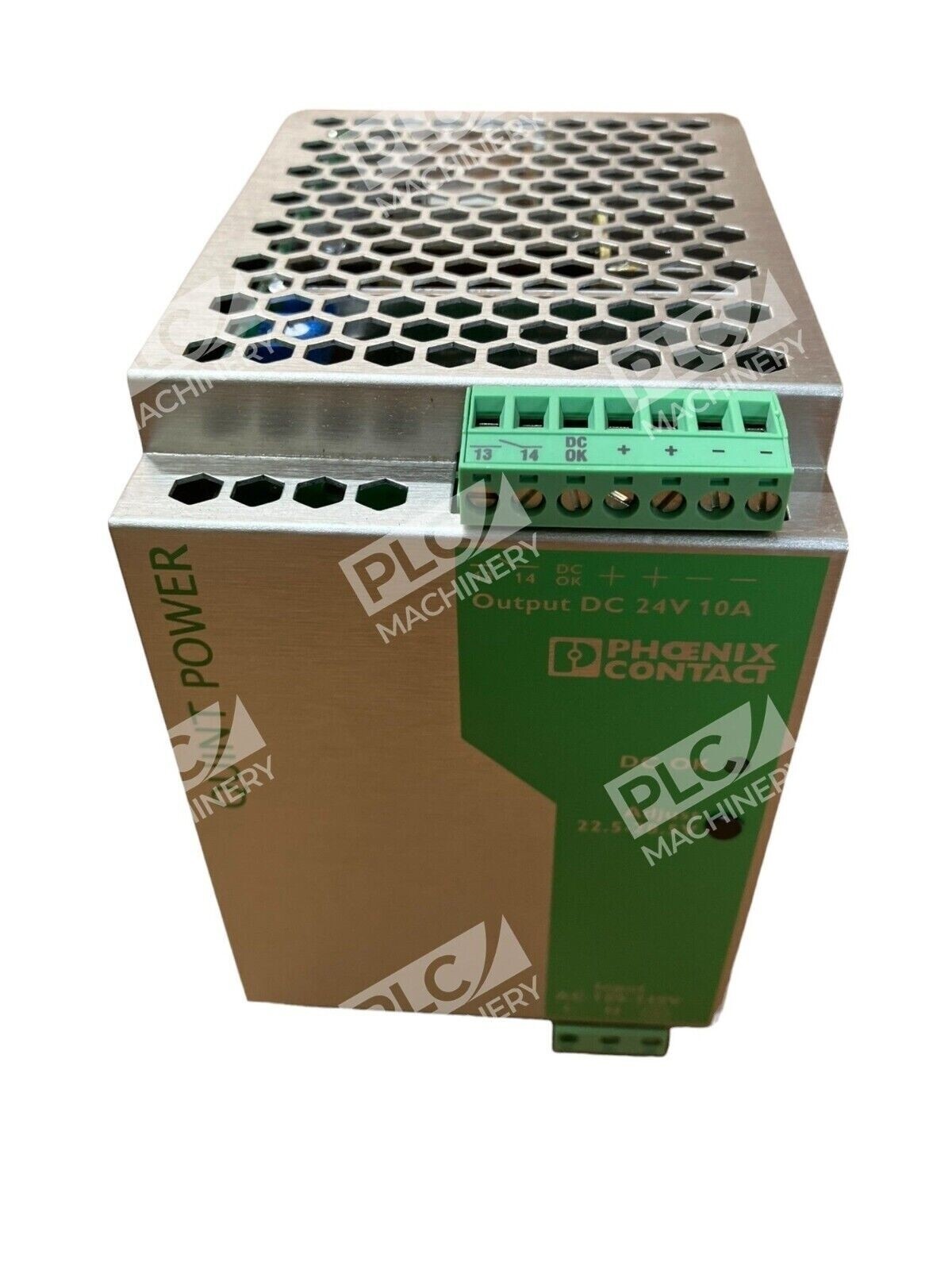

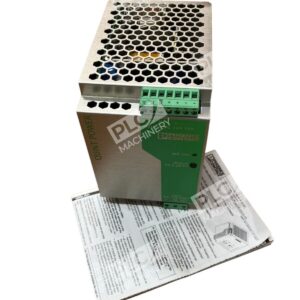

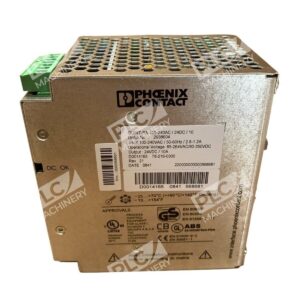

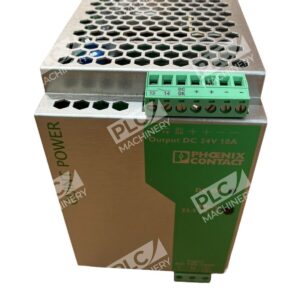

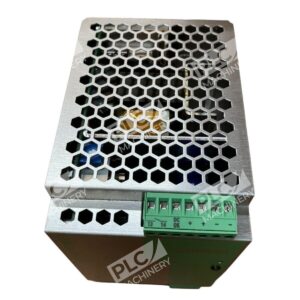

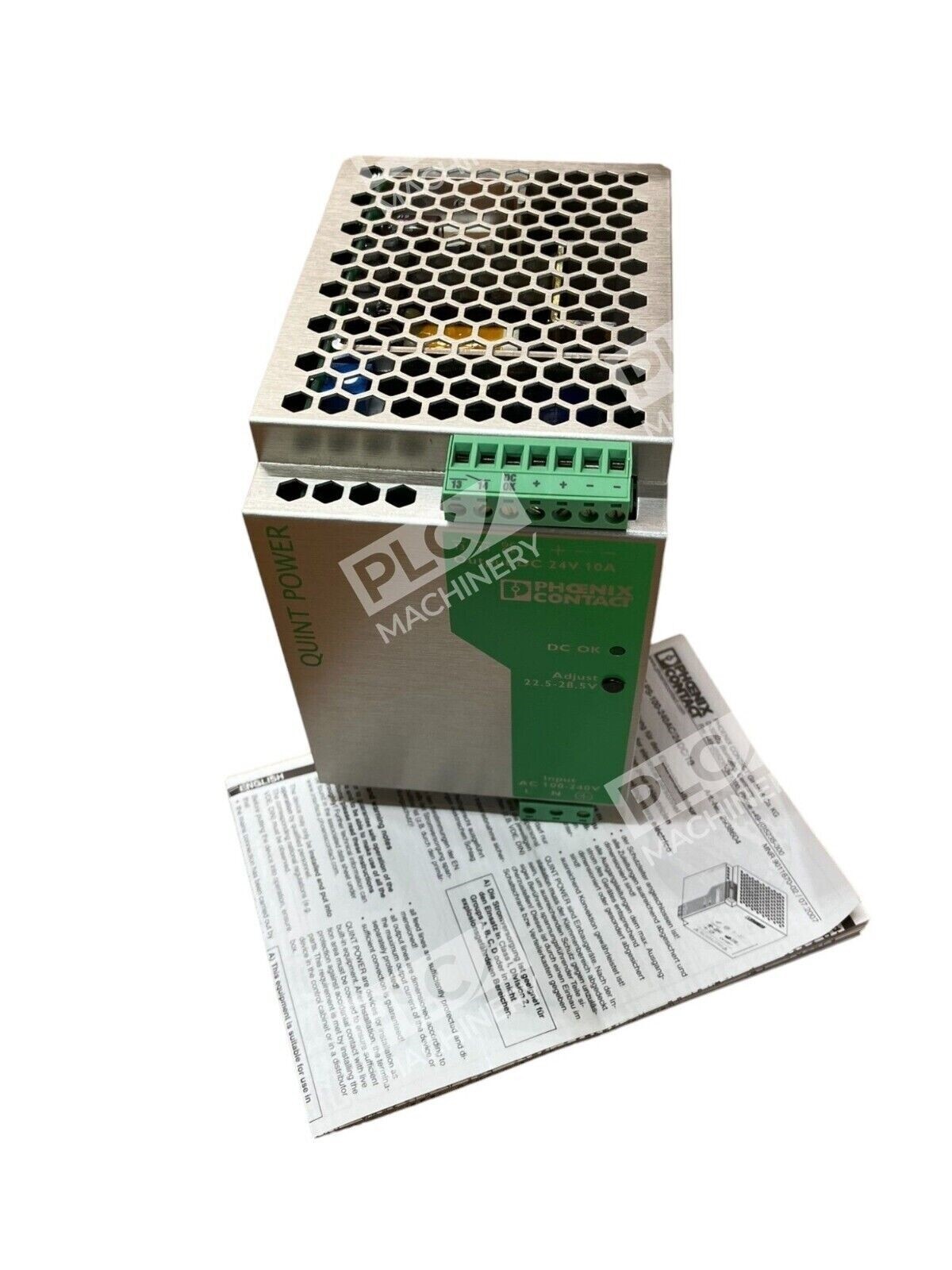

The Phoenix Contact QUINT-PS-100-240AC/24DC/10 is a compact DIN rail-mounted power supply unit designed for industrial automation and control systems. This primary-switched mode unit delivers 24 V DC at 10 A (240 W nominal output) from a wide-range 100–240 VAC input, making it suitable for global deployments. The unit is engineered to handle demanding load conditions and inrush currents common in industrial environments.
Key Features
- Primary-switched topology for efficient power conversion and reduced heat dissipation
- Wide input range: 100–240 VAC nominal, 85–264 VAC operational (45–65 Hz)
- POWER BOOST function for reliably starting heavy inductive loads with high inrush currents
- Compact DIN rail form factor — 130 × 125 × 85 mm for space-constrained cabinets
- Global approvals and design for use across multiple industrial sectors worldwide
- Efficiency >91% and integrated surge protection (varistor-based)
Technical Specifications
Output: 24 V DC / 10 A (240 W nominal)
Input Voltage: 100–240 V AC nominal; 85–264 V AC operational; 90–350 V DC capable
Frequency Range: 45–65 Hz (AC input)
Nominal Power Consumption: 264 W
Inrush Current: <15 A (typical)
Mains Buffering: >50 ms at 120 V AC and 230 V AC
Efficiency: >91%
Input Fuse: 6.3 A slow-blow (internal)
Discharge Current to PE: <3.5 mA
Protection: Transient surge protection (varistor)
Mounting: DIN rail (standard 35 mm rail)
Feedback Resistance: 35 V DC
Operating Temperature: Industrial grade (verified per Phoenix Contact standard)
Typical Applications
- Industrial process control and PLC systems
- Factory automation and machine control cabinets
- Motor control and drive systems with inductive loads
- Distributed I/O and sensor-actuator networks
- Building automation and HVAC control systems
- Heavy machinery start-up with peak inrush current demands
Compatibility & Replacements
Compatible With
- Allen-Bradley ControlLogix, CompactLogix, and SLC PLC systems
- Siemens S7-1200, S7-1500, and TIA Portal-based controllers
- Mitsubishi, Omron, and general industrial control systems
- EtherNet/IP, PROFINET, and standard Ethernet industrial networks
- Standard 24 V DC distributed I/O and field devices
- Any controller or system requiring 24 V DC auxiliary power
Replaces / Drop-In Replacement For
- Phoenix Contact QUINT-PS units of equivalent rating
- Other 24 V / 10 A DIN rail-mounted power supplies (verify form factor and terminal compatibility before installation)
- Note: Successor model is 2904601 for new system designs (Phoenix Contact recommended upgrade path)
Works With
- DIN 43880 standard 35 mm rail mounting systems
- Phoenix Contact terminal blocks and connector modules
- Standard industrial UPS systems for battery backup scenarios
- Circuit protection (recommended 10–16 A, B/C/D/K characteristics)
- Distributed automation networks and fieldbuses
