<h2>Overview</h2>

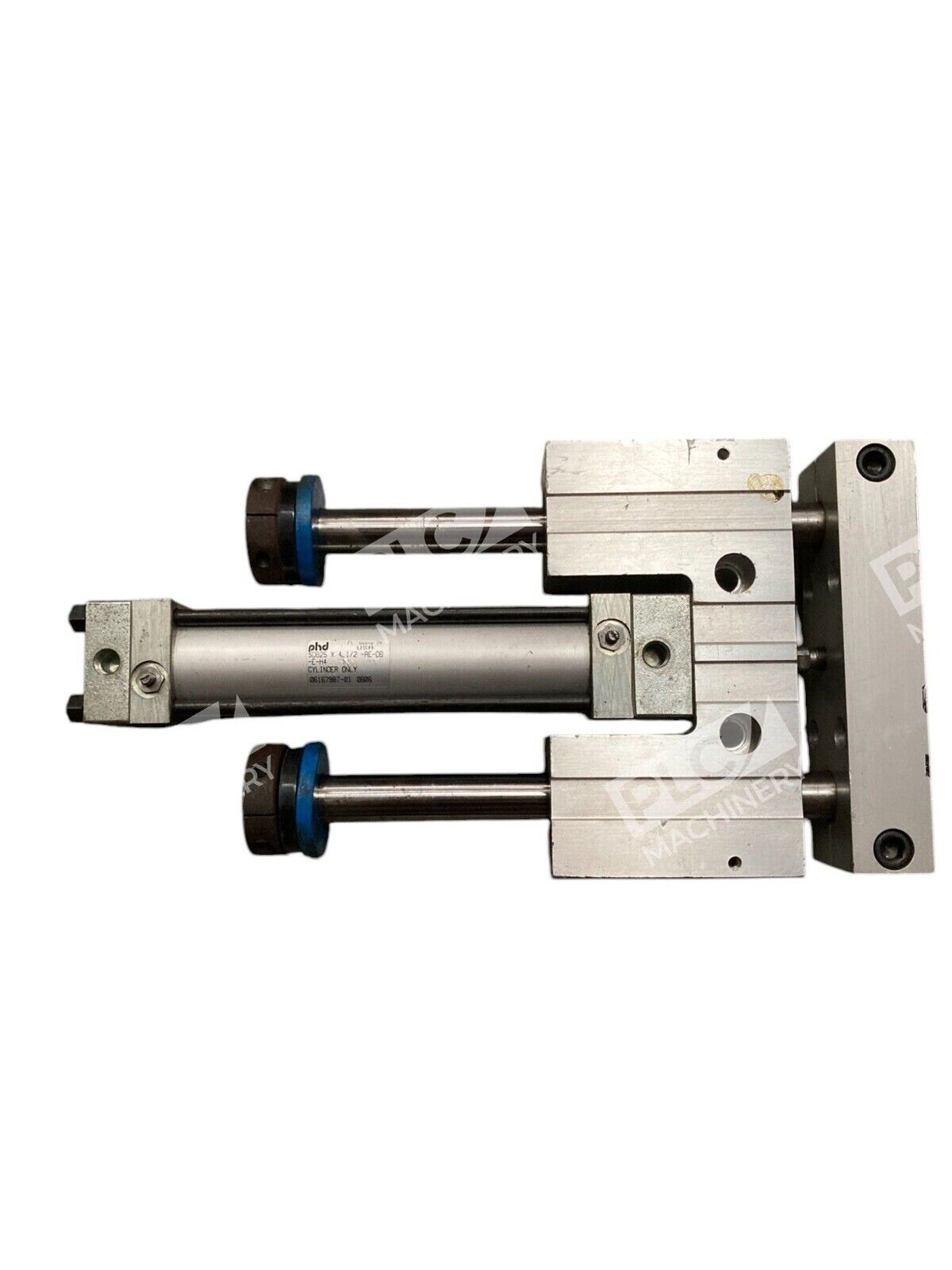

<p>The <strong>PHD SDB25X4-1/2-AE-DB-E-H4</strong> is a pneumatic linear slide from PHD’s versatile SDB series. This double-acting thruster slide is designed for precision positioning and material handling in compressed air systems. The unit combines a 25mm bore cylinder with a 4-1/2-inch stroke to deliver consistent linear motion across automation, assembly, and material transfer applications.</p>
<h2>Key Features</h2>
<ul>
<li>Double-acting pneumatic design for push-pull operation</li>
<li>Adjustable end cushions (AE) reduce impact shock and extend component life</li>
<li>Magnetic piston (H4) enables reed switch and teachable switch integration for position feedback</li>
<li>Compact, lightweight design suitable for space-constrained installations</li>
<li>Factory-lubricated for life with minimal maintenance requirements</li>
<li>TC composite bushings provide smooth, repeatable travel</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Bore Size:</strong> 25mm</li>
<li><strong>Stroke Length:</strong> 4-1/2 inches</li>
<li><strong>Actuation Type:</strong> Double-acting (DB)</li>
<li><strong>End Cushions:</strong> Adjustable (AE)</li>
<li><strong>Piston Type:</strong> Magnetic (H4)</li>
<li><strong>Operating Pressure:</strong> 45–150 psi (3–10 bar) typical range</li>
<li><strong>Repeatability:</strong> ±0.001 inch (±0.025mm) from original position</li>
<li><strong>Bushing Type:</strong> TC composite</li>
<li><strong>Input Medium:</strong> Compressed air</li>
<li><strong>Lubrication:</strong> Factory-lubricated, sealed design</li>
</ul>
<h2>Typical Applications</h2>
<ul>
<li>Precision assembly fixtures and work-holding devices</li>
<li>Material handling and transfer systems</li>
<li>Part positioning in manufacturing lines</li>
<li>Automated sorting and packaging equipment</li>
<li>Test and inspection automation</li>
<li>Compact indexing and feed mechanisms</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>PHD JC1 Series pneumatic switches</li>
<li>Reed switches and teachable position sensors</li>
<li>Standard industrial compressed air systems (45–150 psi)</li>
<li>Pneumatic solenoid valves and control systems</li>
<li>Industrial automation controllers with pneumatic I/O</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<ul>
<li>Verify compatibility with your system integrator before ordering. Consult PHD technical support or a certified automation distributor to confirm interchangeability with legacy equipment or competing brands.</li>
</ul>
<h3>Works With</h3>
<ul>
<li>Pneumatic control systems and PLC interfaces</li>
<li>Position sensing via magnetic reed switches</li>
<li>Industrial solenoid valve pilot and directional control modules</li>
<li>Compressed air networks (compressed air supply, filters, regulators, lubricators)</li>
</ul>
