Overview

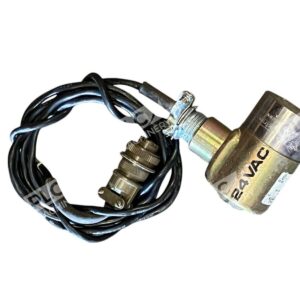

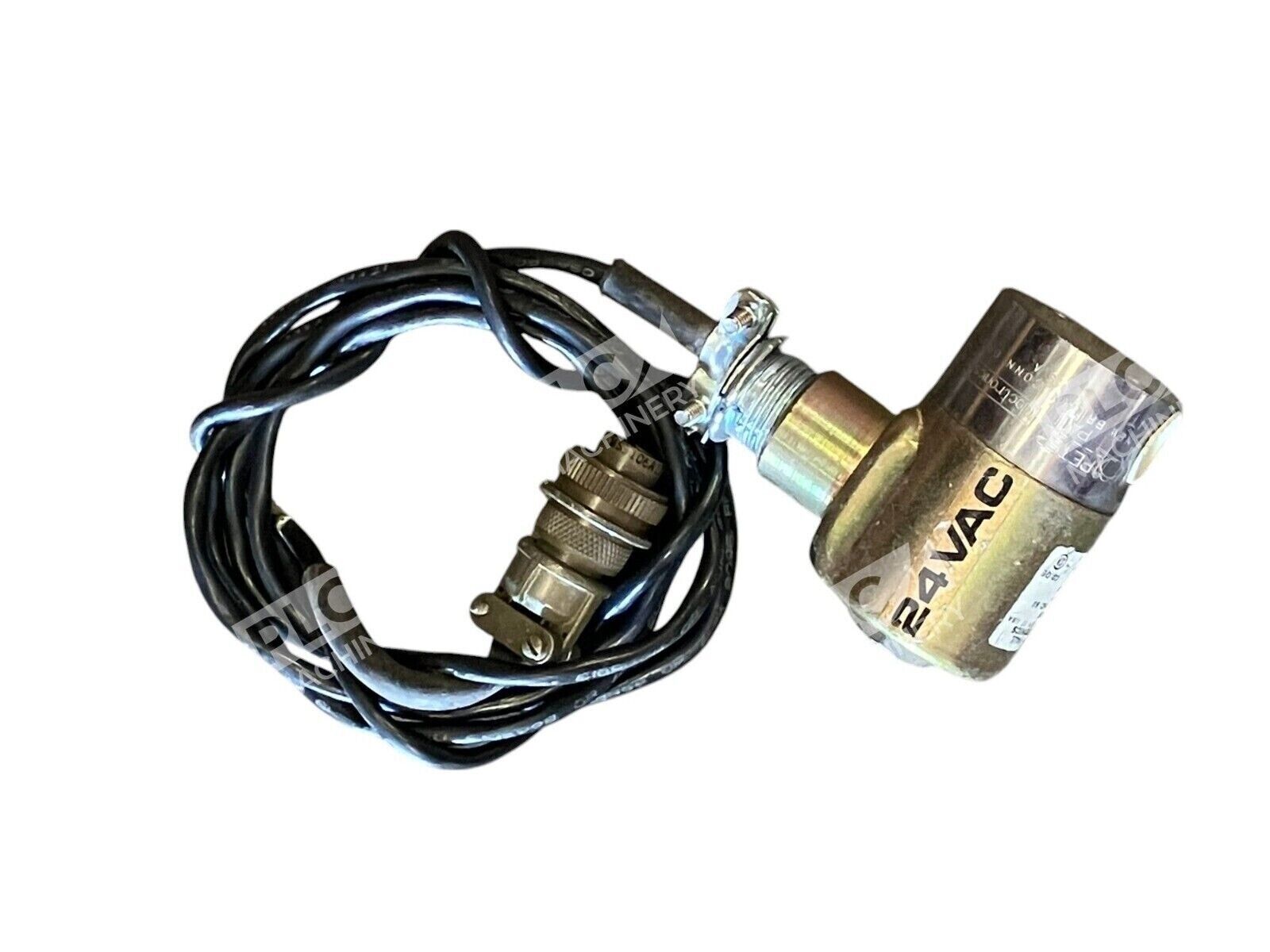

The Peter Paul Electronics 22N9DCM is a Series 20 Model 22 2-way normally closed solenoid valve designed for reliable control of air, water, and compatible fluids. With a compact 1/8″ orifice design and 100PSI pressure rating, this 24VAC 60Hz valve delivers proven performance in industrial automation and fluid control applications.
Key Features
- 24VAC 60Hz coil voltage for standard AC power systems
- 100PSI maximum pressure rating suitable for standard industrial applications
- 1/8″ orifice for controlled flow regulation
- 2-way normally closed (2WNC) configuration with spring return
- Bubble-tight sealing performance for reliable shut-off
- Compatible with air, water, and standard Buna seal compatible fluids
- Compact Series 20 design for space-constrained installations

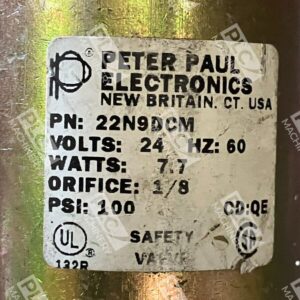

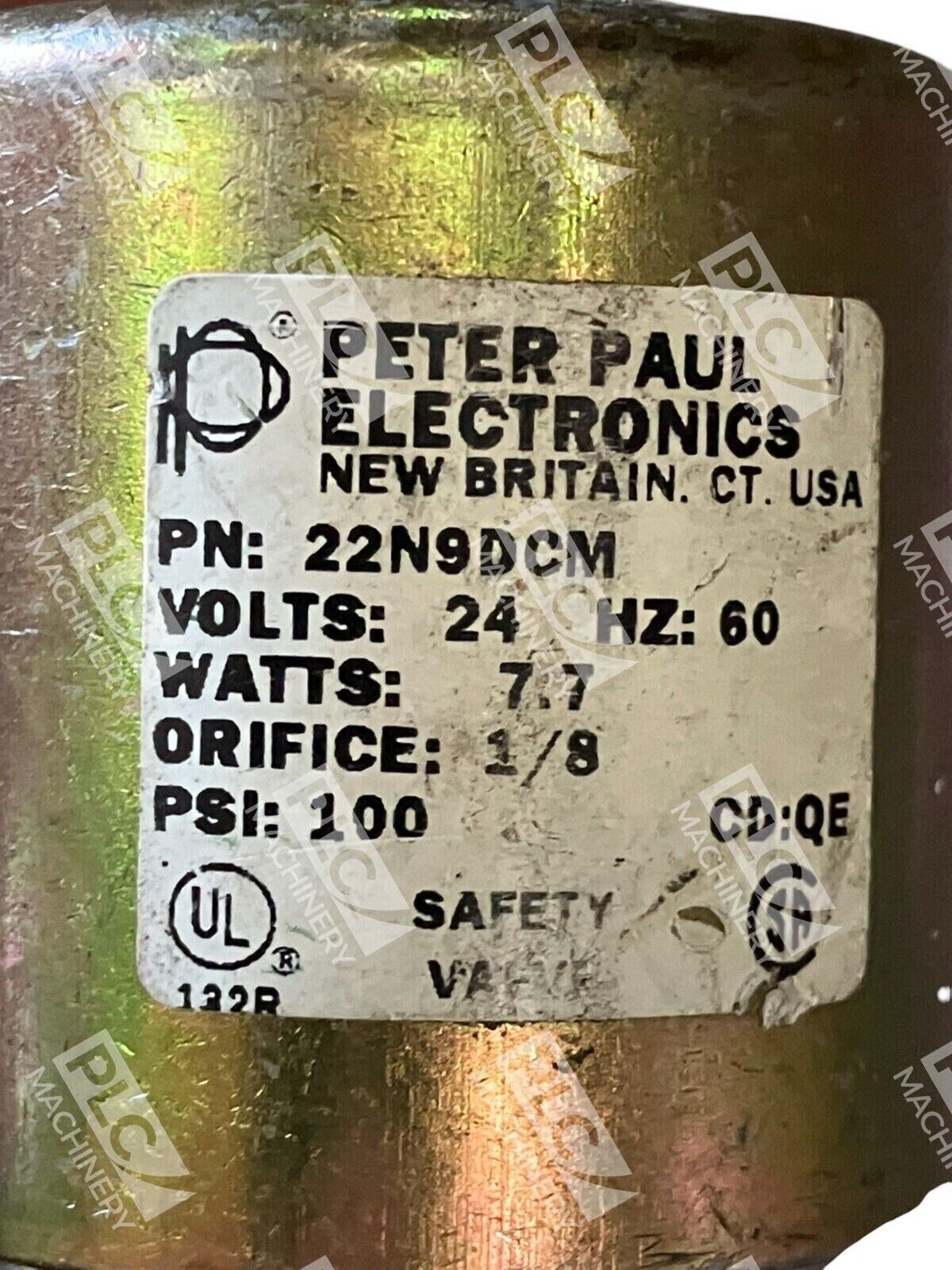

Technical Specifications
- Model: 22N9DCM
- Voltage: 24VAC
- Frequency: 60Hz
- Pressure Rating: 100PSI
- Orifice Size: 1/8″
- Configuration: 2-Way Normally Closed
- Wattage: 7.7W
- Seal Material: Nitrile (Buna) Standard
- Operating Temperature (Ambient): 0°F to 104°F
- Operating Temperature (Media): 0°F to 150°F
- Port Connection: 1/8″ NPT
- Series: 20
Typical Applications
- Industrial automation and pneumatic control systems
- Water and fluid flow control in manufacturing
- Air distribution and pressure regulation
- Equipment activation and safety interlocking
- HVAC and process control systems
Compatibility & Replacements
Compatible With
- Peter Paul Electronics Series 20 system architectures
- Standard 24VAC 60Hz industrial control circuits
- Air, water, and standard industrial fluids with Buna seal compatibility
- NPT threaded manifold and ported block applications
Replaces / Drop-In Replacement For
- 22N9DCM variant configurations (verify coil code for exact match)
- Other Peter Paul Series 20 Model 22 2-way normally closed valves with matching voltage/frequency
Works With
- Standard 24VAC industrial control relays and solenoid driver circuits
- Pneumatic and hydraulic system manifolds with NPT ports
- Industrial PLC and automation system outputs
- Manual override operators (available separately with “O” prefix designation)
