Overview

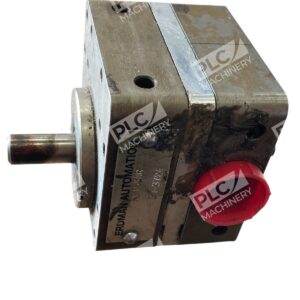

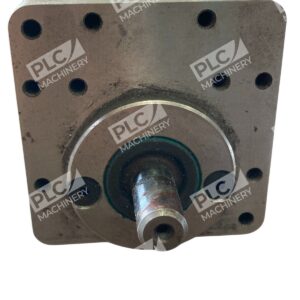

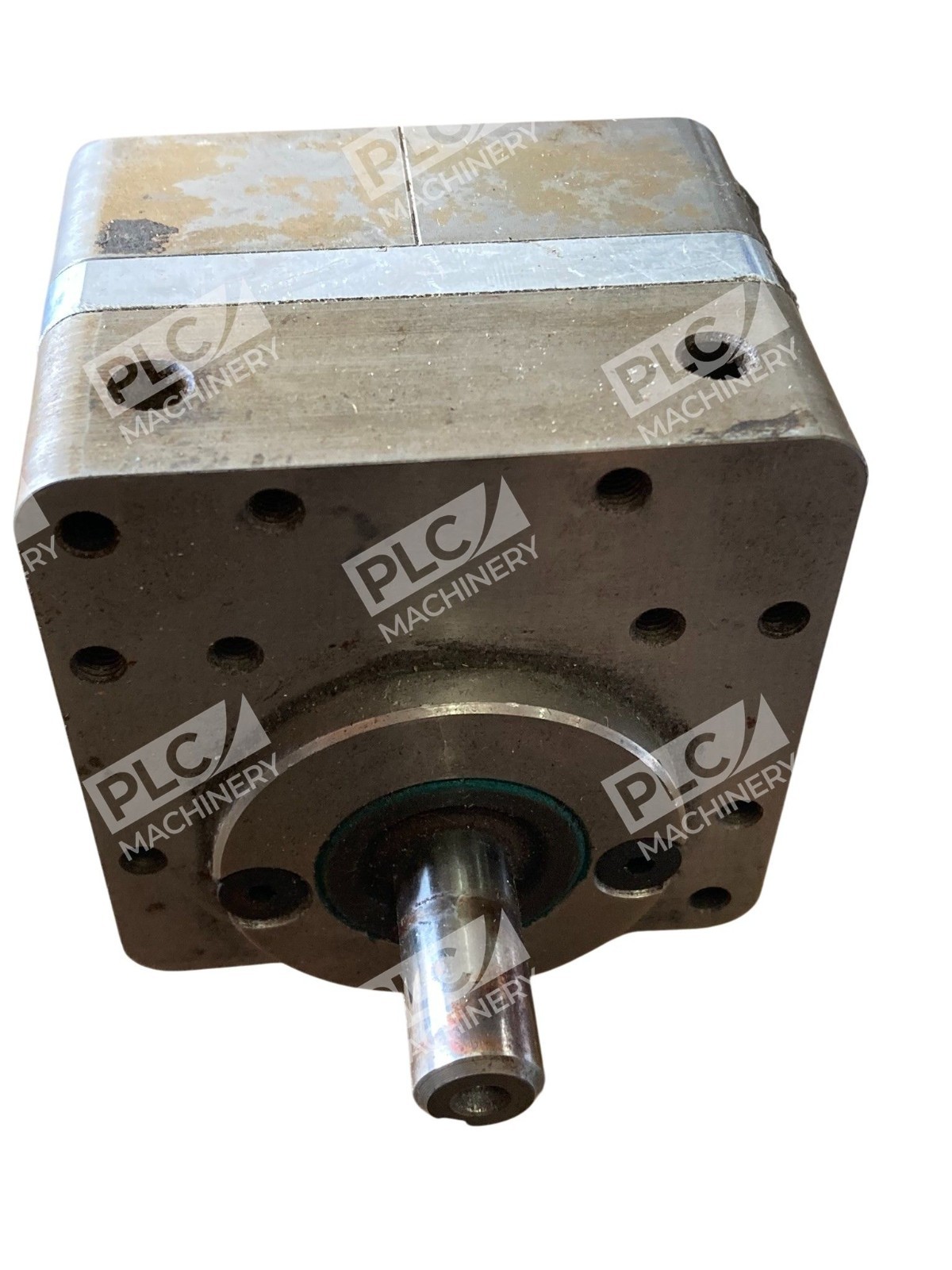

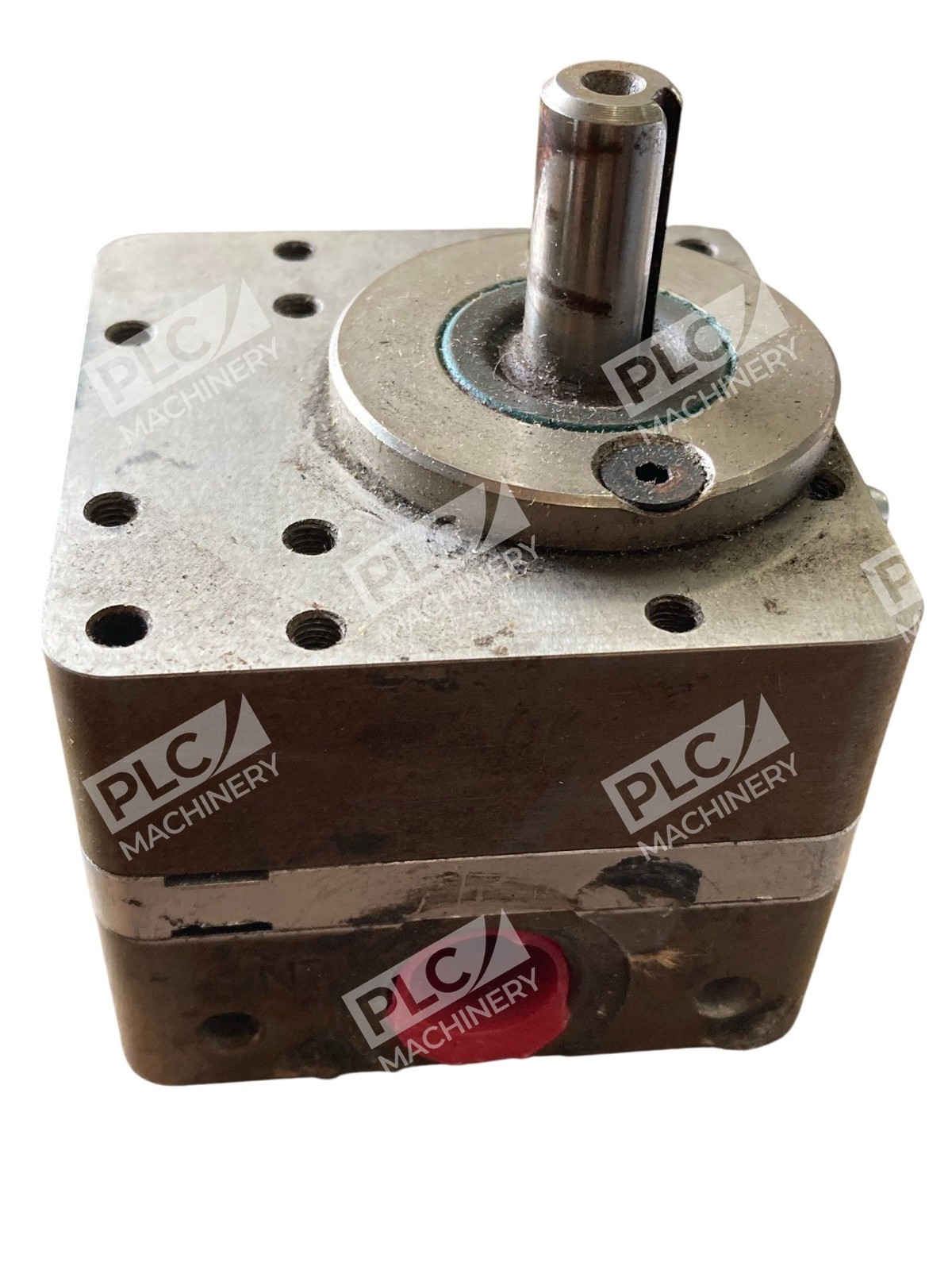

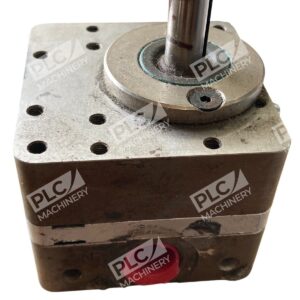

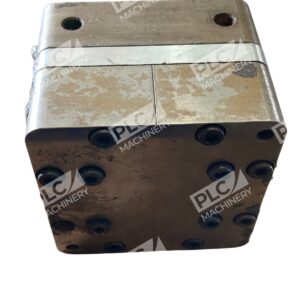

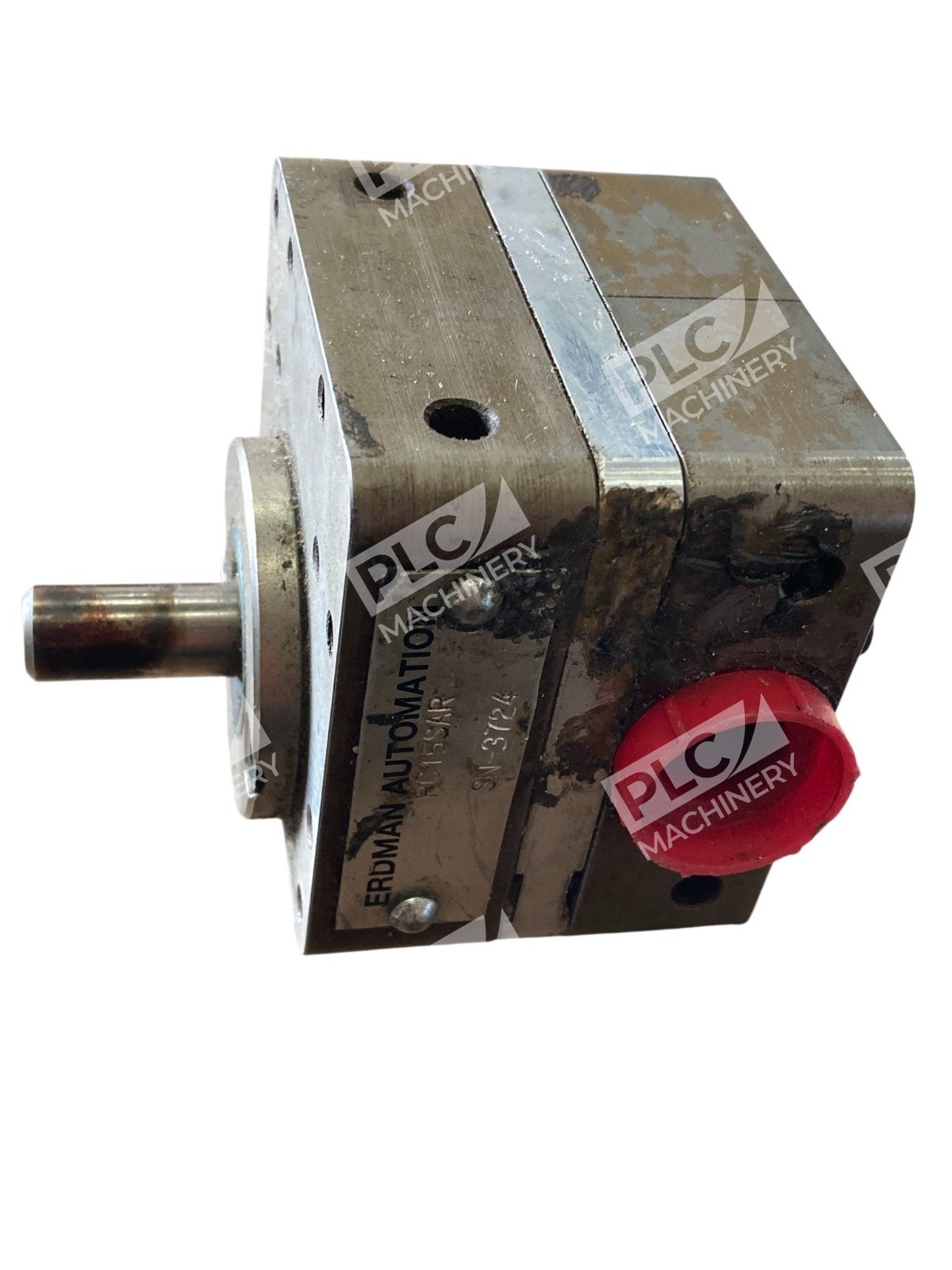

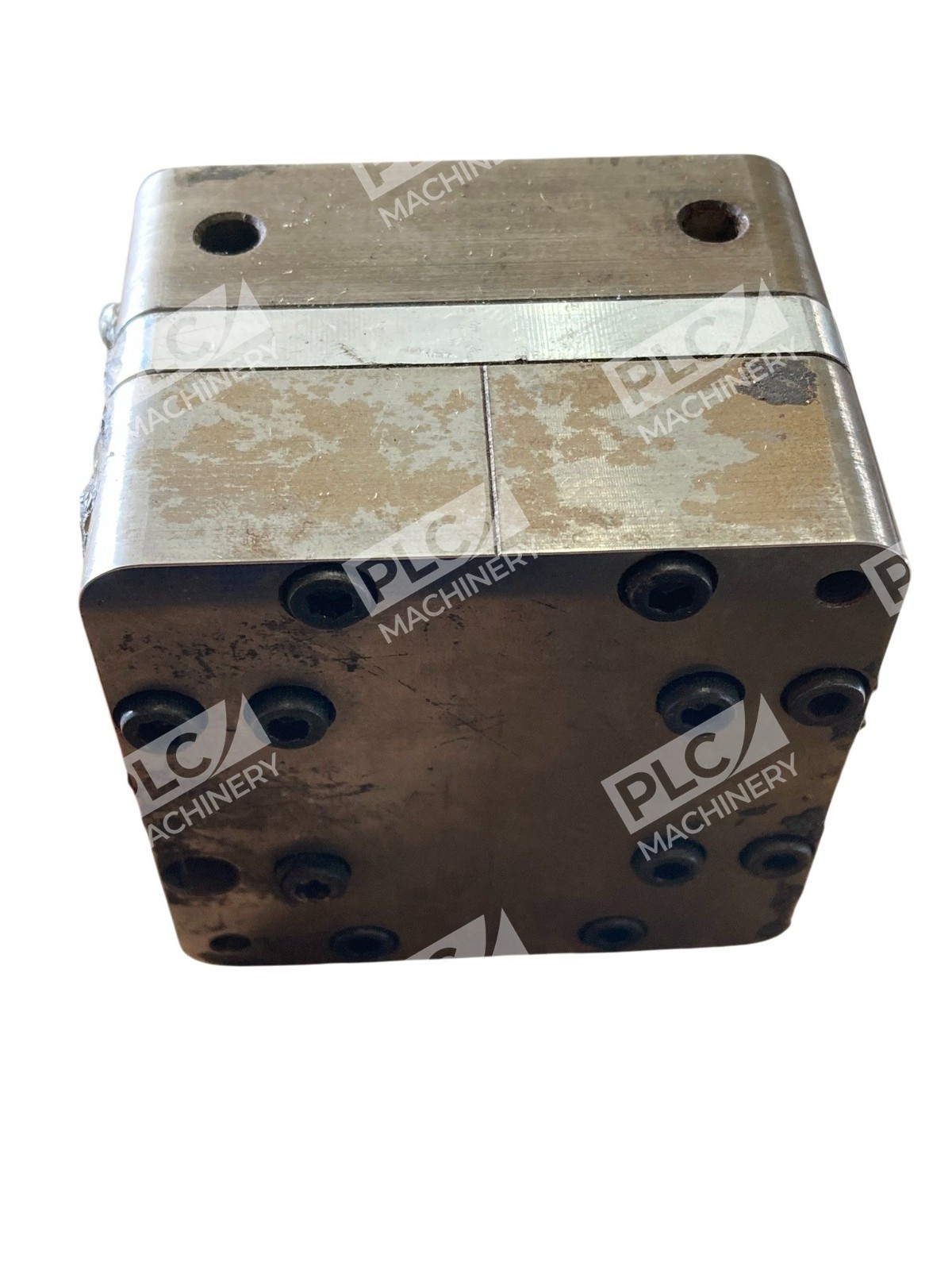

The Erdman PC15SAR spiral bevel gearbox is a right-angle transmission unit engineered for reliable power transfer in industrial automation and machinery. Featuring precision spiral bevel gears, this gearbox unit delivers efficient torque transmission with smooth, quiet operation. The Erdman PC15SAR is suited for applications requiring compact axis changes with high efficiency and controlled motion characteristics.
Key Features
- Spiral bevel gear design for smooth, quiet operation and reduced vibration
- Right-angle (90-degree) transmission configuration
- Precision-manufactured gears for accurate power transmission
- Compact housing suitable for space-constrained installations
- Industrial-duty construction for long service life
Technical Specifications
The following specifications are based on typical spiral bevel gearbox design parameters. Verify all specifications with technical documentation before ordering:

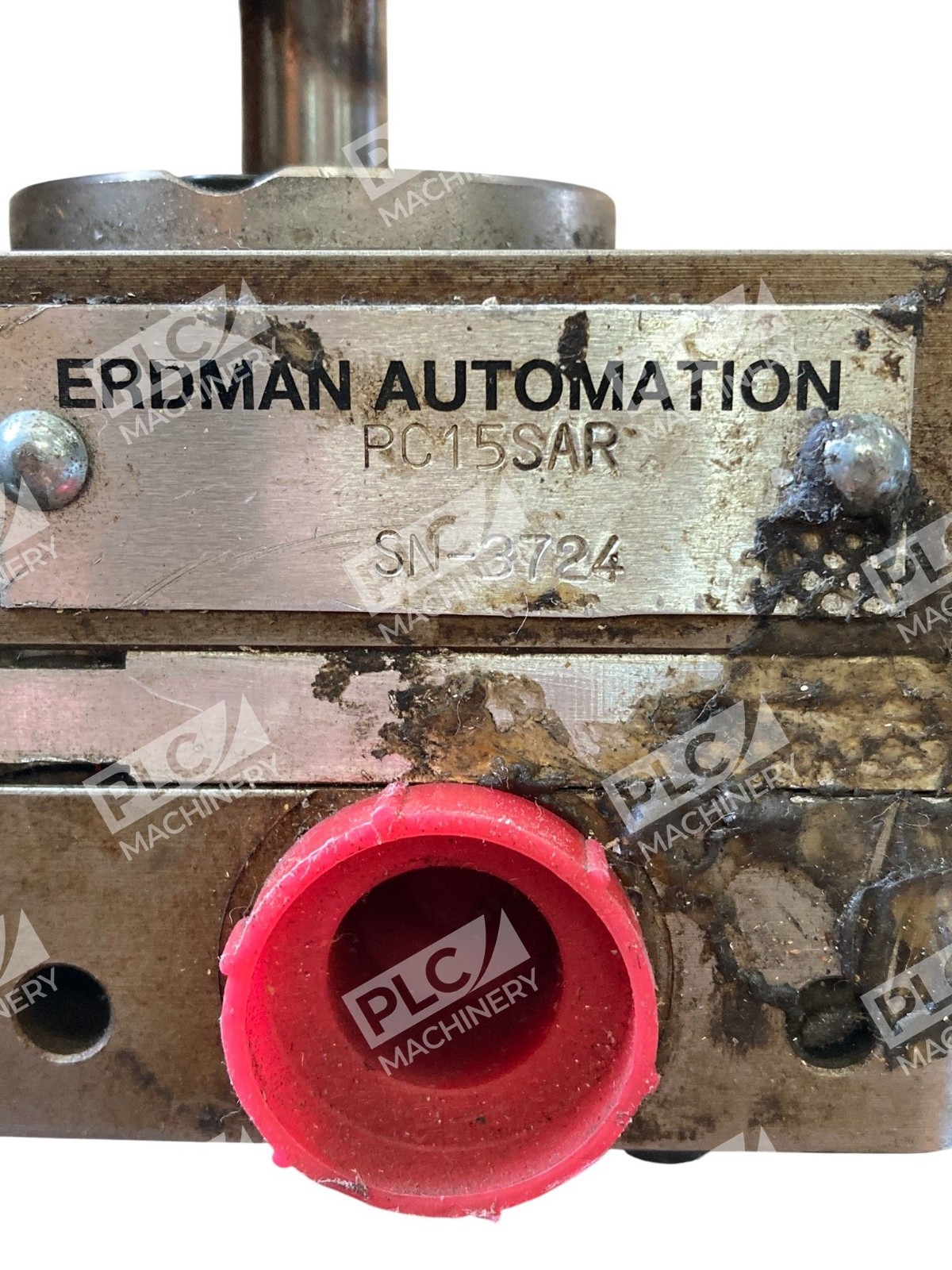

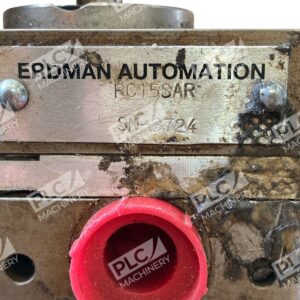

- Manufacturer: Erdman Automation
- Model: PC15SAR
- Series Designation: SN-3724
- Gearbox Type: Spiral Bevel (Right-Angle)
- Condition: Used
- Housing Material: Aluminum or cast iron (verify with seller)
- Typical Efficiency: 94–98% (standard for spiral bevel designs)
- Operating Temperature Range: -5°F to 175°F (-20°C to 79°C) typical
- Lubrication: Oil-lubricated (mineral oil CLP per DIN standard)
Typical Applications
The Erdman PC15SAR spiral bevel gearbox is commonly used in:
- Industrial automation and machine control systems
- Conveyor systems and material handling equipment
- Packaging machinery and line automation
- Pump and motor drive systems
- Production machinery requiring compact right-angle drives
- Systems where smooth, low-noise operation is required
Compatibility & Replacements
Compatible With
- Electric motors rated for bevel gearbox input speeds (typically up to 3,000 RPM)
- Industrial automation control systems requiring right-angle power transmission
- Standard mounting configurations for industrial gearbox installation
- Oil-lubricated mechanical power transmission systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Specific replacement models for the Erdman PC15SAR cannot be confirmed without manufacturer cross-reference documentation. Do not assume interchangeability with other spiral bevel gearbox models without technical verification.
Works With
- AC and DC electric motors
- VFD-driven motor systems
- Mechanical power transmission systems
- Standard industrial control and automation platforms
- Oil-based lubrication systems (mineral oil CLP per DIN standard)
