Overview

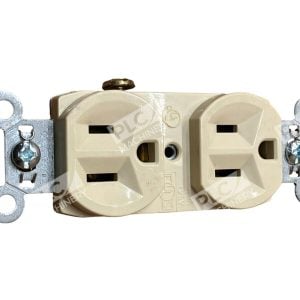

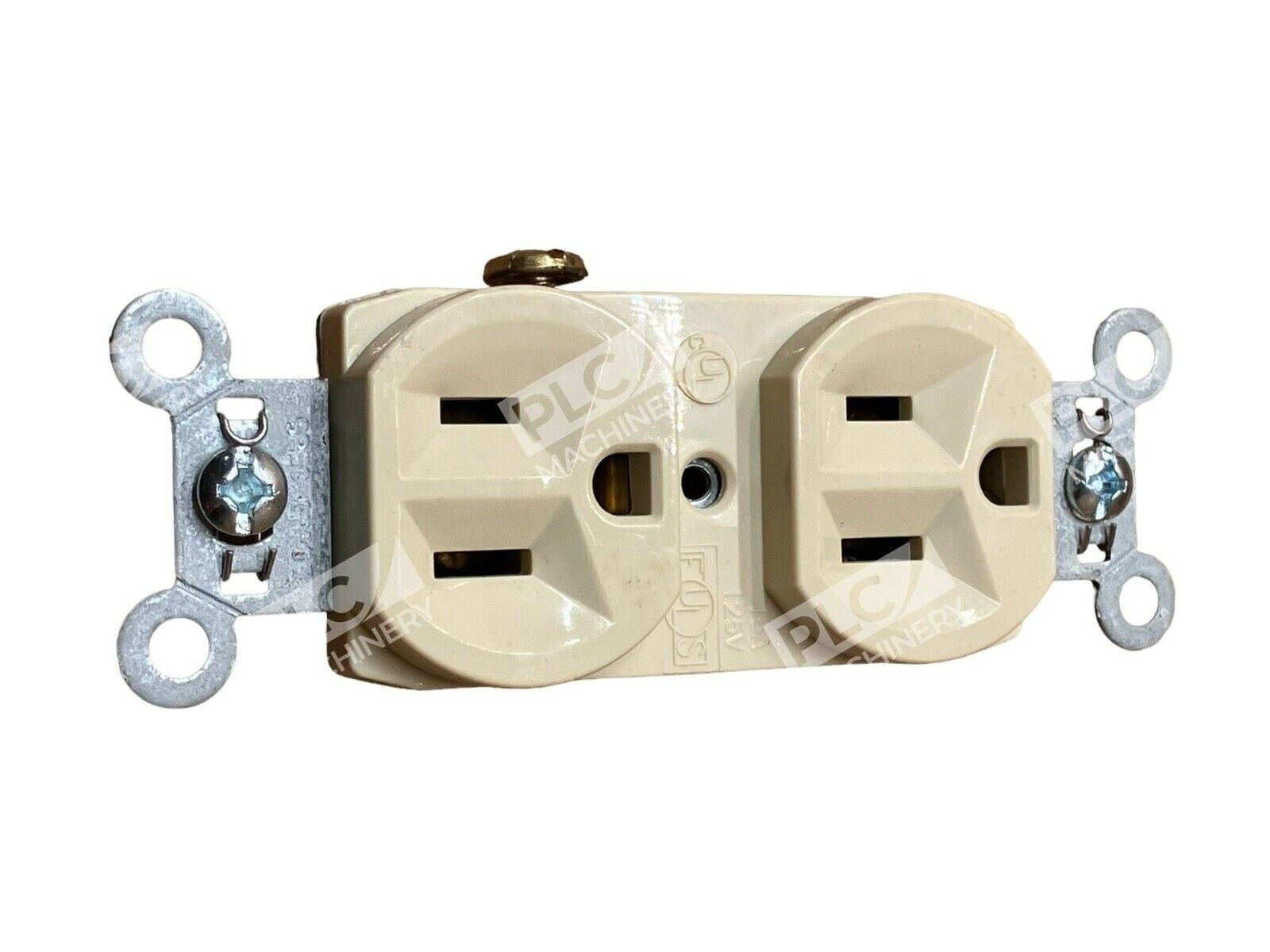

The Pass & Seymour CRB5262-I is a commercial/residential grade duplex receptacle designed for construction and permanent installations. Rated at 15 amperes, 125 volts AC, this straight blade outlet features a NEMA 5-15R configuration with automatic ground detection and both back and side wire terminal options for flexible installation. The ivory finish and specification-grade construction make it suitable for new builds, renovations, and maintenance replacements in demanding environments.
Key Features

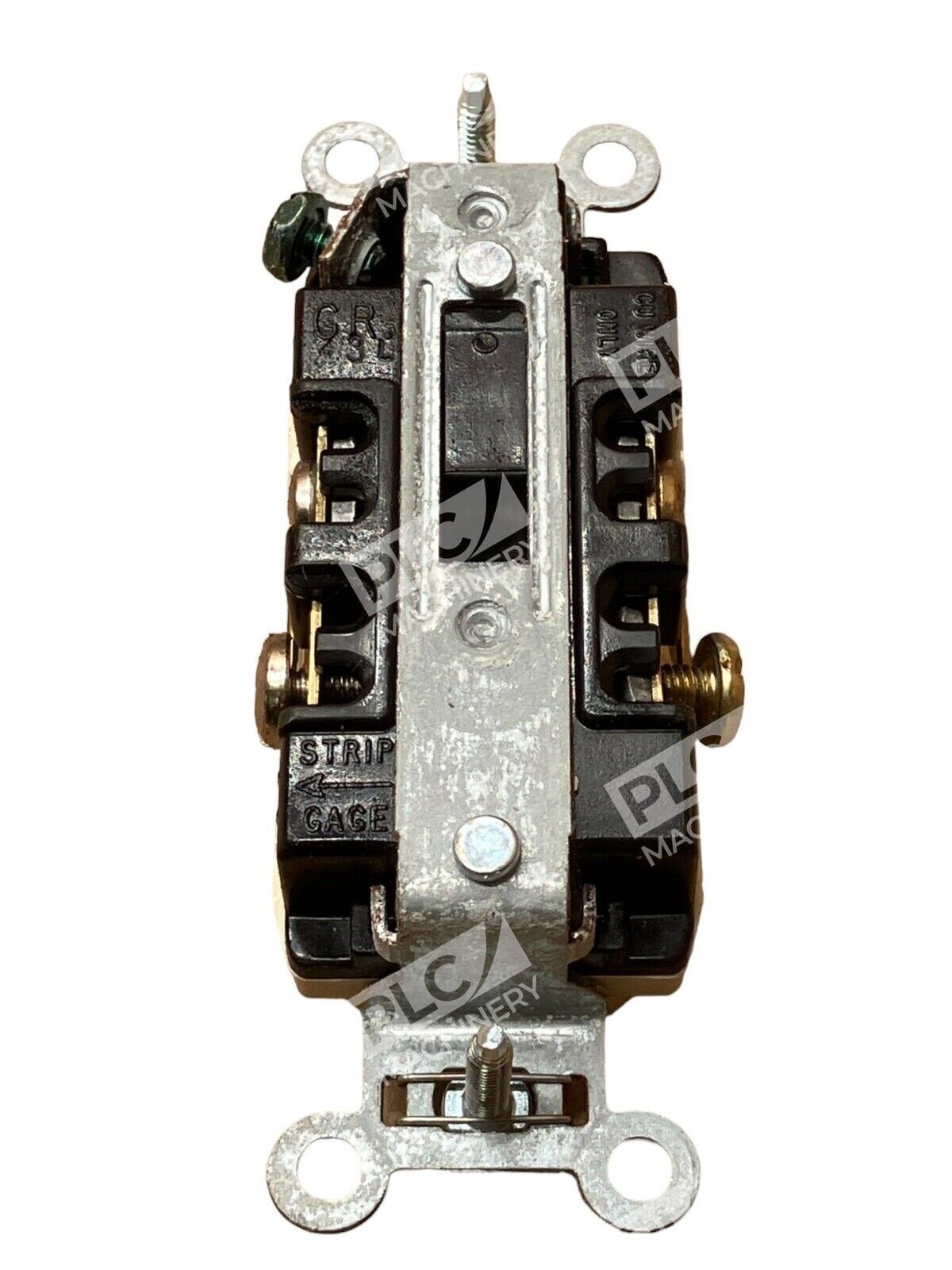

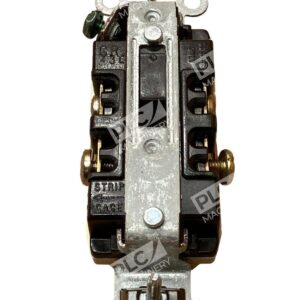

- Specification Grade Construction: Corrosion-resistant, plated steel strap locked to face and back body for durability and stability.
- Triple-Wipe Brass Contacts: 0.032-inch thick brass power contacts with triple-wipe design ensure long-term retention and reliable connections.

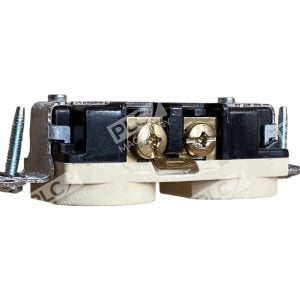

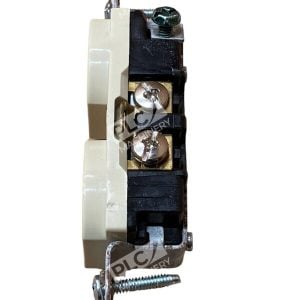

- Flexible Wiring Options: Back and side wire terminals accommodate #14 to #10 AWG conductors with easy split-circuit capability.
- Auto-Ground Clip: Automatic grounding ensures positive ground connection with minimal setup.
- Impact-Resistant Design: Nylon face and thermoplastic back body resist damage in job-site conditions.
- Wide Temperature Range: Operating temperature range of −40 to +60°C ensures reliability across climates.
Technical Specifications
- Voltage Rating: 125 VAC
- Amperage: 15 A
- Configuration: NEMA 5-15R, 2-pole, 3-wire
- Wire Capacity: #14 to #10 AWG

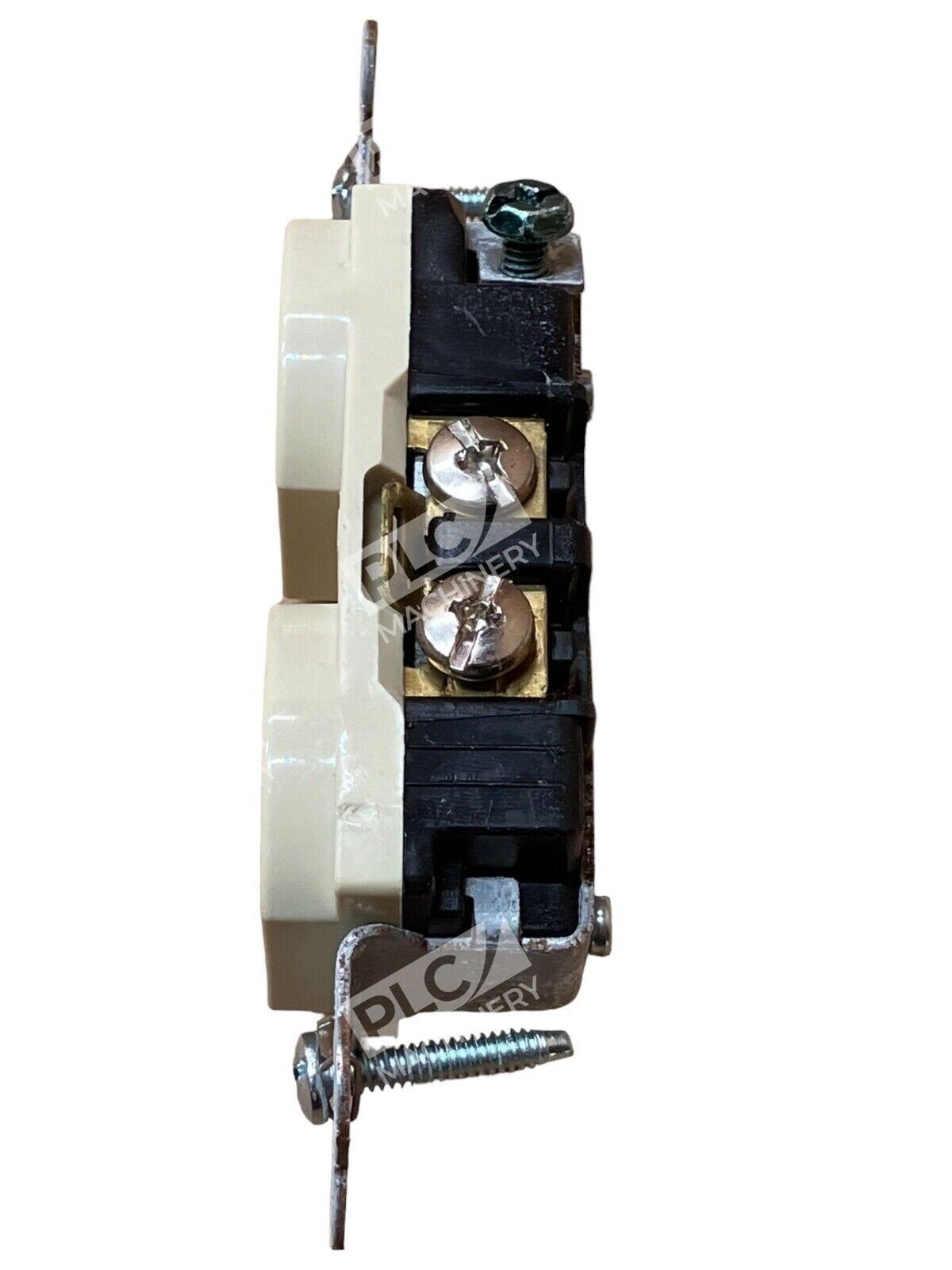

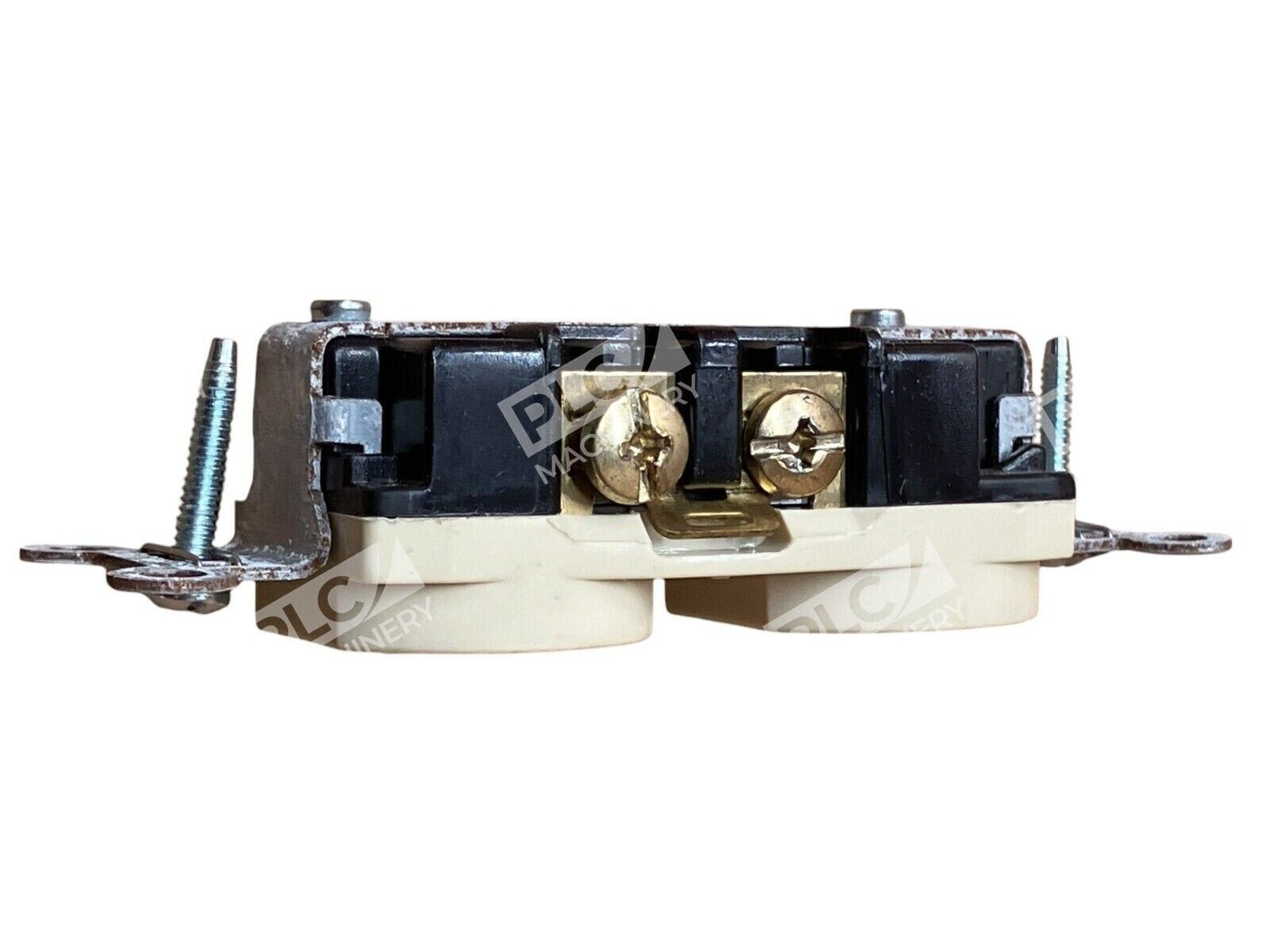

- Connection Type: Back and side wire terminals
- Dielectric Strength: 2000 VAC minimum
- Material: Nylon face, thermoplastic back body
- Color: Ivory
- Operating Temperature: −40 to +60°C
- Dimensions: 3.3 in H × 1.322 in W × 0.78 in D
- Weight: 0.21 lb
- Mounting: Wall mount, standard 1-gang box
- Certifications: UL 498, CSA C22.2, NEMA WD-1/WD-6
Typical Applications
The CRB5262-I is widely used in commercial and residential electrical systems, including:
- New construction and building renovations
- Commercial office and retail environments
- Residential homes and apartments
- Maintenance and panel replacements
- Split-circuit installations where independent circuits are required
Compatibility & Replacements
Compatible With
- Standard 1-gang electrical wall boxes (U.S. construction)
- 125V, 15A residential and commercial electrical systems
- Any #14 to #10 AWG copper or aluminum wiring
- NEMA 5-15P plugs and standard straight-blade appliances
Replaces / Drop-In Replacement For
- Pass & Seymour CRB5262 (brown version)
- Legacy Legrand specification-grade duplex receptacles in ivory finish
- Standard 15A 125V duplex receptacles of similar NEMA 5-15R configuration
Works With
- Residential and commercial electrical panels rated 125V AC
- UL/CSA certified electrical installations compliant with NEC (National Electrical Code)
- Building automation systems using standard electrical outlets
- Both pole-mounted and recessed wall box installations
