Overview

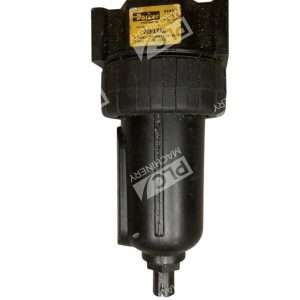

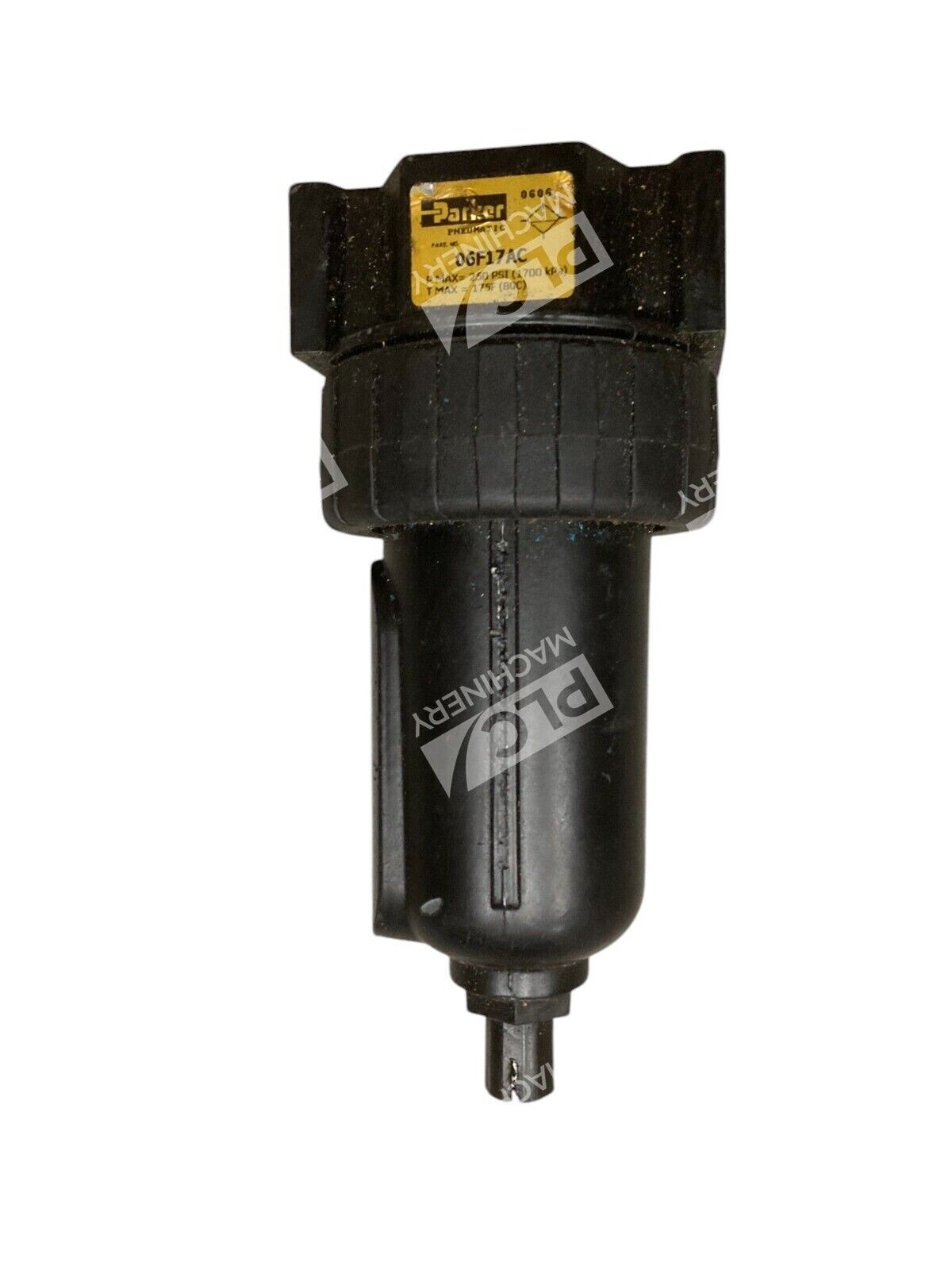

The Parker 06F17AC is a compact particulate filter from Parker’s Prep-Air II series designed for industrial compressed air applications. The 06F17AC removes solid particle contaminants and bulk liquids from pneumatic systems, protecting downstream equipment from dirt, water, and oil aerosol damage. This unit is part of the economy 06F compact line, delivering high moisture removal and excellent water separation in a space-efficient package.
Key Features
- 40-micron filter element for effective dirt and particulate removal
- Unique deflector plate and shroud creates swirling airflow for maximum water and dirt separation
- Large filter element surface area ensures low-pressure drop and extended element life
- Compact design suitable for space-constrained installations
- Manual twist drain for easy maintenance
- Polycarbonate bowl with metal bowl guard for visibility and impact protection
Technical Specifications

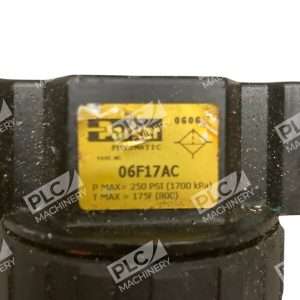

- Part Number: 06F17AC
- Port Size: 1/2 inch (NPT)
- Filter Element: 40 Micron
- Bowl Type: Polycarbonate with Metal Bowl Guard
- Drain Type: Manual Twist Drain
- Maximum Inlet Pressure (Polycarbonate Bowl): 150 psig (10.3 bar)
- Operating Temperature Range: 32°F to 125°F (0°C to 52°C)
- Flow Rate: 85 SCFM (40 dm³/sec)
- Body Material: Zinc
- Filter Element Material: Plastic
- Seals: Nitrile
Typical Applications
- General industrial pneumatic system air preparation
- Manufacturing equipment requiring clean compressed air
- Instrumentation and control air supply systems
- Food processing and pharmaceutical air lines
- Electronics manufacturing and assembly operations
- Any application where water, oil, and particulate removal is required from compressed air
Compatibility & Replacements
Compatible With
- All NPT threaded compressed air distribution systems rated for 150 psig (polycarbonate bowl) or 250 psig (metal bowl)
- Parker Prep-Air II regulators and lubricators via modular connectors
- Standard industrial pneumatic networks and shop air systems
- Both automatic and manual drain configurations
Replaces / Drop-In Replacement For
- Earlier Parker 06F compact series filters with identical port threads
- Other 1/2″ NPT, 40-micron compact particulate filters requiring equivalent moisture removal
- Verify specific model compatibility with your system integrator before ordering, as replacement depends on bowl type (polycarbonate vs. metal) and drain configuration
Works With
- Parker Prep-Air II lubricators and regulators for integrated air preparation
- Standard 1/2″ NPT compressed air piping and fittings
- Automatic float drain systems and manual twist drain assemblies
- Existing pneumatic FRL (Filter-Regulator-Lubricator) modules
