Overview

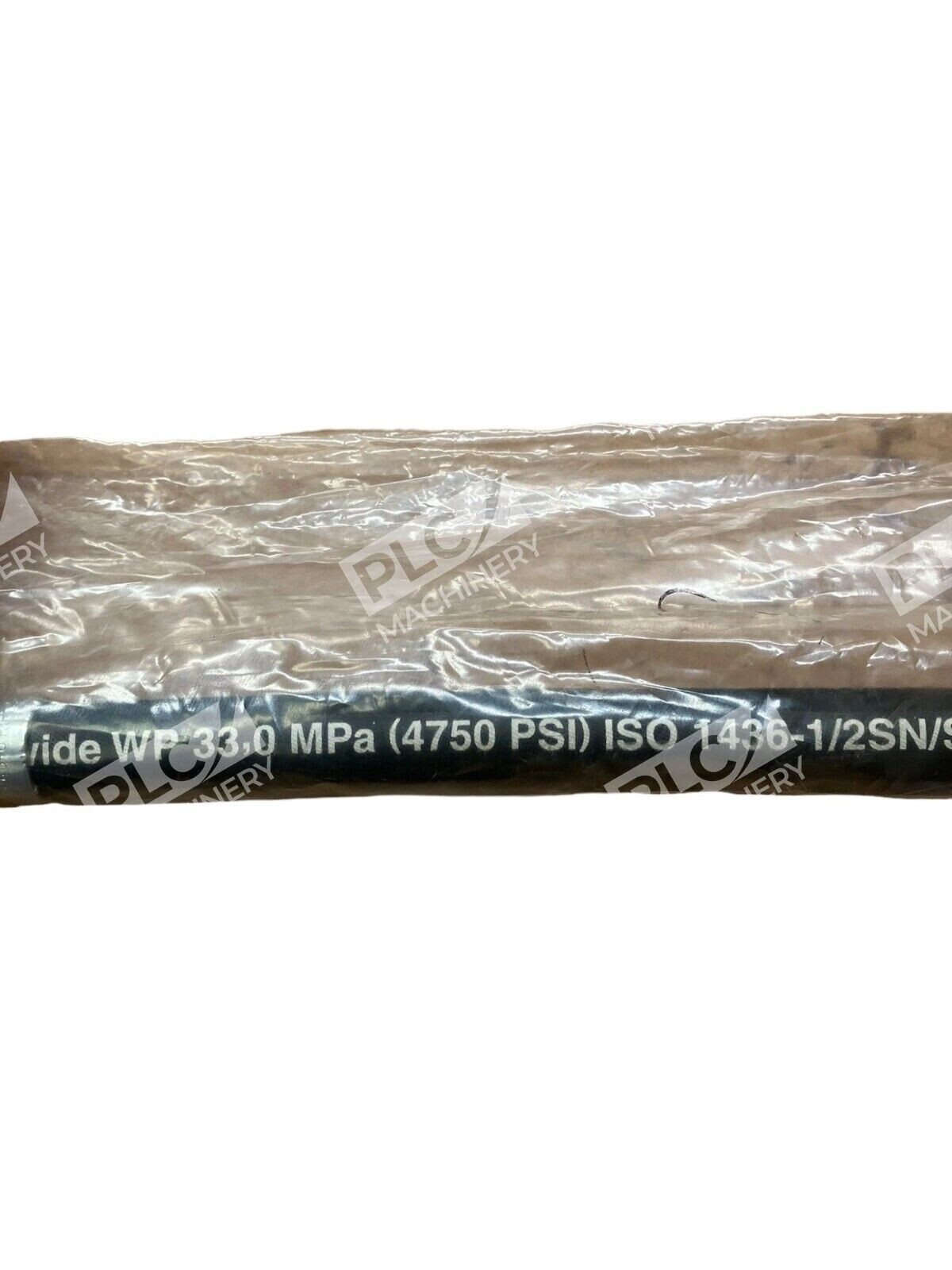

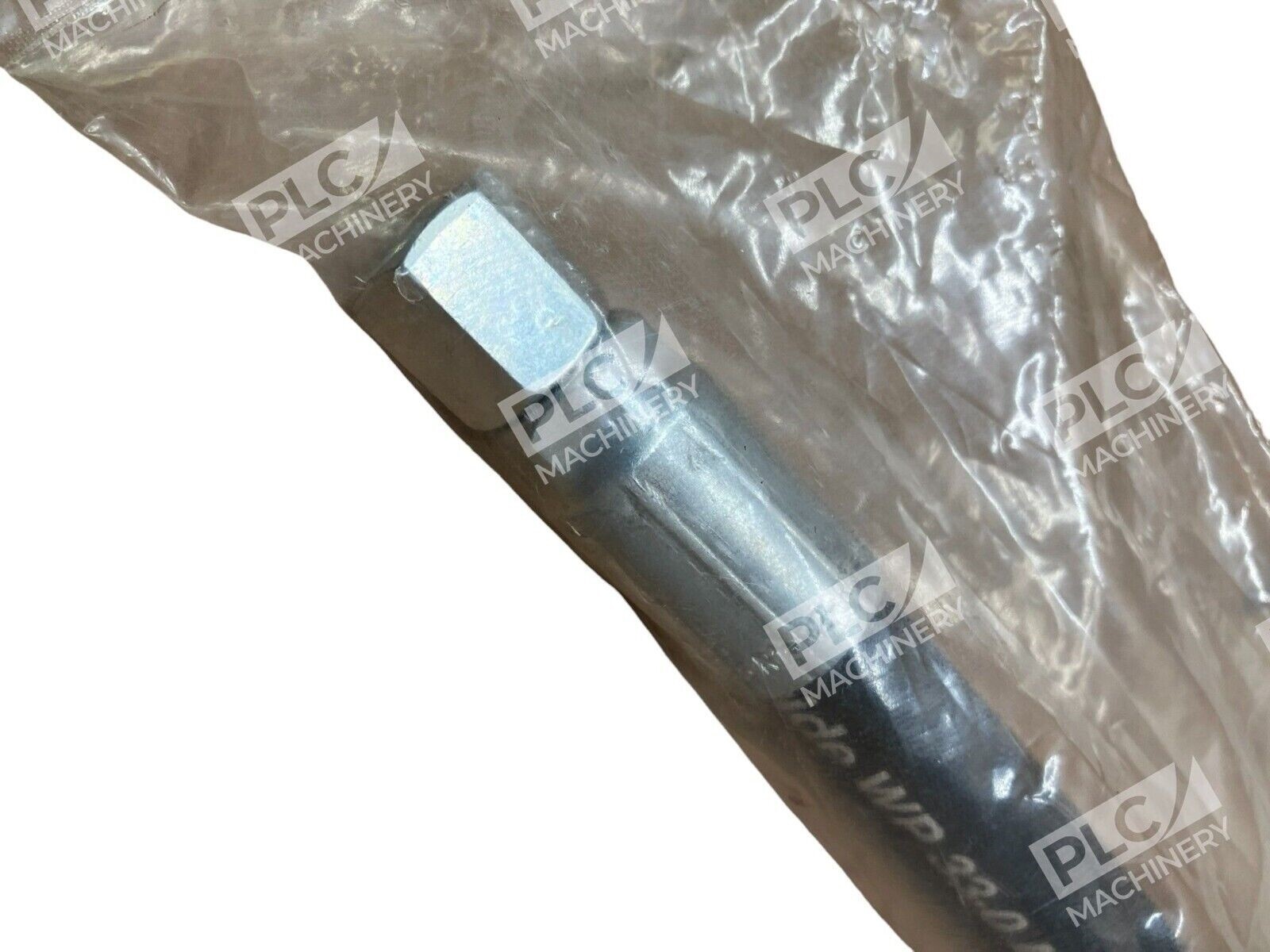

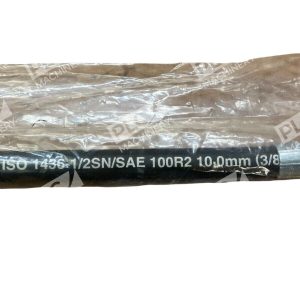

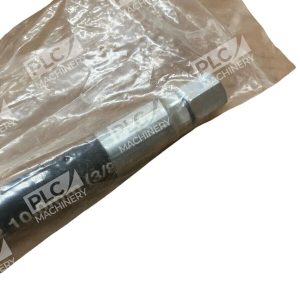

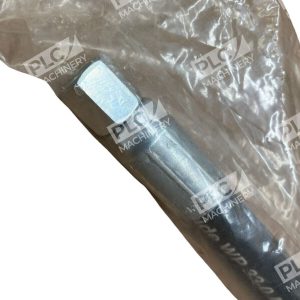

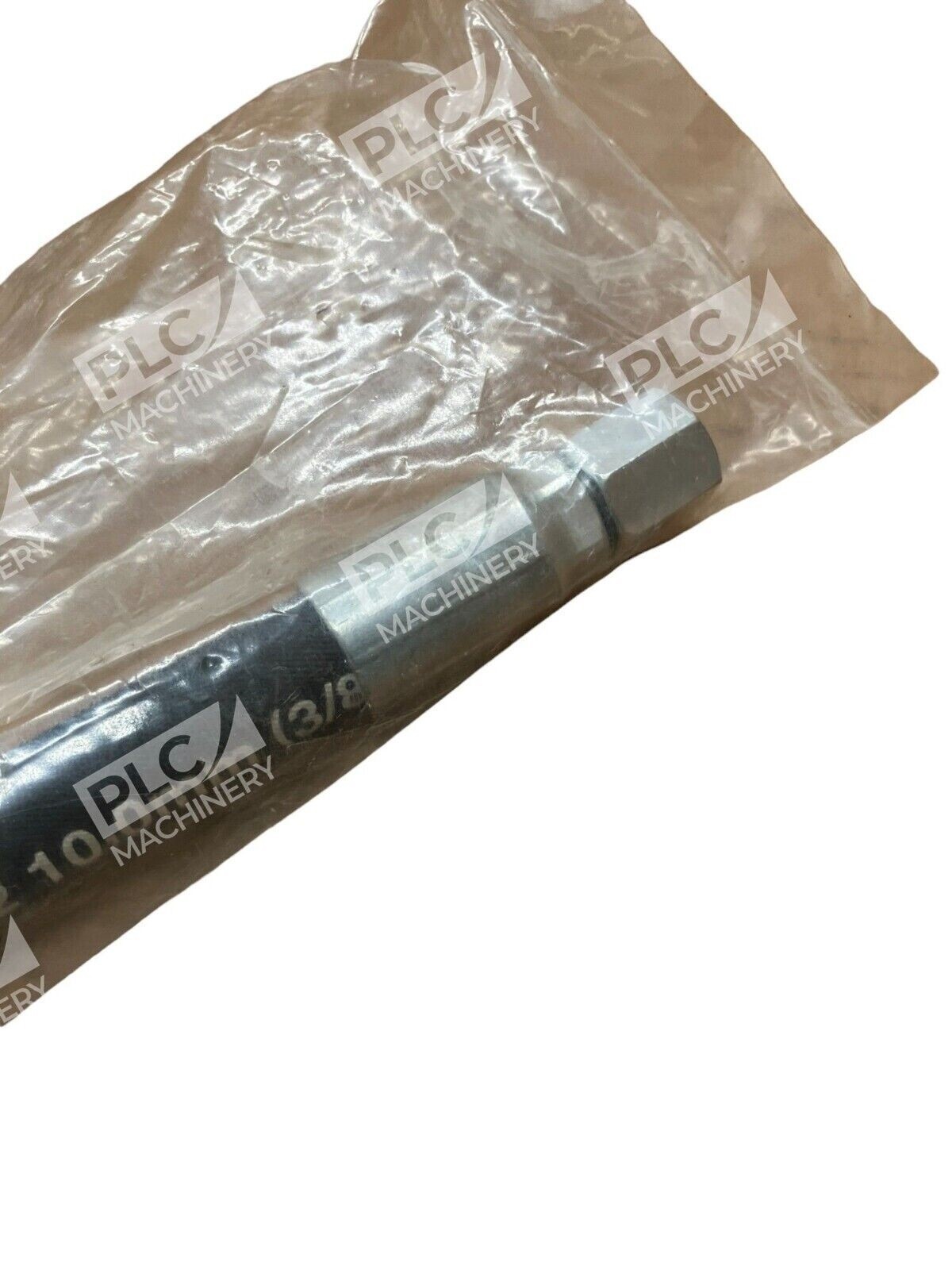

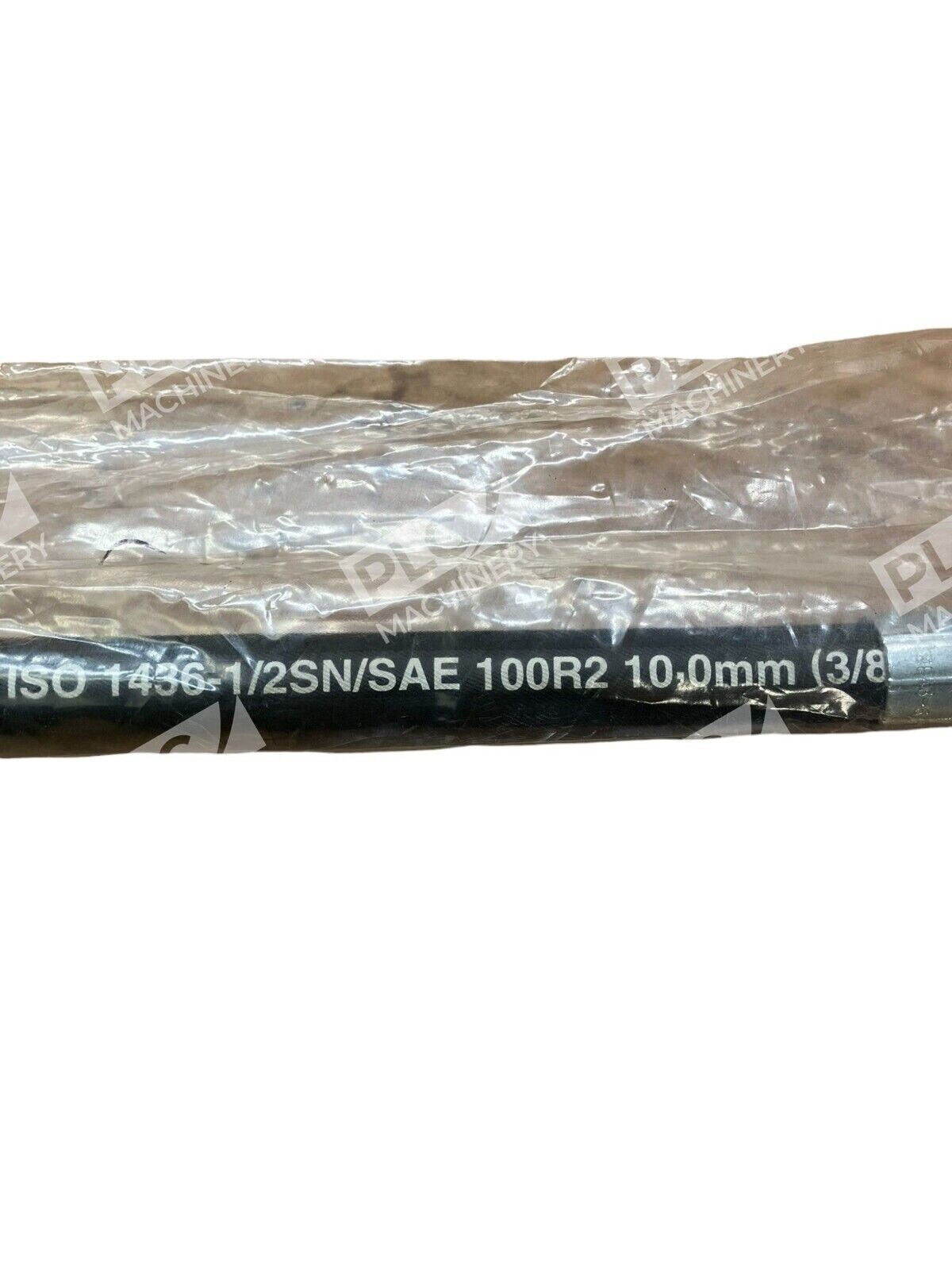

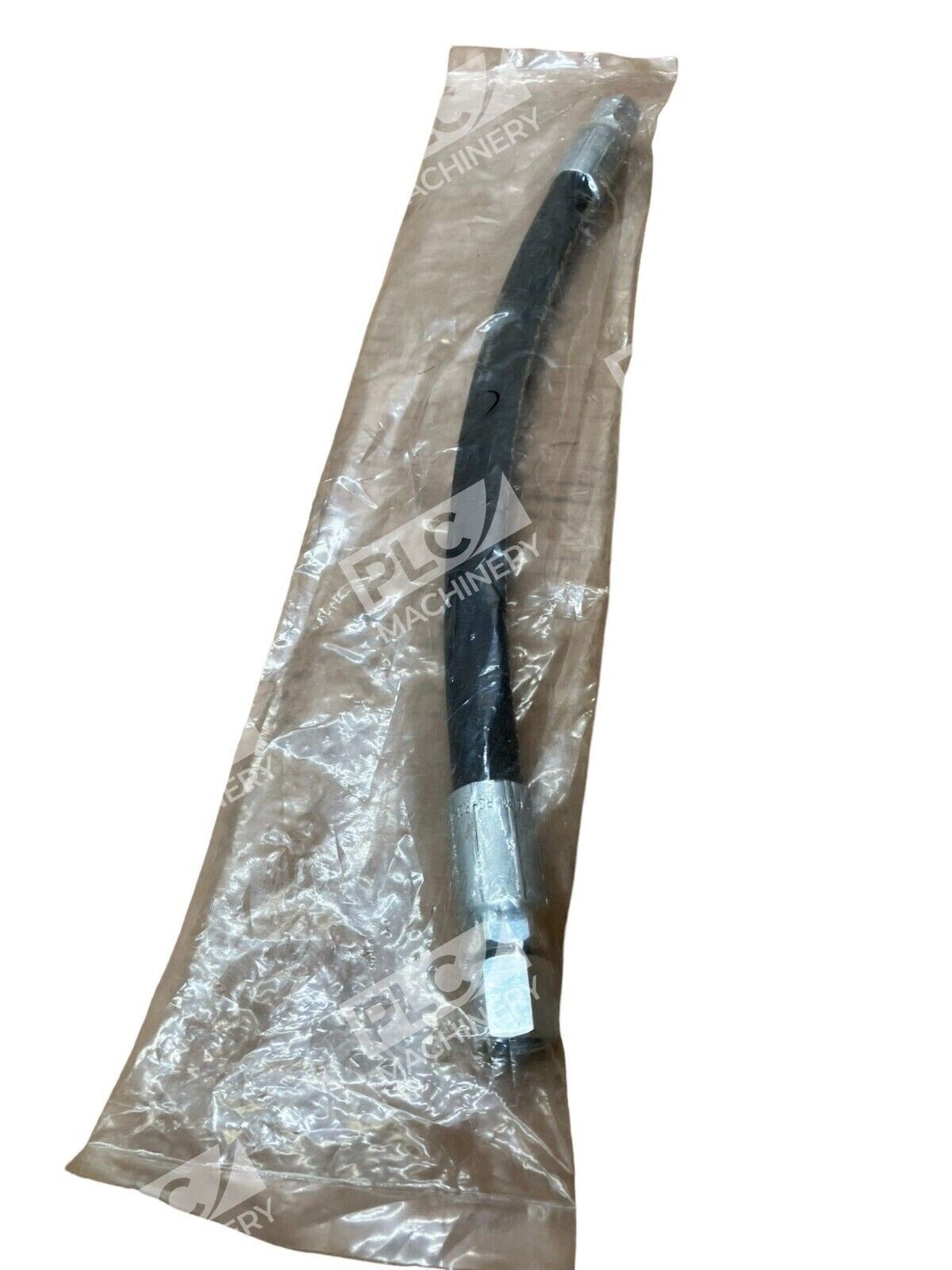

The Parker 1436-1/2SN/SAE is a dependable medium-pressure hydraulic hose meeting SAE 100R2AT and ISO 1436-1 Type 2SN international standards. This 1/2-inch ID hose delivers reliable fluid power transmission in industrial, mobile, and stationary equipment. The two-wire braid reinforcement and synthetic rubber tube provide durable performance across petroleum-based hydraulic fluids and lubricating oils.
Key Features
- Two-wire braided construction — reliable reinforcement for medium-pressure applications
- Synthetic rubber inner tube — superior fluid compatibility and extended service life
- MSHA-approved cover — abrasion-resistant, weather-resistant synthetic rubber
- SAE 100R2AT / ISO 1436-1 Type 2SN certified — meets international hydraulic hose standards
- Wide operating range — rated from -40°F to +212°F (-40°C to +100°C)
- 43 Series fittings compatible — standard Parker crimped connections available
Technical Specifications
| Hose Inner Diameter (ID) | 1/2 inch (12.7 mm) |
| Nominal Working Pressure | 3,500 psi (24.1 MPa) |
| Burst Pressure (Minimum) | 14,000 psi (96.5 MPa) |
| Inner Tube Material | Synthetic rubber (NBR) |
| Reinforcement | Two high-tensile steel wire braids |
| Cover Material | Synthetic rubber, MSHA-approved |
| Temperature Range | -40°F to +212°F (-40°C to +100°C) |
| Recommended Fluids | Petroleum-based hydraulic fluids, lubricating oils |
| Standards / Ratings | SAE 100R2AT, ISO 1436-1 Type 2SN, EN 853 Type 2SN |
| Fittings Series | 43 Series (Parker standard) |
| Condition | New – No Box |
Typical Applications
- Mobile hydraulic equipment (excavators, loaders, cranes)
- Industrial machinery (presses, injection molding equipment)
- Stationary power units and pump systems
- Construction and agricultural equipment
- General purpose fluid power transmission lines
Compatibility & Replacements
Compatible With
- Parker 43 Series fittings and crimped connections
- Standard SAE 100R2AT / ISO 1436-1 Type 2SN adapter configurations
- Petroleum-based hydraulic fluids and mineral oils
- Hydraulic systems operating at pressures up to 3,500 psi
- Temperature-controlled environments from -40°F to +212°F
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering to confirm hose length, end fittings, and pressure rating match your application requirements.
Works With
- Parker Parkrimp field-attachable fittings and crimping equipment
- Standard SAE 100R2 hose assembly methods
- ISO 1436-1 Type 2SN certified hydraulic systems and equipment
- EN 853 Type 2SN regulatory compliant applications
