Overview

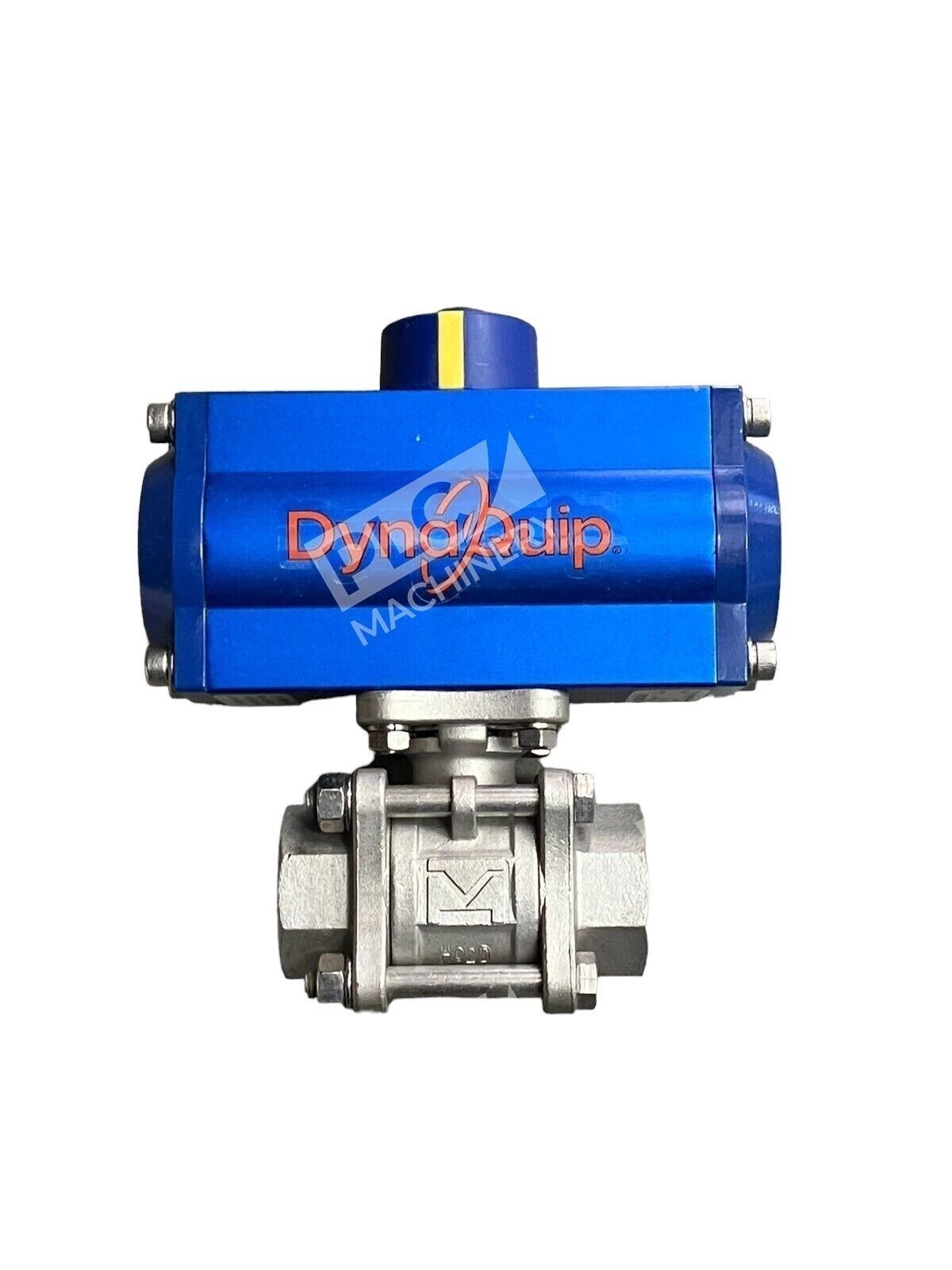

The DynaQuip P3S25AJDA052A is a three-piece stainless steel ball valve with integrated pneumatic actuation and 115VAC pilot solenoid control. This unit is part of DynaQuip’s P3S Series, engineered for automated flow control in applications requiring corrosion resistance and reliable on/off switching. The three-piece swing-out design simplifies maintenance and component replacement during system uptime.
Key Features
- Three-piece stainless steel body for corrosion resistance and extended service life
- Pneumatic actuator with 115VAC pilot solenoid valve for reliable automated control
- Swing-out design enables quick maintenance without removing the valve from the line
- Full-port design optimizes flow rates for water, compressed air, and light oil applications
- Double-acting or spring-return actuator configurations available (fail-safe options selectable)
- Optional NEMA 4, 7, or 9 rated limit switches and speed controls for advanced automation
Technical Specifications
- Manufacturer: DynaQuip Controls
- Model Number: P3S25AJDA052A
- Series: P3S — 3PC Stainless Steel Pneumatic Actuated
- Valve Body Material: Stainless Steel (corrosion resistant)
- Actuation Type: Pneumatic (air-operated)
- Pilot Solenoid Voltage: 115VAC
- Port Configuration: Full-port ball valve
- Design: Three-piece swing-out
- Approved Media: Clean water, compressed air, light oil
- Operating Pressure: Contact manufacturer for specific CWP ratings by size
- Fail-Safe Options: Fail-closed or fail-open (specify at order)
Typical Applications
- Water treatment and process water systems requiring corrosion resistance
- Compressed air distribution and automation control circuits
- Light hydraulic and petroleum applications (clean fluid only)
- Food and beverage processing where stainless steel construction is required
- HVAC and chiller bypass applications
- Automated liquid or gas shutoff in instrumentation and analytical systems
Compatibility & Replacements
Compatible With
- Pneumatic control systems with 115VAC pilot solenoid availability
- NEMA 4, 7, or 9 rated control enclosures and solenoid valve configurations
- ISO fluid and air standards for compressed air distribution
- Standard NPT or flanged piping connections (size-dependent)
- DynaQuip accessory limit switches, speed controls, and muffler silencers
Replaces / Drop-In Replacement For
Verify exact cross-references with your system integrator or controls engineer before ordering. The P3S25AJDA052A may replace other P3S series models with identical porting and actuator interface.
Works With
- Pneumatic actuators — HP series double-acting and spring-return configurations
- Pilot solenoid valves — 115VAC, 220VAC, 24VAC, 24VDC, and 12VDC options
- Position limit switches for valve status feedback
- Speed regulators for controlled actuation timing
- NEMA-rated electrical control and automation systems
