Overview

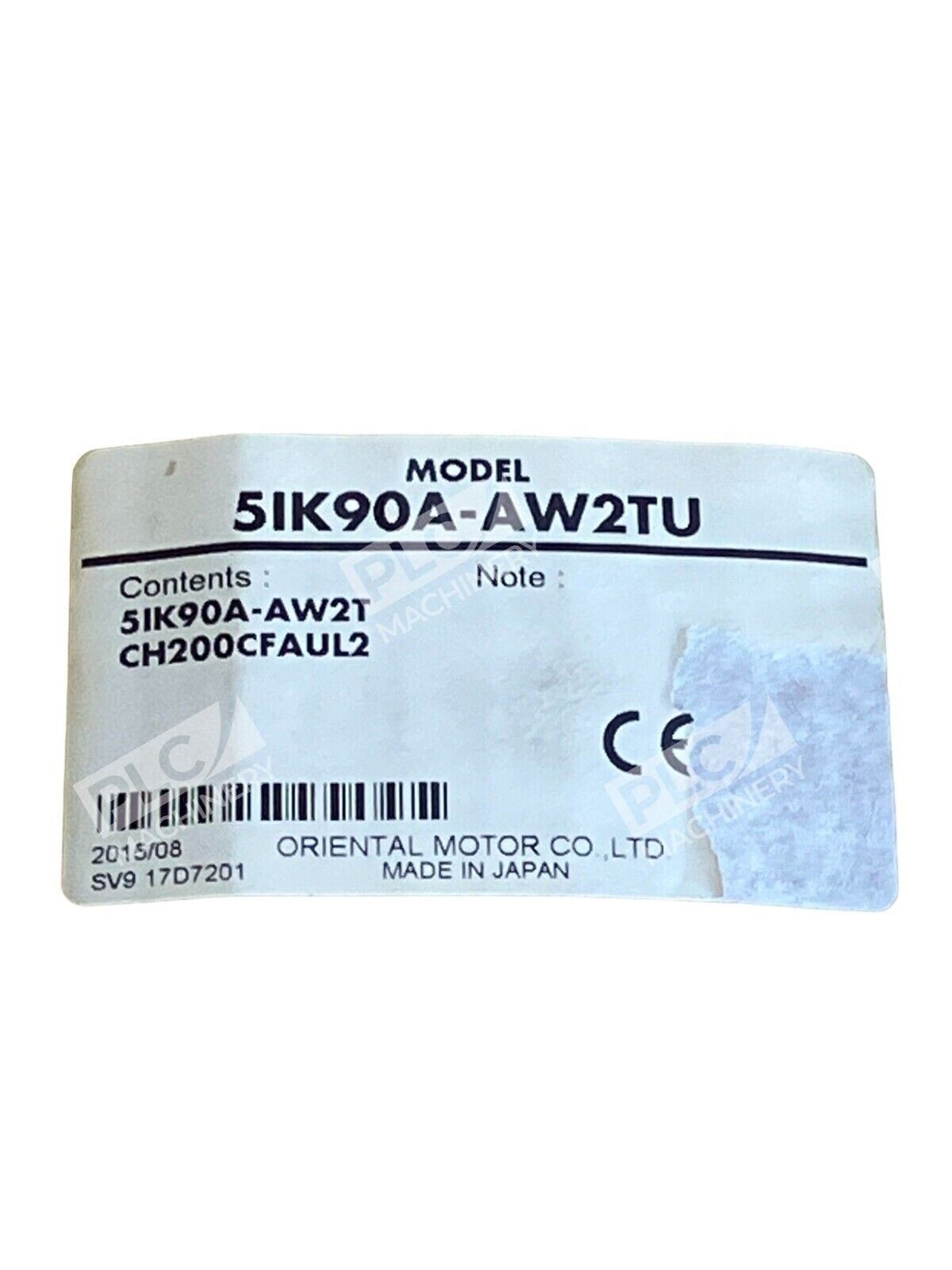

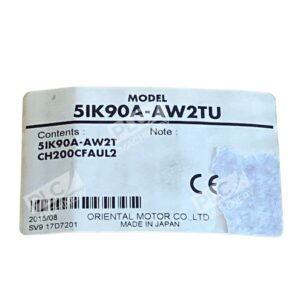

The Oriental Motor 5IK90A-AW2TU is a compact 90W (1/8 HP) World K Series induction motor designed for reliable uni-directional continuous operation. This single-phase AC motor operates at 1500 rpm and conforms to global safety standards and power supply voltages, making it suitable for a wide range of industrial automation and motion control applications.
Key Features
- 90W (1/8 HP) output power for compact machinery and conveyors
- Single-phase 110/115V AC at 60Hz input voltage
- Constant 1500 rpm speed for predictable performance
- Flange-mount Frame 5 (90×90 mm) for standard industrial mounting
- Terminal box with screw-type electrical connections for tool-free installation
- Optimized for uni-directional continuous operation and high duty cycles
Technical Specifications
The 5IK90A-AW2TU features robust construction designed for extended service life in standard industrial environments. With minimal vibration and noise characteristics, this motor protects downstream equipment from mechanical stress while maintaining consistent torque and speed control throughout its operating range.
Typical Applications
- Conveyor systems and material handling equipment
- Pump and fan drive systems
- Industrial machinery requiring continuous uni-directional operation
- Packaging and assembly line automation
- Light-duty industrial equipment integration
Compatibility & Replacements
Compatible With
- Standard industrial 110V and 115V single-phase AC power supplies
- Flange-mount gearheads with Frame 5 (90×90 mm) interface
- Terminal box control systems and soft-start controllers
- Industrial automation equipment requiring motor speed 1500 rpm
Replaces / Drop-In Replacement For
- 5IK90A-AWU (earlier variant designation)
- Other World K Series 90W induction motors with matching frame size and voltage rating
Works With
- Single-phase AC power systems (110V/115V, 60Hz)
- Parallel shaft gearheads (sold separately) via Frame 5 flange interface
- Standard motor control relays, contactors, and thermal overload protection
- Soft-starters and variable frequency drives (verify compatibility)
