Overview

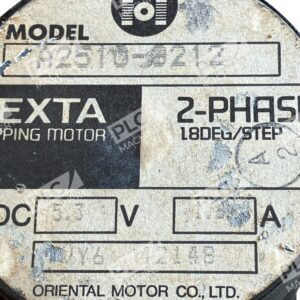

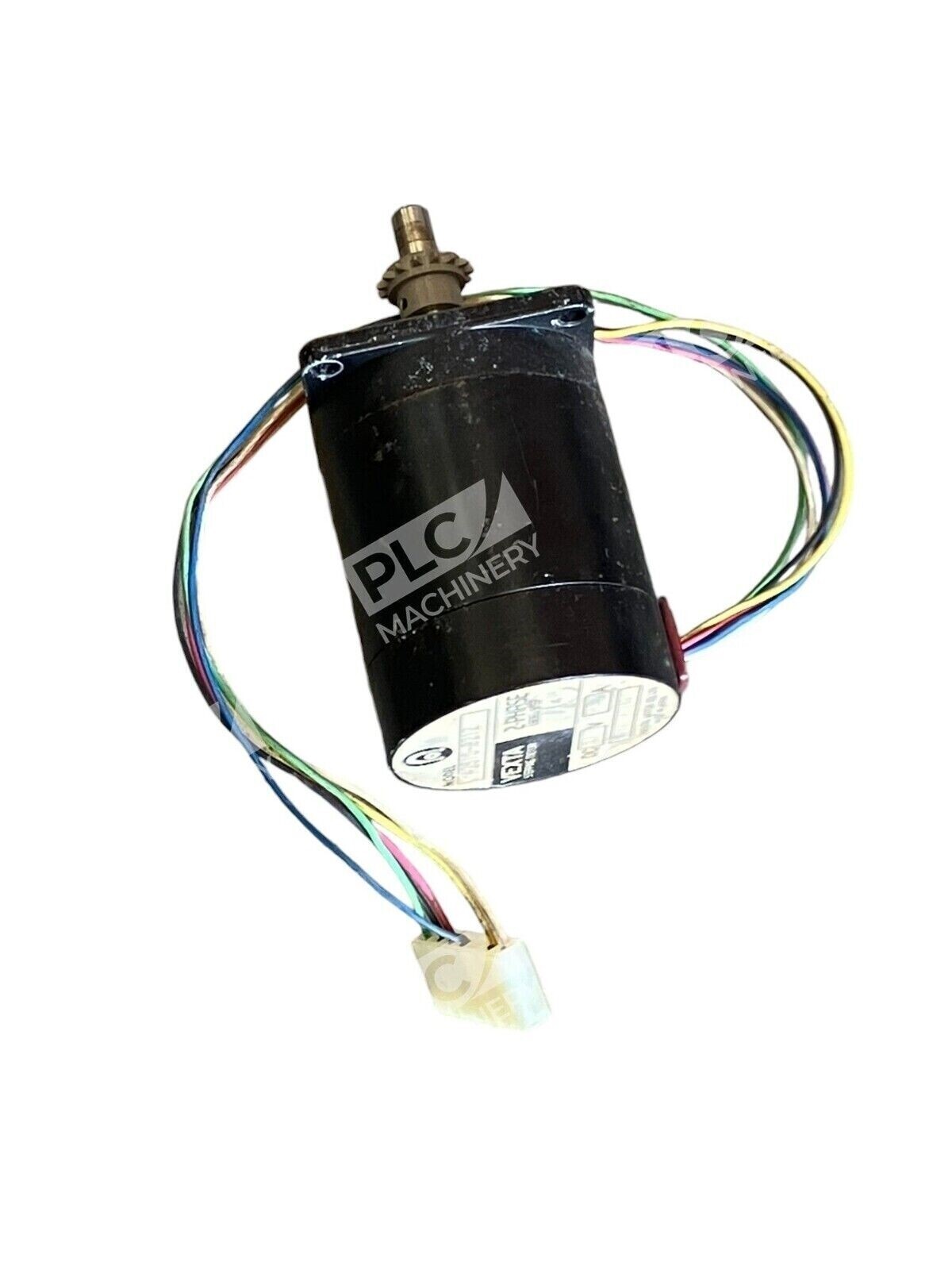

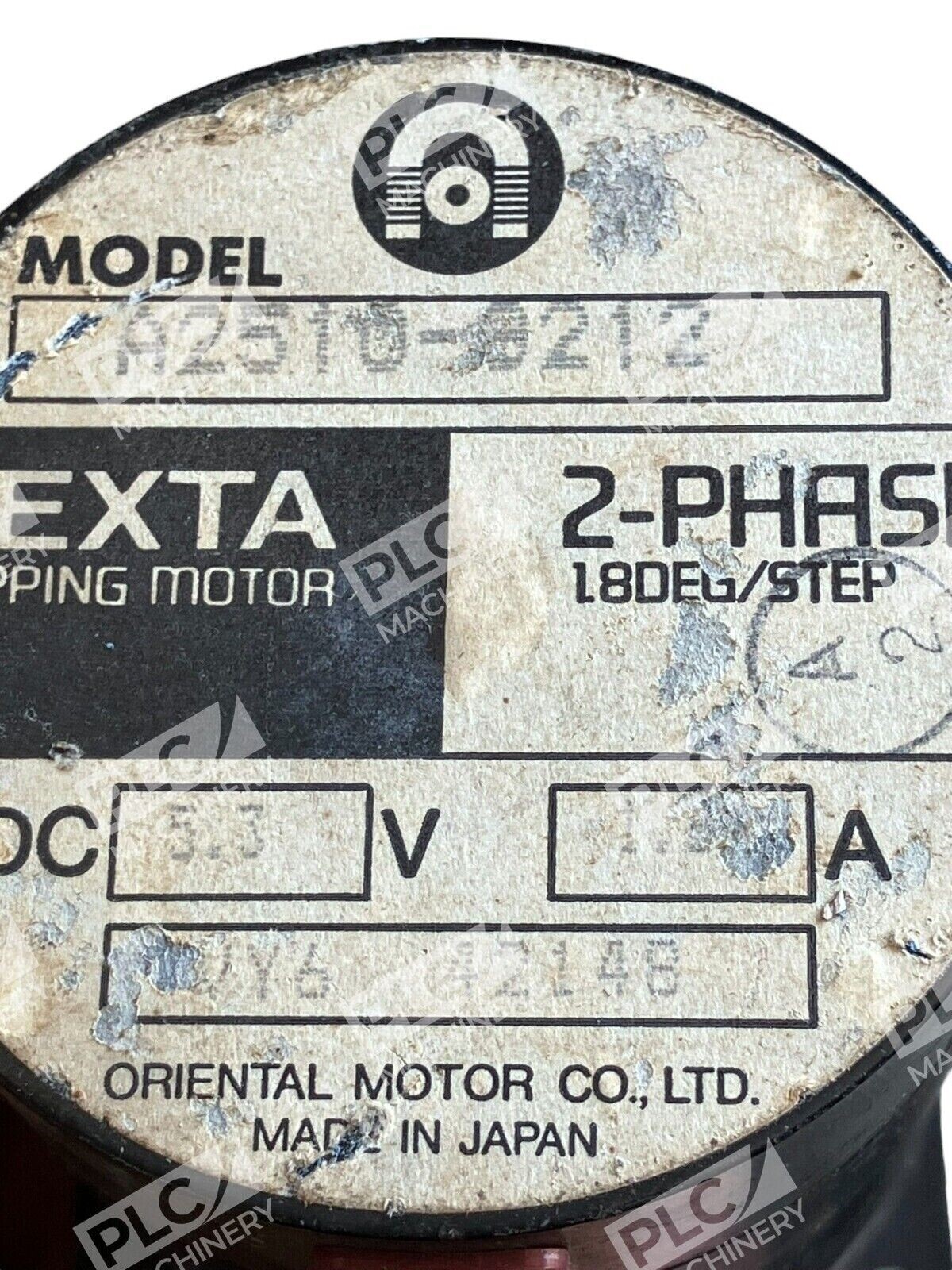

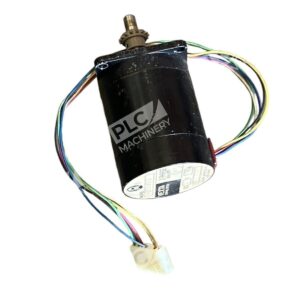

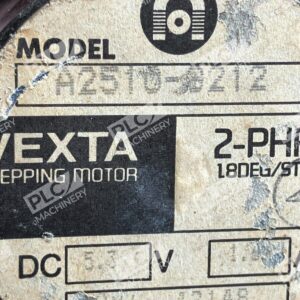

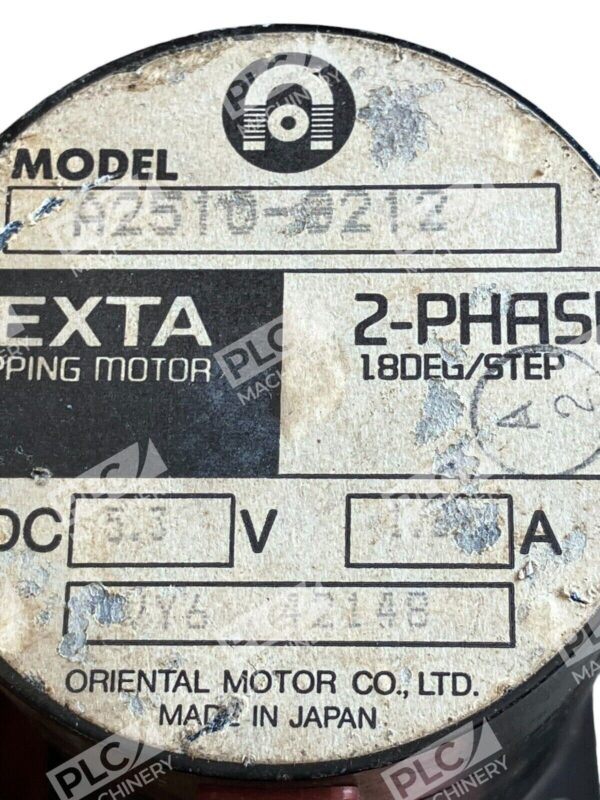

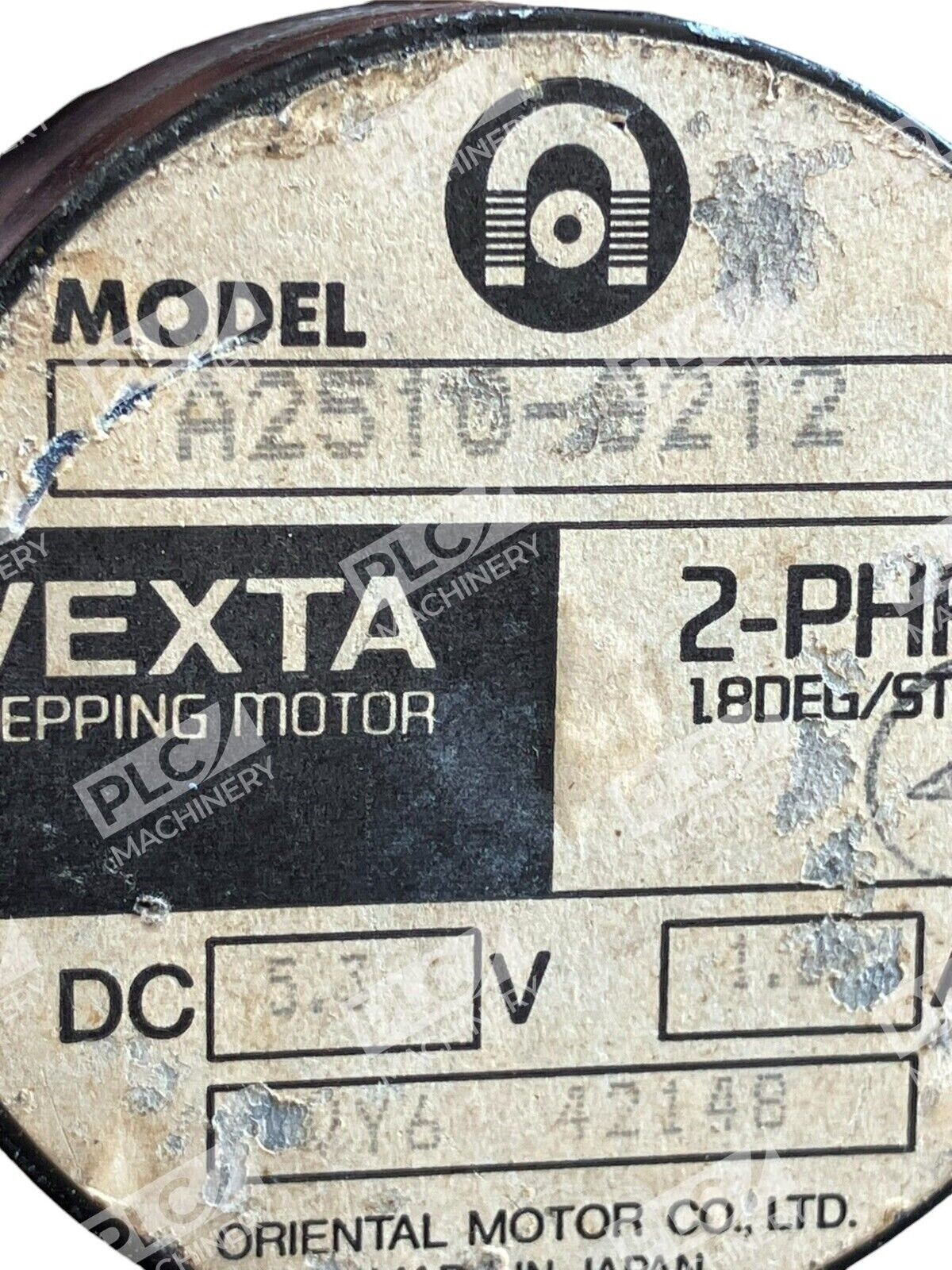

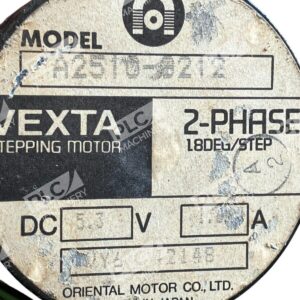

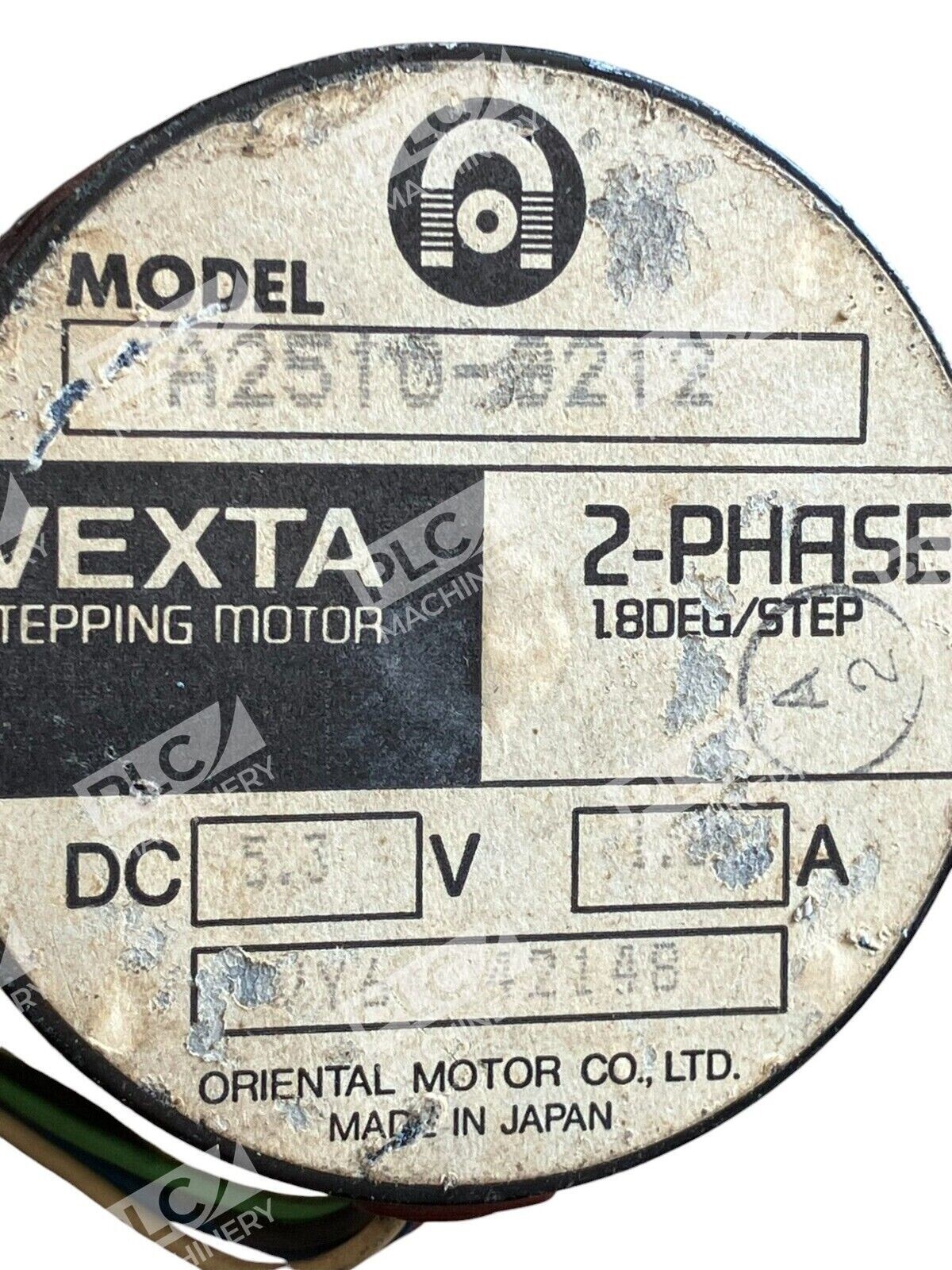

The Oriental Motor A2510-9212 is a 2-phase stepping motor from Oriental Motor’s Vexta product line. This unit delivers accurate step positioning with a fundamental step angle of 1.8° per full step, enabling 200 steps per revolution. Operating at 5.3VDC, it provides reliable torque for precision motion control applications in industrial automation, test equipment, and machinery that demands repeatable angular positioning.
Key Features
- 2-Phase Configuration: Bipolar design for standard stepper motor control circuitry
- 1.8°/Step Resolution: 200 pulses per revolution for precise positioning
- 5.3VDC Operation: Direct DC voltage input compatible with standard stepper drivers
- Compact Vexta Frame: Space-efficient design suitable for OEM integration
- Repeatable Accuracy: Maintains position without holding power loss, ideal for holding loads
Technical Specifications
- Step Angle: 1.8°/full step
- Phase Configuration: 2-phase bipolar
- Rated Voltage: 5.3 VDC
- Series: Vexta (Oriental Motor)
- Part Number: A2510-9212
Typical Applications
- Automated positioning systems and indexing tables
- Laboratory and analytical instrumentation
- Conveyor system diverters and sorters
- Textile machinery and pattern controls
- Display and graphic equipment
- Packaging and materials handling equipment
Compatibility & Replacements
Compatible With
- Standard 2-phase stepper motor drivers (bipolar)
- Pulse-direction control interfaces
- Oriental Motor stepper motor control systems
- Industrial PLC outputs configured for stepper control
- Microcontroller and embedded systems with stepper motor libraries
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Other Oriental Motor Vexta 2-phase models may offer similar performance characteristics; consult motor specifications to confirm mechanical and electrical interchangeability.
Works With
- Standard stepper motor drivers (L298N, DRV8825, TB6560, and equivalent)
- PWM/pulse control signals from PLCs and industrial controllers
- AC/DC power supplies with voltage regulation to 5.3VDC
- Mechanical couplings and gearboxes compatible with motor shaft
