Overview

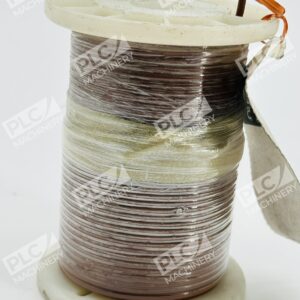

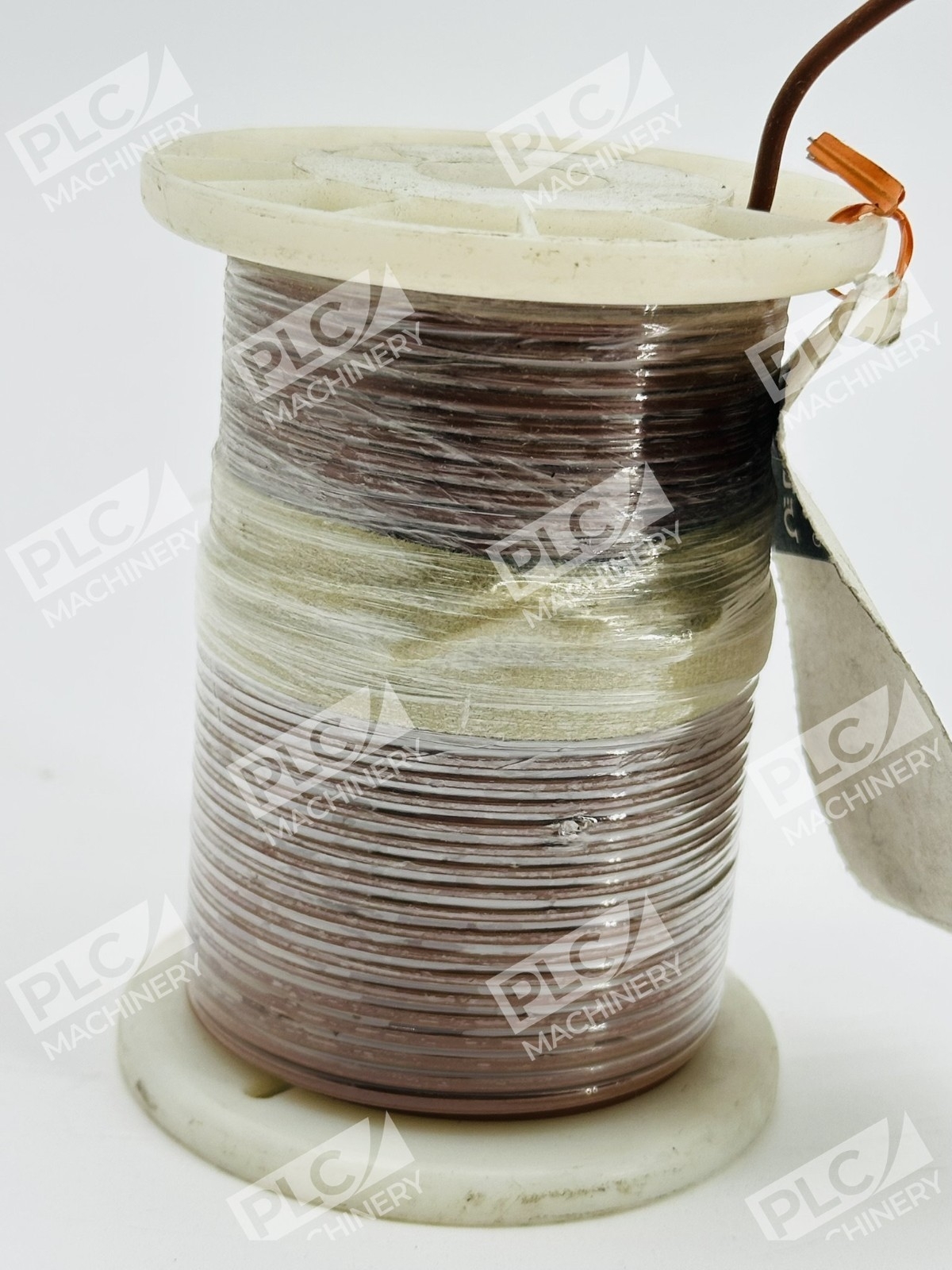

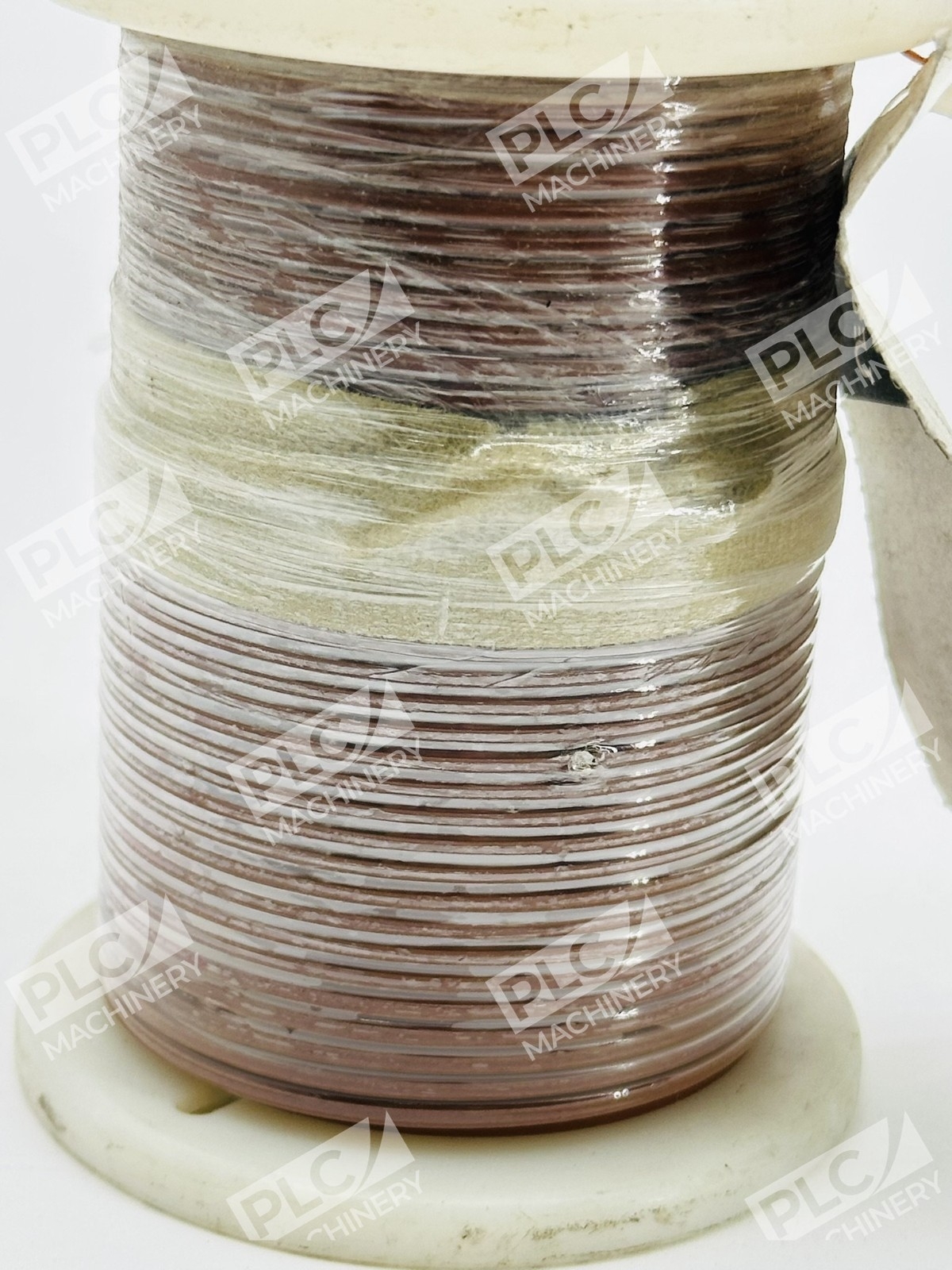

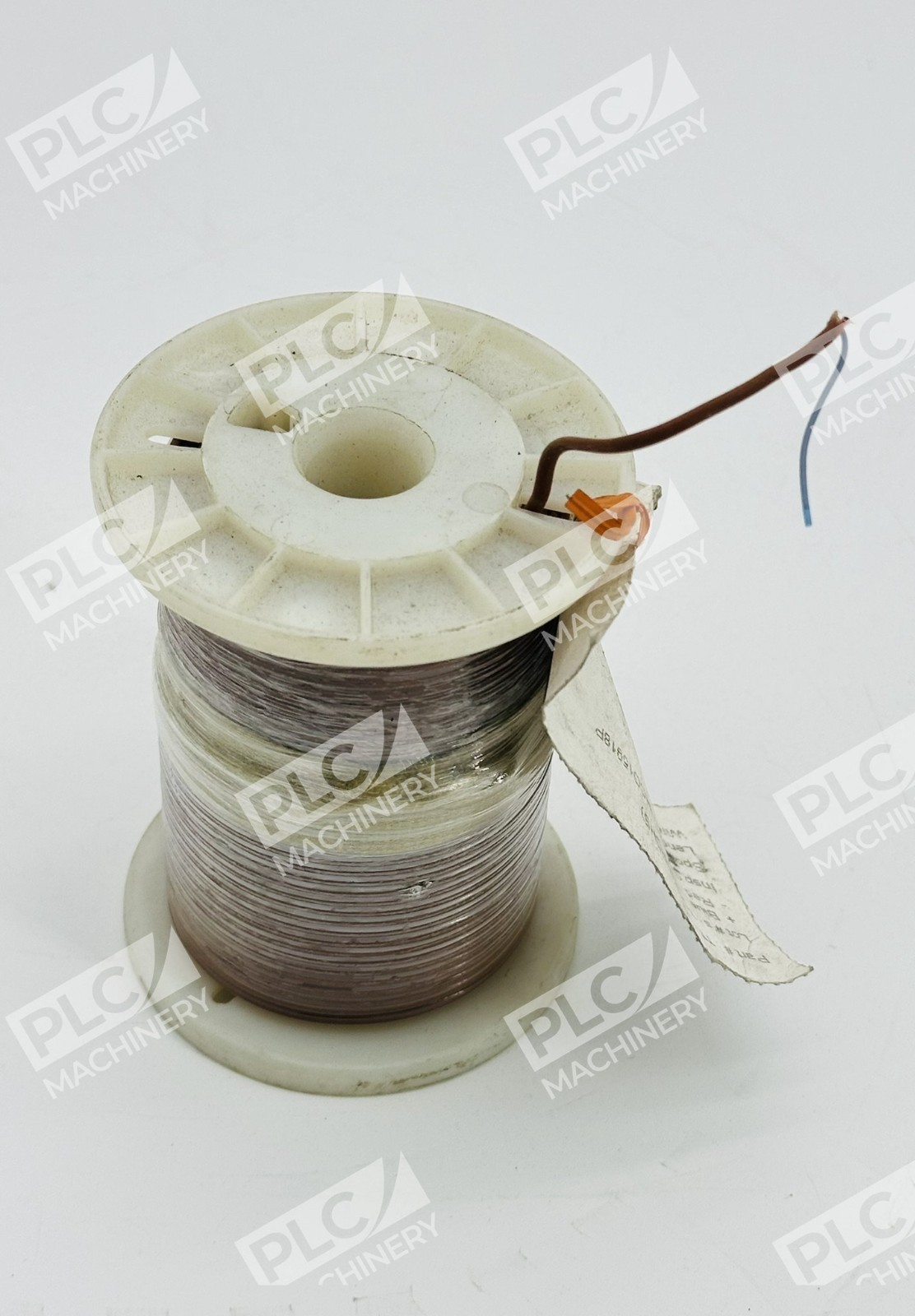

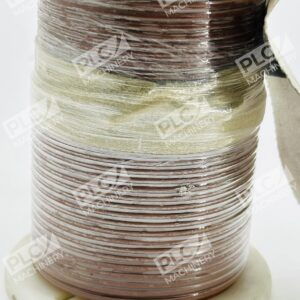

The Omega TT-T-24-SLE thermocouple wire is a duplex-insulated Type T thermocouple wire designed for precision temperature measurement in industrial and laboratory environments. This 100ft spool features a solid 24 AWG conductor with PFA insulation rated for continuous operation from -200°C to 200°C (-328°F to 400°F). The Special Limits of Error (SLE) accuracy specification ensures tighter tolerance measurements compared to standard grade wire, making it ideal for critical temperature monitoring applications where accuracy is essential.
Key Features
- Type T thermocouple calibration for copper-constantan temperature measurement
- 24 AWG solid conductor with duplex PFA insulation for flexibility and durability
- Special Limits of Error (SLE) accuracy for precision measurement
- ANSI standard color coding for positive and negative leg identification
- Operating temperature range: -200°C to 200°C (-328°F to 400°F)
- 100ft spool—ready to cut and terminate for custom probe assemblies
Technical Specifications
- Wire Gauge: 24 AWG
- Thermocouple Type: Type T (Copper-Constantan)
- Conductor Type: Solid
- Insulation Material: PFA (Perfluoroalkoxy)
- Length: 100 feet (30.48 meters)
- Accuracy Class: SLE (Special Limits of Error)
- Color Code Standard: ANSI
- Minimum Operating Temperature: -200°C (-328°F)
- Maximum Operating Temperature: 200°C (400°F)
- Configuration: Duplex
- Manufacturer: Omega Engineering
- Part Number: TT-T-24-SLE (100ft version: TT-T-24-SLE-100)
Typical Applications
Omega Type T thermocouple wire is commonly used in:
- Cryogenic temperature measurement systems (low-end range advantage)
- Food processing and refrigeration monitoring
- Pharmaceutical and laboratory temperature control
- Custom thermocouple probe fabrication and repair
- Industrial furnace and oven temperature sensing
- OEM instrument calibration and replacement wire assemblies
Compatibility & Replacements
Compatible With
- Any thermocouple instrument or data acquisition system with Type T input
- Omega thermocouple connectors and termination blocks
- Standard thermocouple reference junction compensators
- Industrial controllers and PLCs with thermocouple input modules
Replaces / Drop-In Replacement For
This Omega TT-T-24-SLE wire replaces equivalent Type T thermocouple extensions and duplex wire from other manufacturers. Custom fabrication projects may require verification of exact spool length and connector compatibility.
Works With
- Omega TT series thermocouple components and assemblies
- ANSI color-coded thermocouple measurement systems
- PFA-insulated thermocouple systems rated for -200°C to 200°C operation
- Thermocouple reference junction and cold junction compensation circuits
