Overview

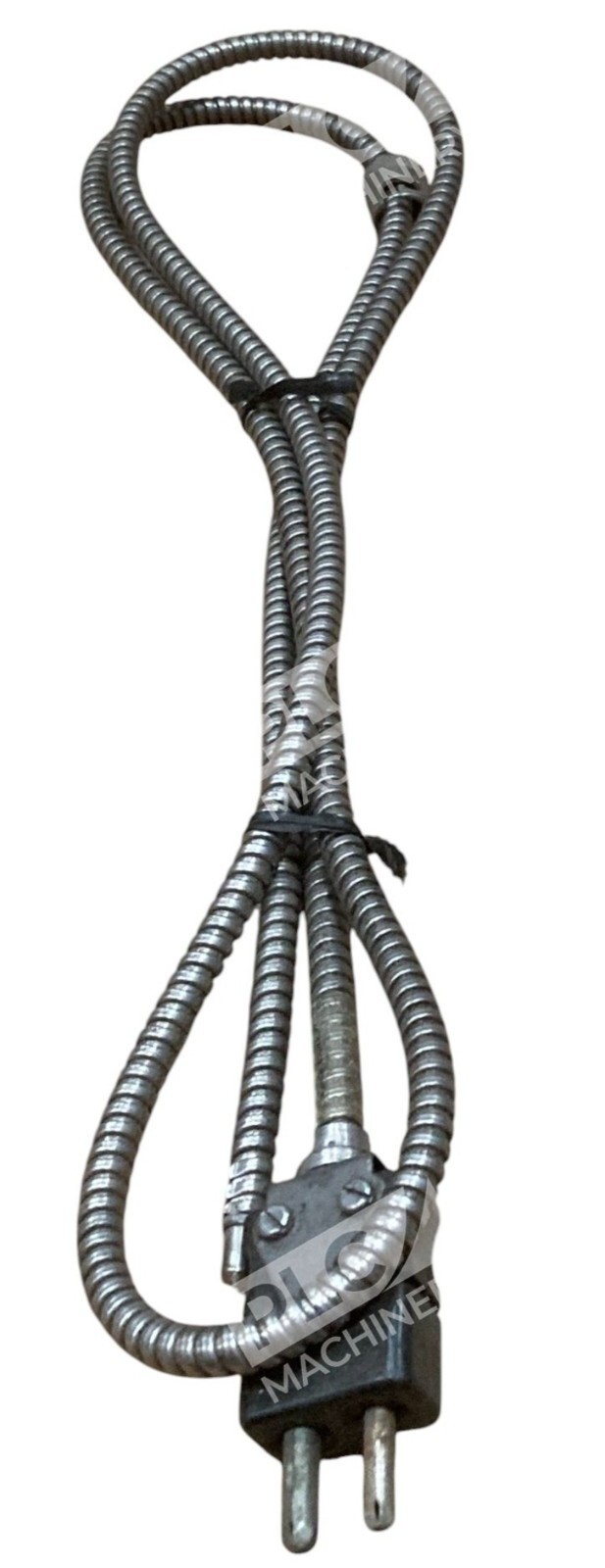

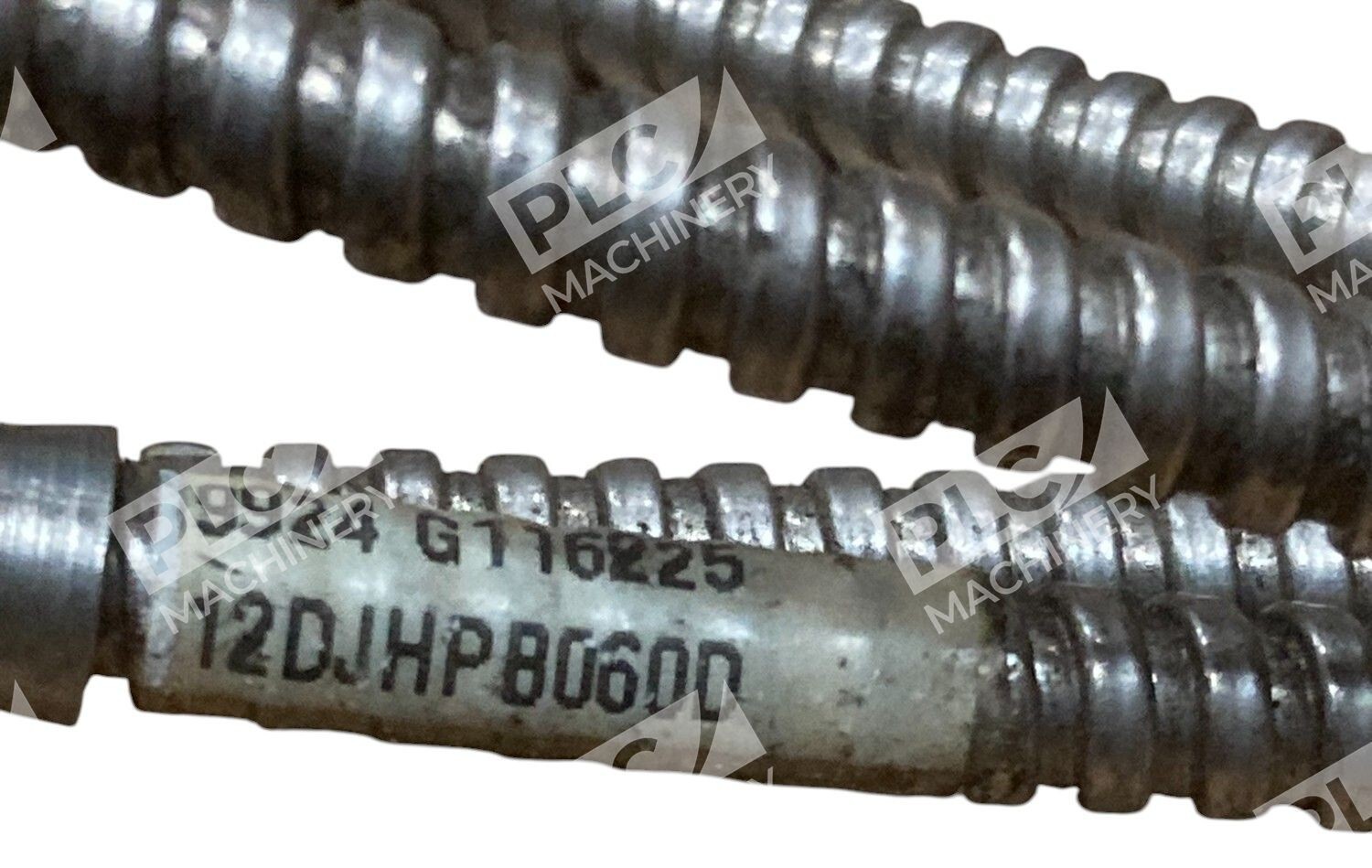

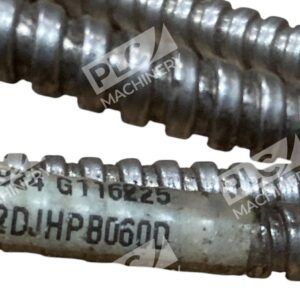

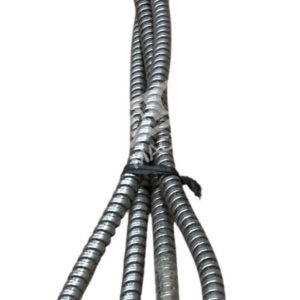

The Watlow 12DJHPB060D Type J thermocouple is a proven temperature sensing component for industrial and process control applications. Type J thermocouples are widely deployed across manufacturing, food processing, HVAC, and heat-treat systems where reliable, cost-effective temperature measurement is essential. The Model 12DJHPB060D combines Watlow’s precision thermocouple engineering with robust construction suitable for moderate-temperature environments.
Key Features
- Type J calibration for iron-constantan sensing across moderate temperature ranges
- Industrial-grade construction for durability in demanding process environments
- Compatible with standard thermocouple instrumentation and controllers
- Designed for both exposed and protected mounting configurations
- Proven performance in food processing, HVAC, and manufacturing applications
Technical Specifications
Type J Operation Range: Type J thermocouples are recommended for operation between –200°C and 760°C (–330°F to 1400°F). The specific configurations and sheath materials of the 12DJHPB060D determine the exact usable range for your installation. Lead protection via sheath or armor may be included depending on model revision.
Thermocouple Polarity: Type J sensors are polarity sensitive. Red lead denotes negative polarity; ensure correct connection during installation.
For complete dimensional and electrical specifications of this unit, consult the original manufacturer datasheet or contact your system integrator.
Typical Applications
- Process temperature monitoring in food and beverage production
- HVAC and thermal system control loops
- Heat-treat and industrial furnace monitoring
- Oven and kiln temperature sensing
- General-purpose industrial temperature measurement where Type J range is suitable
Compatibility & Replacements
Compatible With
- Standard Type J thermocouple input channels on industrial controllers and PLCs
- Watlow temperature control and indicator products
- Allen-Bradley, Siemens, Rockwell Automation, and other standard industrial controllers supporting Type J inputs
- Temperature data acquisition and logging systems with Type J thermocouple support
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering to ensure dimensional, sheath, and connection specifications match your original thermocouple installation.
Works With
- Type J thermocouple input modules and conditioning circuits
- Analog and digital temperature measurement systems
- Standard thermocouple extension wire and connectors (Type J compatible)
- Industrial automation software and HMI platforms
