Overview

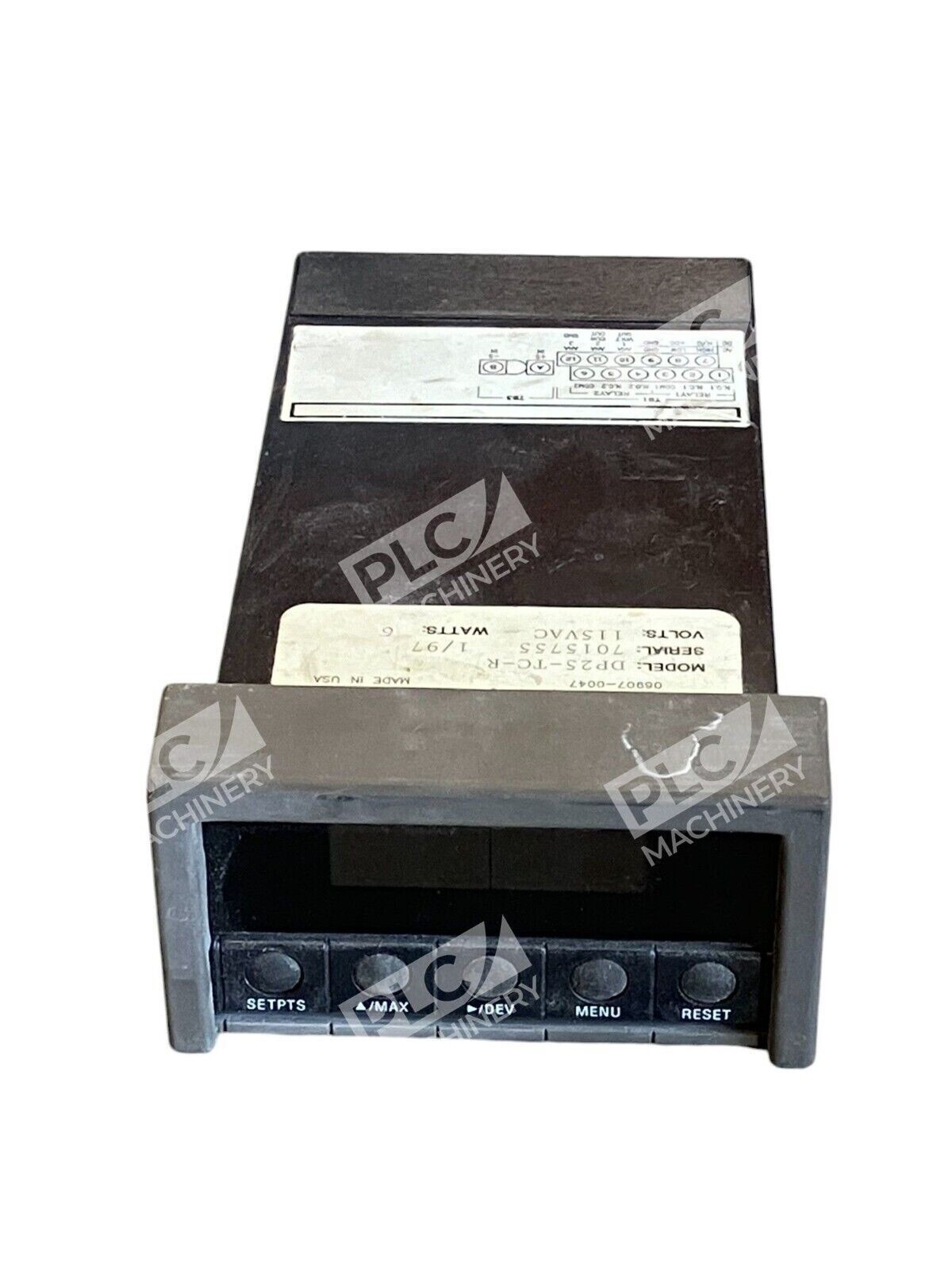

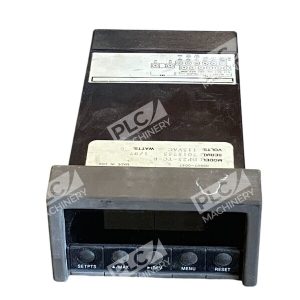

The Omega DP25-TC is a programmable digital thermocouple monitor and controller designed for precision temperature measurement and process control. This 115VAC 6W unit features a prominent 4-digit LED display for clear, real-time temperature reading in either Fahrenheit or Celsius. The Omega DP25-TC accepts all standard thermocouple types (J, K, T, and DIN J), making it highly versatile for industrial, laboratory, and OEM applications requiring accurate setpoint-based temperature control.
Key Features
- Four-digit LED display — Clear, bright reading with selectable 0.1° or 1.0° resolution
- Dual 5 amp Form C relays — Programmable for active high/low alarms with latching or non-latching options
- Multiple thermocouple support — Accepts J, K, T, and DIN J types with automatic cold junction compensation
- Flexible analog output — Optional isolated or non-isolated output (0–10 Vdc, 0–20 mA, or 4–20 mA) for proportional control or display retransmission
- Programmable setpoints — Easy menu-driven configuration for temperature thresholds and alarm behavior
- Peak detection and memory — Front-panel peak hold function for capturing maximum temperature excursions
Technical Specifications
- Input: Thermocouple types J, K, T, DIN J
- Display: 4-digit LED, 0.1° or 1.0° selectable resolution
- Relay Outputs: 2 Form C (SPDT) relays, 5 Amp @ 250 Vac
- Analog Output (optional): 0–10 Vdc, 0–20 mA, or 4–20 mA (isolated or non-isolated)

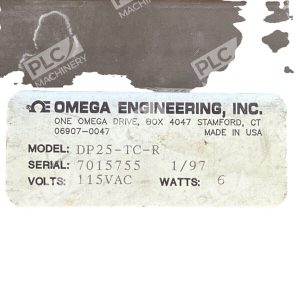

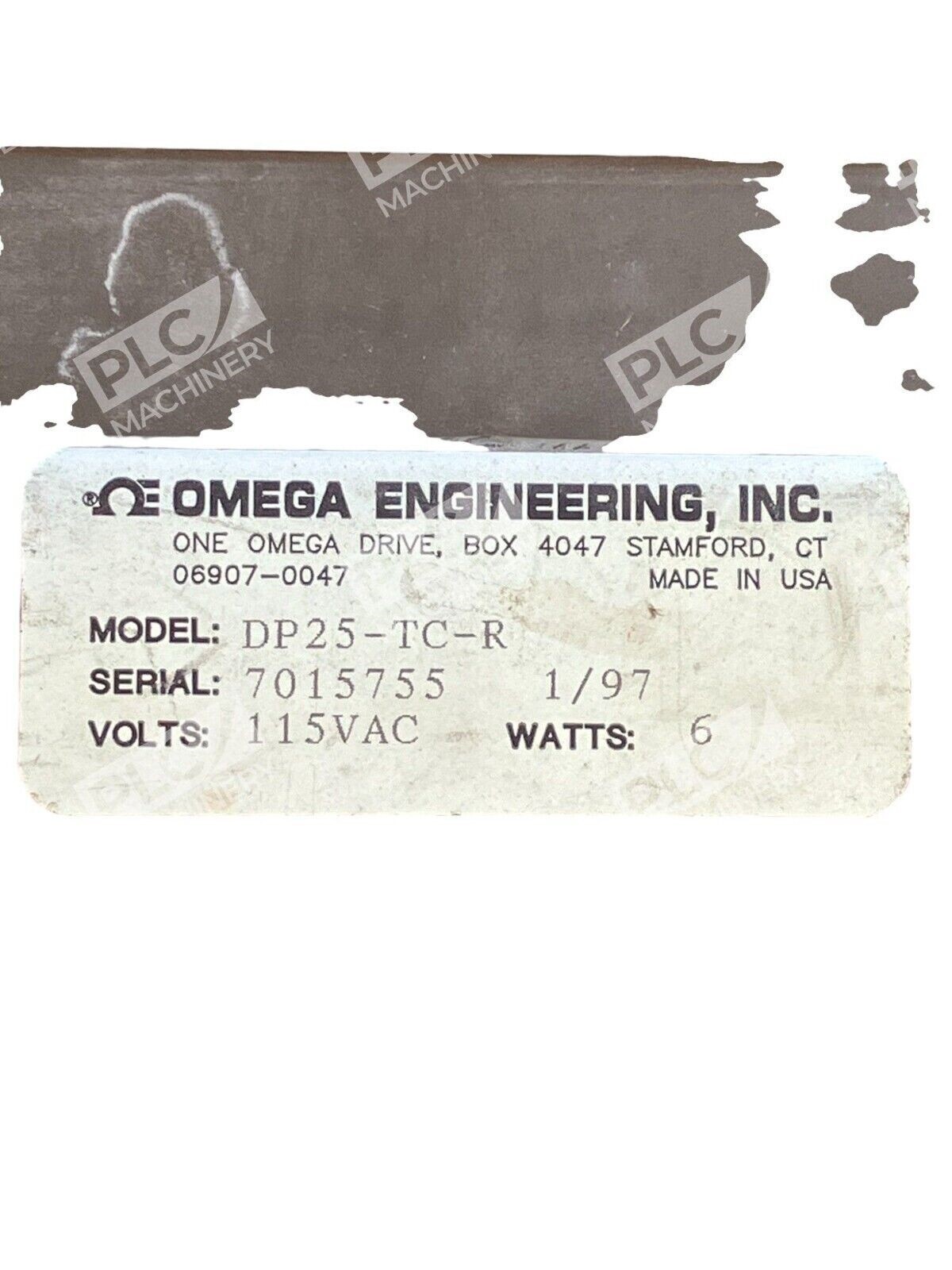

- Power Supply: 115 Vac, 50/60 Hz, 6W nominal
- Temperature Units: °F or °C, user-selectable
- Control Functions: Setpoint-based alarms, proportional control output (optional), peak detection
- Mechanical lockout: Prevents unauthorized setting changes
- Safety compliance: CE-marked, compliant with EMC/EMI regulations
Typical Applications
- Industrial process heating and cooling control systems
- Laboratory and test equipment temperature monitoring
- HVAC systems and environmental chamber control
- Injection molding and plastic processing temperature setpoints
- Medical and pharmaceutical manufacturing temperature validation
- Food and beverage processing temperature management
- Furnace and kiln process control
Compatibility & Replacements
Compatible With
- All standard J, K, T, and DIN J thermocouple sensors
- Industrial control systems with 115 Vac power supply
- Systems requiring dual relay alarm outputs (Form C, SPDT)
- Applications using 0–10 Vdc, 0–20 mA, or 4–20 mA analog feedback loops
Replaces / Drop-In Replacement For
- DP25B-TC — Enhanced variant with optional features; DP25-TC provides equivalent core functionality
- Verify specific model compatibility with your equipment before ordering. Contact our engineering team for compatibility confirmation.
Works With
- Standard thermocouple extension wire (proper gauge and type matching recommended)
- PLC and DCS systems via analog output or relay contacts
- HVAC control systems with setpoint-based switching
- Proportional valve and solenoid drivers (via optional analog output)
- Data logging and monitoring systems (via optional isolated analog output)
