<h2>Overview</h2>

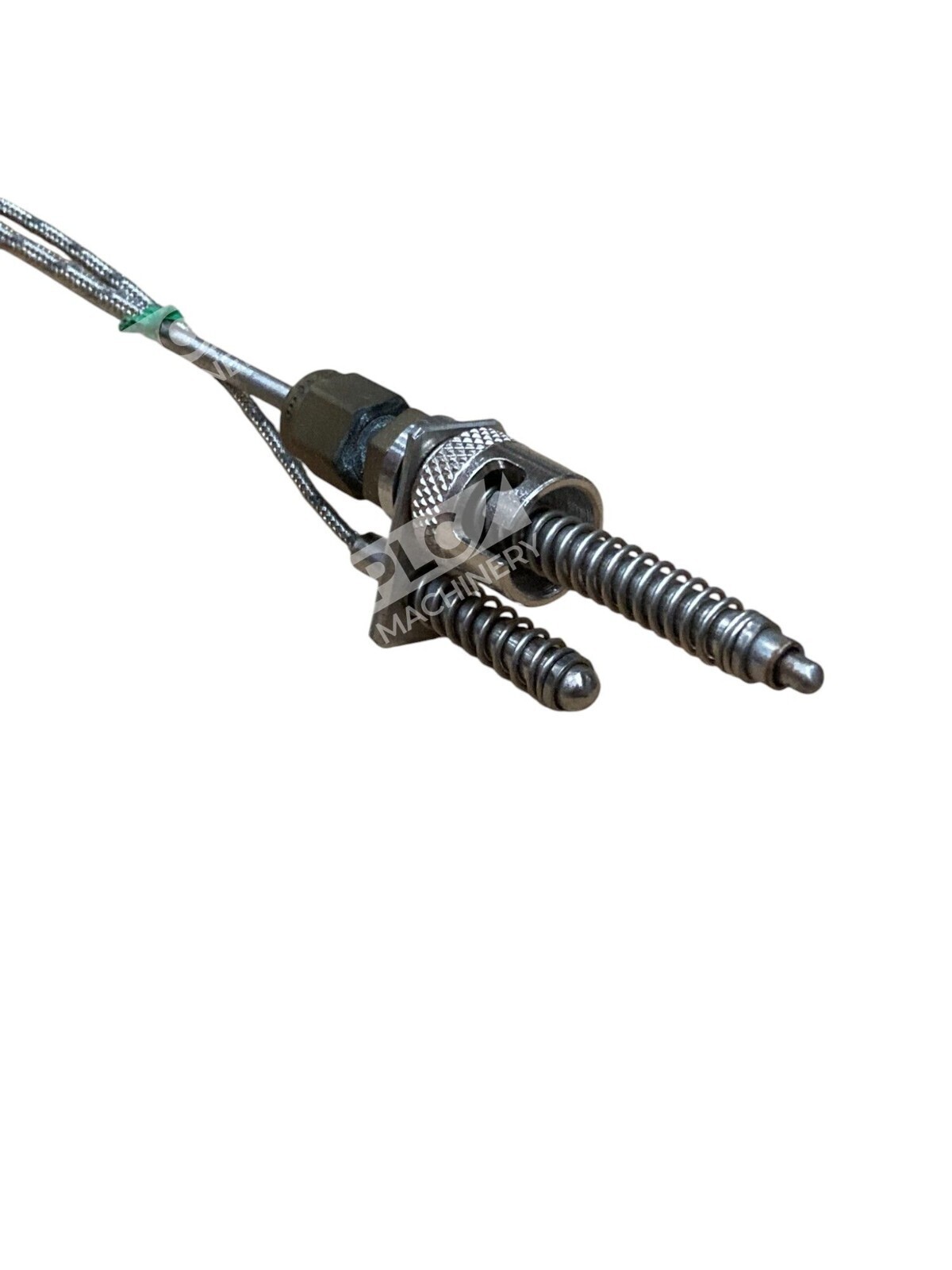

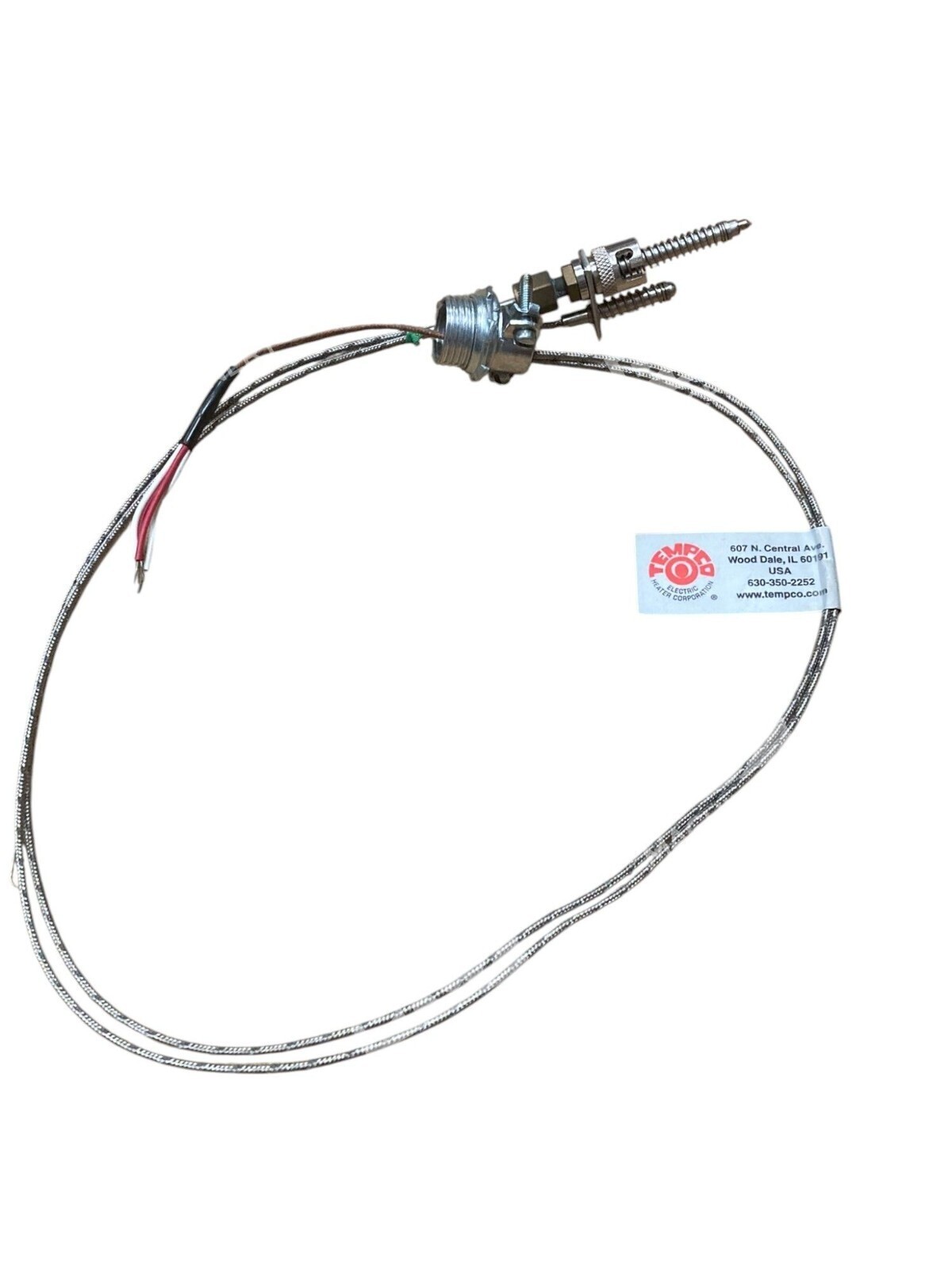

<p>The Tempco TCP90088-J thermocouple is a precision temperature sensor engineered for industrial and commercial applications requiring accurate, continuous monitoring. This Type J thermocouple features a 48-inch fiberglass-insulated lead that provides flexibility in probe positioning and extends sensing reach to remote monitoring points. The grounded junction design and 304 stainless steel sheath deliver fast thermal response and corrosion resistance.</p>
<h2>Key Features</h2>
<ul>
<li><strong>Type J Thermocouple</strong> — ANSI-standard thermocouple grade for reliable millivolt output proportional to temperature difference</li>
<li><strong>48-Inch Lead Length</strong> — Extended cable reach enables flexible installation in compact or remote sensing locations</li>
<li><strong>Grounded Junction</strong> — Fast thermal response and direct contact with measured surface</li>
<li><strong>304 Stainless Steel Probe</strong> — Corrosion-resistant sheath resists oxidation in industrial environments</li>
<li><strong>Fiberglass Insulation</strong> — High-temperature lead wire insulation rated to 900°F (482°C)</li>

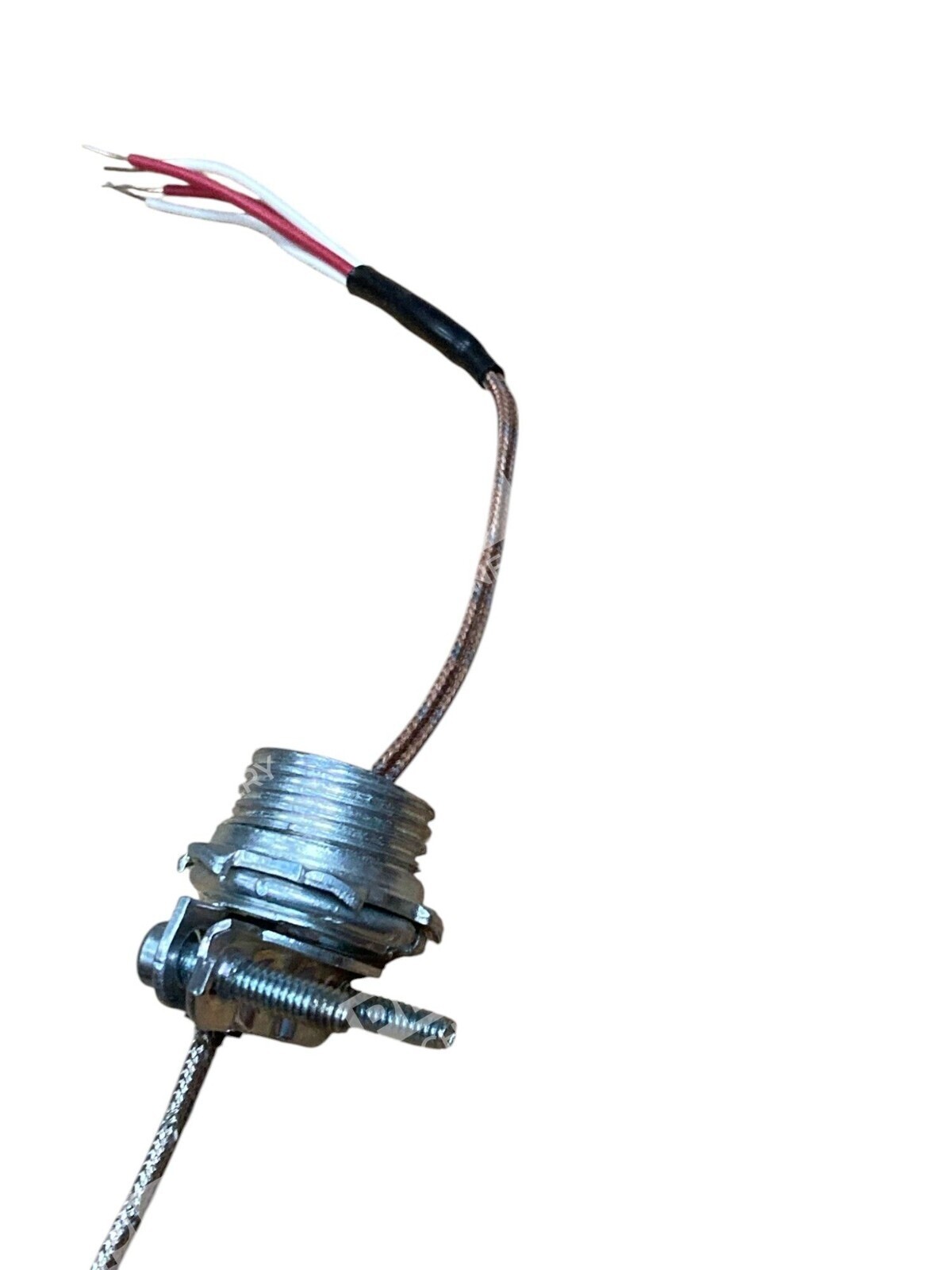

<li><strong>Bare Wire Termination</strong> — Direct screw-terminal connection to instruments and controllers</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Temperature Range:</strong> 32°F to 1,400°F (0°C to 760°C)</li>
<li><strong>Lead Length:</strong> 48 inches (6 feet)</li>
<li><strong>Thermocouple Type:</strong> Type J (Iron-Constantan)</li>
<li><strong>Probe Diameter:</strong> 3/16 inch (0.188 inch)</li>
<li><strong>Probe Length:</strong> 4 inches</li>
<li><strong>Sheath Material:</strong> 304 Stainless Steel</li>
<li><strong>Wire Gauge:</strong> 20 AWG</li>
<li><strong>Insulation:</strong> Fiberglass with color-coded leads</li>
<li><strong>Junction Type:</strong> Grounded</li>
<li><strong>Accuracy:</strong> ±2.2°C below 293°C; ±0.75% over 293°C</li>
<li><strong>Connector:</strong> Bare wire (screw terminal)</li>
<li><strong>Maximum Pressure:</strong> 1,000 PSI</li>
</ul>
<h2>Typical Applications</h2>
<ul>
<li>Oven and furnace temperature monitoring</li>
<li>Food and beverage process control</li>
<li>HVAC and duct temperature sensing</li>
<li>Appliance and equipment temperature measurement</li>
<li>Pharmaceutical and packaging equipment control</li>
<li>Industrial process heating systems</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Any instrument with Type J thermocouple input terminals (industrial controllers, DAQ systems, temperature recorders)</li>
<li>Millivolt-input devices calibrated to Type J standards (ANSI ITS-90)</li>
<li>Screw-terminal and bare-wire thermocouple connector blocks</li>
<li>Process control systems and PLC analog input modules accepting thermocouple signals</li>
<li>Data acquisition and monitoring equipment with Type J input channels</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<ul>
<li>Tempco TCP60089 (Type J, 48″ lead, grounded design)</li>
<li>Generic 48-inch Type J thermocouples with 304 stainless steel probe and 20 AWG wire</li>
</ul>
<h3>Works With</h3>
<ul>
<li>Type J thermocouple calibration tables and reference standards</li>
<li>ANSI thermocouple tolerance specifications (±2.2°C or ±0.75%)</li>
<li>Industrial temperature control and monitoring platforms</li>
<li>Millivolt-to-temperature conversion instrumentation</li>
</ul>
