Overview
The Omega P031554740Z Type K thermocouple is a durable industrial temperature sensor engineered for immersion measurement in liquids, gases, and surfaces. Built on Type K calibration (Chromel-Alumel conductors), this probe offers the wide operating range and cost-effectiveness that makes Type K the most popular thermocouple in manufacturing, HVAC, and process control environments. The molded quick-disconnect connector enables rapid sensor swaps without costly downtime.
Key Features
- Type K Calibration: Chromel-Alumel composition for reliable performance in oxidizing and inert atmospheres
- Quick-Disconnect Connector: Molded miniature connector allows tool-free probe replacement
- Blue Color Coding: Omega’s standard blue jacket for Type K identification and safety compliance
- Grounded Junction: Fast thermal response ideal for dynamic temperature monitoring
- Stainless Steel Sheath: Corrosion-resistant construction for harsh industrial environments
- ANSI/ASTM E230 Certified: Meets thermocouple accuracy and performance standards
Technical Specifications
- Thermocouple Type: Type K (Chromel vs. Alumel)
- Temperature Range (Thermocouple Grade): −200 to 1250°C (−328 to 2282°F)
- Standard Accuracy: ±2.2°C or ±0.75% (whichever is greater)

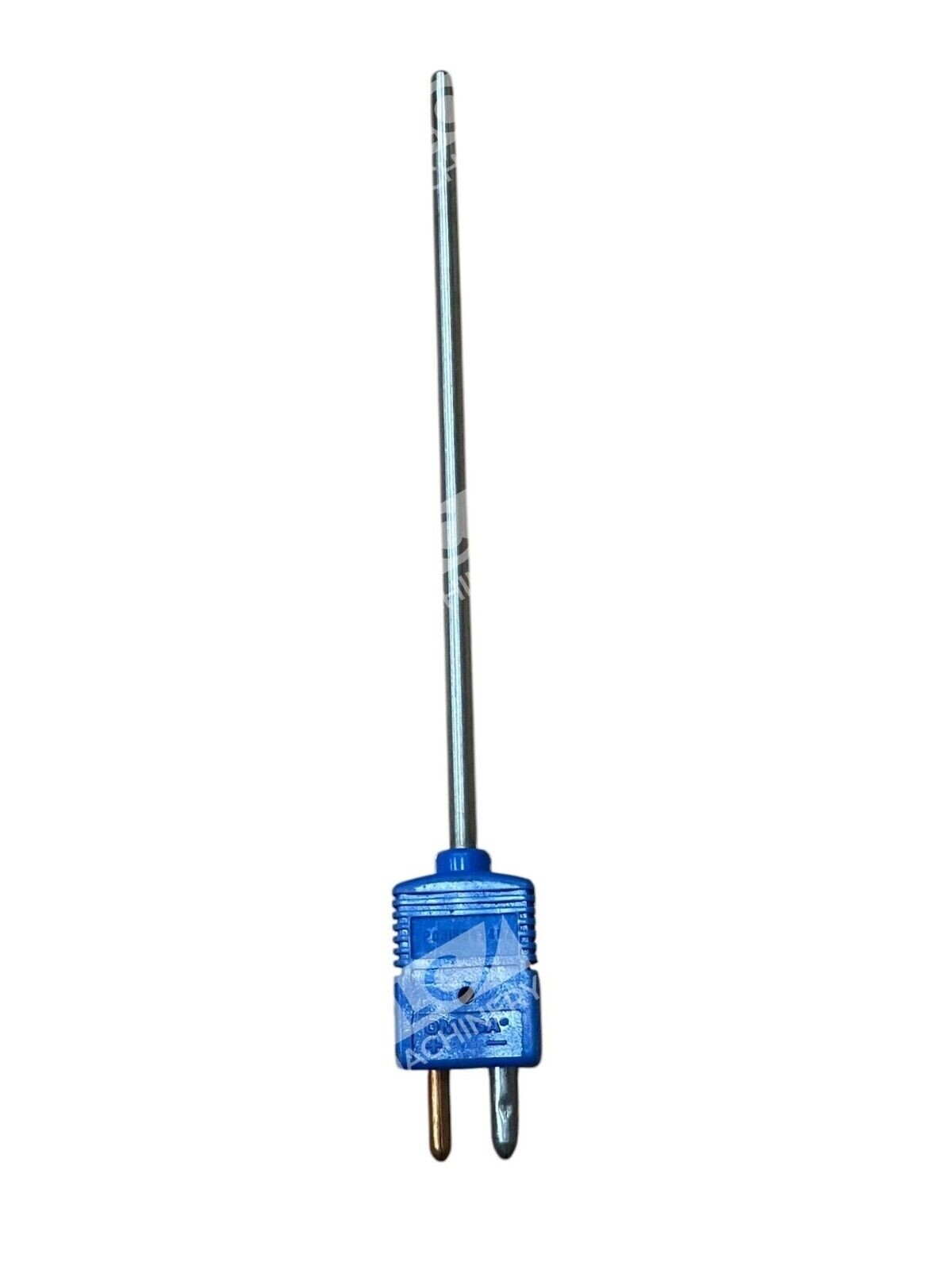

- Probe Length: 6 inches (per CAIN-18U-6 configuration)
- Sheath Material: Stainless Steel
- Sheath Diameter: 1/8 inch

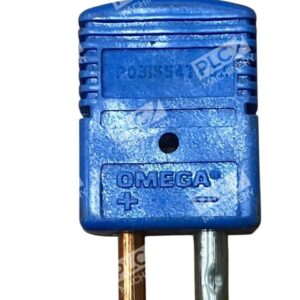

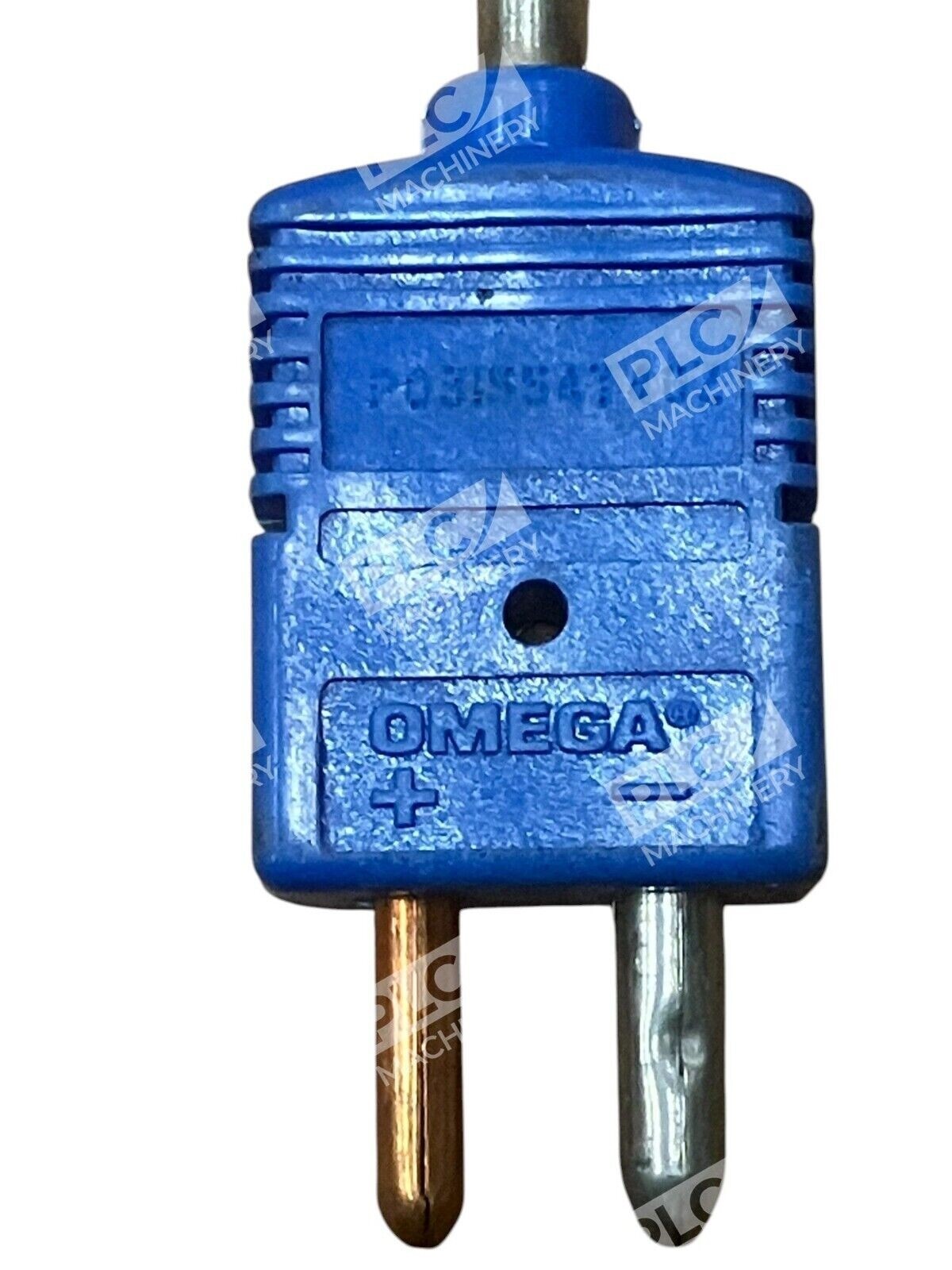

- Connector Type: Molded miniature quick-disconnect
- Junction Type: Grounded immersion
- Color Coding: Blue jacket per Omega standard
- Certification: ANSI/ASTM E230, IEC 60584
Typical Applications
- Industrial process temperature monitoring (heating, cooling, heat treating)
- Liquid and gas immersion measurement
- HVAC system diagnostics and commissioning
- Food processing and commercial kitchen equipment
- Plastic and metal fabrication temperature control
- Laboratory and R&D temperature measurement
- Temporary equipment setup requiring tool-free probe changes
Compatibility & Replacements
Compatible With
- Omega 4-in-1 Meter (HHF81 series)
- Omega temperature controllers and data loggers
- Any instrument with Type K miniature thermocouple connector input
- Standard Type K multimeters and process meters
- DAQ systems supporting Type K thermocouple input
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This unit matches the CAIN-18U-6 configuration (6-inch immersion probe with quick-disconnect). Other Omega Type K immersion probes with comparable connector types may be interchangeable; consult product documentation.
Works With
- Thermocouple Standards: ANSI/ASTM E230, IEC 60584 Type K
- Software/Logging: Any system accepting Type K temperature input
- Connector Protocol: Omega miniature connector (proprietary quick-disconnect)
- Temperature Ranges: Full Type K range from −200°C to +1250°C (thermocouple grade)
