Overview

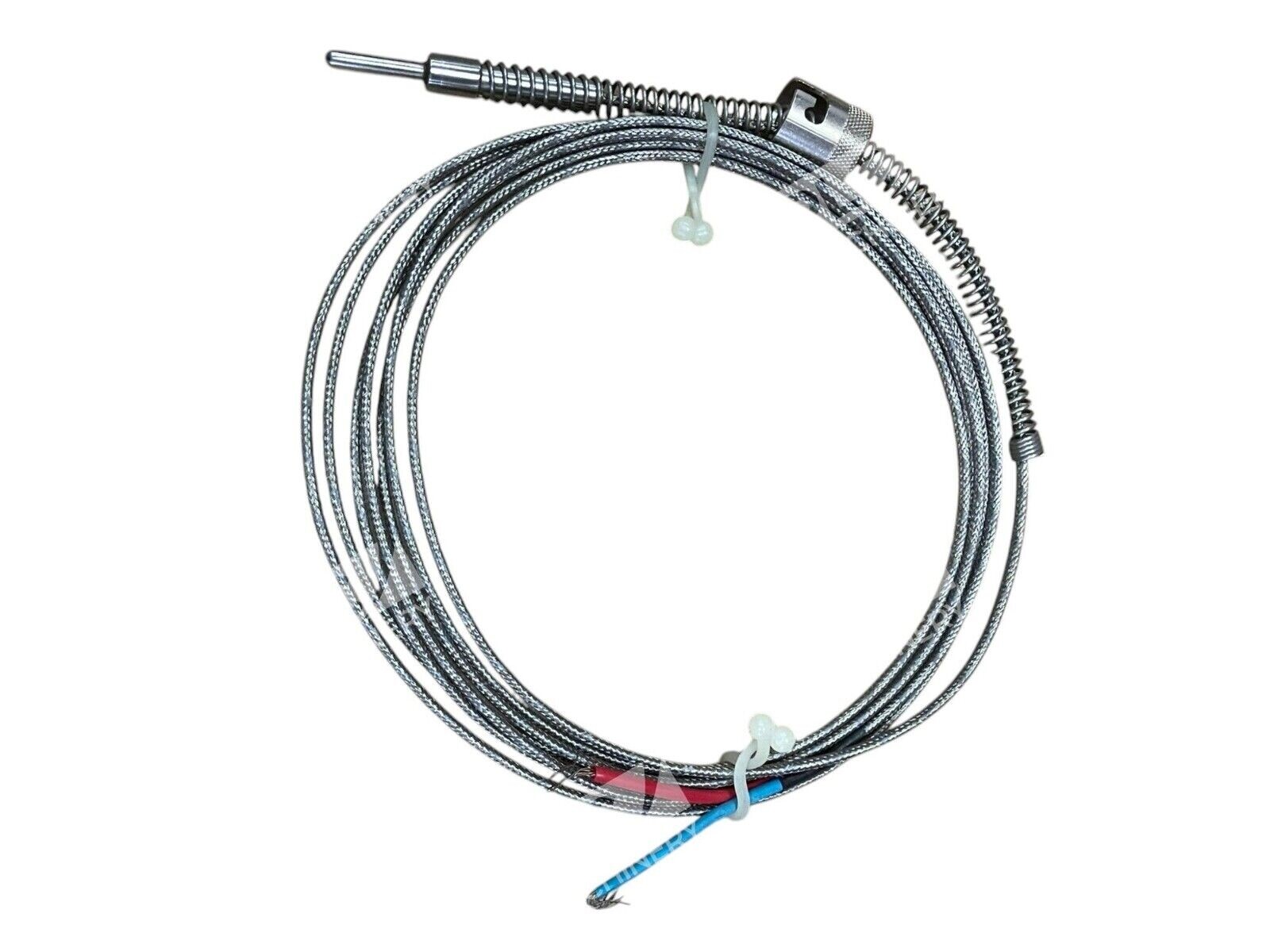

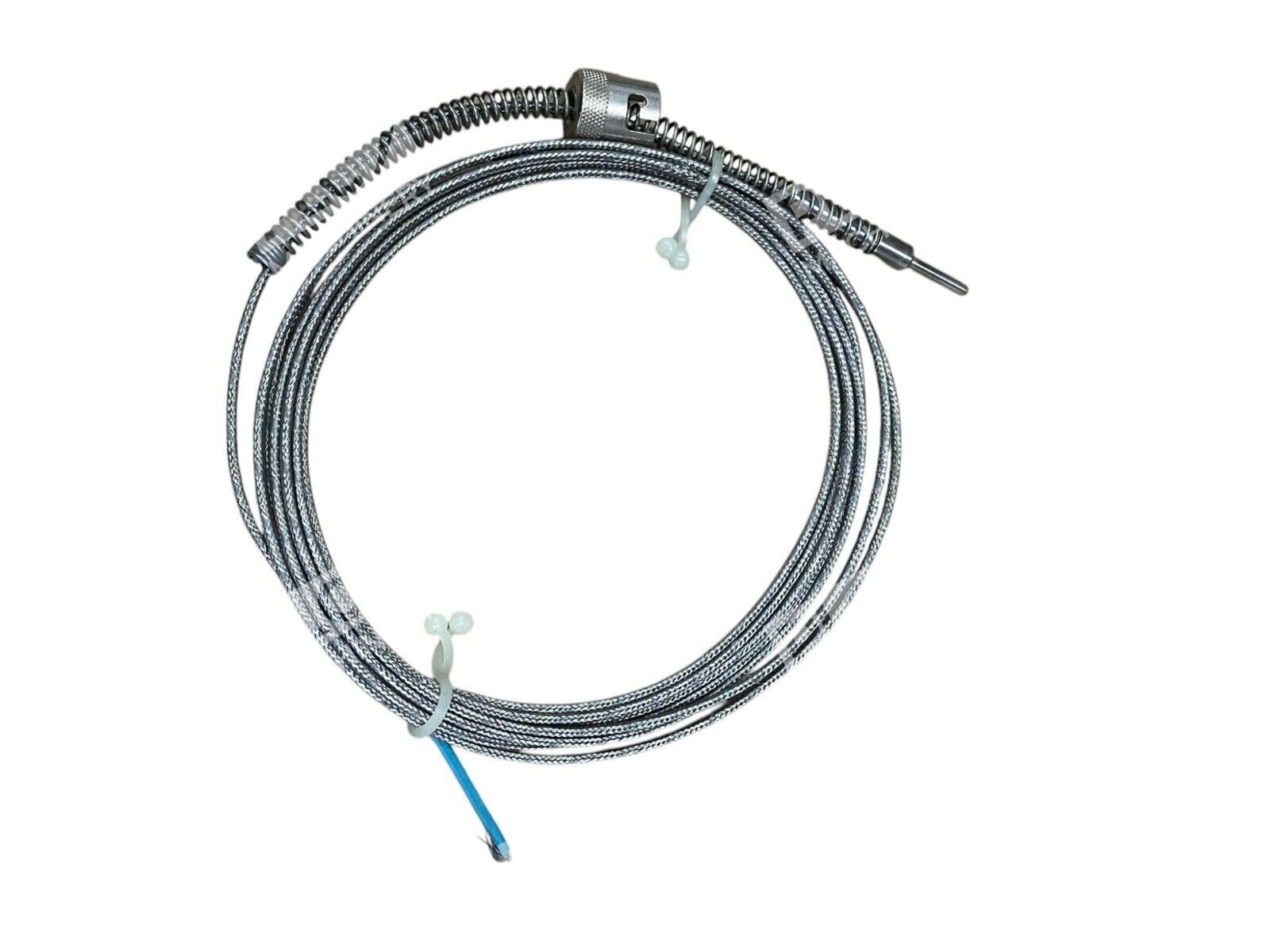

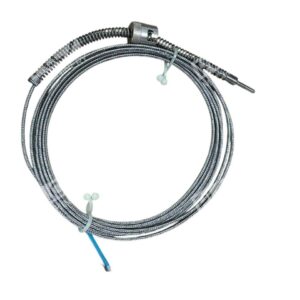

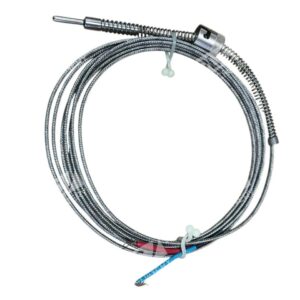

The compression spring thermocouple PT100 is an industrial-grade resistance temperature detector (RTD) designed for reliable temperature measurement across a wide range of applications. This stainless steel temperature sensor uses a platinum-based RTD element that provides accurate and stable readings with excellent repeatability. The compression spring design ensures vibration resistance and secure installation in challenging industrial environments.
Key Features
- Platinum RTD Element: 100 ohm output at 0°C with 0.385 change per degree C
- Compression Spring Design: Anti-vibration structure for reliable performance
- Stainless Steel Construction: Durable material resistant to corrosion
- Standard Thread Connection: M12 × 1.5 mm thread for easy installation
- Wide Temperature Range: 0 to 600°C measurement capability
Technical Specifications
This compression spring thermocouple PT100 delivers consistent performance across demanding industrial temperature measurement applications, with precise sensing and rapid response characteristics.
Typical Applications
- Industrial furnaces and ovens
- Reactor vessel temperature monitoring
- Plastic injection molding equipment
- Heat treatment processes
- HVAC system temperature monitoring
- Pharmaceutical and food processing equipment
- Laboratory and analytical instruments
Compatibility & Replacements
Compatible With
- Temperature controllers accepting PT100 RTD inputs
- Industrial PLCs with RTD modules
- Data acquisition systems with PT100 support
- Temperature transmitters and indicators
- Process control instruments
Replaces / Drop-In Replacement For
This compression spring thermocouple PT100 is a standard replacement for any industrial application requiring a PT100 RTD sensor with M12 × 1.5 thread connection and 0–600°C measurement range. Verify your specific temperature controller or instrument manual to confirm compatibility before ordering.
Works With
- 4-20 mA temperature transmitters
- Direct RTD input modules (2-wire and 3-wire configurations)
- Digital and analog temperature displays
- PLC and DCS temperature input cards
- Standard industrial temperature control systems
