Overview

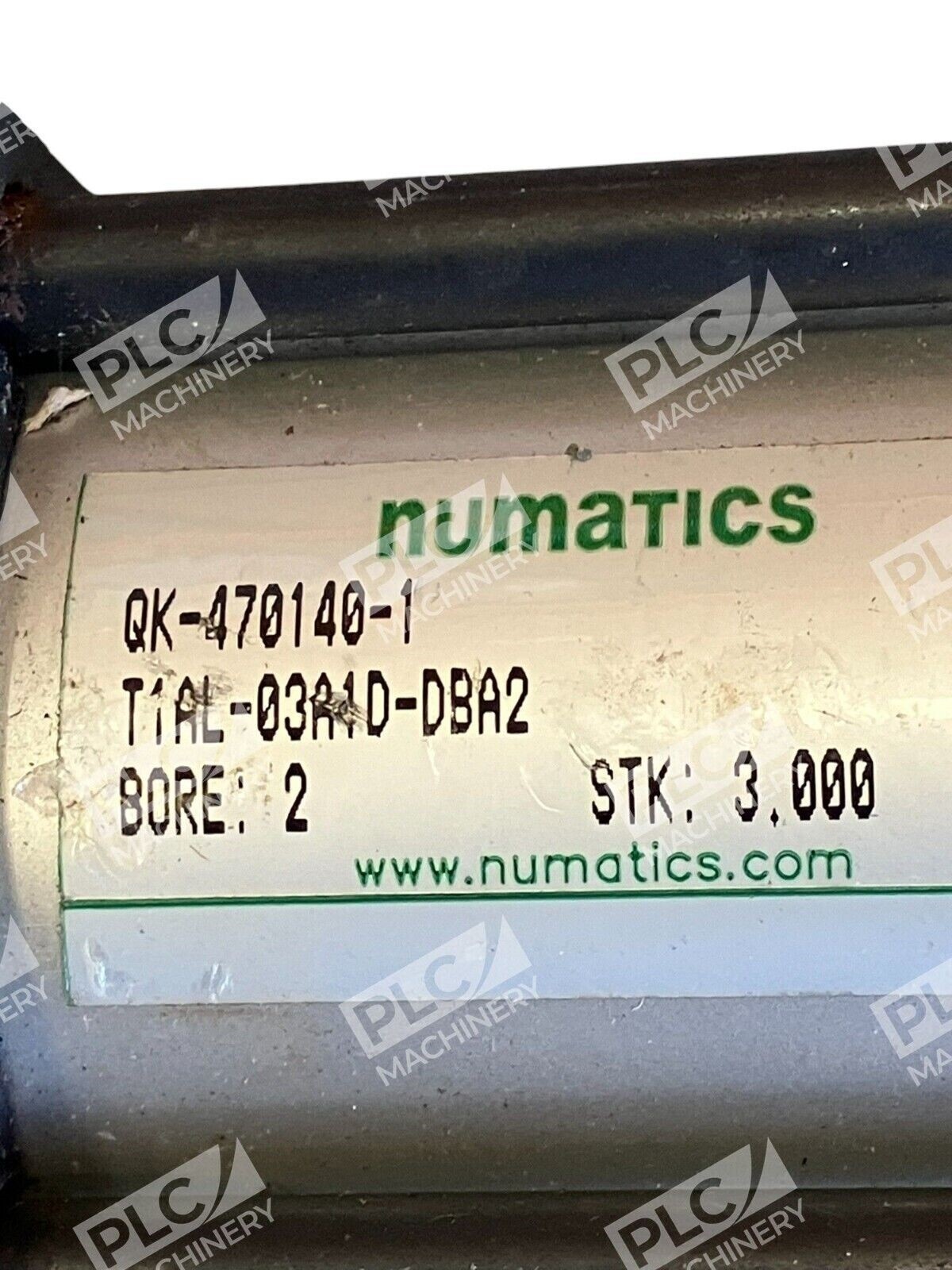

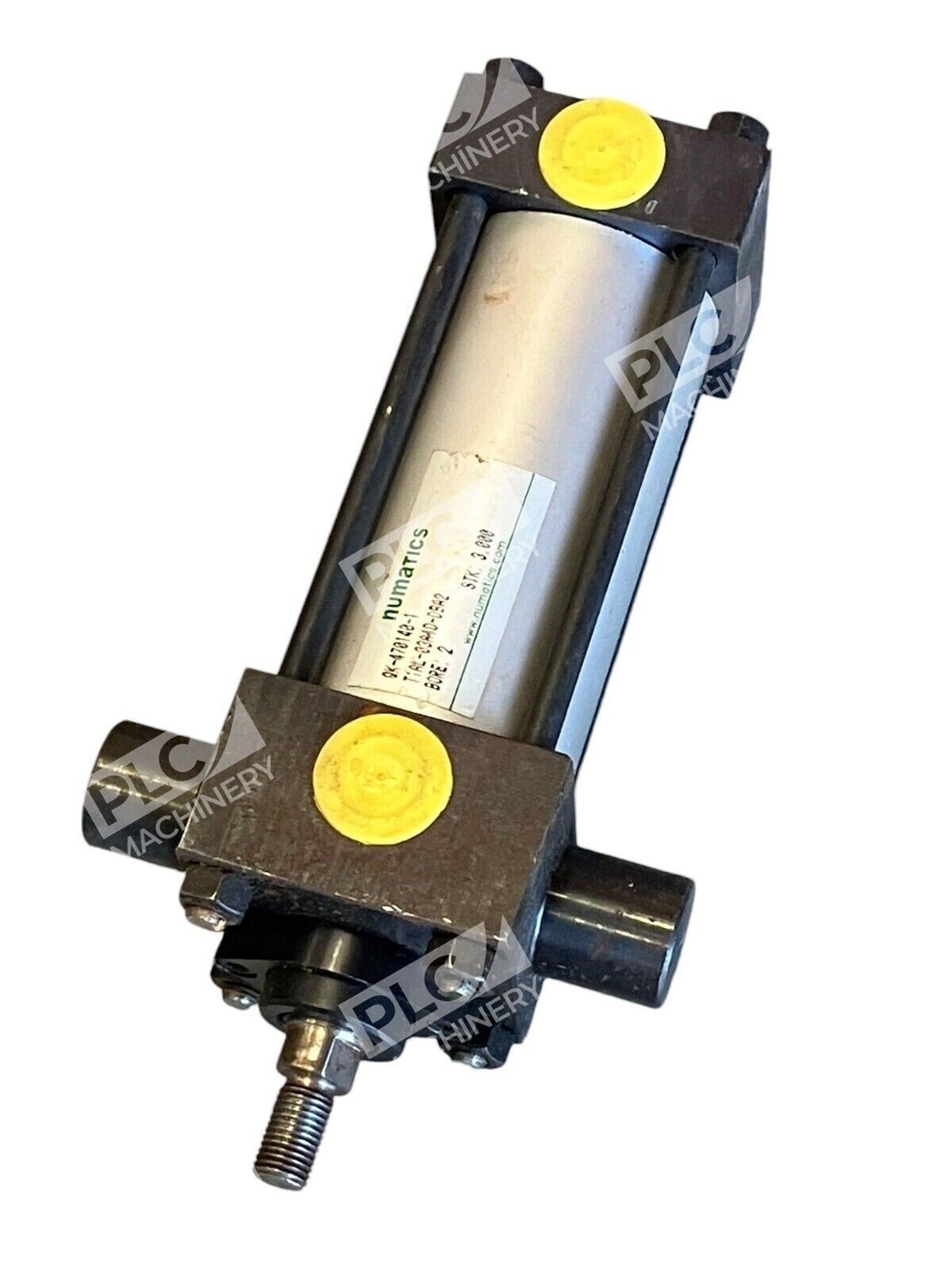

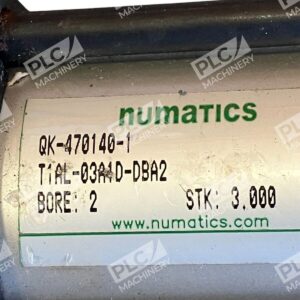

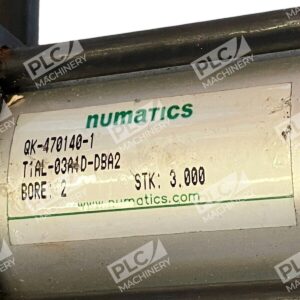

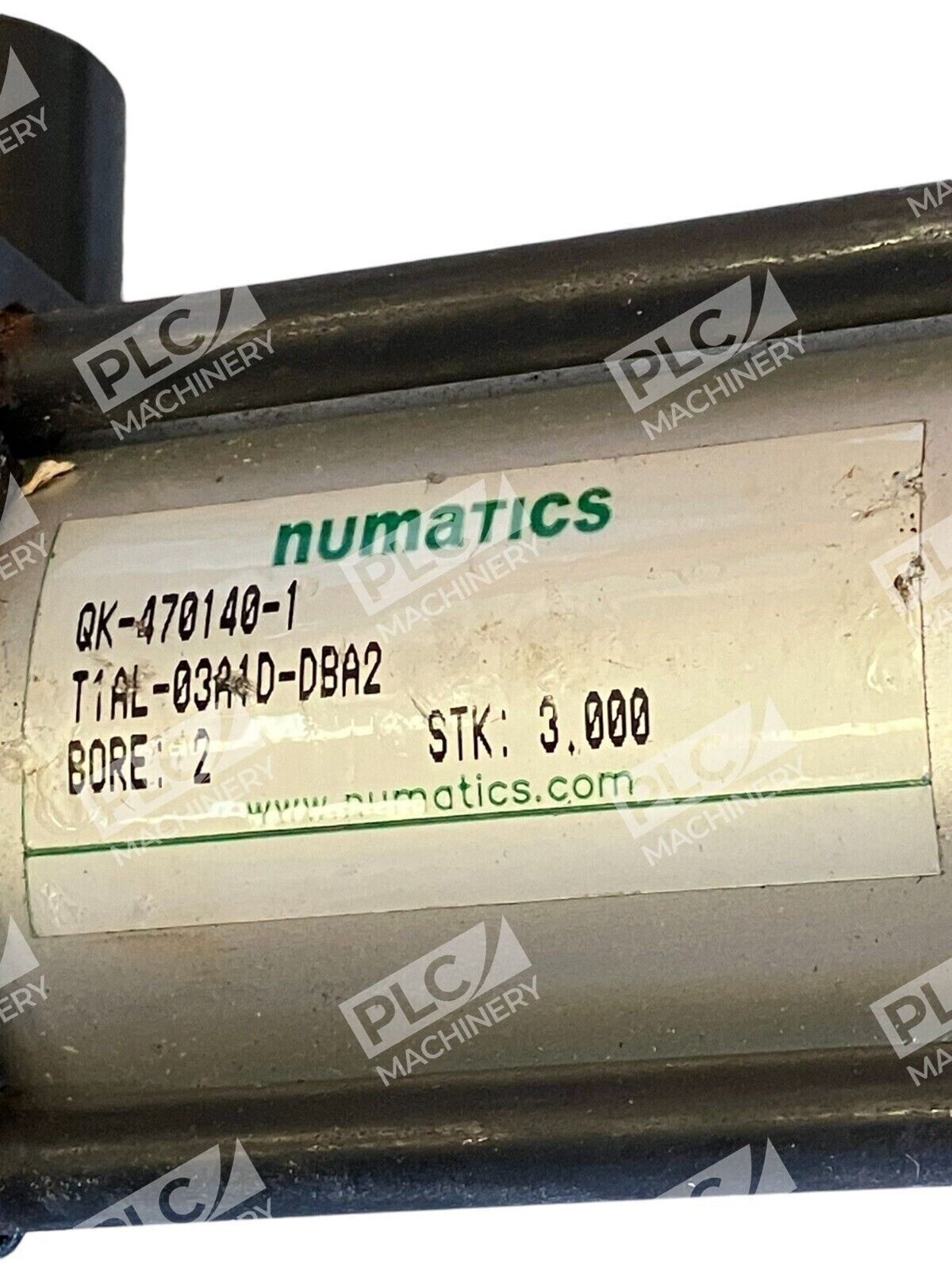

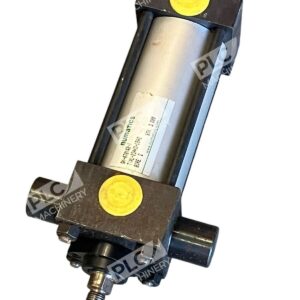

The Numatics T1AL-03A1D-DBA2 is a proven double-acting pneumatic cylinder engineered to NFPA A-series interchangeable standards. With a 2″ bore and 3″ stroke, this cylinder combines reliable single-rod tie-rod construction with industrial-grade materials to deliver consistent performance in machine automation, material handling, and process control applications. The DBA2 suffix denotes adjustable cushions at both head and cap ports, providing smooth deceleration and reduced shock on load reversal.
Key Features
- Double-acting single-rod tie-rod design for maximum durability
- NFPA A-series interchangeability ensures cross-platform compatibility
- Adjustable cushioning at both head and cap for smooth operation
- Hard anodized aluminum body resists corrosion and wear
- Chrome-plated steel rod withstands rod-side loads and seal friction
- Rated for 250 psi maximum operating pressure
Technical Specifications
- Bore Diameter: 2″ (50.8 mm)
- Stroke Length: 3″ (76.2 mm)
- Extend Force (100 psi): 314 lbf
- Retract Force (100 psi): 283 lbf
- Maximum Operating Pressure: 250 psi
- Actuation Type: Double-acting
- Rod Type: Single-rod
- Mounting Style: Clevis (DBA variant)
- Port Size: 1/4″ NPTF threaded
- Rod Thread: 7/16-20 male
- Seal Material: Nitrile (self-lubricating carboxylated with PTFE compound)
- Piston Rod Material: Chrome-plated steel
- Body Material: Hard anodized aluminum
- Rod Bushing: Graphite-filled cast iron
Typical Applications
The Numatics T1AL-03A1D-DBA2 excels in industrial automation environments where repeatable force, smooth cushioning, and compact mounting are essential:
- Clamping and workholding fixtures
- Transfer and conveyor systems
- Press and stamping machine actuators
- Pneumatic automation assemblies
- Material positioning and alignment
- Light- to medium-duty motion control
Compatibility & Replacements
Compatible With
- Standard pneumatic compressor systems (80–250 psi)
- Air distribution networks with 1/4″ NPTF ports
- NFPA A-series industrial automation control systems
- Pneumatic solenoid valves and directional controls
- Pneumatic logic circuits and manifold systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The Numatics T1AL-03A1D-DBA2 follows NFPA A-series dimensional and porting standards, allowing potential cross-compatibility with other certified NFPA A 2″ bore × 3″ stroke cylinders from manufacturers including Bimba, Miller, Parker, and Bosch Rexroth, subject to port and mounting confirmation.
Works With
- Pneumatic solenoid directional control valves (4/3, 4/2, 5/2, 5/3)
- Integrated pneumatic logic systems and decision-making circuits
- Pressure regulators and gauges for circuit tuning
- Flow controls and speed controllers for stroke timing
- Pneumatic timer and sequencing modules
- Industrial PLC and automation controllers (via solenoid actuation)
