Overview
The Numatics L01SA4594060T61 is a direct-acting solenoid-actuated pneumatic valve from the L01 series. This 2-position 4-way (5/2) valve features 24Vdc solenoid control with 1/8″ NPTF female threaded pneumatic ports and DIN plug-in solenoid connection. Designed for line-mounted or manifold-mounted installation, it provides reliable flow control in pneumatic systems requiring electrical actuation and manual override capability.
Key Features

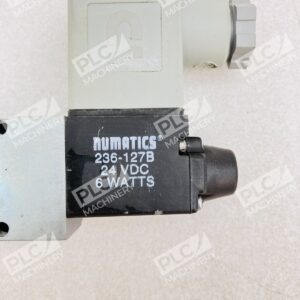

- Single direct solenoid actuated with DIN plug-in solenoid and indicator light
- Spring return flush manual override for fail-safe operation
- Spool and sleeve actuation design with flow capacity of 0.2 Cv (9.3 SCFM at 80 psig upstream pressure to atmosphere)
- NEMA 4 / IP65 rated for washdown and sealed environments
- Unlubricated or lubricated service capability with integral speed control available
- Common exhaust design for simplified pneumatic circuit integration
Technical Specifications
See detailed specifications table below for voltage, pressure range, flow rate, temperature limits, and weight.
Typical Applications
- Pneumatic automation and process control systems
- Manufacturing equipment valve actuation and sequencing
- Industrial machinery with solenoid-controlled air distribution
- Machine tool and press automation
- Packaging and material handling equipment
- Pneumatic cylinder and actuator control circuits
Compatibility & Replacements
Compatible With
- Pneumatic and hydraulic automation systems requiring 24VDC solenoid control
- DIN 43650 solenoid connector standard systems
- Standard pneumatic manifold block mounting (line-mounted)
- Air preparation units with 1/8″ NPT female threaded ports
Replaces / Drop-In Replacement For
- ASCO Numatics L01SA-series direct solenoid valves with identical electrical and pneumatic port specifications
- Previous generations of Numatics L01 series single solenoid pneumatic control valves
Works With
- 24VDC solenoid supply networks and PLC I/O modules
- DIN 43650 plug connector assemblies (sold separately)
- Pneumatic distribution networks, FRL (filter-regulator-lubricator) units, and air preparation systems
- Integral speed control components for flow rate adjustment
