Overview

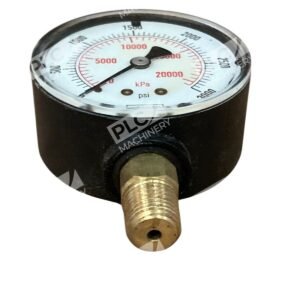

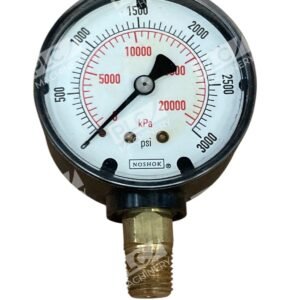

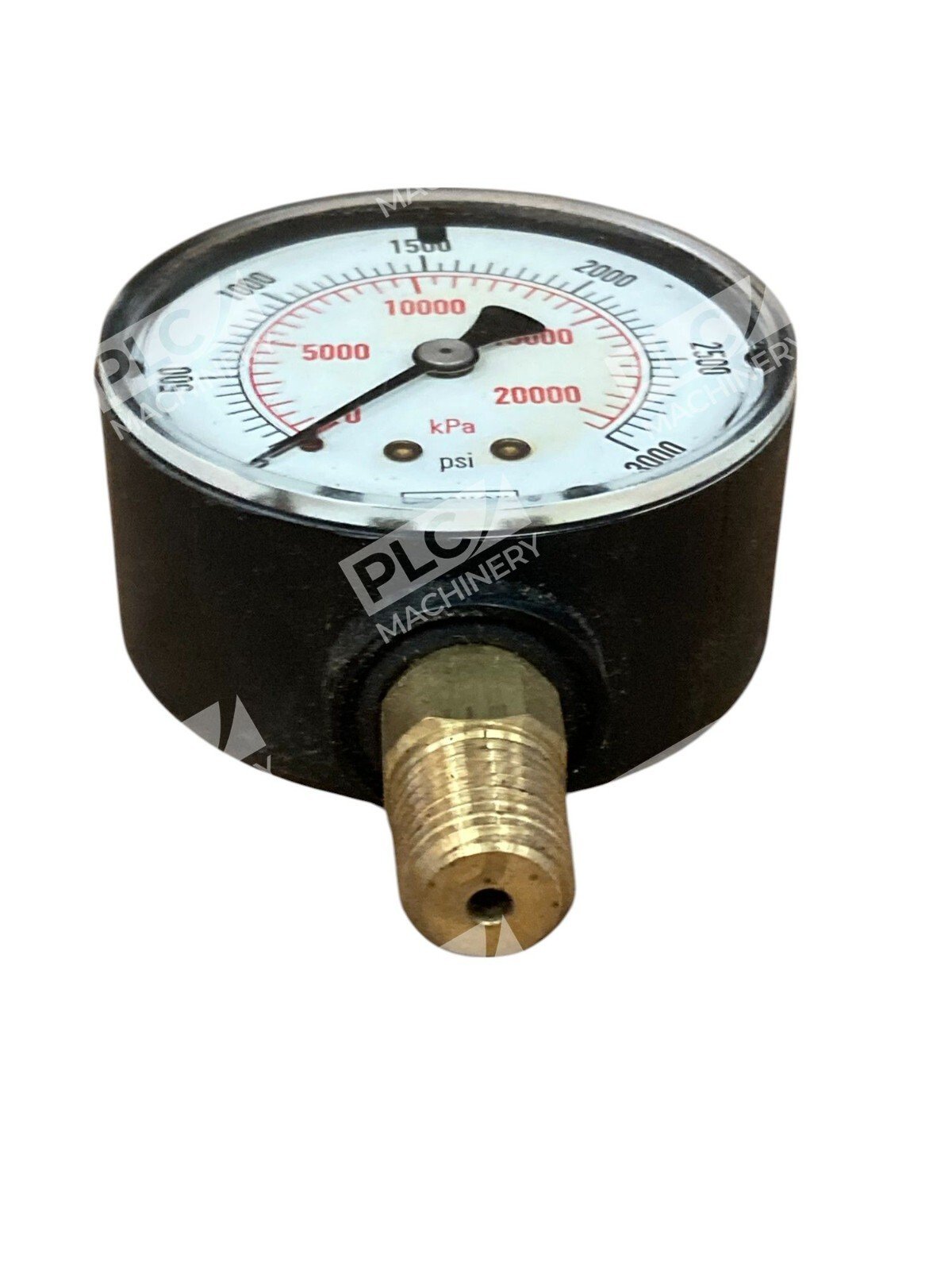

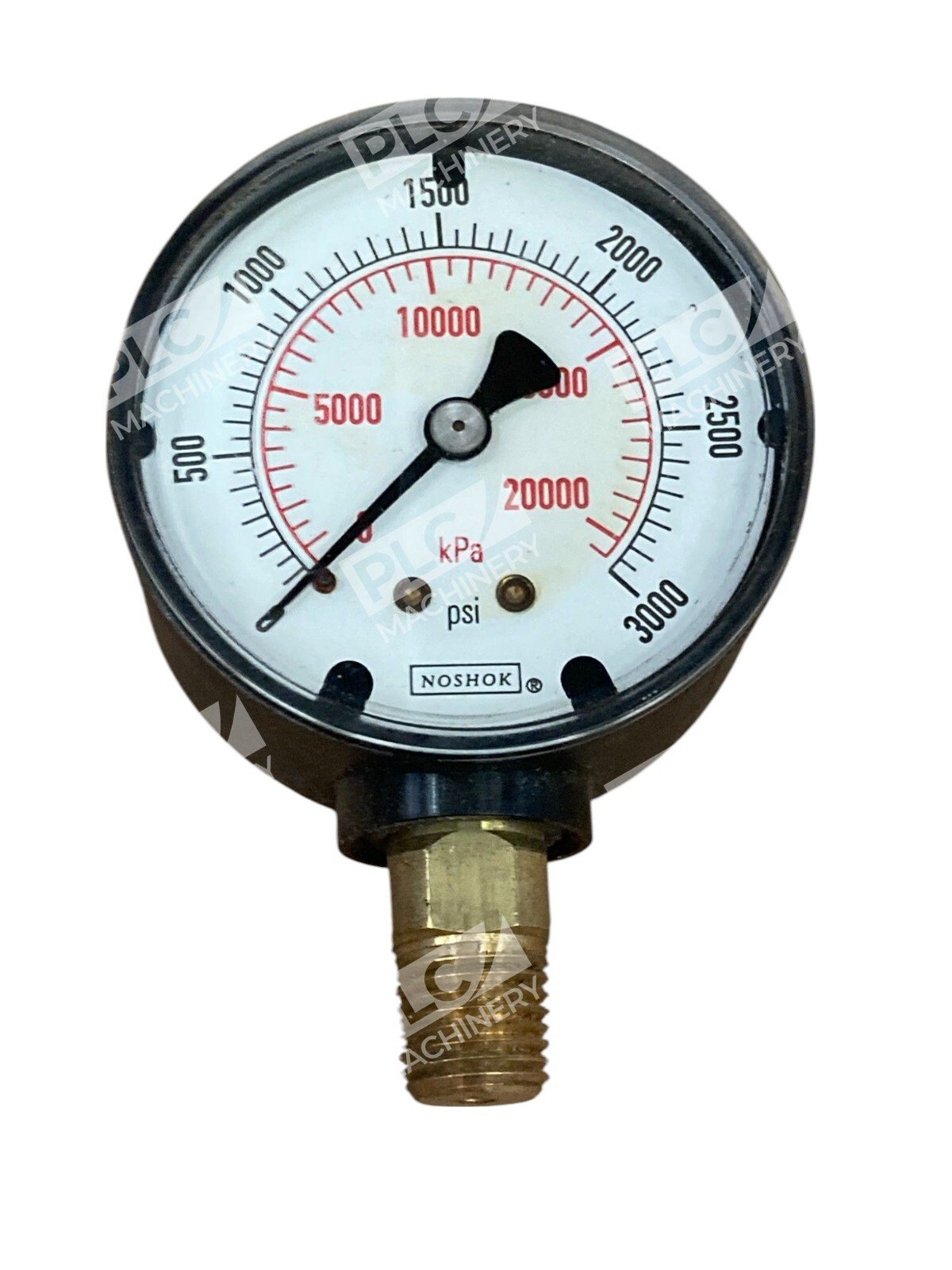

The Noshok 0-3000 PSI pressure gauge is a liquid-filled dial indicator designed for demanding industrial, hydraulic, and mobile equipment applications. Available with dual-scale markings (0-3000 PSI / 0-20000 kPa), this gauge combines robust construction with accuracy to monitor system pressures reliably. Polished brass cover ring, acrylic lens with o-ring seal, and brass and nickel-silver movement ensure long service life in harsh operating conditions.
Key Features
- Glycerin-filled design reduces vibration and needle flutter for stable readings
- 1% full-scale accuracy for precise pressure monitoring
- Copper alloy or 316 stainless steel and brass wetted parts resist corrosion
- Impact-resistant ABS and stainless steel case provides durability
- Dual-scale display (PSI/kPa) simplifies metric and imperial readings
- 1/4″ NPT threaded male bottom-side process connection for standard industrial mounting
Technical Specifications
| Measurement Range | 0–3000 PSI / 0–20000 kPa |
| Scale Type | Dual scale (PSI/kPa) |
| Accuracy | 1% Full Scale |
| Case Material | 304 Stainless Steel or Die-Cast Brass |
| Case Size | 2.5″ to 4″ (varies by model) |
| Fill Medium | Glycerin (glycerin-filled) |
| Connection Type | 1/4″ NPT Male (bottom or back mount) |
| Window Material | Acrylic or Polycarbonate with O-ring Seal |
| Operating Temperature | –4°F to +140°F (–20°C to +60°C) |
| Wetted Parts | Brass, copper alloy, or 316 stainless steel |
| Series | 300 or 900 Series (liquid-filled) |
| Warranty | 3-year warranty on liquid-filled gauges |
Typical Applications
- Hydraulic pressure systems and cylinders
- Mobile and heavy equipment (tractors, loaders, excavators)
- Industrial compressors and air systems
- Pump discharge and pilot line monitoring
- Manufacturing equipment process control
- Test laboratories requiring accurate pressure reference
Compatibility & Replacements
Compatible With
- Standard 1/4″ NPT process connections
- Hydraulic and pneumatic systems rated 0–3000 PSI
- Industrial manifolds and pump assemblies
- Pilot-operated controls and proportional valve circuits
- Mobile and stationary hydraulic applications
Replaces / Drop-In Replacement For
- Noshok 25-300 series (2.5″ brass case)
- Noshok 25-310 series (back connection variant)
- Noshok 900 series 3000 PSI gauges
- Equivalent OEM gauges in industrial equipment
Works With
- All standard hydraulic fluid types (ISO, ester-based)
- Glycerin fill medium (pre-filled)
- Teflon-sealed NPT fittings and adapters
- Pressure transducers for system redundancy
- Pilot-operated valves and proportional controls
