Overview

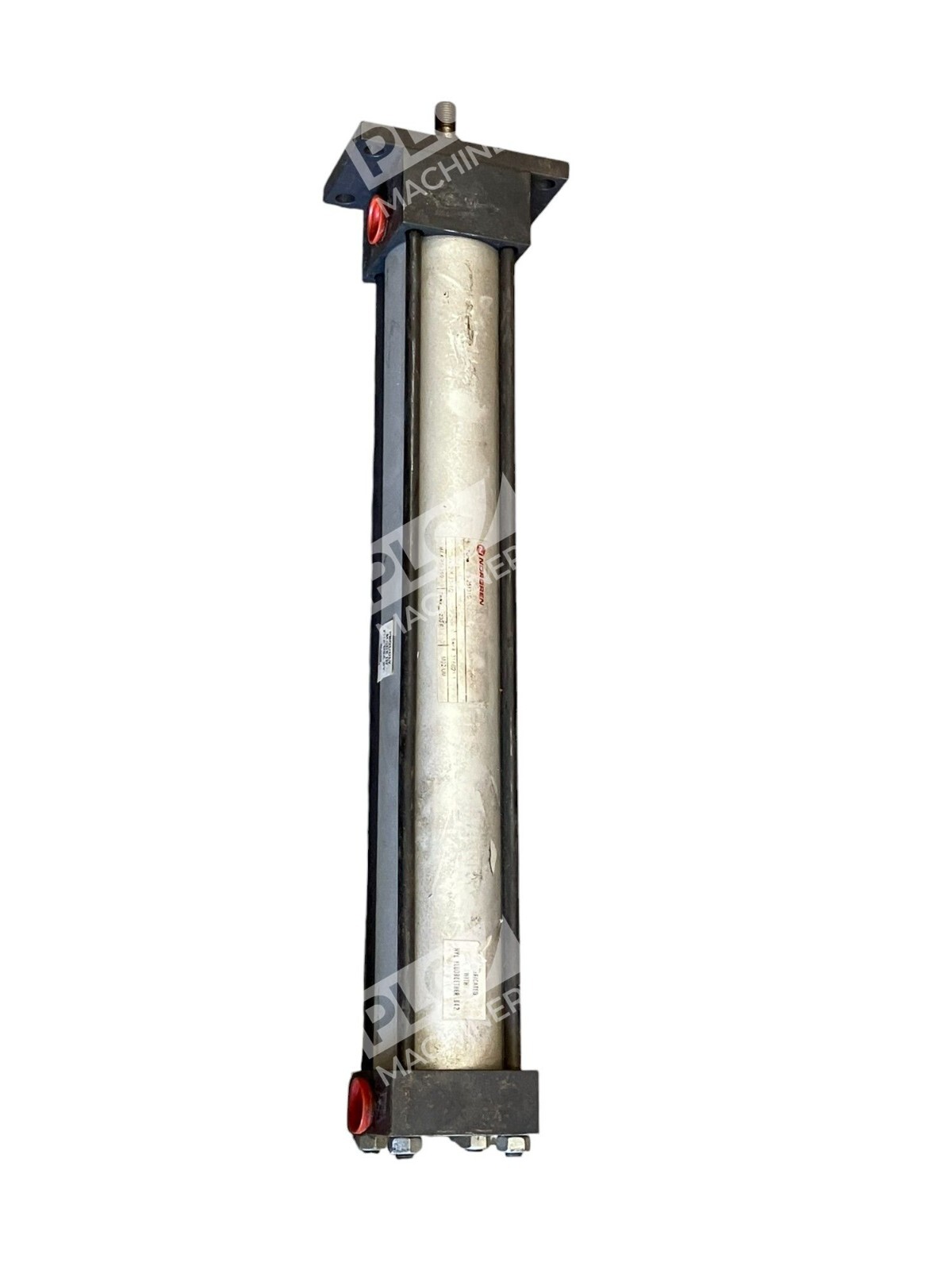

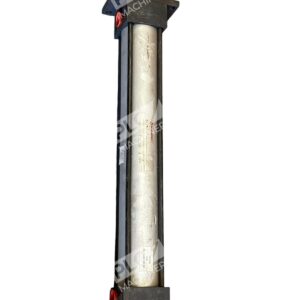

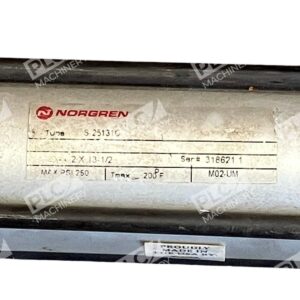

The Norgren M02-UM S25131G pneumatic cylinder delivers dependable linear actuation for factory automation, material handling, and process control applications. Rated for 250 PSI operation, this 2x2x13-1/2 inch cylinder integrates seamlessly into pneumatic systems requiring compact, efficient force delivery. Built to Norgren’s engineering standards, this unit provides reliable performance across industrial environments.
Key Features
- 250 PSI maximum operating pressure
- Compact footprint: 2 x 2 x 13-1/2 inches
- Consistent, repeatable actuation cycles
- Aluminum and stainless steel construction for durability
- Compatible with standard pneumatic control systems
Technical Specifications
- Maximum Operating Pressure: 250 PSI
- Bore/Rod Diameter: 2 inches
- Stroke Length: 13-1/2 inches
- Body Material: Aluminum (anodized)
- Rod Material: Stainless steel
- Seal Material: Nitrile rubber or polyurethane
- Connection Type: Standard pneumatic ports
Typical Applications
The Norgren M02-UM S25131G suits production line automation, clamping and indexing applications, material transfer systems, and general industrial pneumatic control. Its 250 PSI rating accommodates moderate to high-force requirements while maintaining compact dimensions ideal for space-constrained installations.
Compatibility & Replacements
Compatible With
- Standard pneumatic control valves (3/2, 4/2, 5/2 spool types)
- PLC-based automation systems with pneumatic interfaces
- ISO 1219-compliant pneumatic circuits
- NFPA and ISO-standard actuation platforms
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Exact cross-reference information for legacy models is available upon request.
Works With
- Pneumatic directional control valves
- Pressure regulators and gauge blocks
- Flow control and shut-off valves
- Manifold-mounted control architectures
