Overview

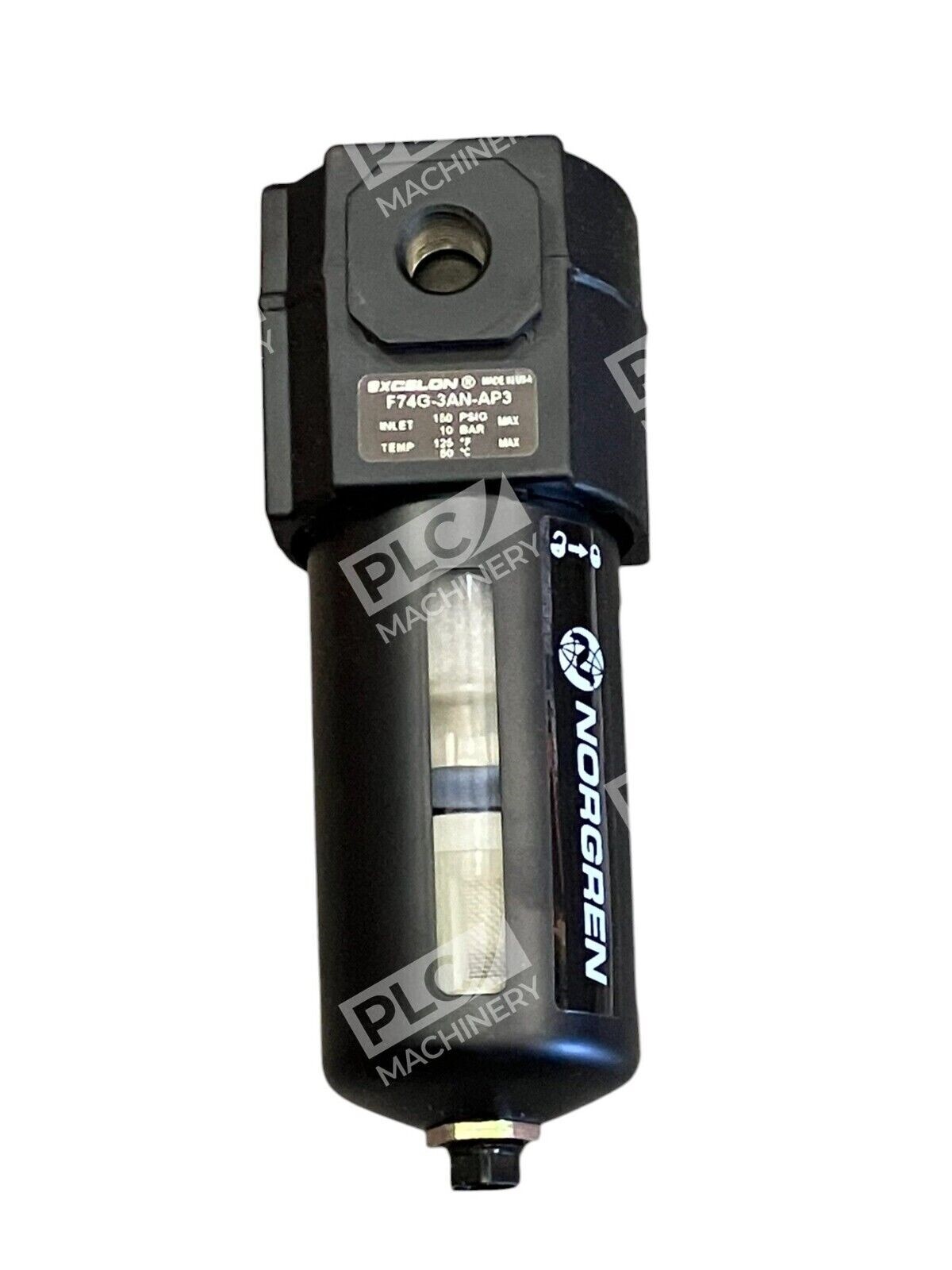

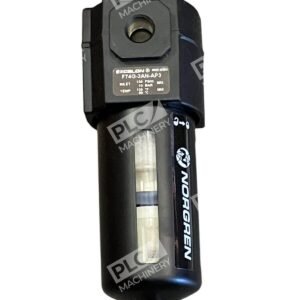

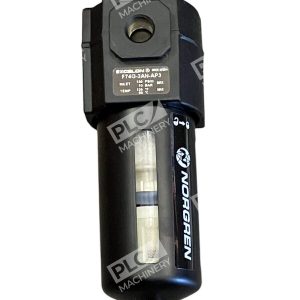

The Norgren F74G-3AN-AP3 is a general-purpose compressed air filter in Norgren’s proven Excelon modular system. Built for industrial pneumatic applications, this filter delivers high-efficiency water and particle removal to protect downstream components. The transparent bowl with guard and quick-release bayonet design enables fast element changes and continuous monitoring of filter saturation without breaking the air line.
Key Features
- Excelon design supports inline or modular installation with other Excelon 72, 73, and 74 series products
- High-efficiency water and particle removal at 40 micron filtration
- Quick-release bayonet bowl for fast, tool-free element replacement
- Automatic drain valve minimizes maintenance and condensate buildup
- Transparent bowl with guard allows visual inspection of filter condition
- Optional service life indicator turns green-to-red when element replacement needed
Technical Specifications
- Port Size: 3/8″ PTF (Pipe Thread Female)
- Filtration Rating: 40 microns
- Maximum Working Pressure: 150 PSIG (10 bar)
- Operating Temperature: -5°C to +50°C (23°F to 122°F)
- Bowl Type: Transparent polycarbonate with protective guard
- Drain Type: Automatic 1/4-turn drain
- Flow Capacity: Suitable for general industrial pneumatic applications
- Series: Norgren Excelon F74G
- Installation Method: Inline or modular cartridge
Typical Applications
- Machine tools and manufacturing equipment
- Pneumatic automation and robotics control systems
- Food, beverage, and packaging machinery
- Compressed air preparation systems requiring 40 micron filtration
- Industrial plants requiring inline or cartridge-style air treatment
- Facilities needing modular FRL (Filter-Regulator-Lubricator) configurations
Compatibility & Replacements
Compatible With
- Norgren Excelon F72G, F73G, and F74G series filters and regulators
- Any 3/8″ PTF (female pipe thread) compressed air line
- Industrial pneumatic systems rated 150 PSIG or below
- Modular air preparation systems (inline or cartridge mounting)
Replaces / Drop-In Replacement For
- Norgren F74G-3AN-AP3 (part number variants)
- Compatible with previous generation F74G filters using 3/8″ PTF connections and 40 micron elements
- Verify specific model compatibility with your system before ordering
Works With
- Norgren Excelon regulators and lubricators for modular FRL assembly
- Standard compressed air piping systems (3/8″ NPT and PTF adapters available)
- Automatic or manual drain valves for condensate removal
- Service life indicators and bowl guard accessories
