Overview

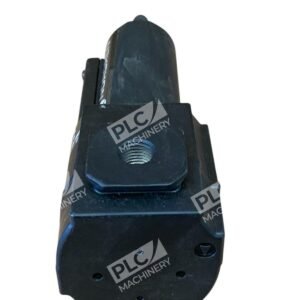

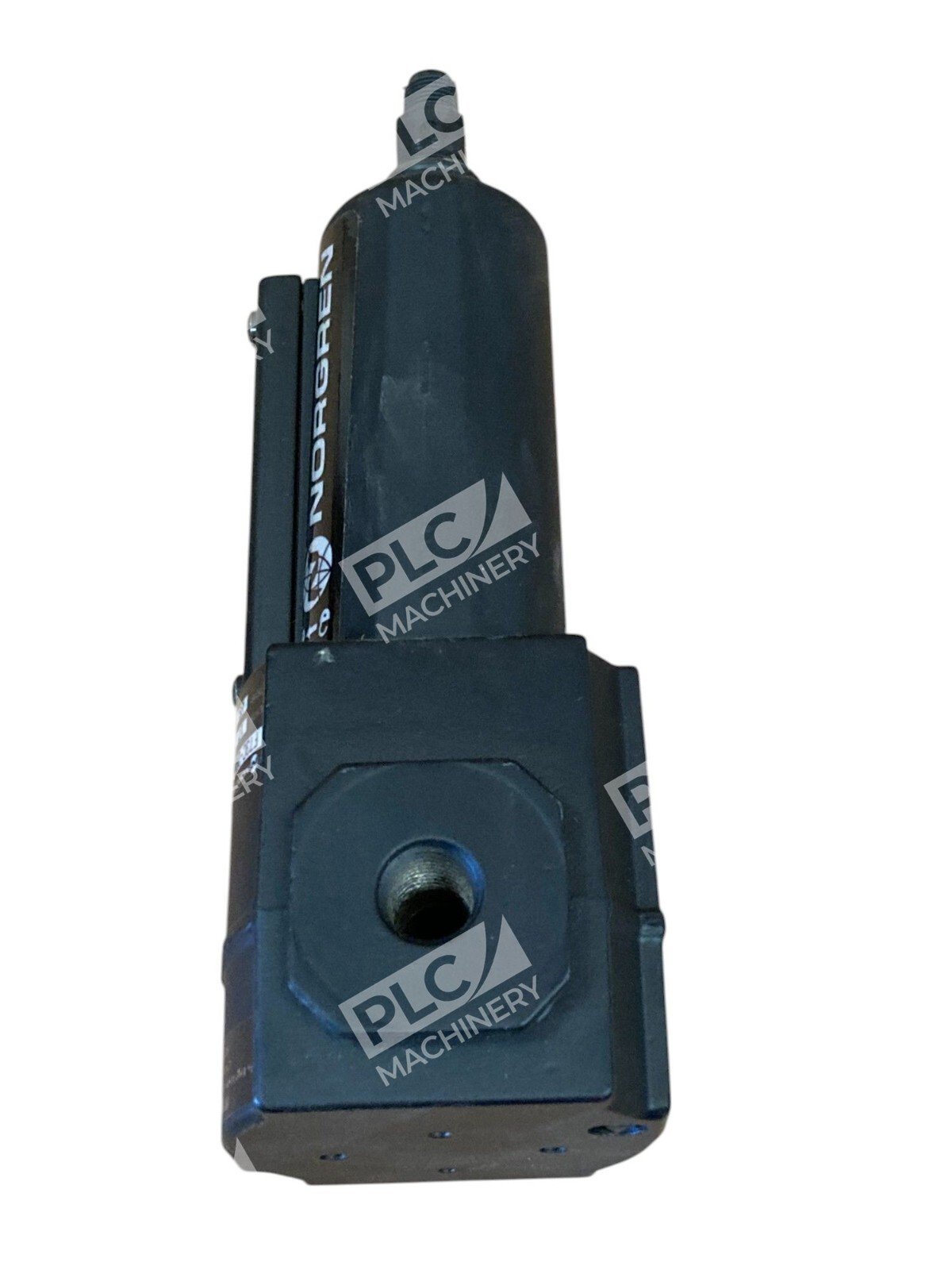

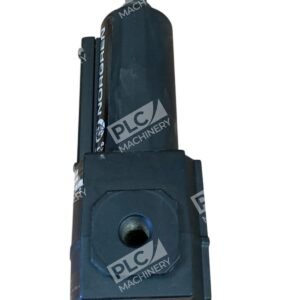

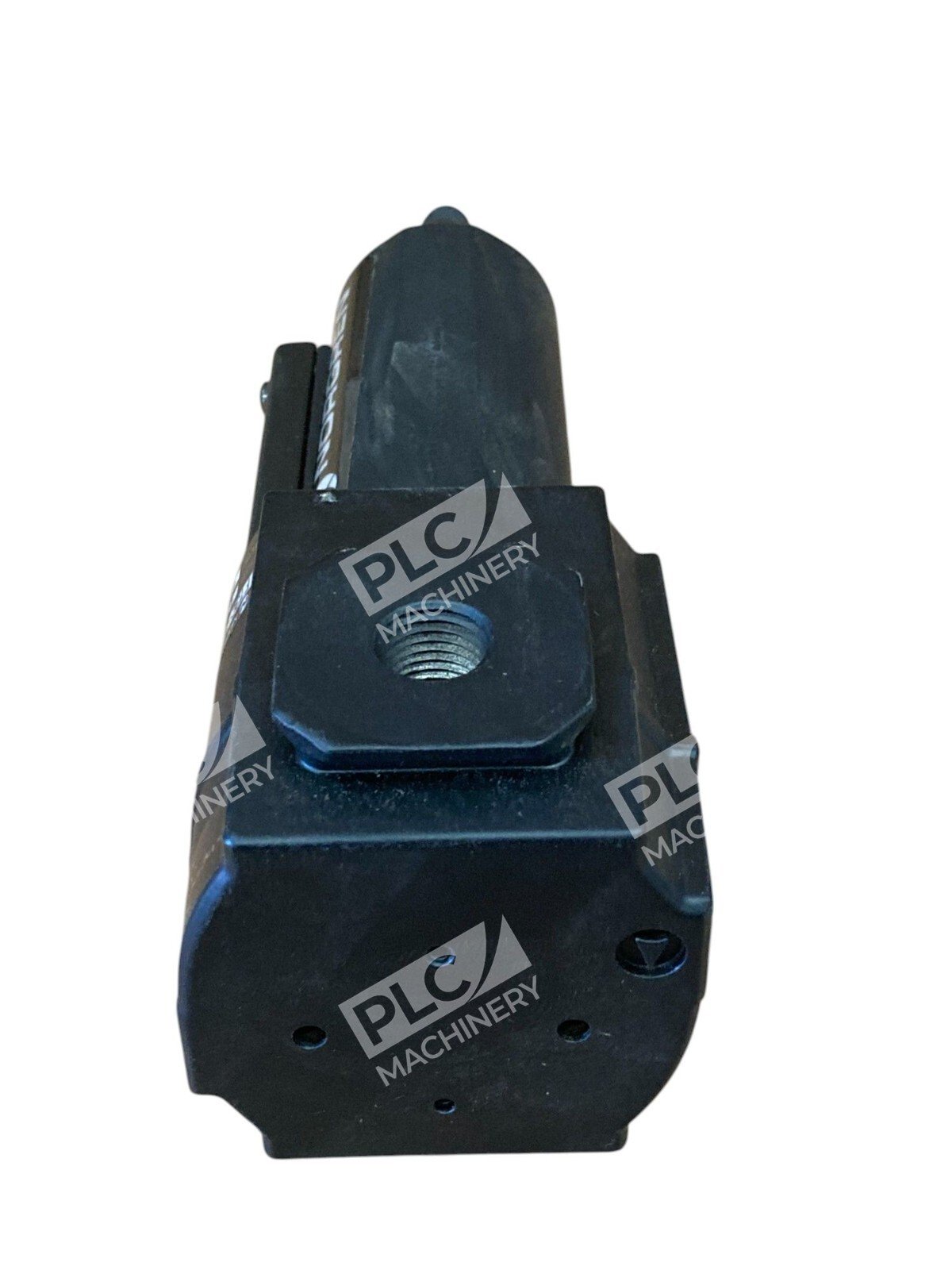

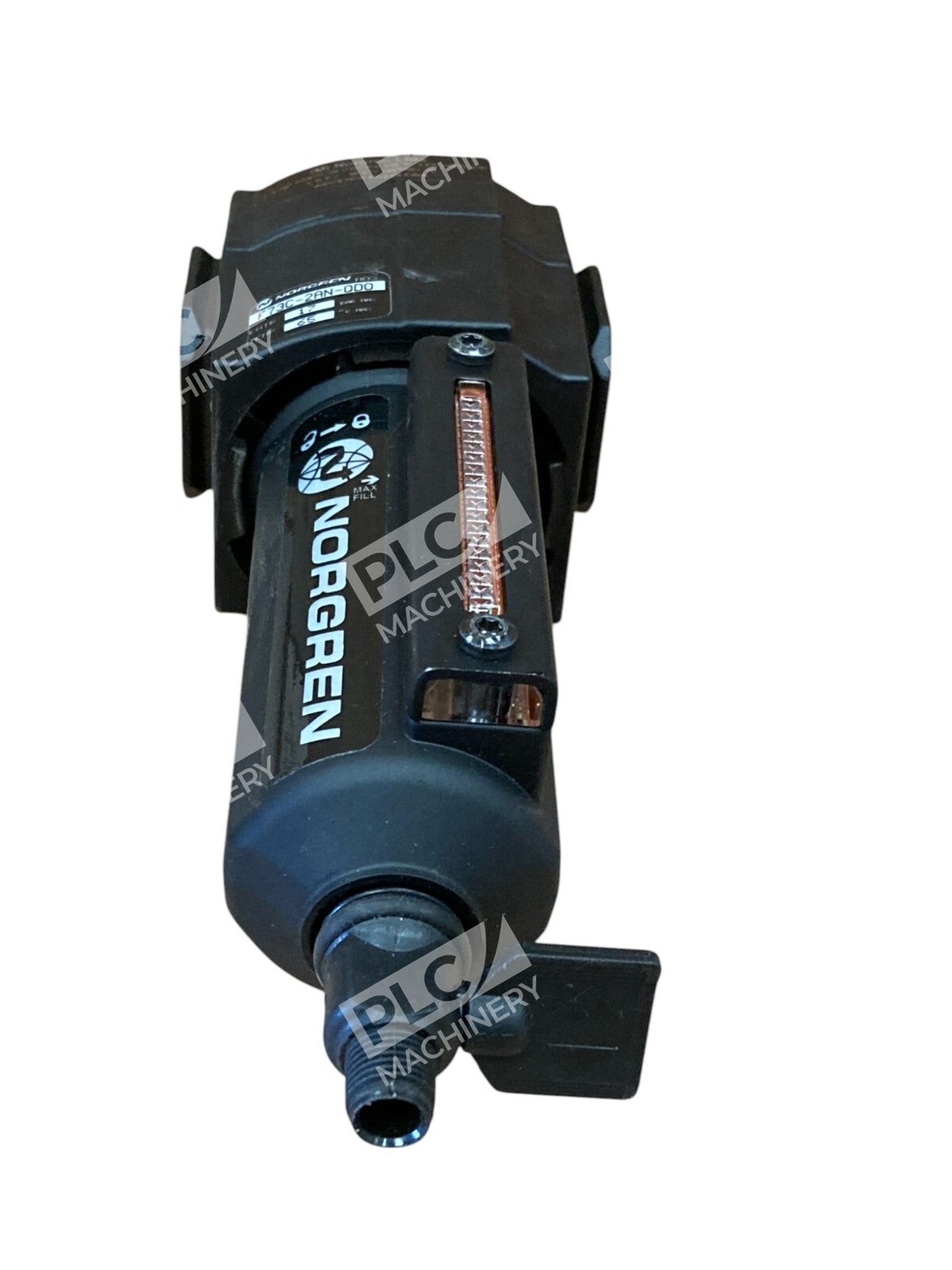

The Norgren F73C-2AN-QD0 is part of the Excelon modular air preparation system, delivering high-efficiency oil and particle removal for compressed air networks. With a maximum operating pressure of 17 bar (246 psi) and micron-rated coalescing filtration at 0.01µm, this filter protects downstream pneumatic tools and equipment from moisture and oil contamination. The aluminum bowl with manual drain and liquid level indicator simplifies maintenance and extends component life.
Key Features
- Excelon modular design allows inline or modular installation with compatible products
- Quick-release bayonet bowl for rapid filter element replacement
- Coalescing filter element removes oil mist, water vapor, and solid particles

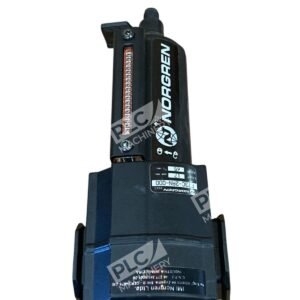

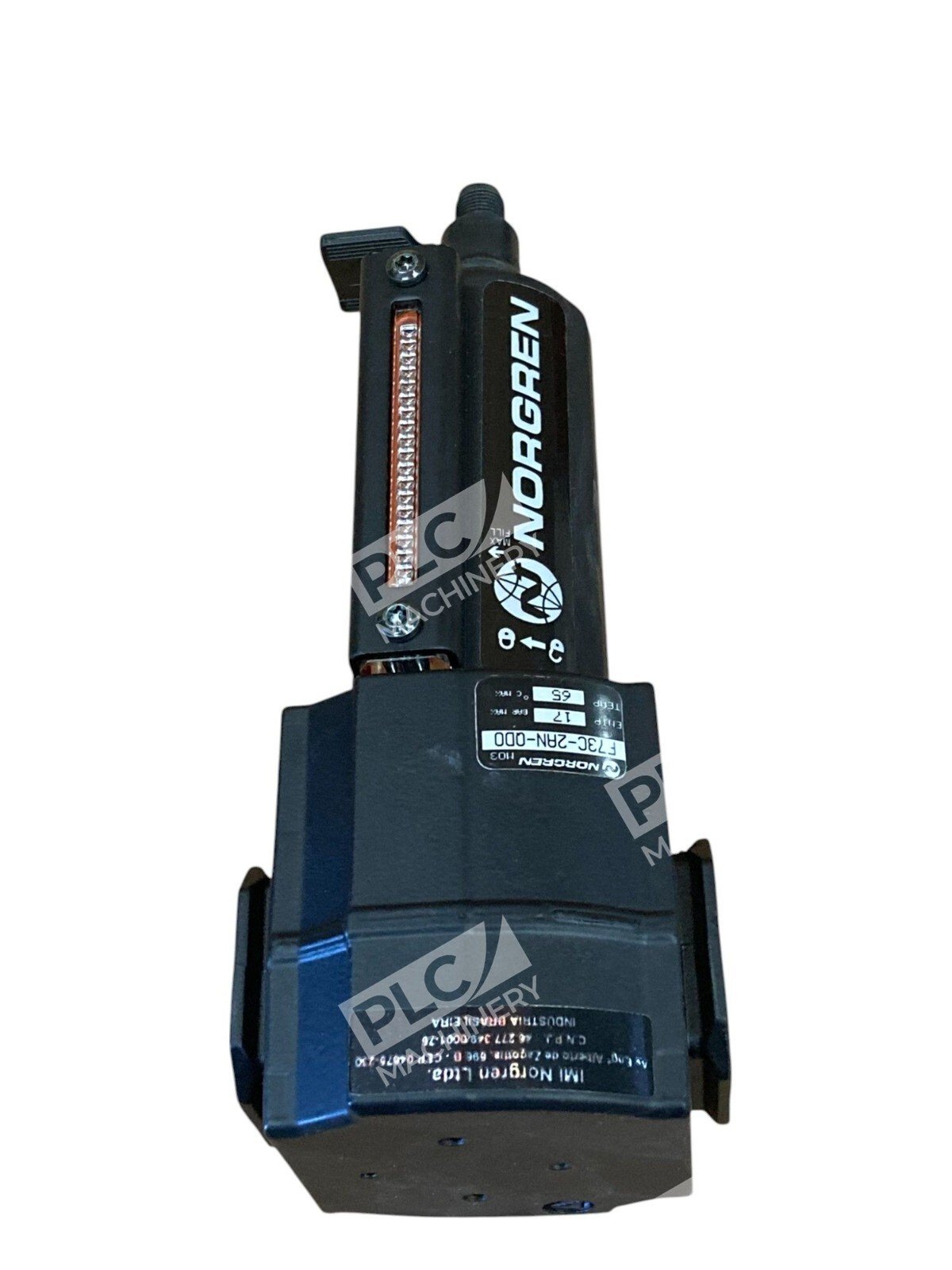

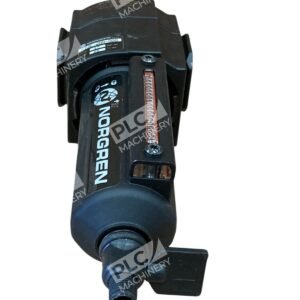

- Aluminum bowl with service life indicator
- 1/4 NPTF female threaded ports for direct connection
- Manual ball drain valve for easy condensate removal
Technical Specifications
- Filter Element: Synthetic fiber and polyurethane foam
- Filtration Rating: 0.01 µm coalescing

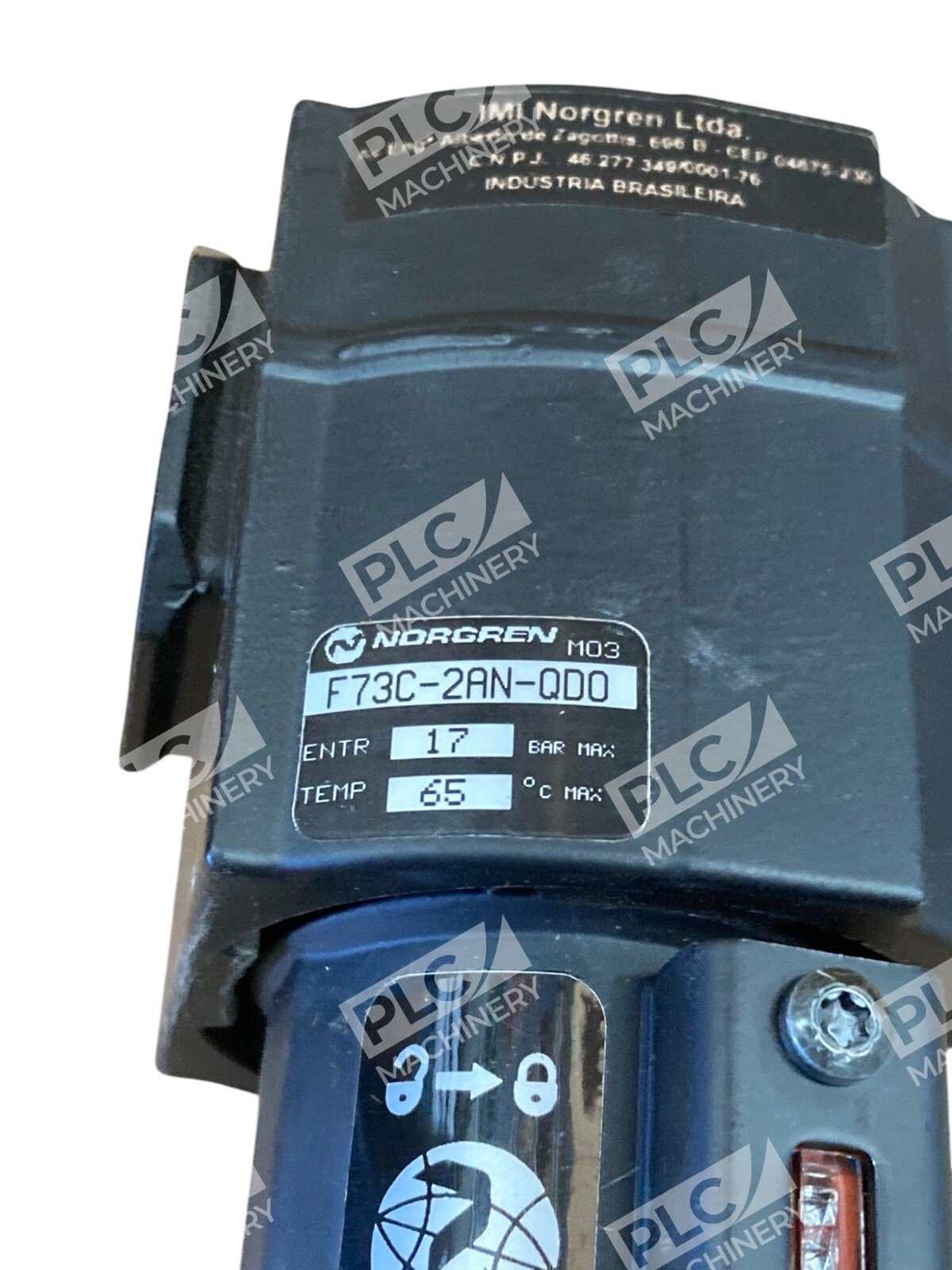

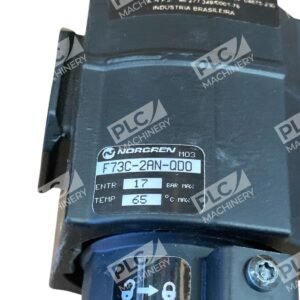

- Maximum Pressure: 17 bar (246 psi)
- Port Connection: 1/4″ NPTF female threaded
- Bowl Material: Aluminum
- Drain Type: Manual ball valve
- Height: 216 mm
- Width: 68 mm
- Depth: 62 mm
- Flow Direction: Left-to-right
- Series: Excelon F73C (Puraire)
Typical Applications
The F73C-2AN-QD0 is suitable for pneumatic systems requiring oil-free compressed air, including:
- Pneumatic tool circuits and operated equipment
- Medical and food processing air requirements
- Control air for solenoid valves and logic circuits
- General industrial automation and manufacturing
- System air preparation stations
Compatibility & Replacements
Compatible With
- Excelon modular manifold systems (4215-02, 4215-03, 4216-50, etc.)
- Norgren Excelon mounting brackets and adapters
- Standard 1/4″ NPT pneumatic networks
- Air preparation stations requiring coalescing filtration
Replaces / Drop-In Replacement For
- F73C-2AN-QD0 (Original Norgren part number)
- Compatible with other Excelon F73C variants with identical port configurations
Works With
- Excelon pressure regulators (R72C, R73C series)
- Excelon lubricators (L73C series)
- Excelon filter housings and manifolds
- ISO 4401-05-02-0 cavity standard systems
- Both inline and modular installation configurations
