Overview

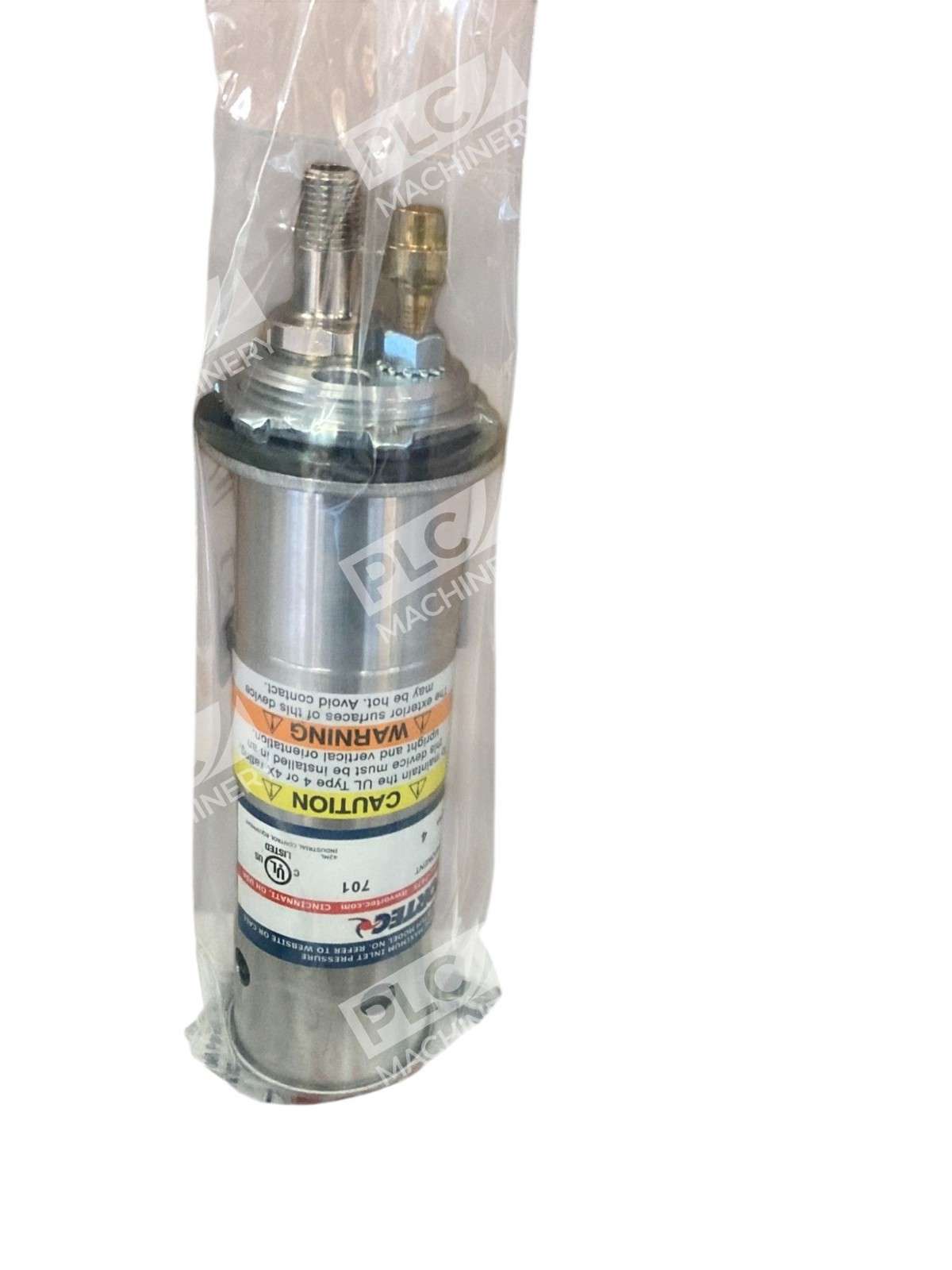

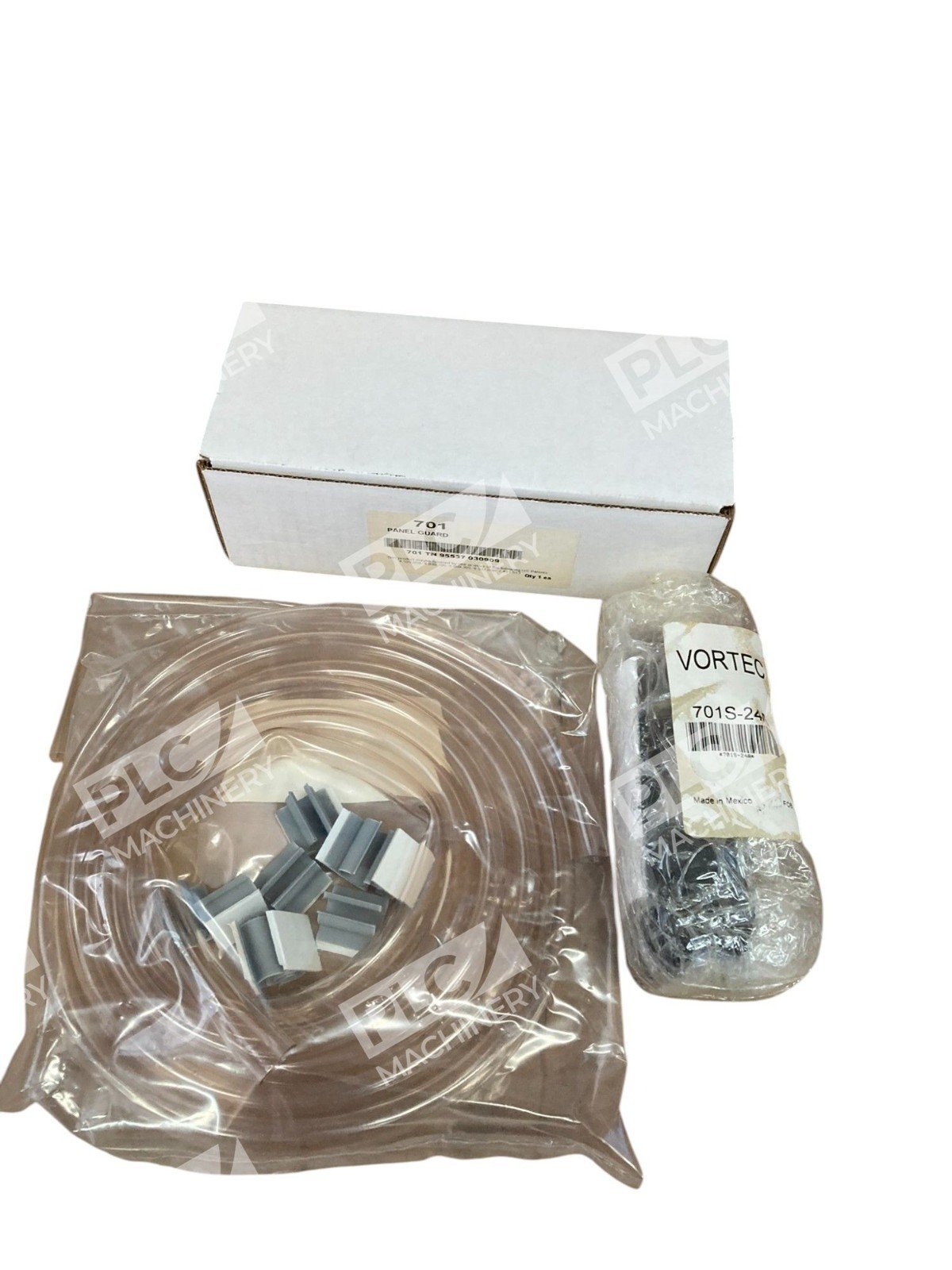

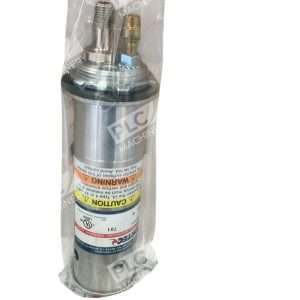

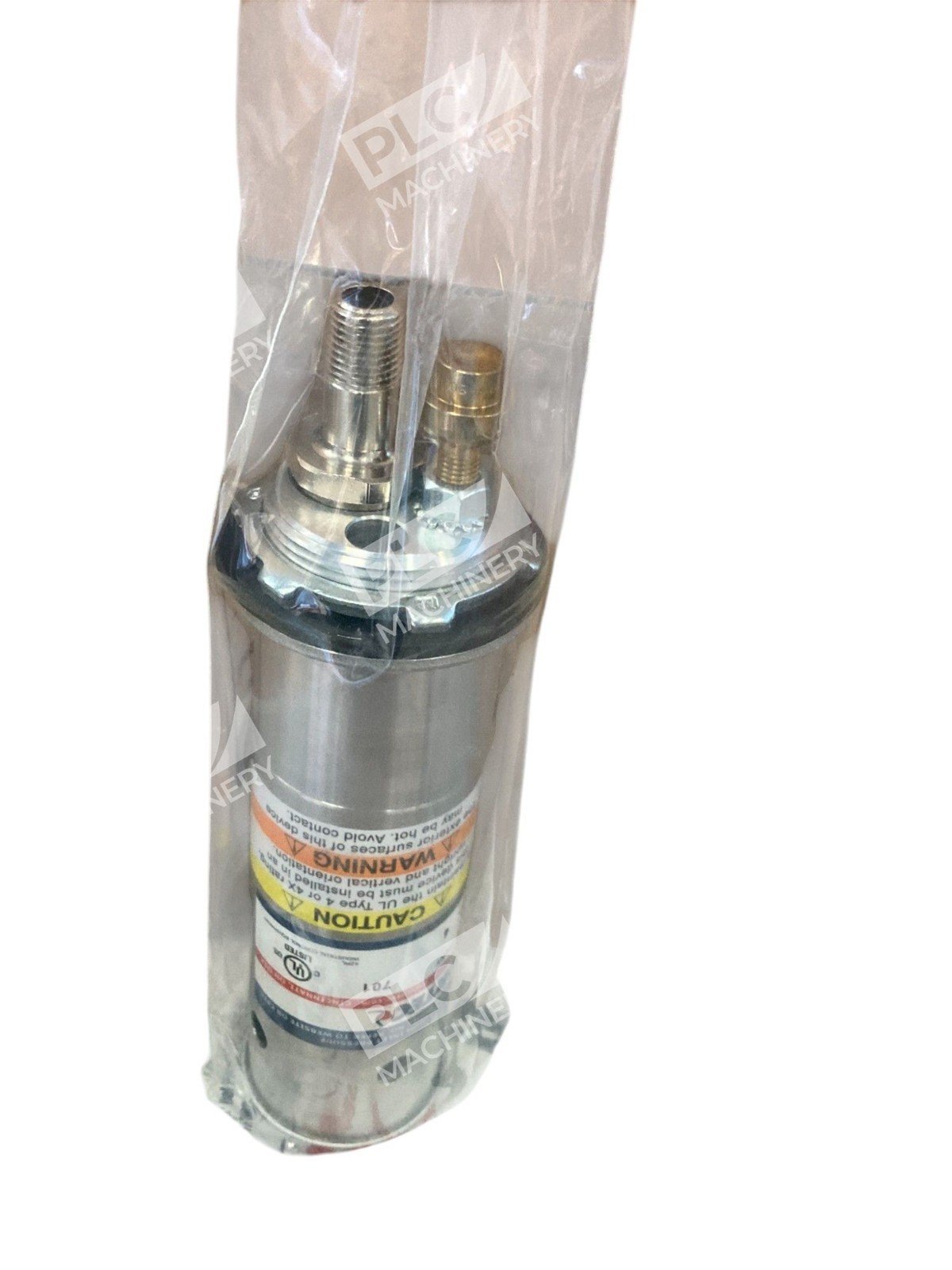

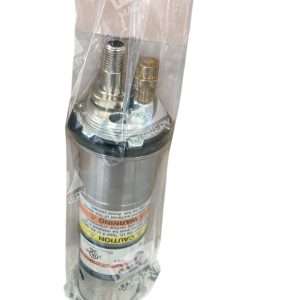

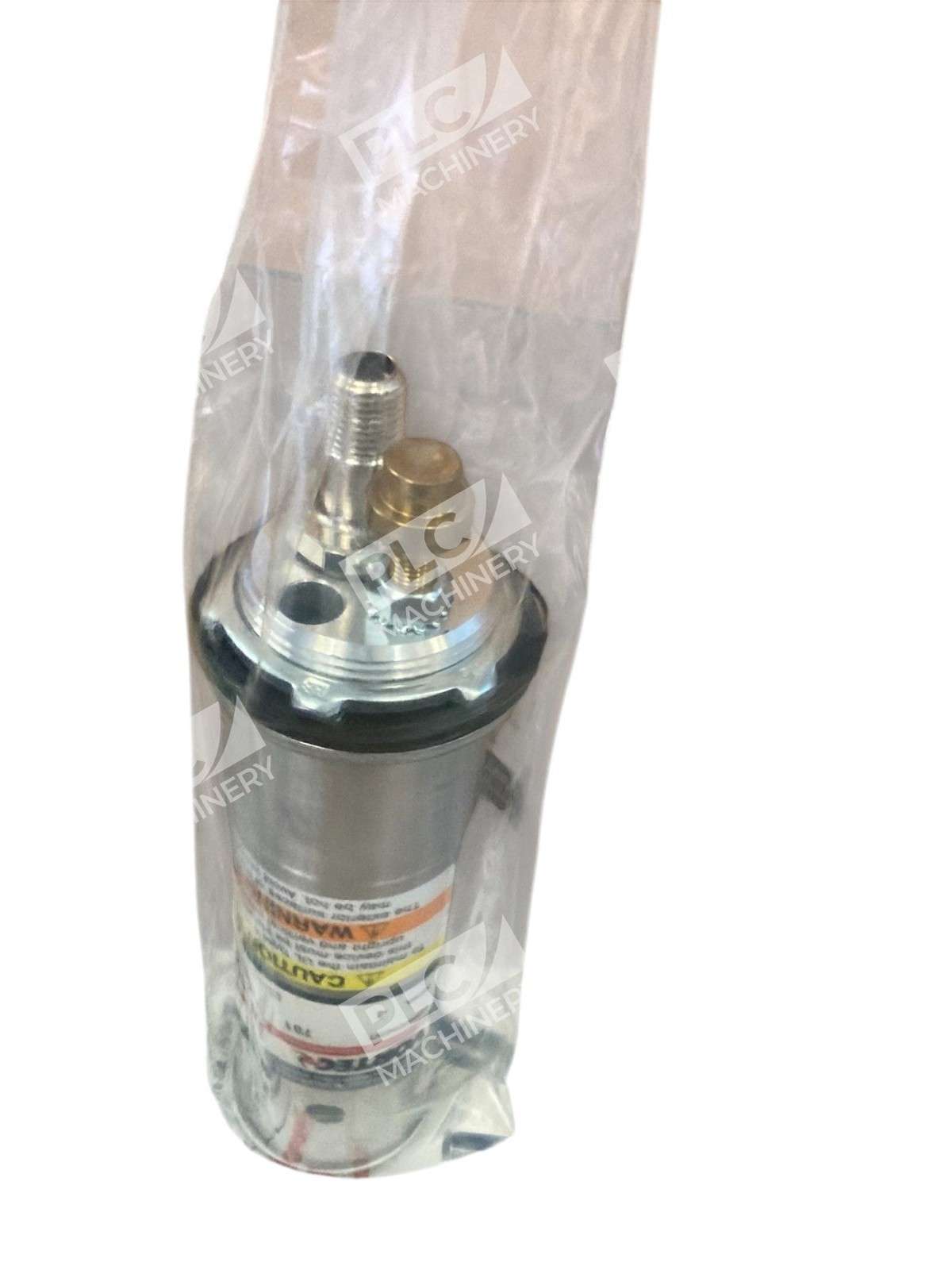

The Vortec 701S-24A is a precision auto-drain compressed air filter designed for industrial pneumatic, hydraulic, and cooling applications. This 5 micron water/particulate filter removes contaminants and moisture from compressed air supplies, ensuring clean air delivery to downstream equipment. With a maximum flow capacity of 25 SCFM and 3/8″ NPT female connections, the 701S-24A is ideal for equipment requiring precise air purity and protection from system corrosion and component wear.
Key Features
- 5 micron filtration – Removes water droplets and particulates in a single stage
- Auto-drain design – Automatically expels collected moisture without manual intervention
- 3/8″ NPT (F) ports – Standard industrial pipe thread for quick installation
- 25 SCFM rated capacity – Suitable for small to medium pneumatic systems
- 250 PSI rated – Compatible with standard industrial compressed air systems
- Compact, lightweight construction – Easy mounting and minimal footprint
Technical Specifications

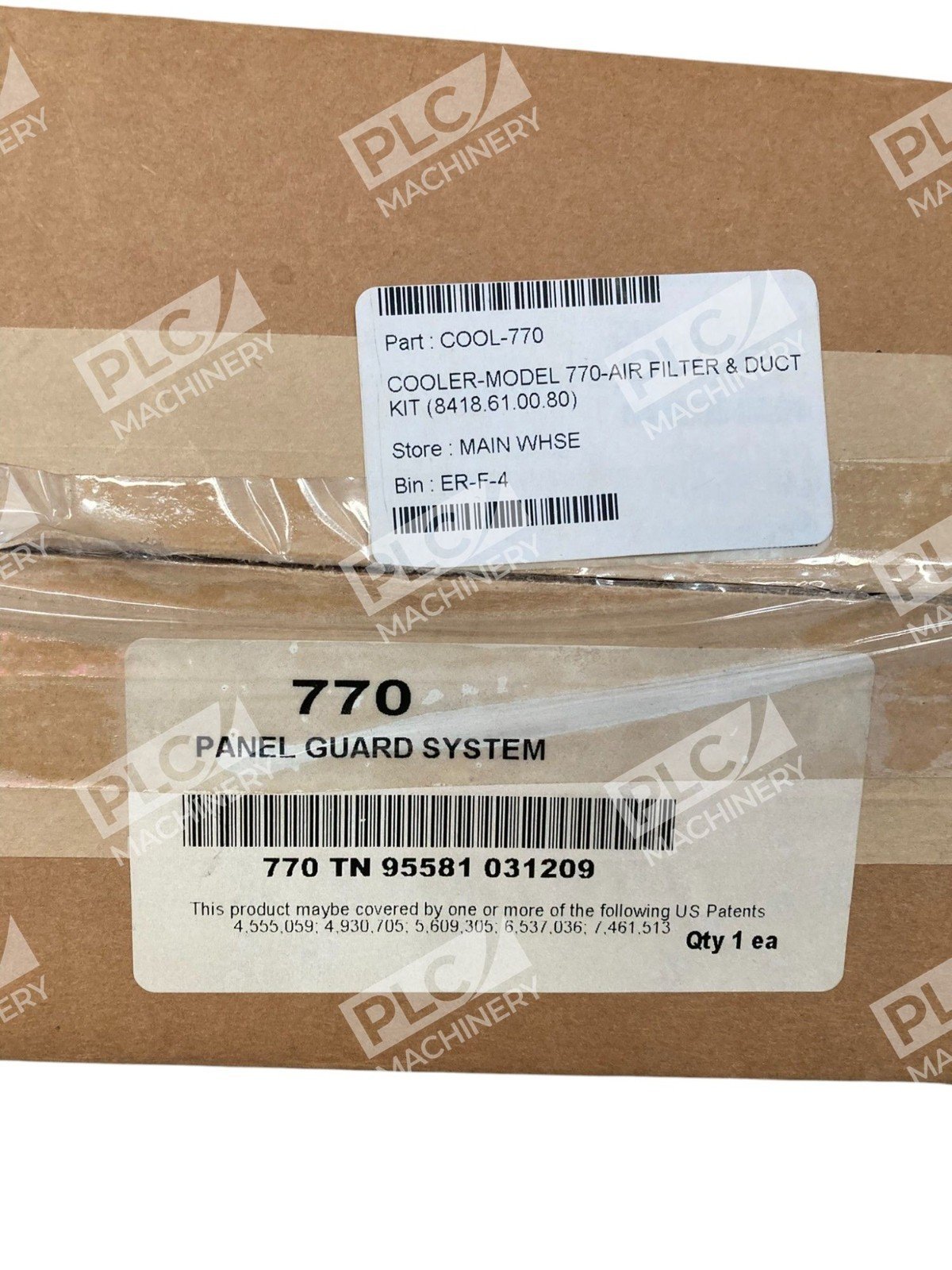

| Model Number | 701S-24A |
| Filtration Rating | 5 micron (water/particulate) |
| Maximum Air Flow | 25 SCFM (708 SLPM) |
| Maximum Pressure | 250 PSI (17.2 bar) |
| Connection Type | 3/8″ NPT Female (both inlet and outlet) |
| Drain Type | Automatic |
| Weight | 1.6 lbs |
| Manufacturer | Vortec (ITW) |
| Part Number | 701S-24A (alternate: 770 TN 95581 031209) |
| Operating Temperature Range | –4°F to 175°F (–20°C to 79°C) |
Typical Applications
- Vortex A/C cooling units and thermal management systems (76xx, 77xx series)
- Pneumatic tool systems and assembly lines
- Hydraulic and fluid power circuits requiring air protection
- Laboratory and precision manufacturing equipment
- Paint spray and air-powered spray systems
- Industrial cooling and compressed air supply protection
Compatibility & Replacements
Compatible With
- Vortex A/C models 7600, 7700 series and higher
- Standard 3/8″ NPT compressed air systems
- Industrial pneumatic and hydraulic tool systems
- Compressed air dryer systems (as pre-filter)
- Any system requiring 5 micron particulate and water filtration
Replaces / Drop-In Replacement For
- Norgren F72G3AS001CC7 (equivalent pneumatic filter)
- Original equipment Vortec 701S-24A units
- OEM factory filter cartridge assemblies for Vortex cooling units
Works With

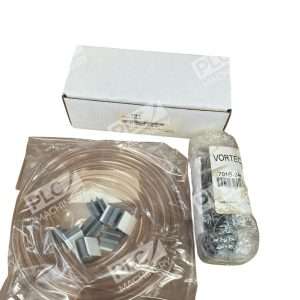

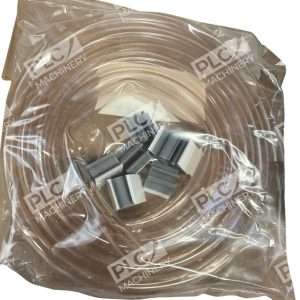

- Vortec replacement filter elements (cartridge style)
- Standard 3/8″ NPT pipe, fittings, and hose adapters
- Manual and automatic drain valve assemblies
- Compressed air regulators and pressure gauges
- Industrial grade filter replacement service parts
