Overview
The Vortec 770 panel guard cooler is an industrial-grade enclosure climate control system designed for NEMA 4 rated environments. Manufactured by Vortec (an ITW company), this cooler combines reliable vortex tube technology with an integrated 5-micron auto-drain filter and complete ducting kit. The 770 delivers 1500 BTU of cooling capacity at 25 SCFM, making it suitable for maintaining critical panel and enclosure temperatures in plants, machine shops, and industrial control cabinets.
Key Features
- NEMA 4 rated enclosure cooler for wet and corrosive environments
- 1500 BTU cooling capacity at 25 SCFM compressed air flow
- Integrated 5-micron auto-drain oil removal filter
- Complete ducting kit included for cold air distribution
- Non-adjustable mechanical thermostat control
- Compact panel-mount design with top, side, or front installation options
Technical Specifications

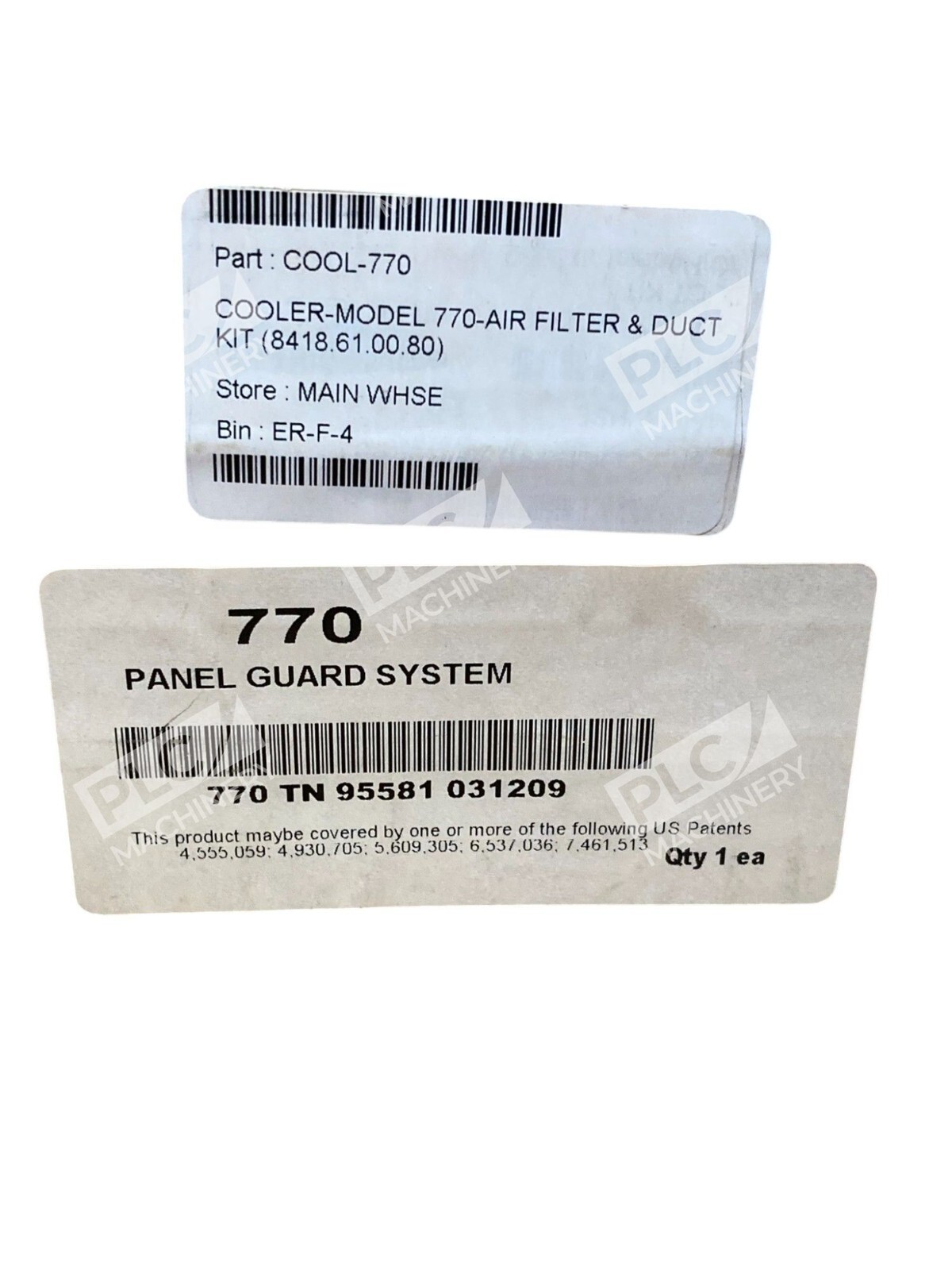

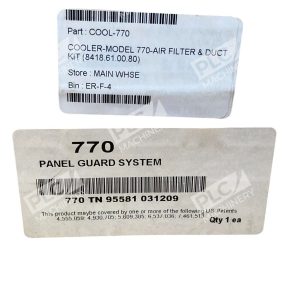

- Model: Vortec 770 (Part No. TN 95581 031209)
- NEMA Rating: NEMA 4
- Cooling Capacity: 1500 BTU/hour
- Air Flow (SCFM): 25 CFM max
- Filter Type: 5-micron auto-drain oil removal
- Connection: 3/8″ NPT (standard)
- Thermostat: Non-adjustable mechanical
- Manufacturer: ITW Vortec (Cincinnati, Ohio, USA)
- UL Certified: Yes
Typical Applications
- Industrial control panel and PLC enclosure cooling
- Manufacturing equipment temperature regulation
- Motor control centers and drive cabinets
- Wet/outdoor electrical enclosures (NEMA 4 protection)
- Machine tool coolant and tool changers
- Compressed air system coolers
Compatibility & Replacements
Compatible With
- Standard compressed air systems (25 SCFM rated)
- Industrial enclosures and control cabinets
- Pneumatic applications with 3/8″ NPT air connections
- Environments requiring NEMA 4 environmental protection
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator or Vortec sales representative before ordering to ensure proper fit and performance for your specific enclosure model.
Works With

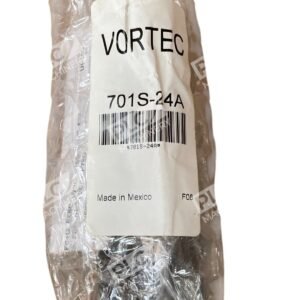

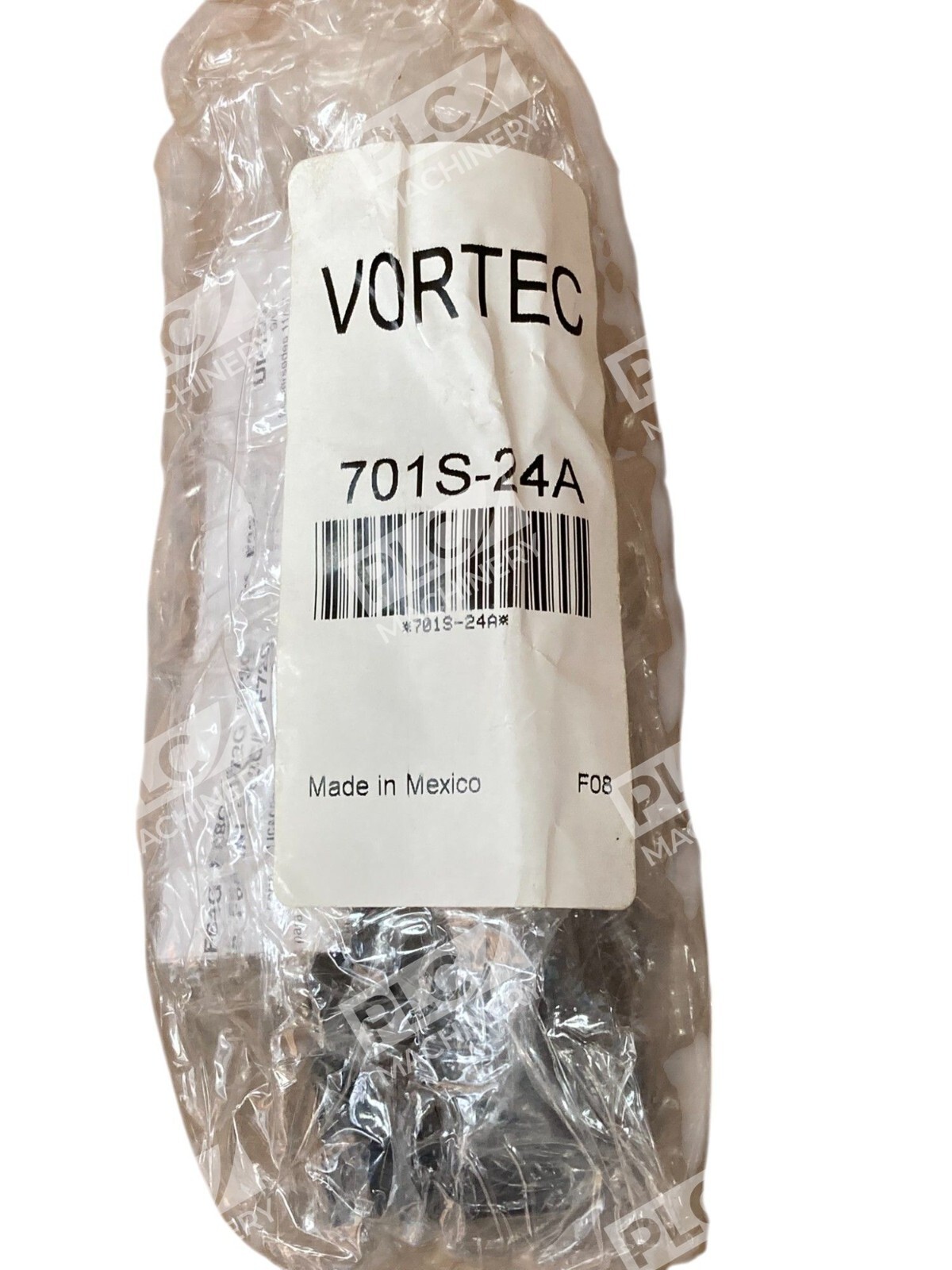

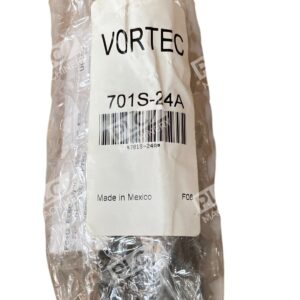

- Vortec auxiliary filter kits and replacement cartridges (701S series)

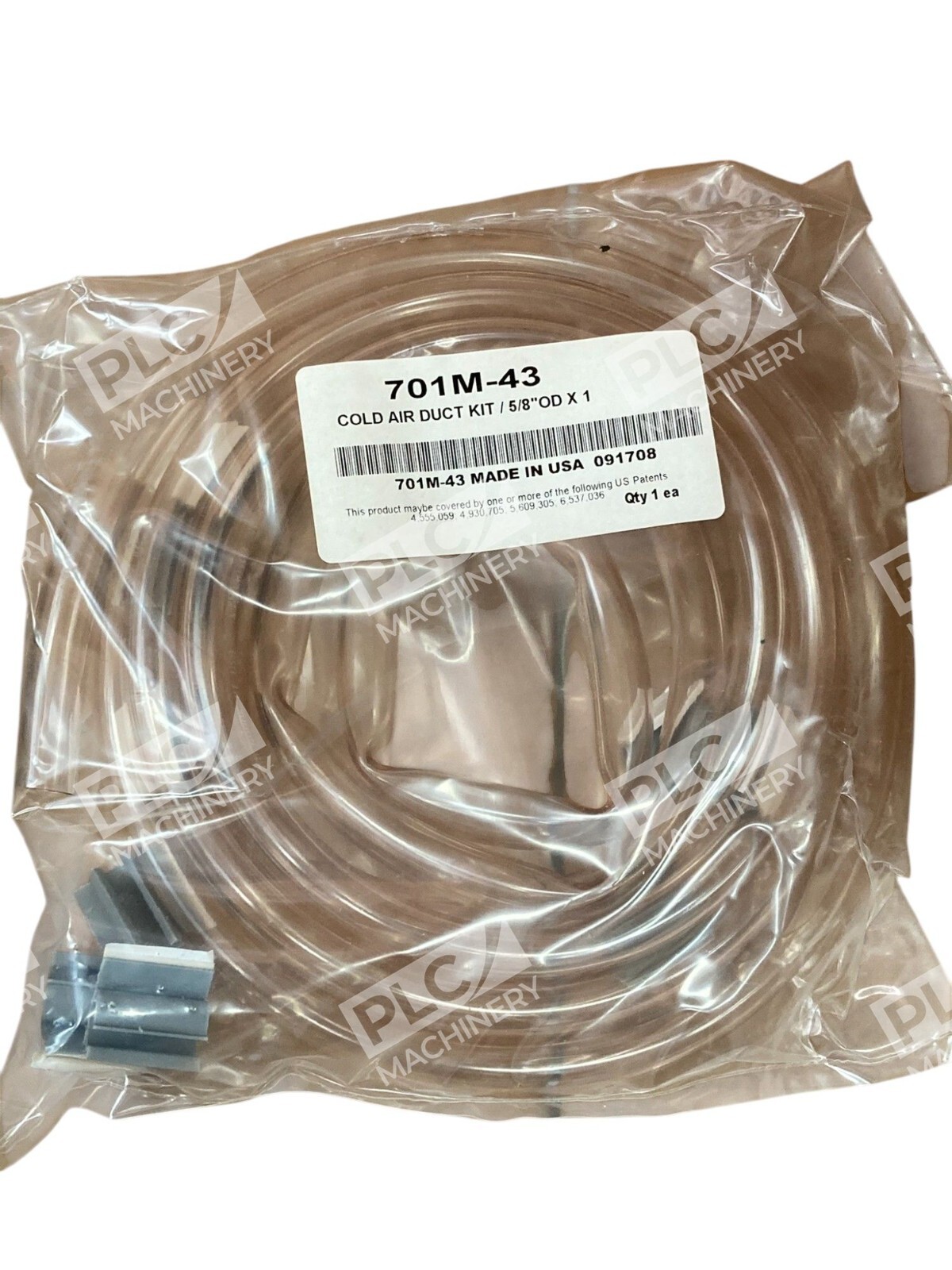

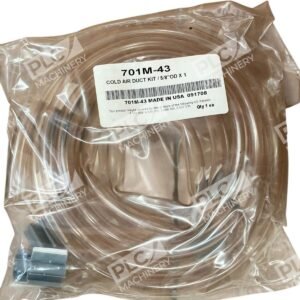

- Vortec cold air ducting kits (701M-43 and similar)
- Standard compressed air supply regulators and gauges
- Any industrial enclosure with 3/8″ NPT air connections
