Overview
Dwyer A-605-2T647 is a complete air filter monitoring kit designed to convert any standard Dwyer Series 2000 Magnehelic differential pressure gauge into a dedicated air filter gauge. This accessory kit enables operators to measure pressure differentials across filters, providing essential data to determine when filter replacement or maintenance is required.
Key Features

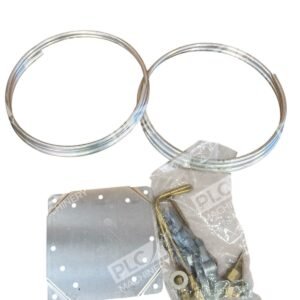

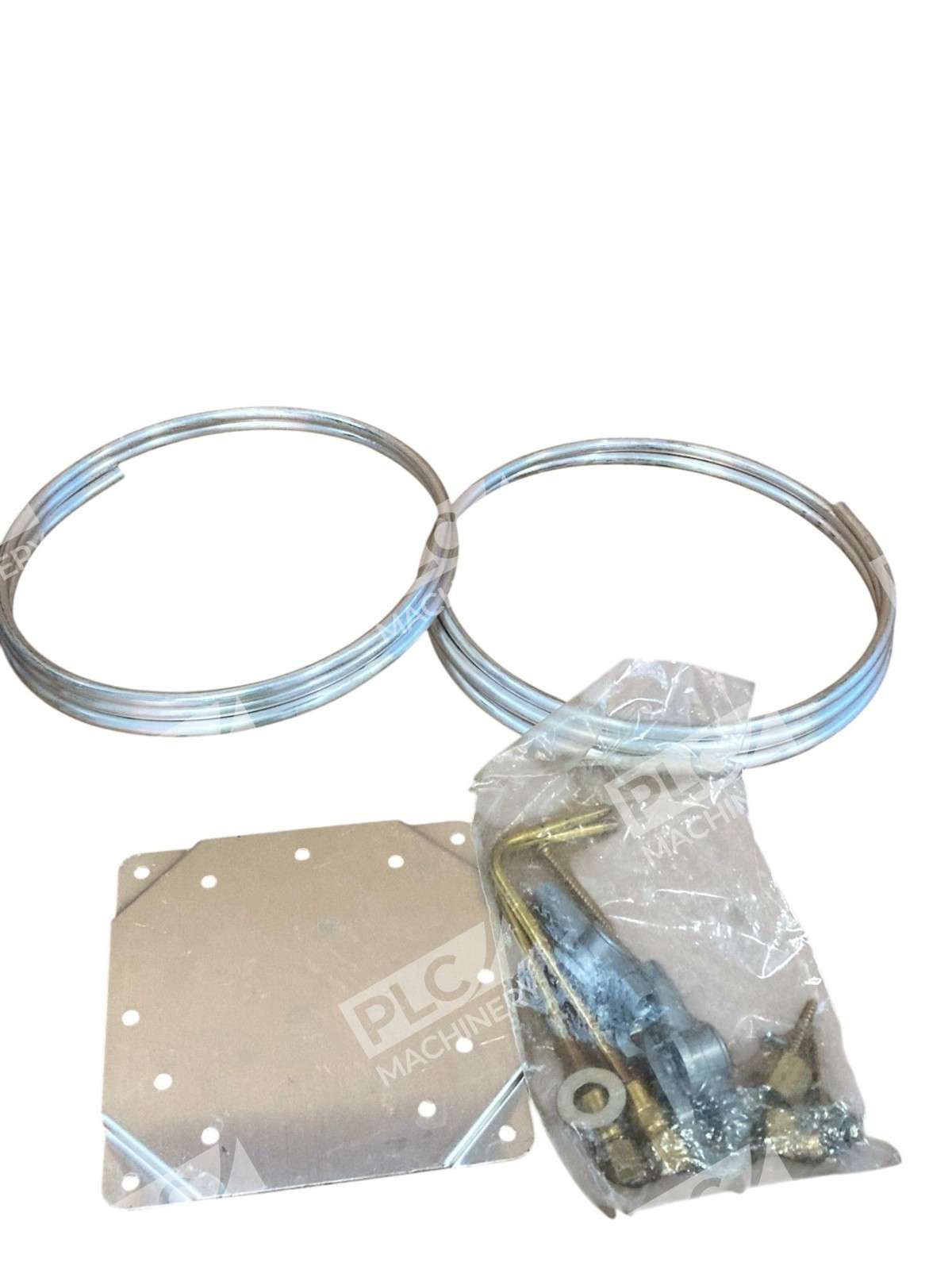

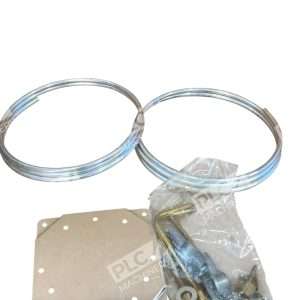

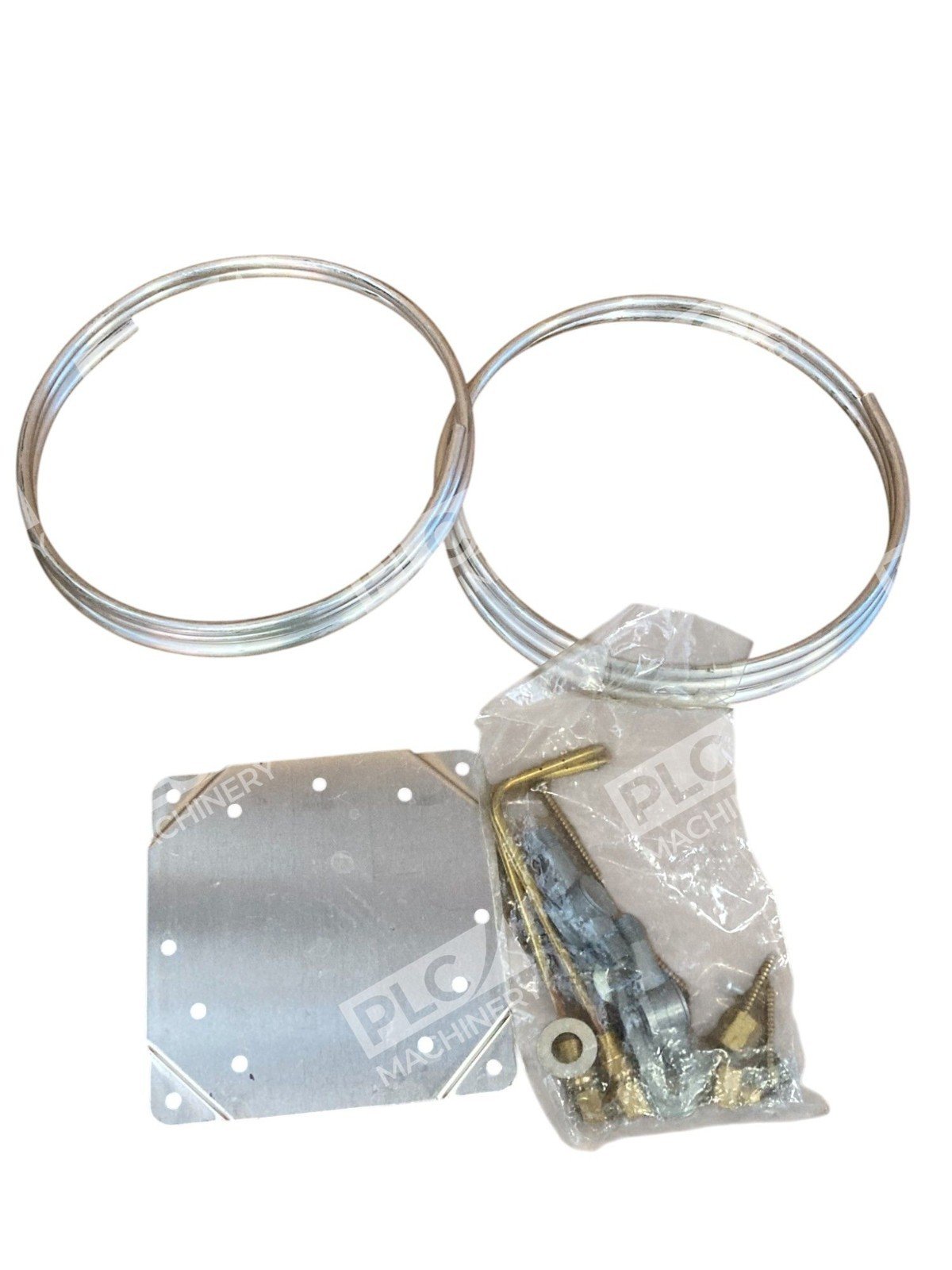

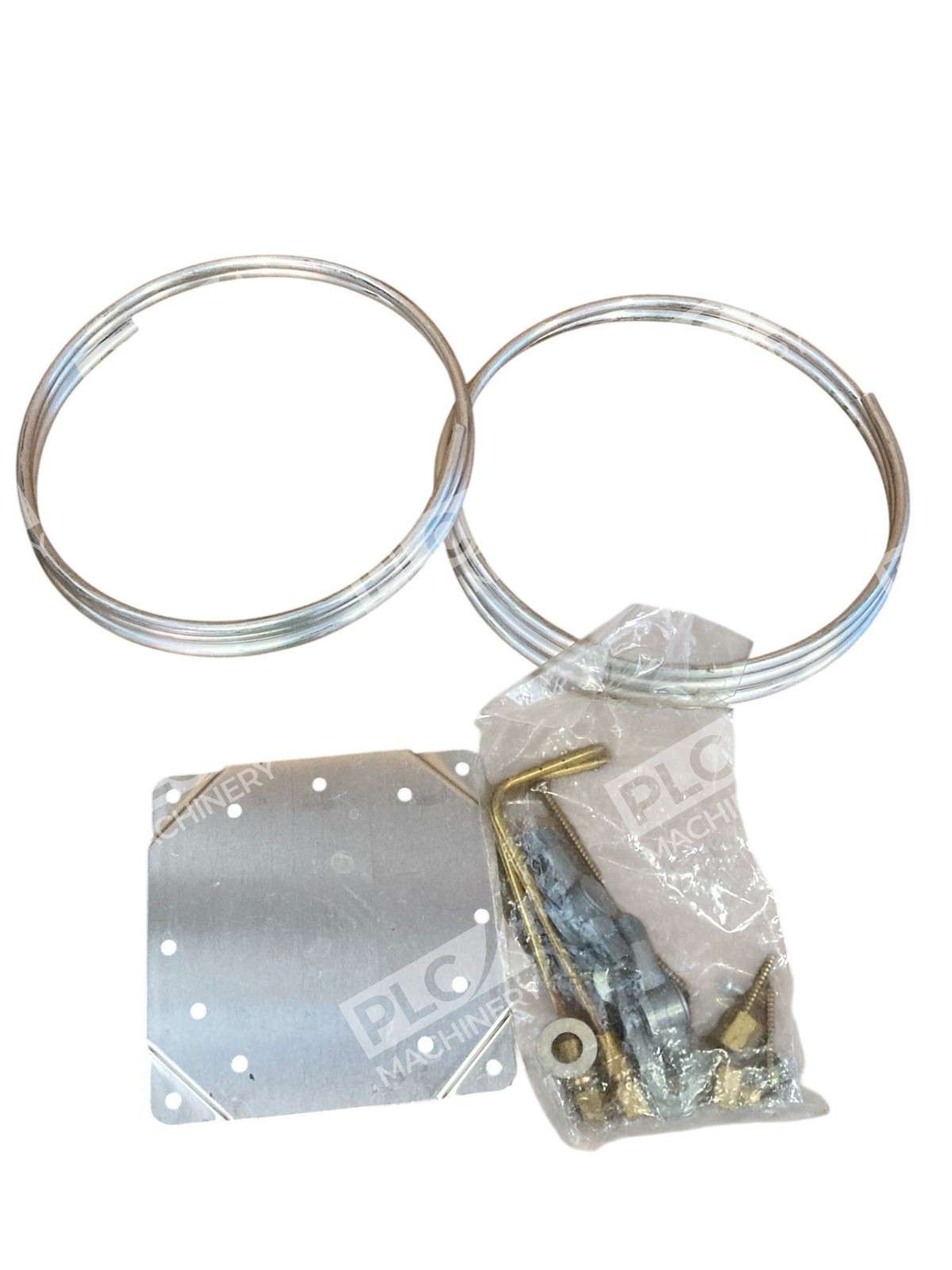

- Aluminum surface-mounting bracket with stainless steel screws for secure installation
- Two 5 ft. (1.5 m) lengths of 1/4″ aluminum tubing for flexible gauge positioning

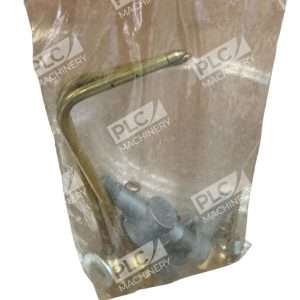

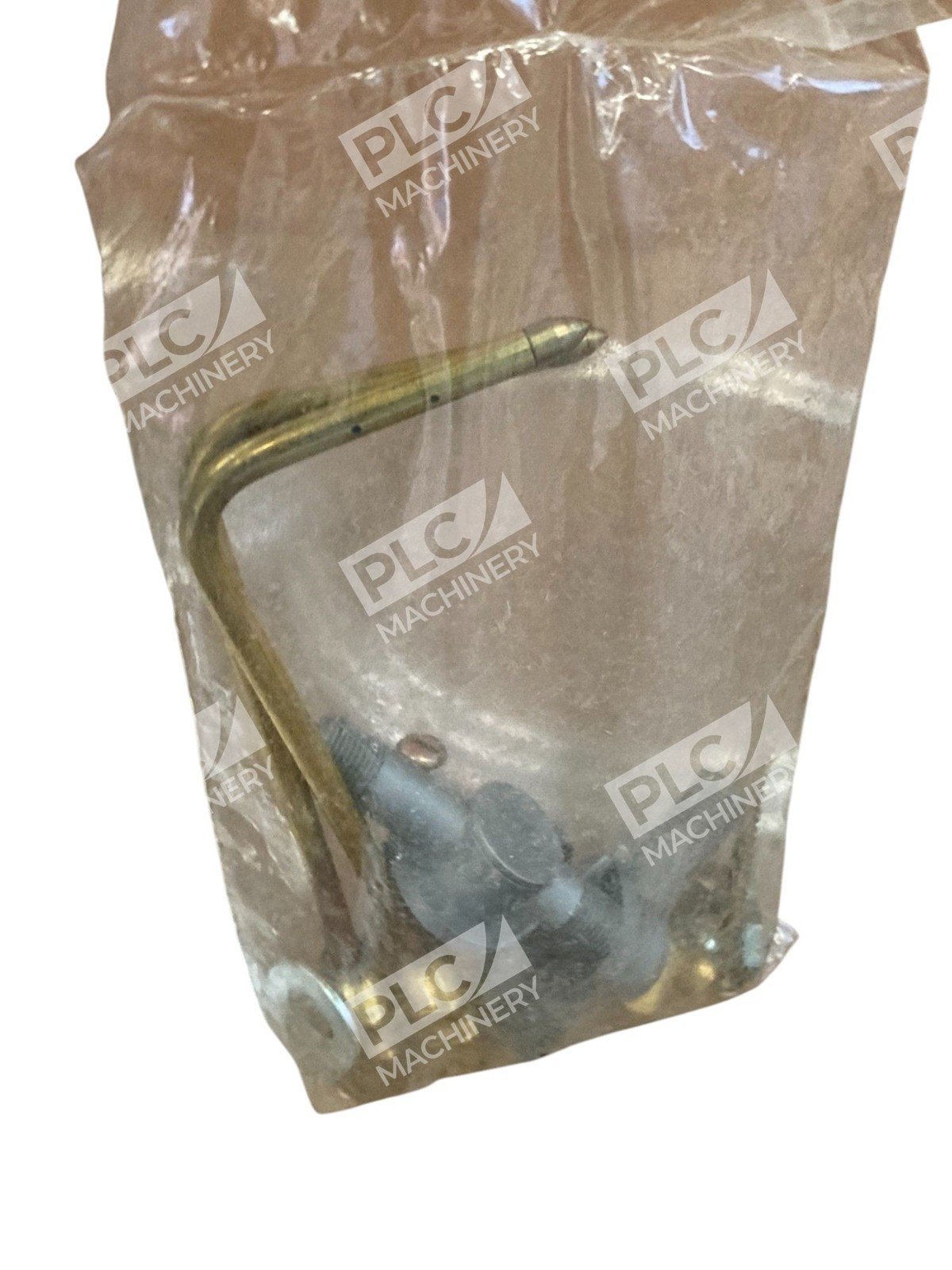

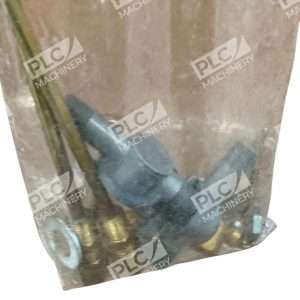

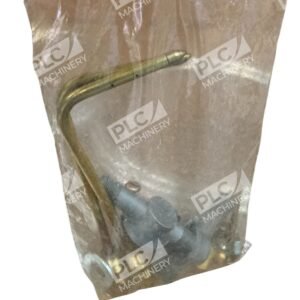

- Two static pressure tips with integral compression fittings for clean connections

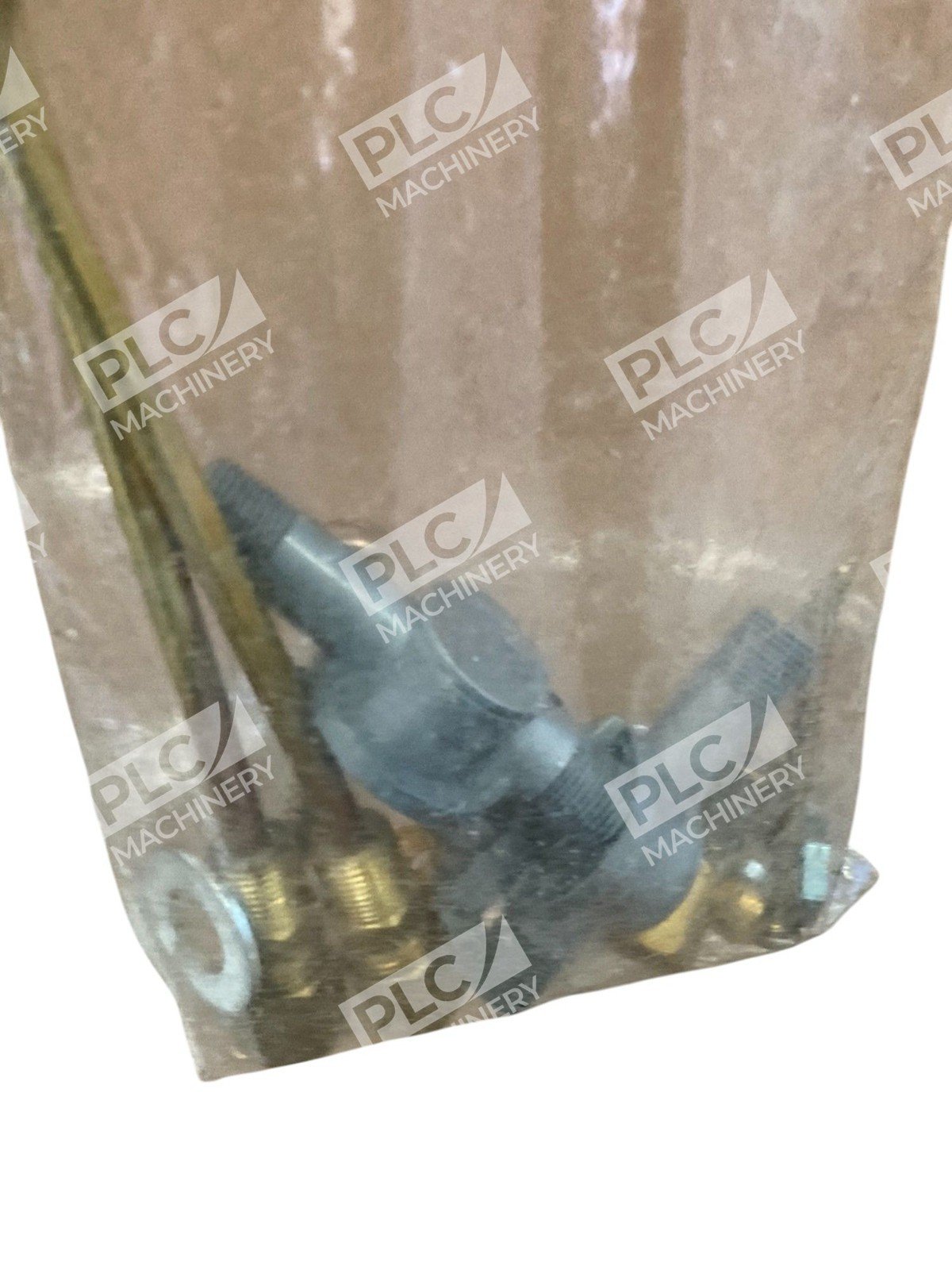

- Two molded plastic vent valves for safe pressure equalization
- Compatible with Dwyer Series 2000 Magnehelic gauges
- Complete mounting hardware included for immediate setup
Technical Specifications
- Tubing: 1/4″ O.D. aluminum (two 5 ft. lengths)
- Mounting Bracket: Aluminum with corrosion-resistant coating
- Pressure Tips: Static design with compression fittings
- Vent Valves: Molded plastic construction
- Compatible Gauge Series: Dwyer Series 2000 Magnehelic
- Weight: Approximately 1.0 lb
- Material: Aluminum, stainless steel, plastic
Typical Applications
- Compressed air system maintenance and monitoring
- Pneumatic equipment filter pressure tracking
- Industrial compressed air quality assurance
- Predictive maintenance programs for air filters
- Plant maintenance and facility operations
- Process control in manufacturing environments
Compatibility & Replacements
Compatible With
- Dwyer Series 2000 Magnehelic differential pressure gauges
- Standard industrial compressed air systems
- Pneumatic filter installations with 1/4″ NPT connections
- Horizontal and vertical pipe mounting applications
Replaces / Drop-In Replacement For
- Dwyer A-605 (base model)
- Verify compatibility with your system integrator before ordering for specific legacy applications
Works With
- Magnehelic Series 2000 gauges in all ranges
- Standard NPT-threaded compressed air filter housings
- Aluminum and steel tubing installations
- Industrial pneumatic circuits with pressure monitoring requirements
