Overview

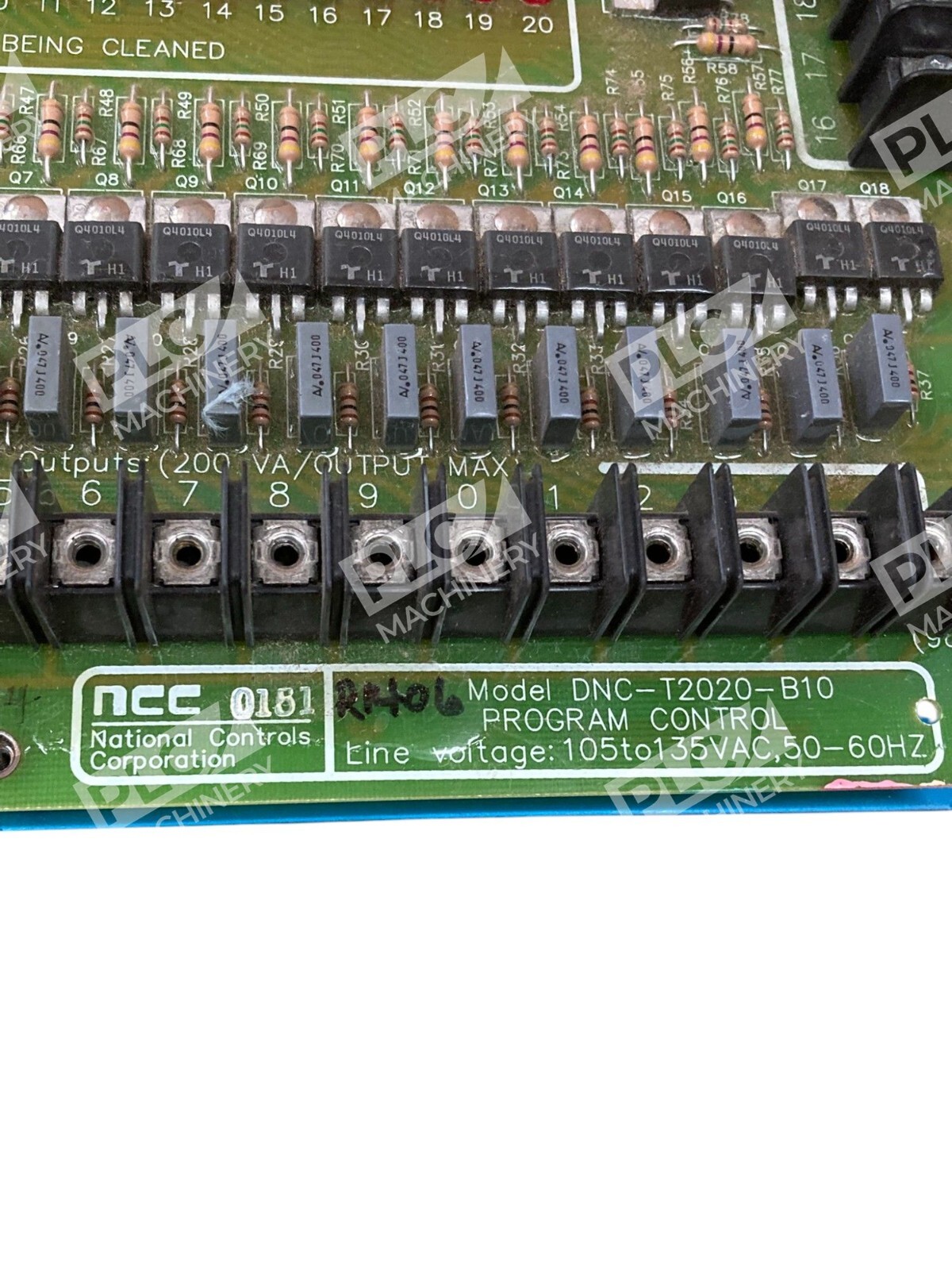

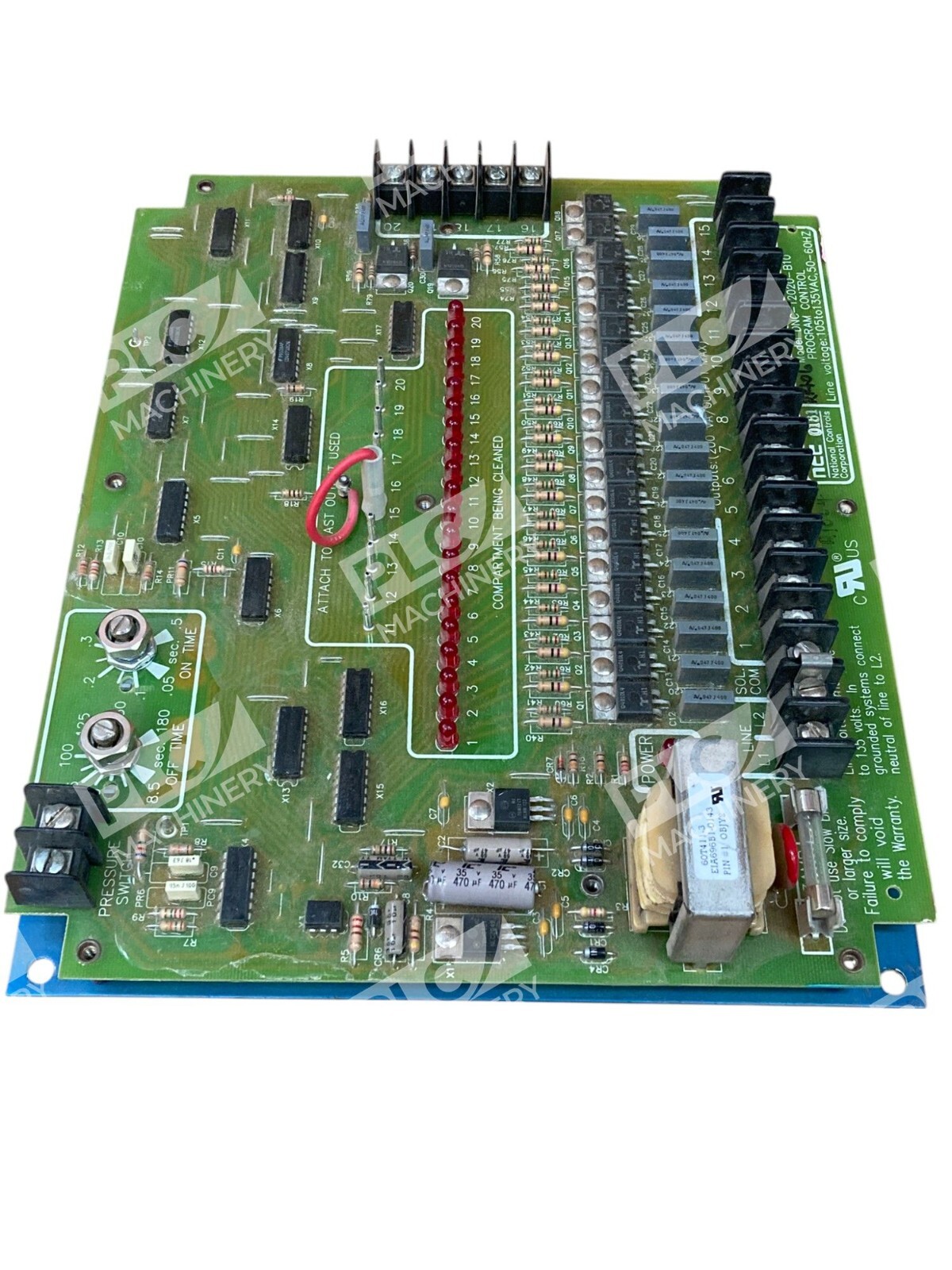

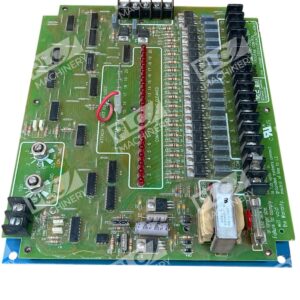

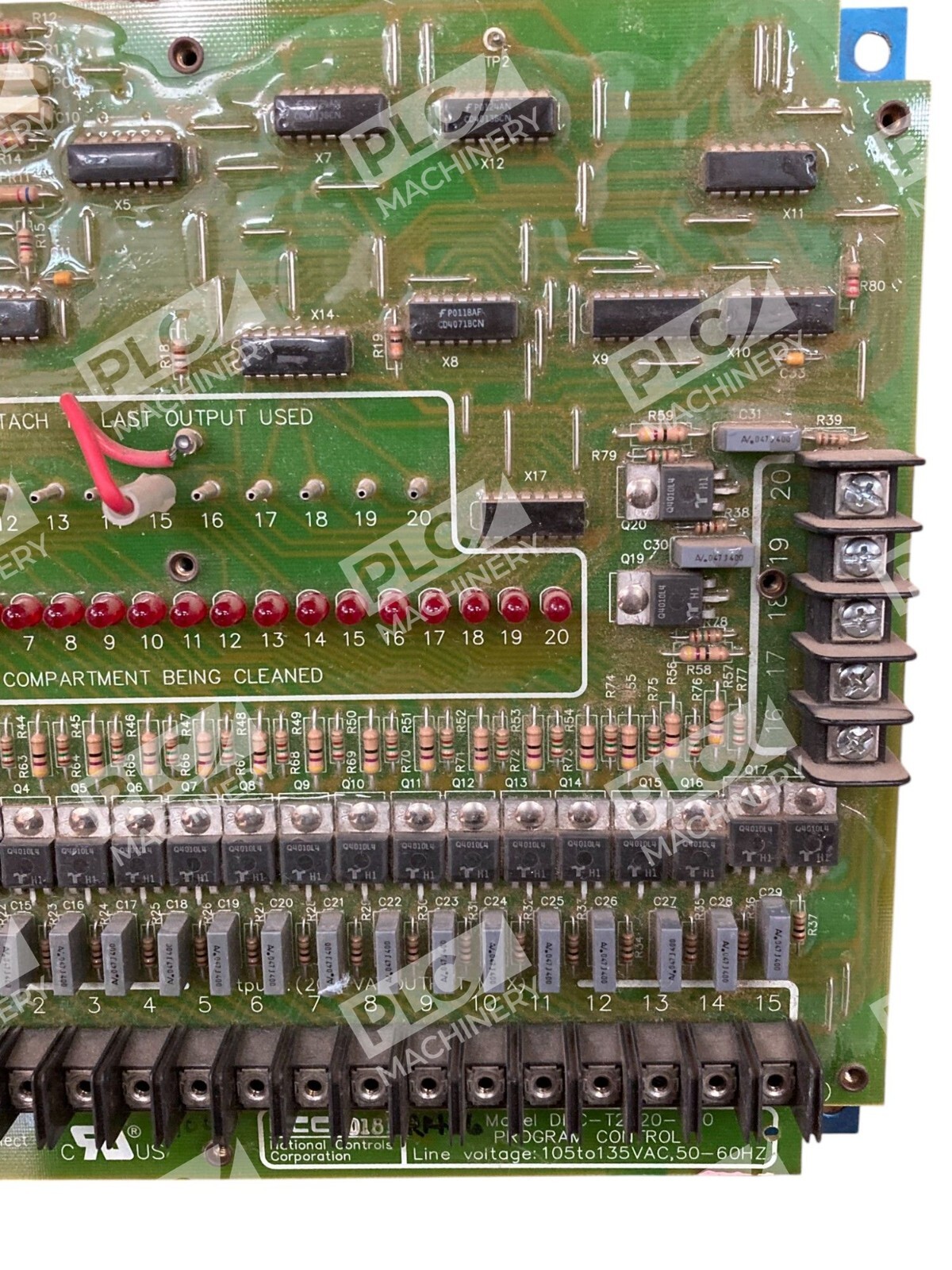

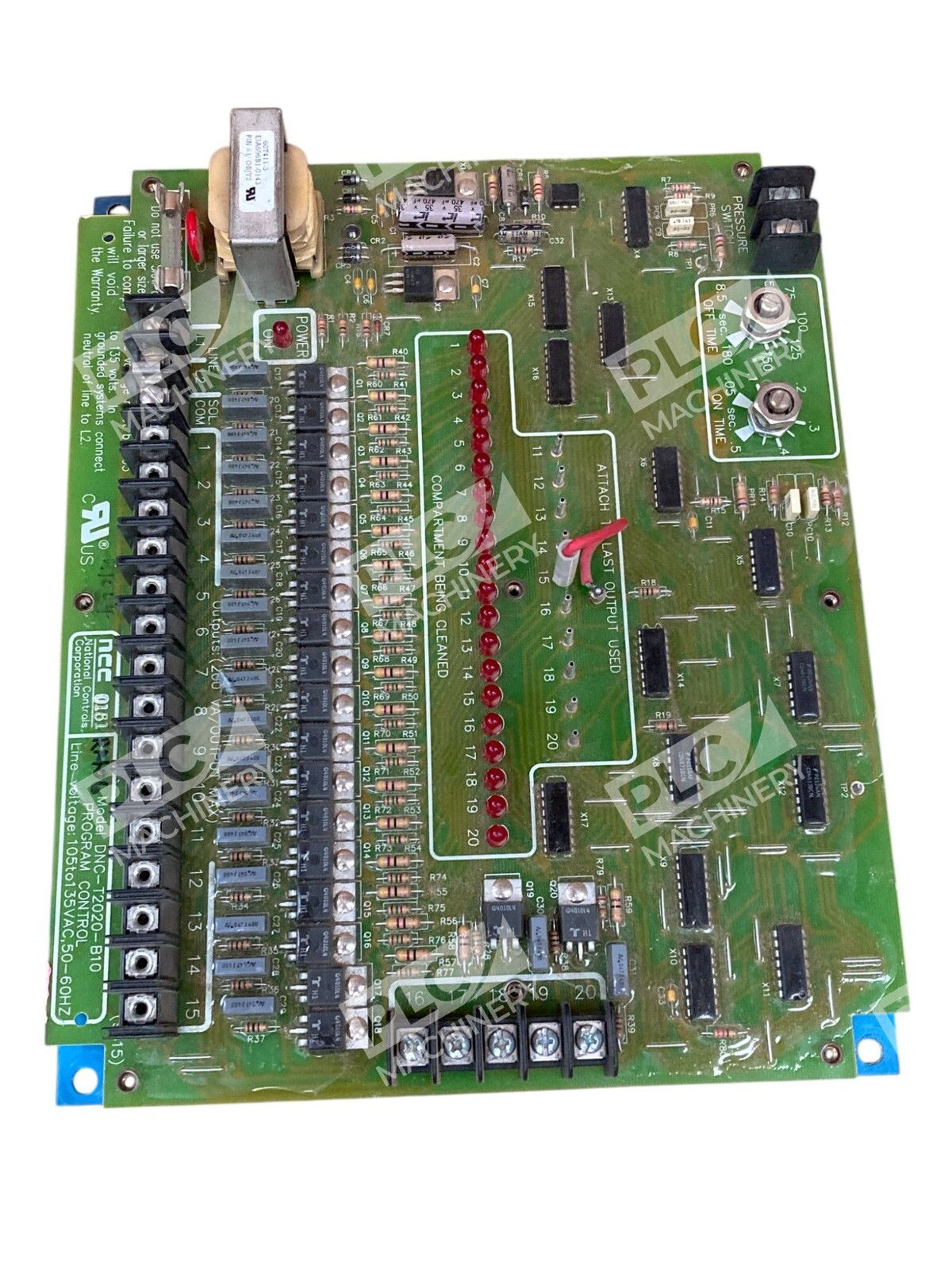

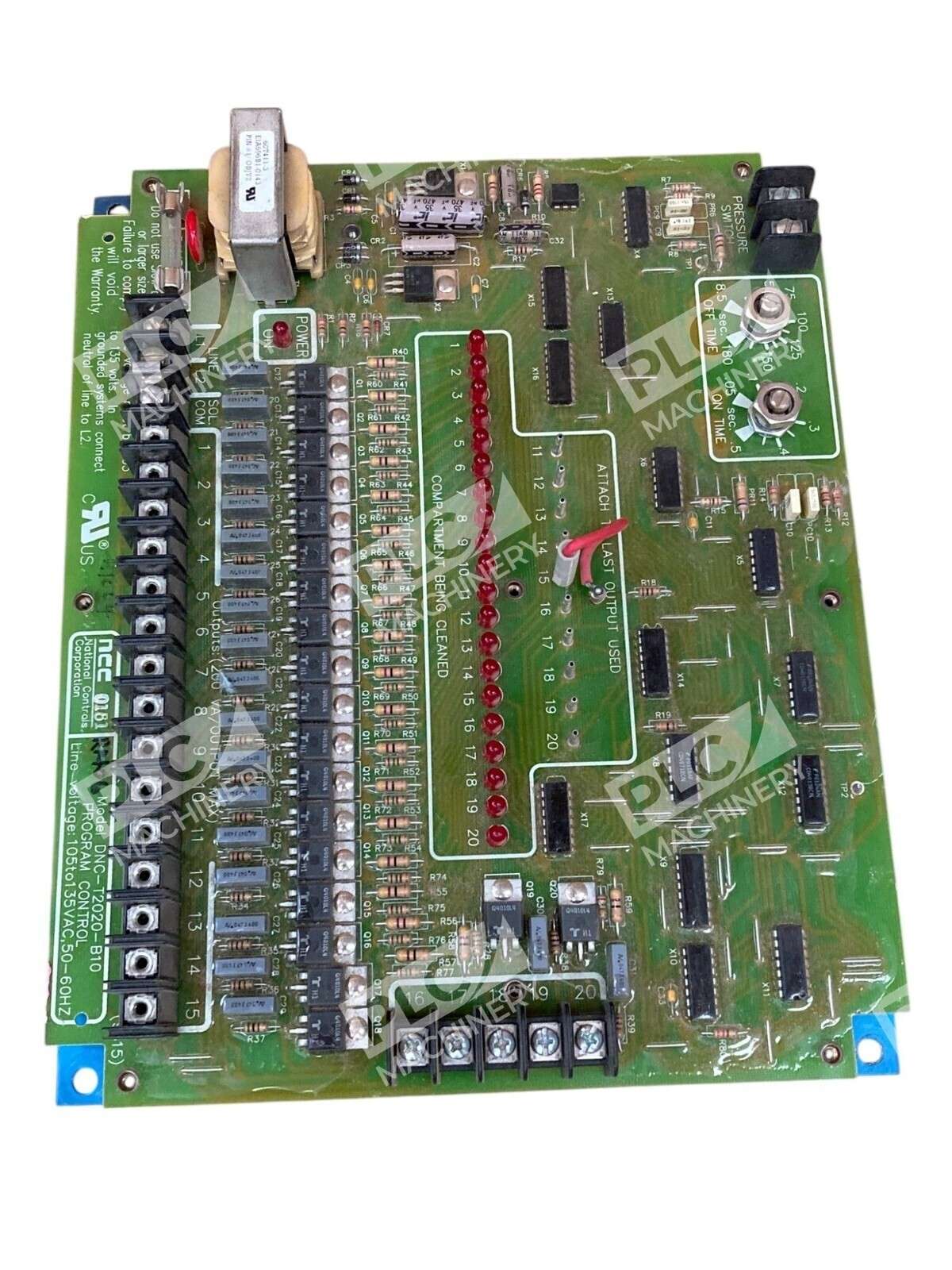

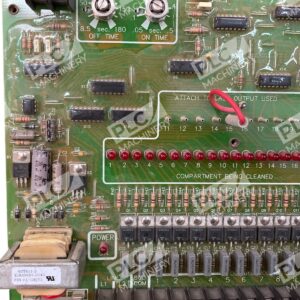

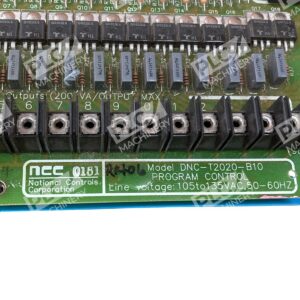

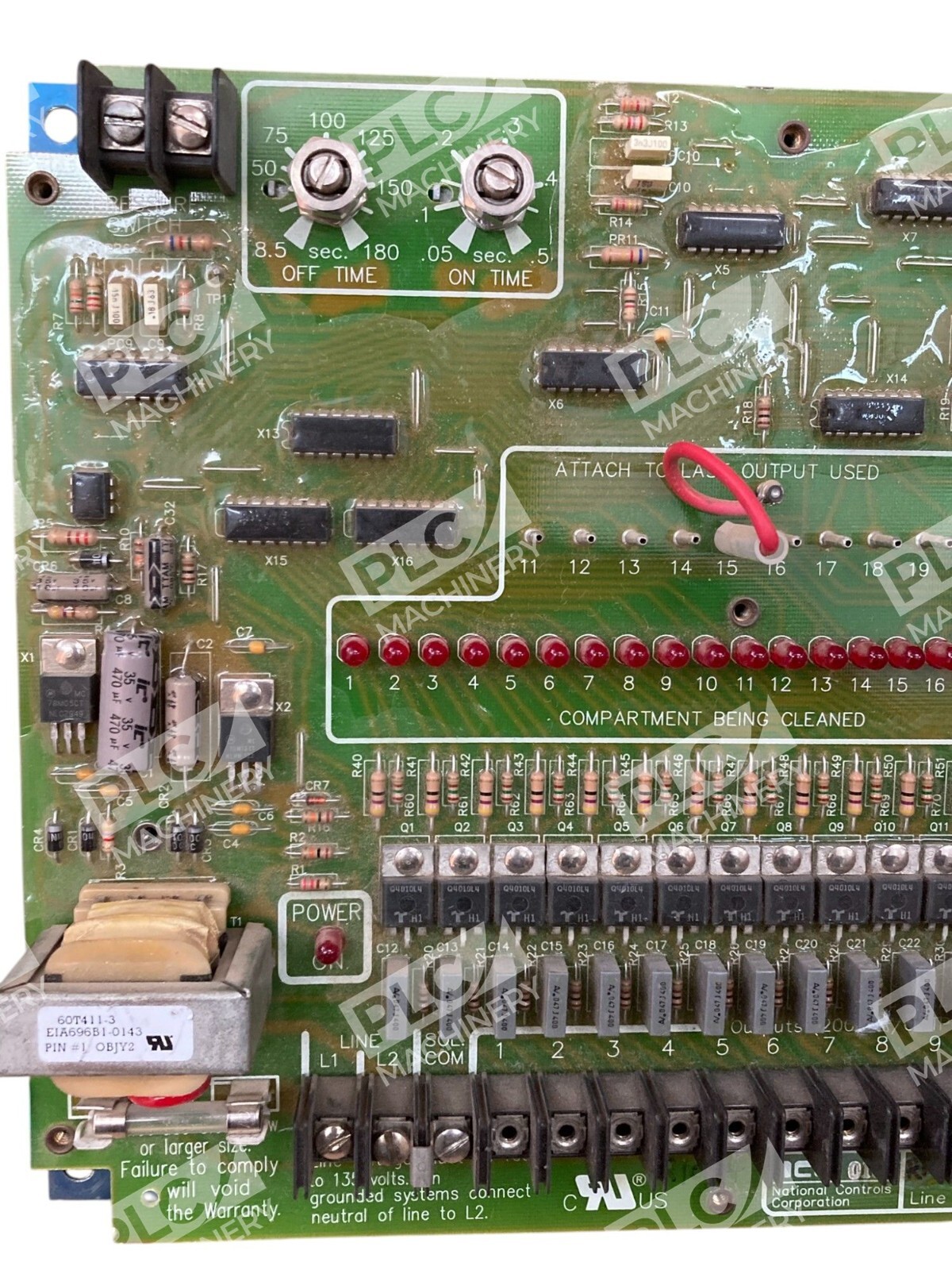

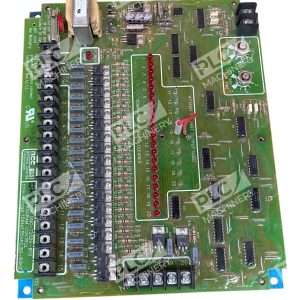

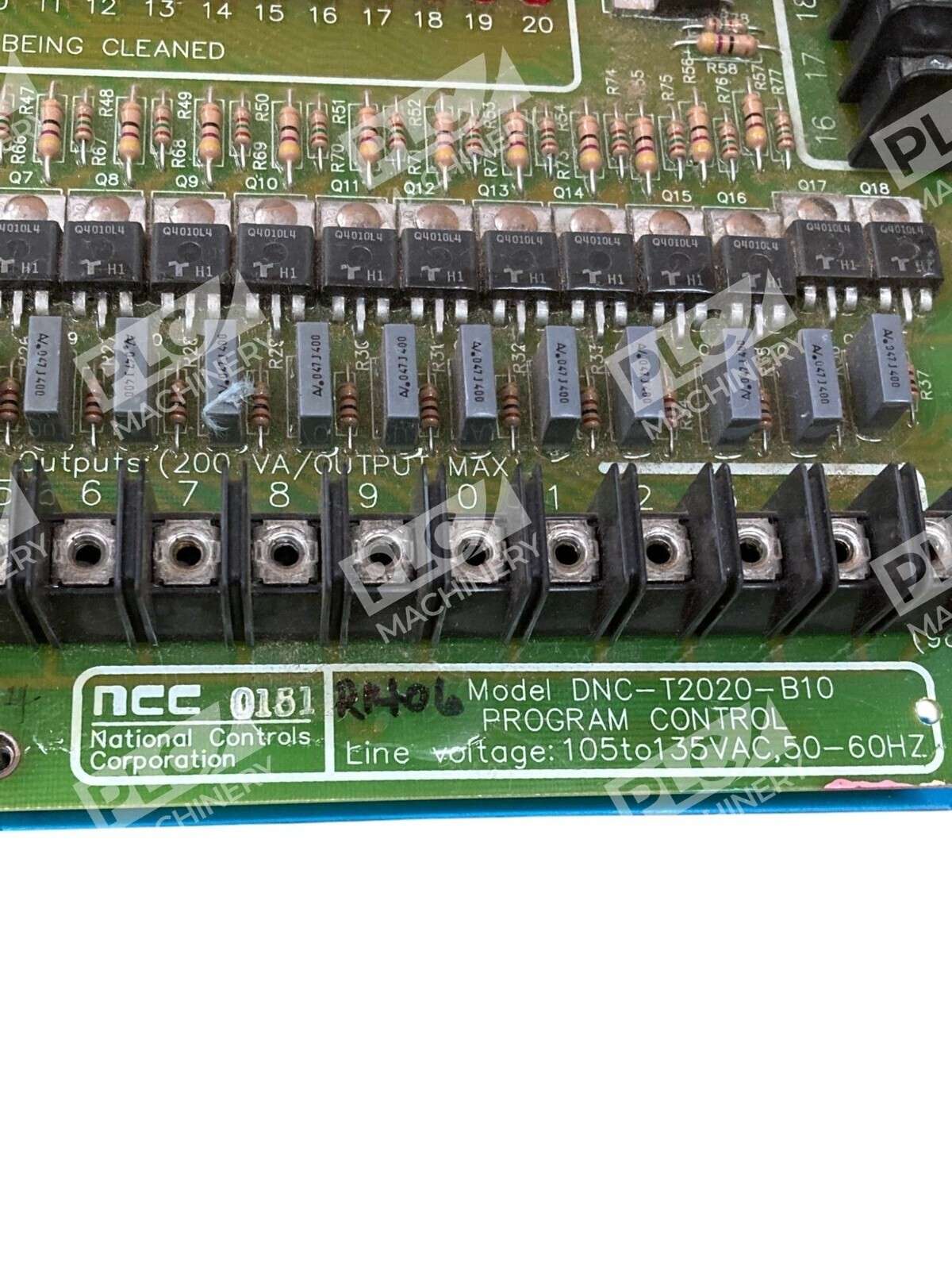

The National Controls DNC-T2020-B10 is an industrial-grade program control board designed for automated dust collector pulse-cleaning systems. Operating on 105-135VAC input at 50-60Hz line frequency, this unit manages sequential output timing and high-pressure switch logic for baghouse dust collector controls. Though discontinued by the manufacturer, the DNC-T2020-B10 remains a reliable component in existing dust collection installations where precise timing control is essential for filter cleaning cycles.
Key Features
- Digital timing circuitry with stable operation across -40°C to 65°C temperature range
- 1-second pulse timing (B10 variant) with line-synchronized operation to eliminate triac switching variations

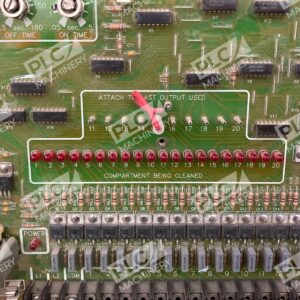

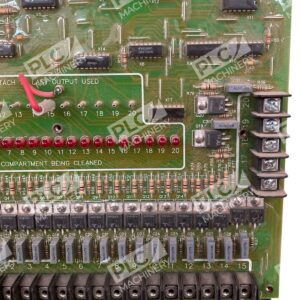

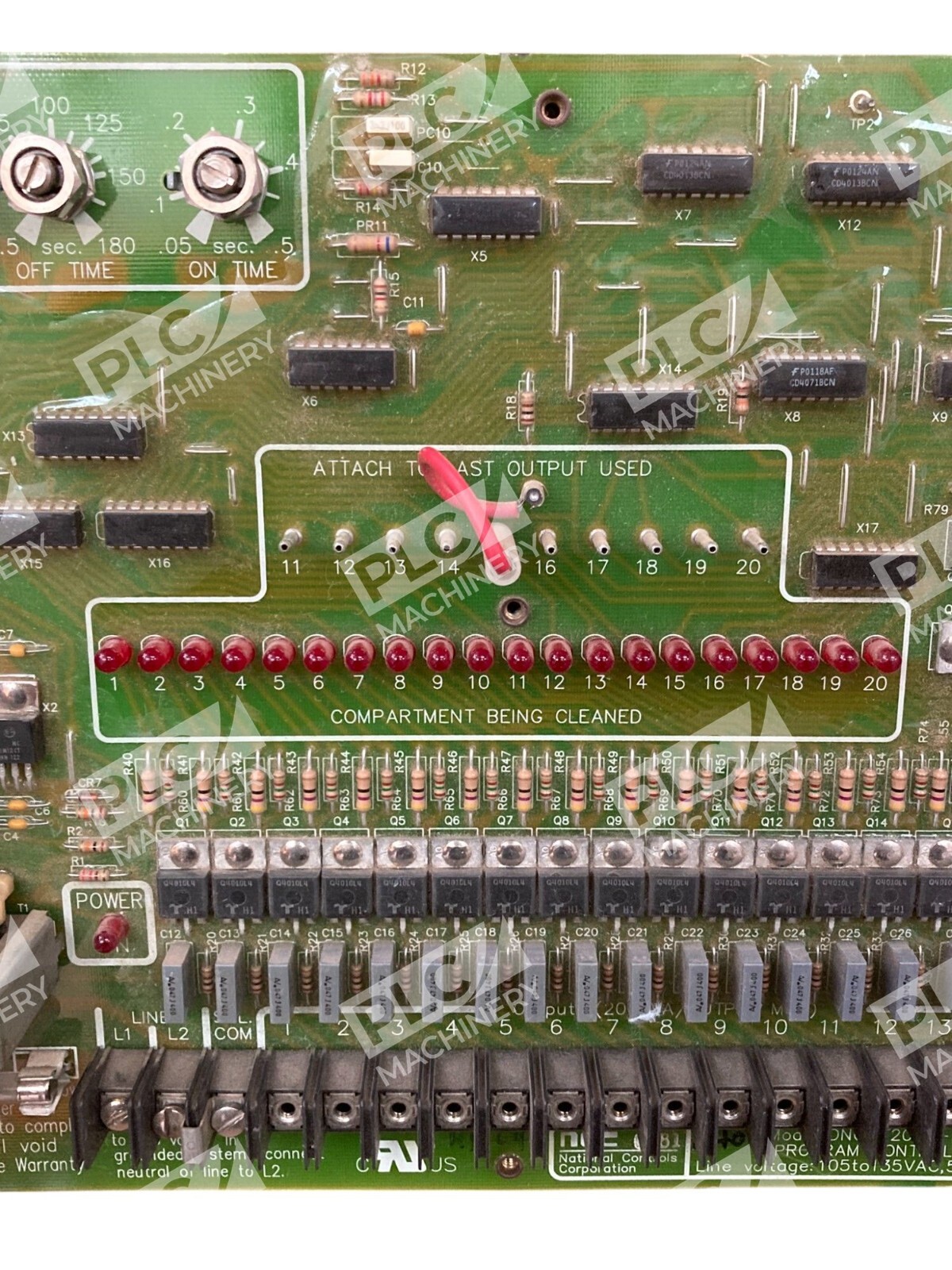

- Output sequencer design for controlling up to 20 independent solenoid outputs
- Solid-state relay outputs rated for 150 VA maximum output
- UL/CUL certified (File #E65038) for industrial safety compliance
- Compact NEMA-4 enclosure design with welded steel construction and phosphatized finish
Technical Specifications

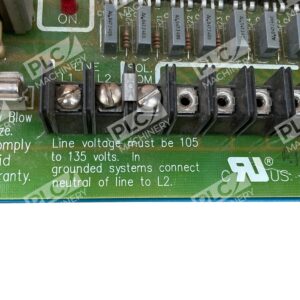

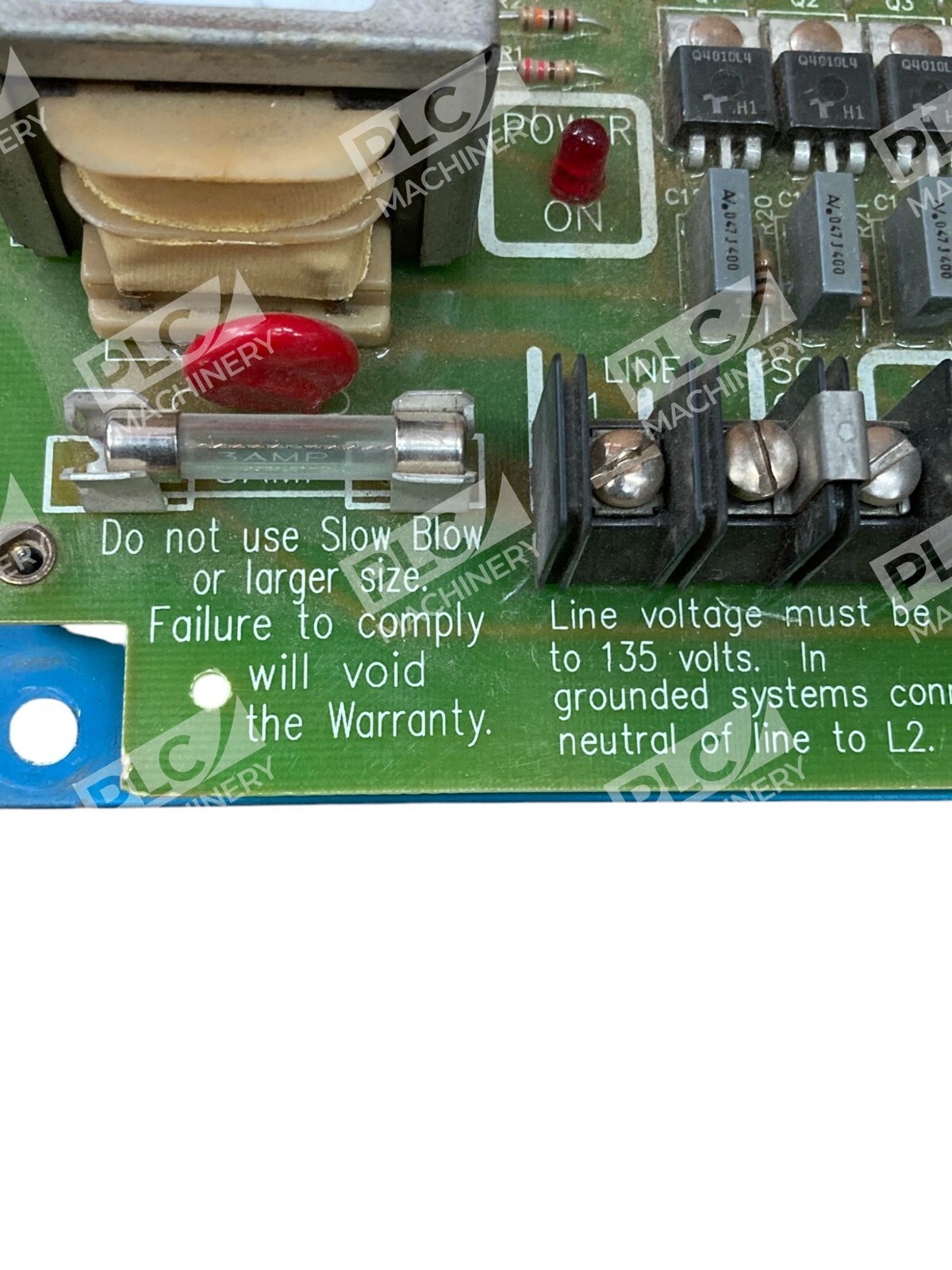

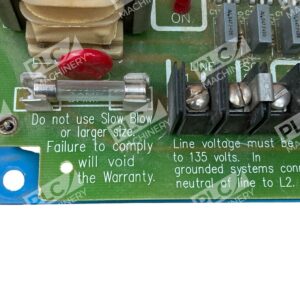

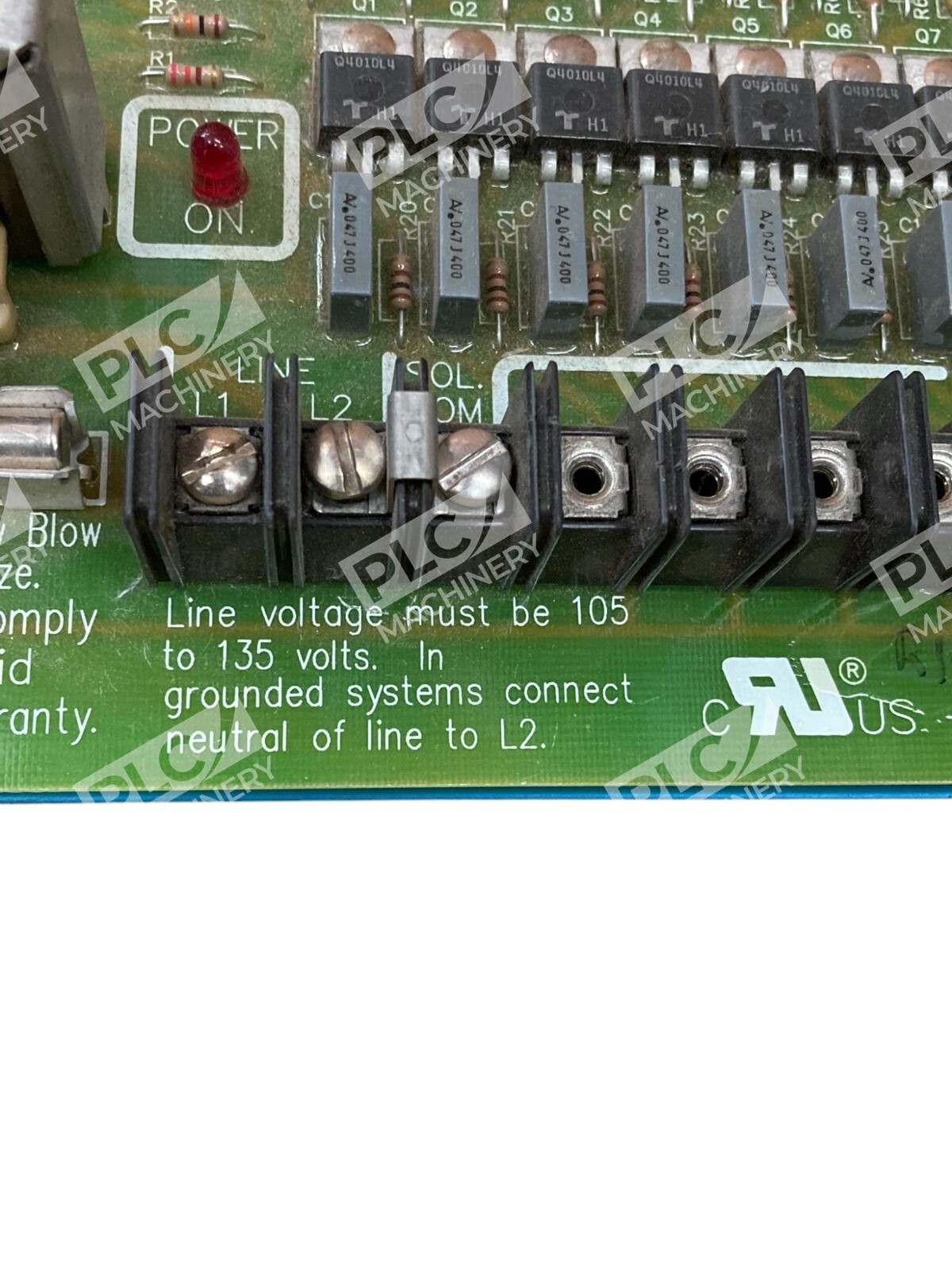

- Input Voltage: 105-135 VAC
- Frequency: 50-60 Hz
- Output Timing (B10): 1 second fixed pulse
- Maximum Outputs: 20 solenoid circuits
- Output Type: Solid-state relay, 150 VA max per circuit
- Operating Temperature: -40°C to 65°C
- Weight: 1.85 lbs
- Certifications: UL/CUL File #E65038
- Series: DNC-T2003 through DNC-T2032 family
- Status: Discontinued by manufacturer
Typical Applications
- Baghouse dust collector pulse-cleaning control systems
- Industrial filtration equipment with sequential solenoid valve operation
- Automated pressure-switch-triggered cleaning cycles in air handling systems
- Retrofit installations requiring precise timing synchronization with AC line frequency
- Heavy-duty manufacturing and process facility dust collection networks
Compatibility & Replacements
Compatible With
- National Controls DNC series dust collector control family (DNC-T2003 through DNC-T2032)
- Industrial baghouse systems with high-pressure switch monitoring
- Solid-state solenoid valve control circuits rated for 24-150 VA output
- Standard 105-135VAC, 50-60Hz single-phase industrial control systems
Replaces / Drop-In Replacement For
- Direct replacement within DNC-T2020 series installations where 1-second fixed timing is specified
- Legacy dust collector program control boards requiring retrofit compatibility
- Note: Verify connector pinout and control logic with your original system documentation before ordering
Works With
- High-pressure switch inputs (typically 24 VAC or 120 VAC piloting)
- AC-powered solenoid cleaning valves (baghouse pulse jets)
- Standard industrial control relay logic and sequencing circuits
- NEMA-4 rated enclosures for washdown and dusty environment installations
- Retrofit model DNC-T2020-020 serves as the current manufacturer replacement for forward compatibility
