Overview

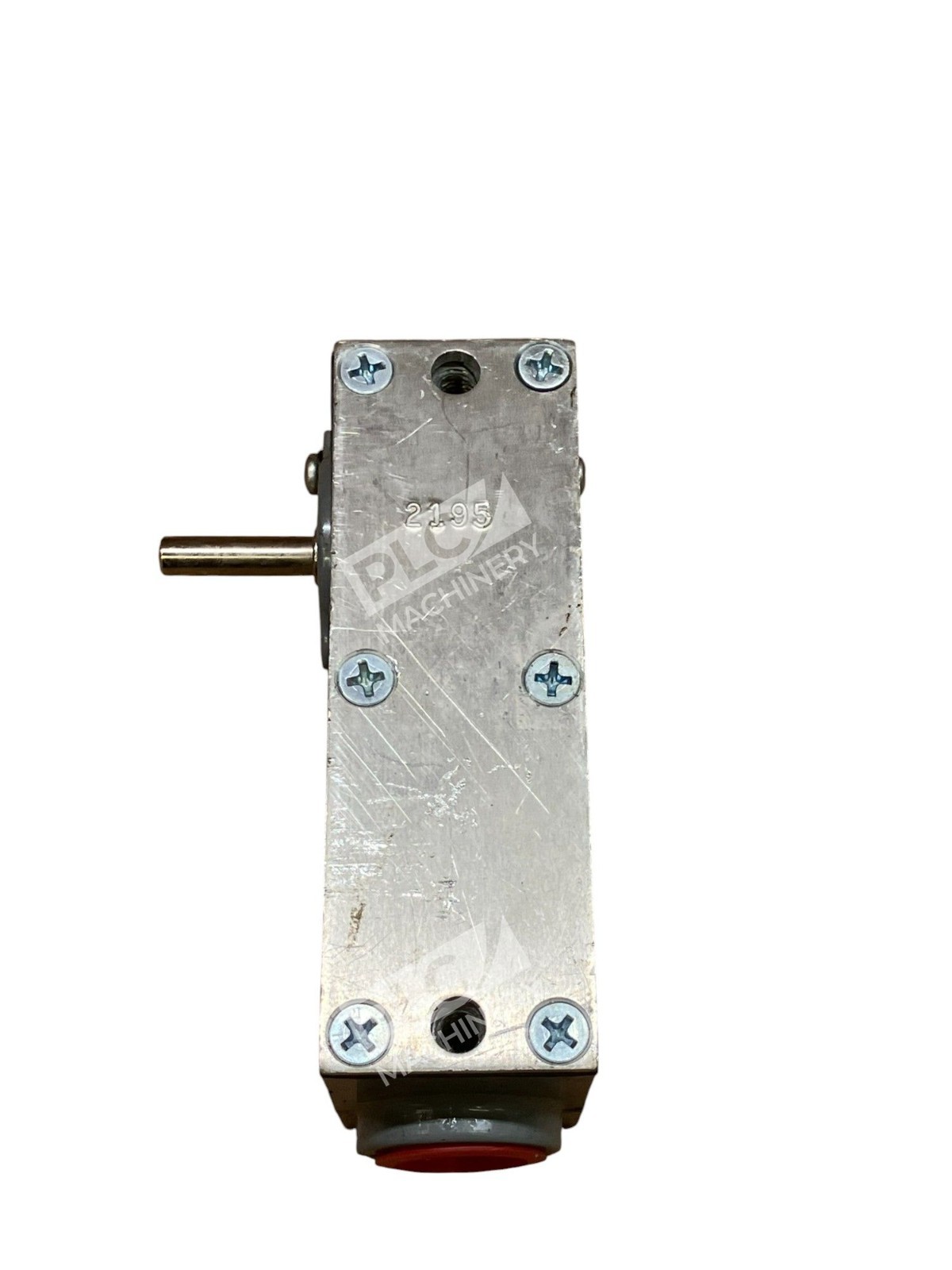

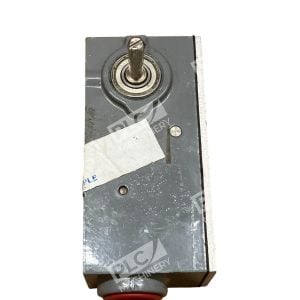

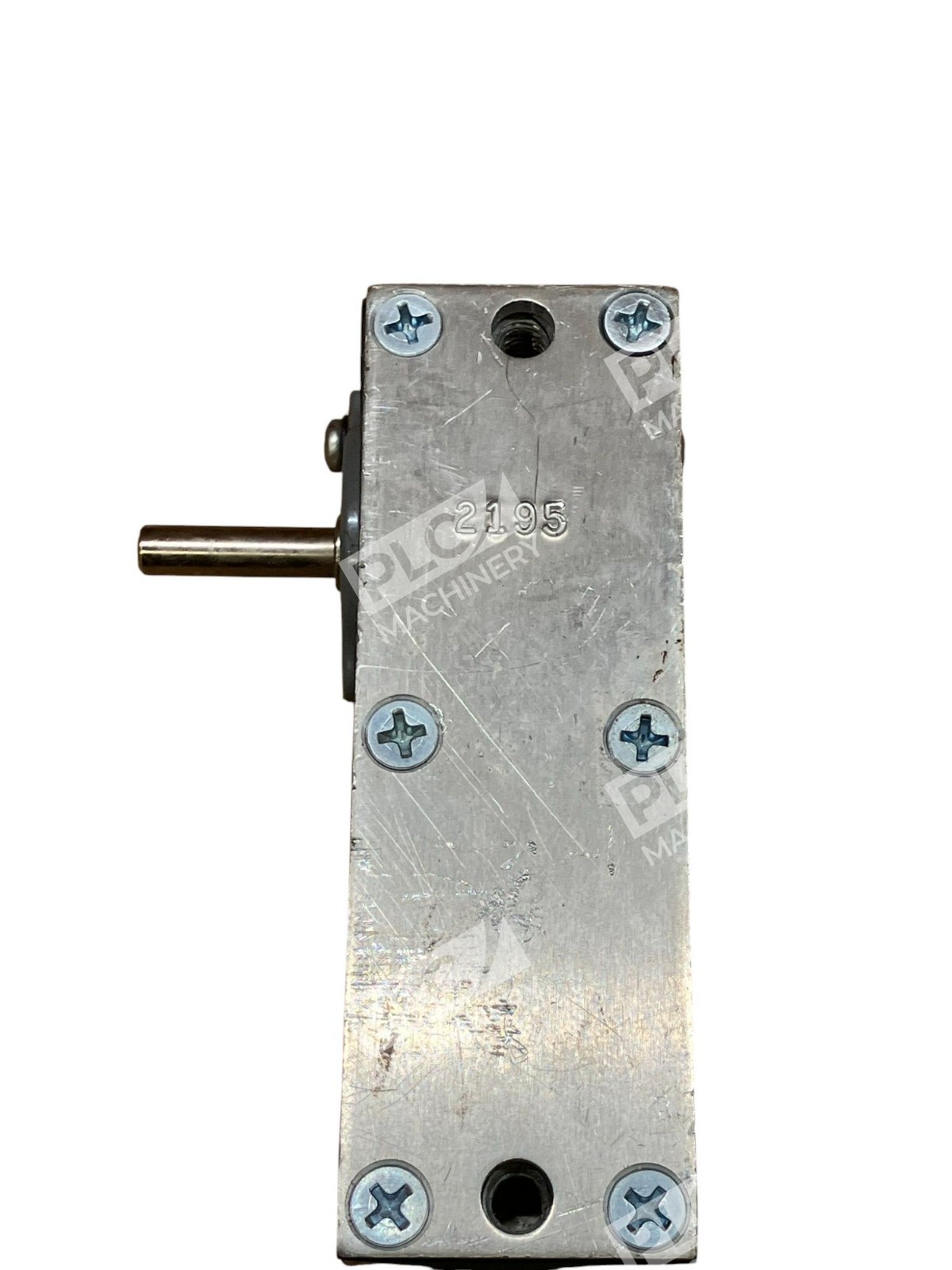

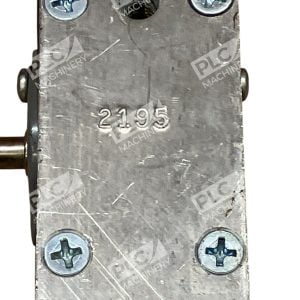

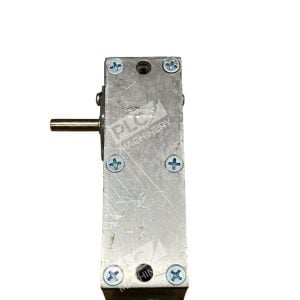

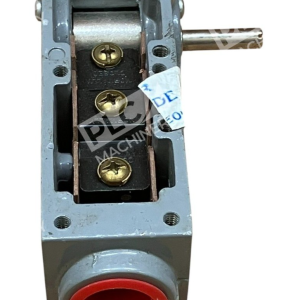

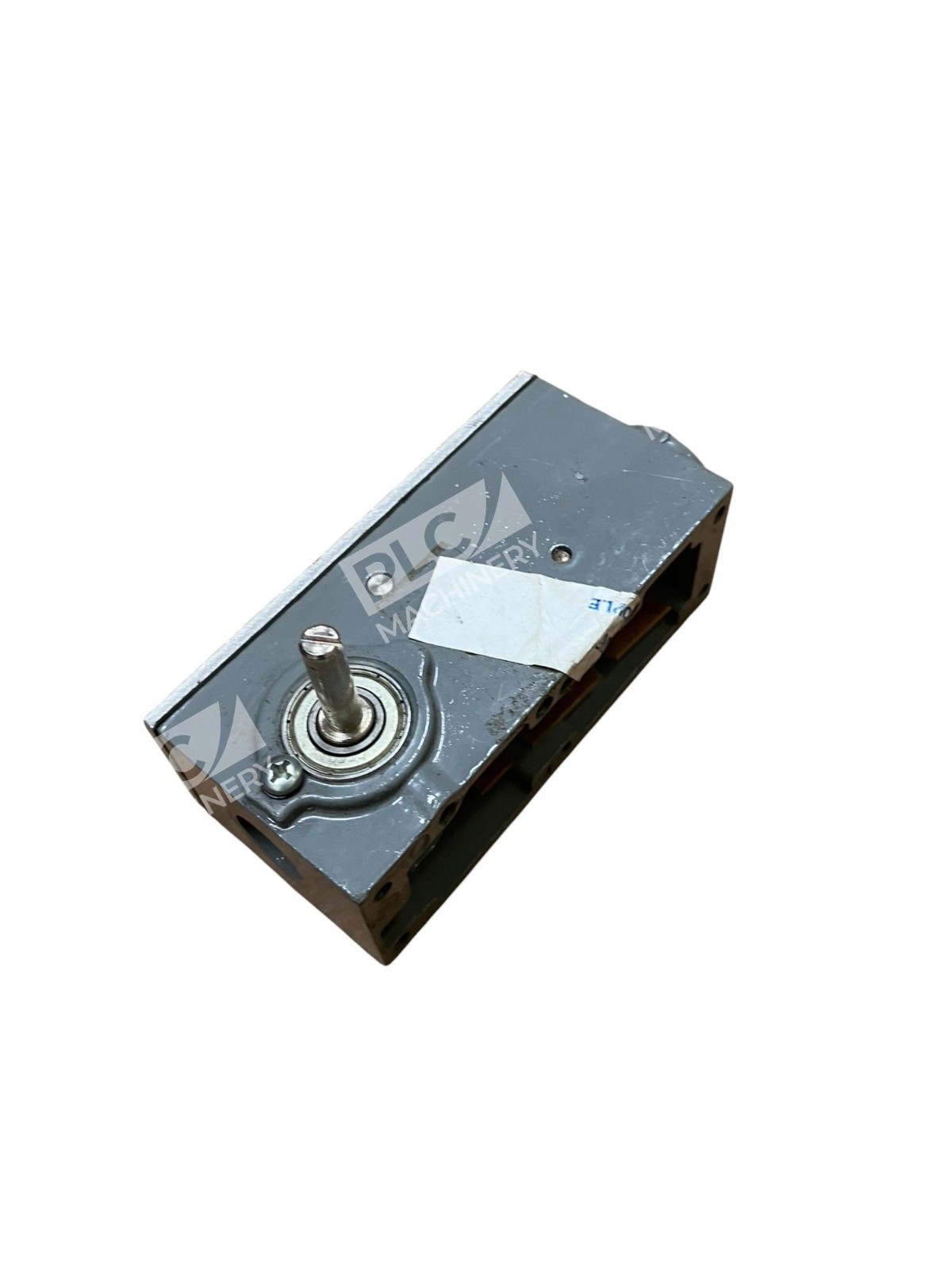

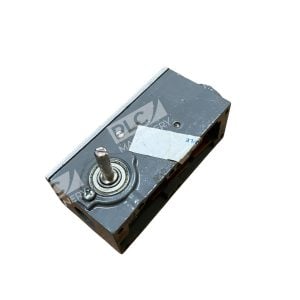

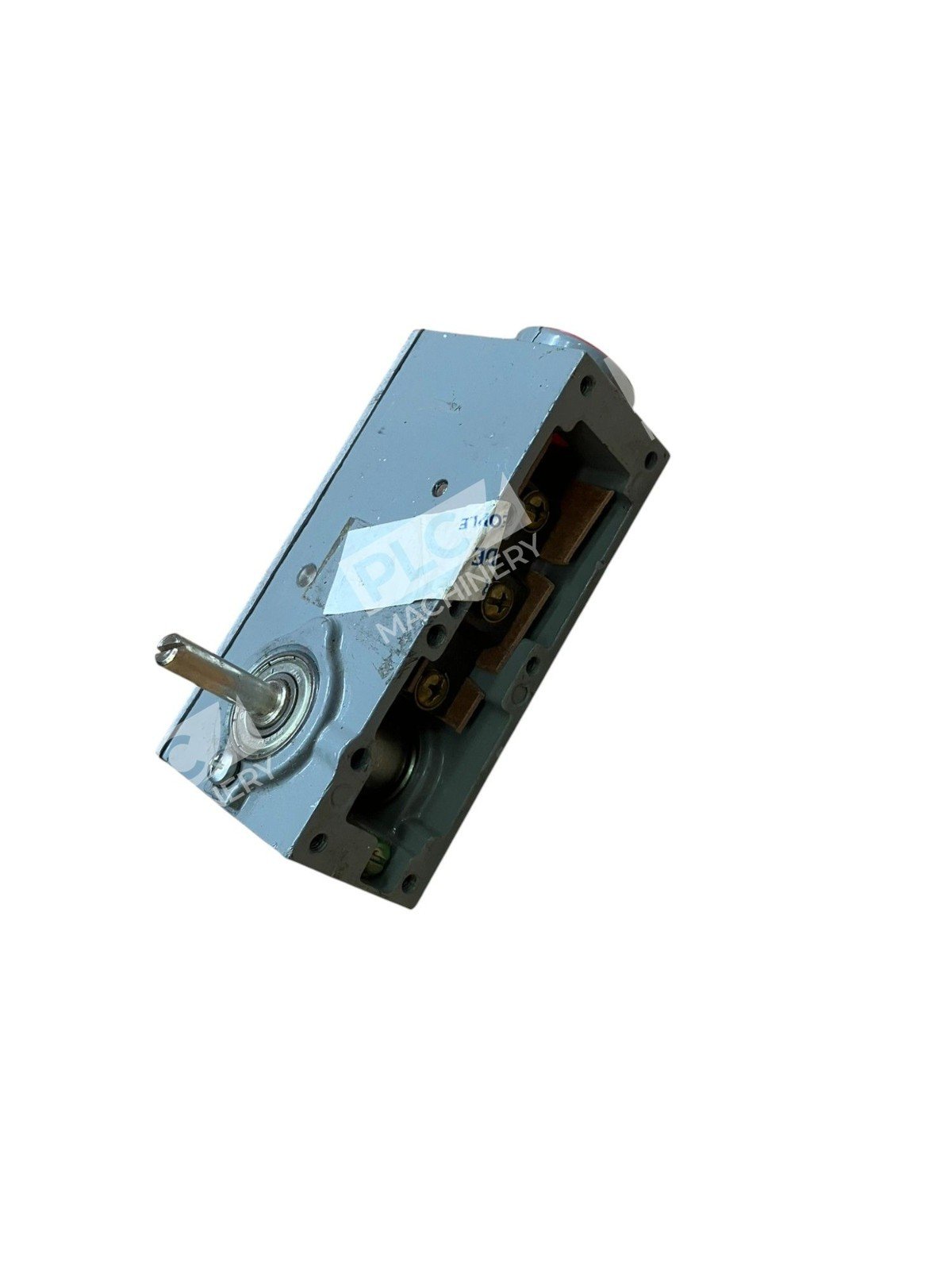

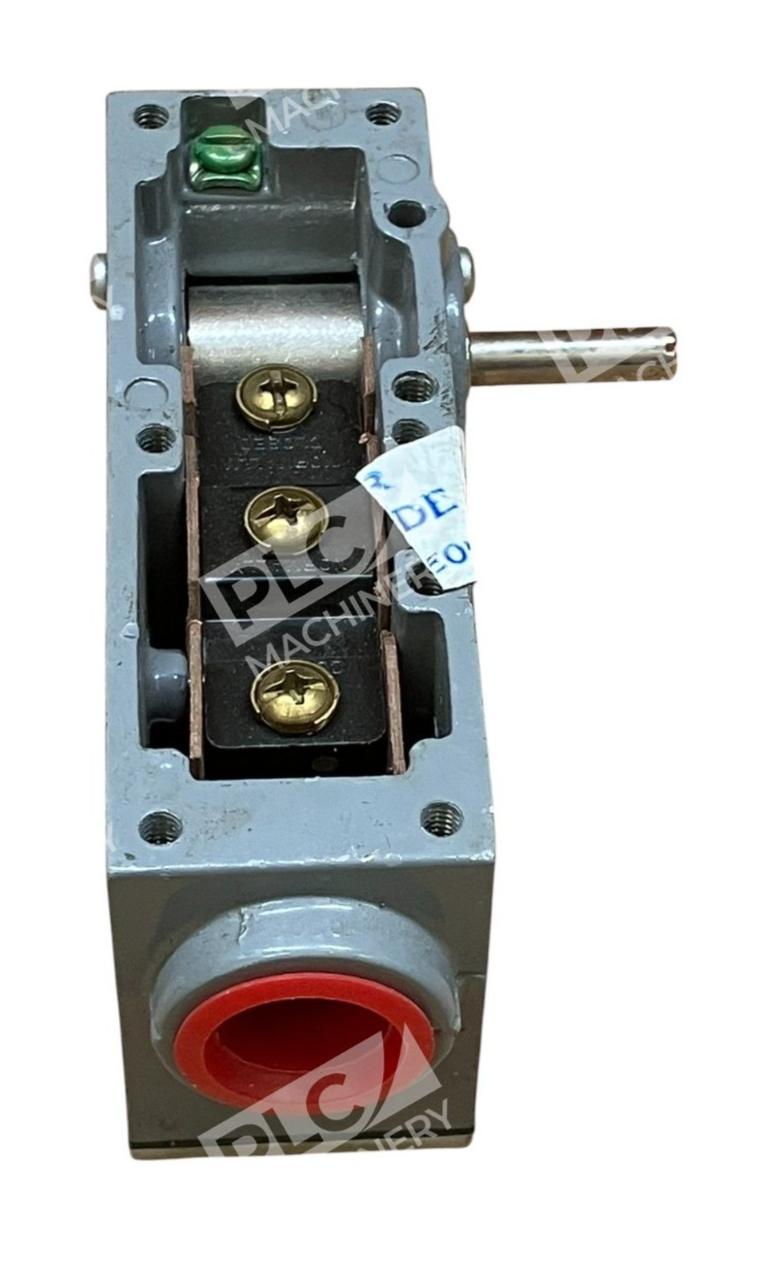

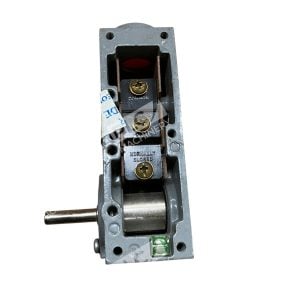

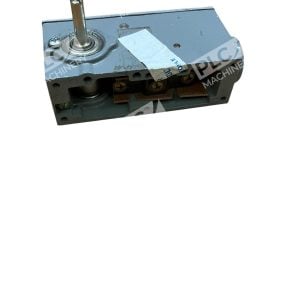

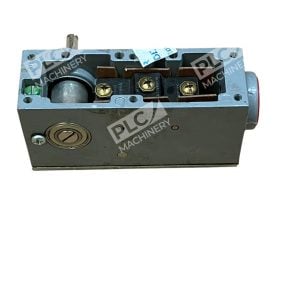

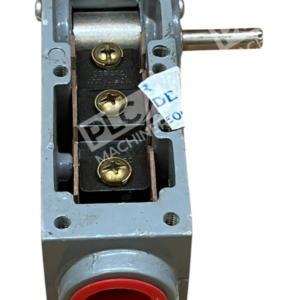

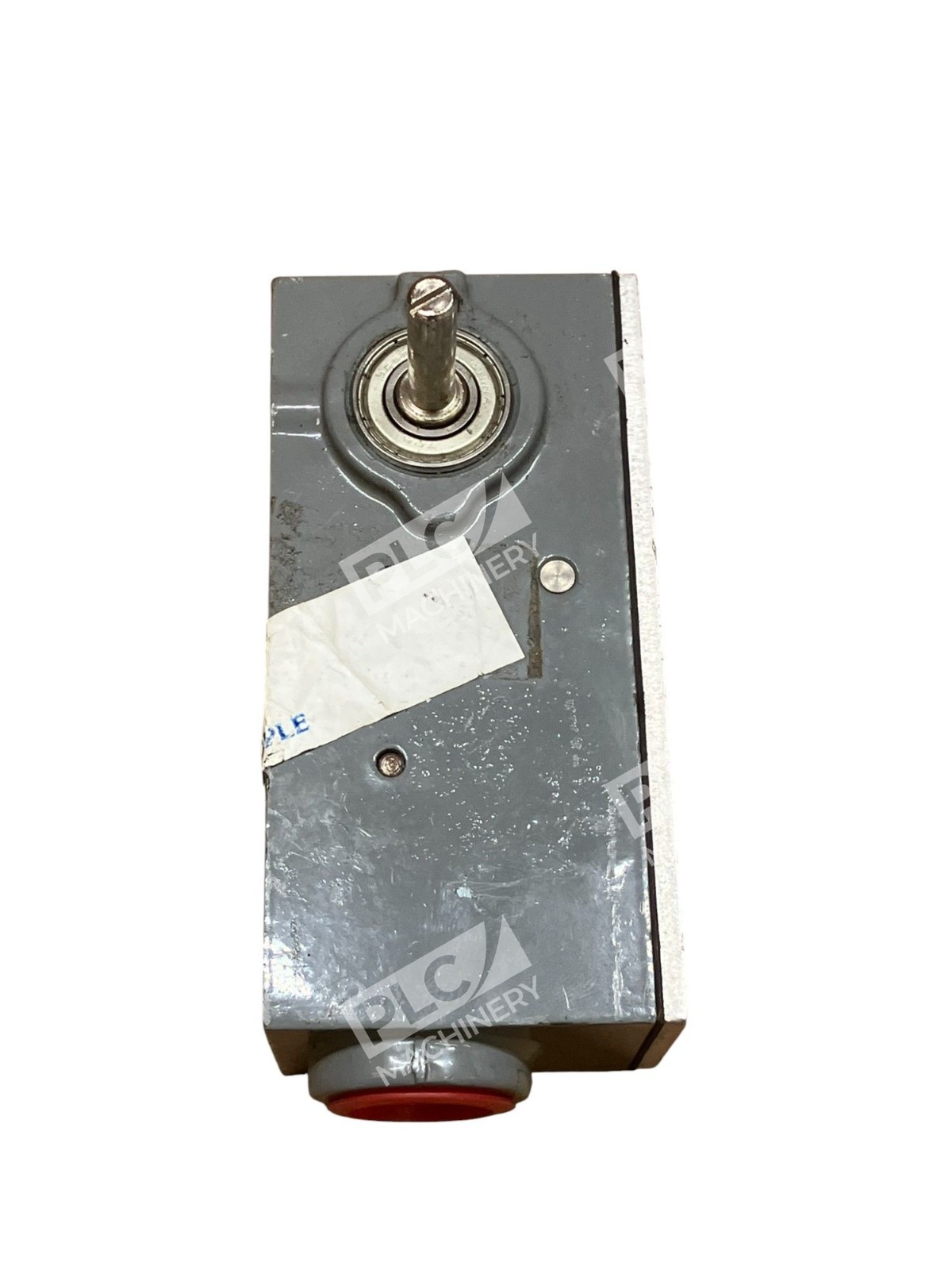

The Namco EA150-30014 limit switch is a durable, open-frame rotary-operated switch designed for industrial automation and motion control applications. Part of the Snap-Lock EA150 series, this unit operates without an enclosure cover, making it ideal for compact installations where space is limited or where the switch contacts must be readily accessible. The unit comes equipped with a double-ended shaft and includes a 1/4″ × 9″ steel rod for lever actuation.
Key Features

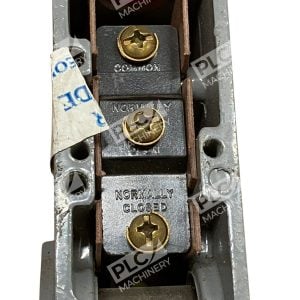

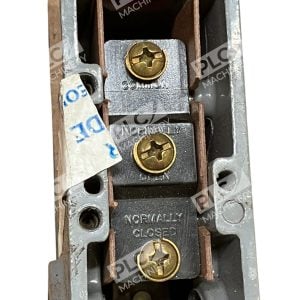

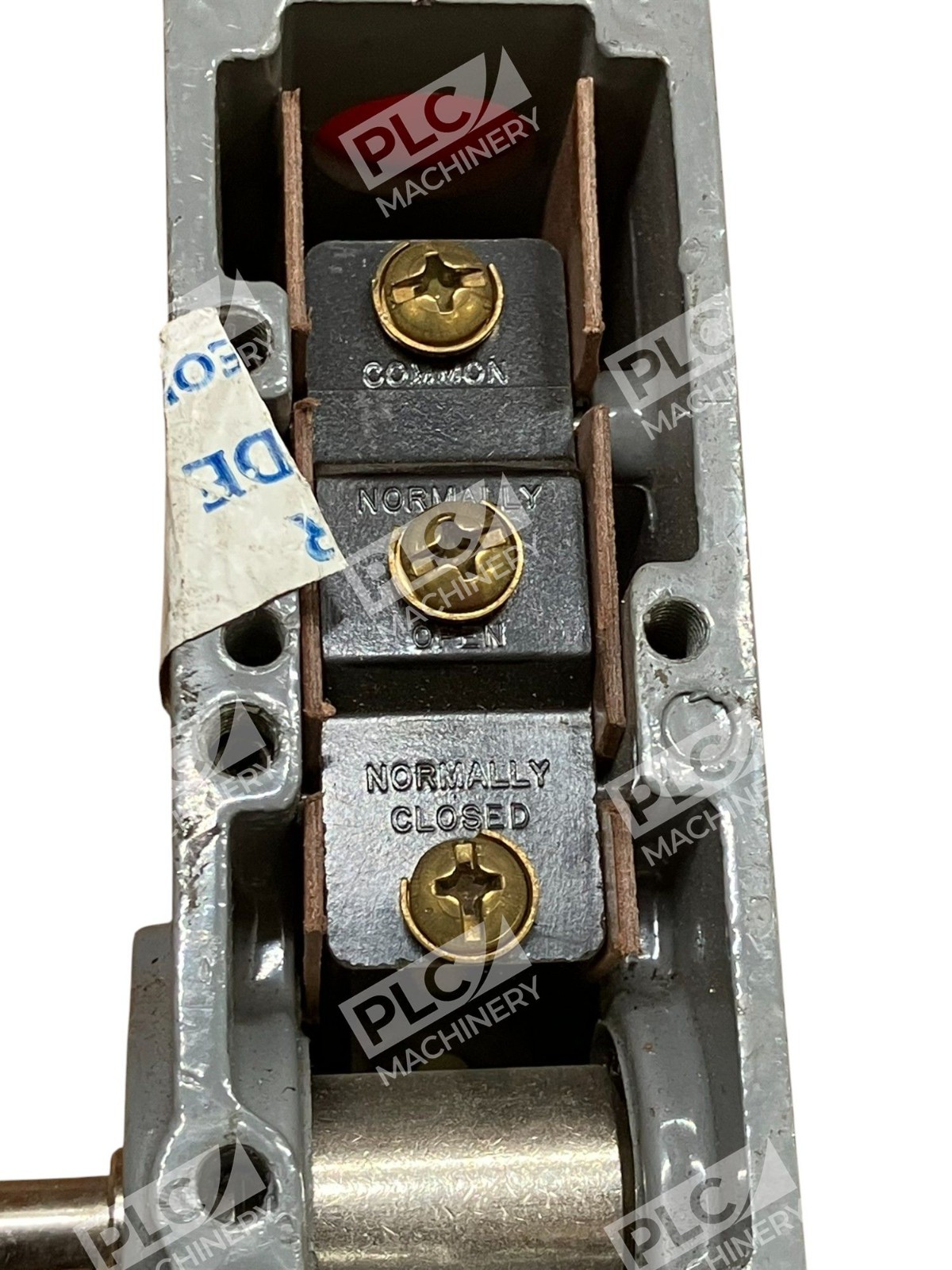

- 1NO/1NC (Single Pole Double Throw) contact configuration for flexible logic control
- 125/460VAC dual voltage rating for broad industrial supply compatibility

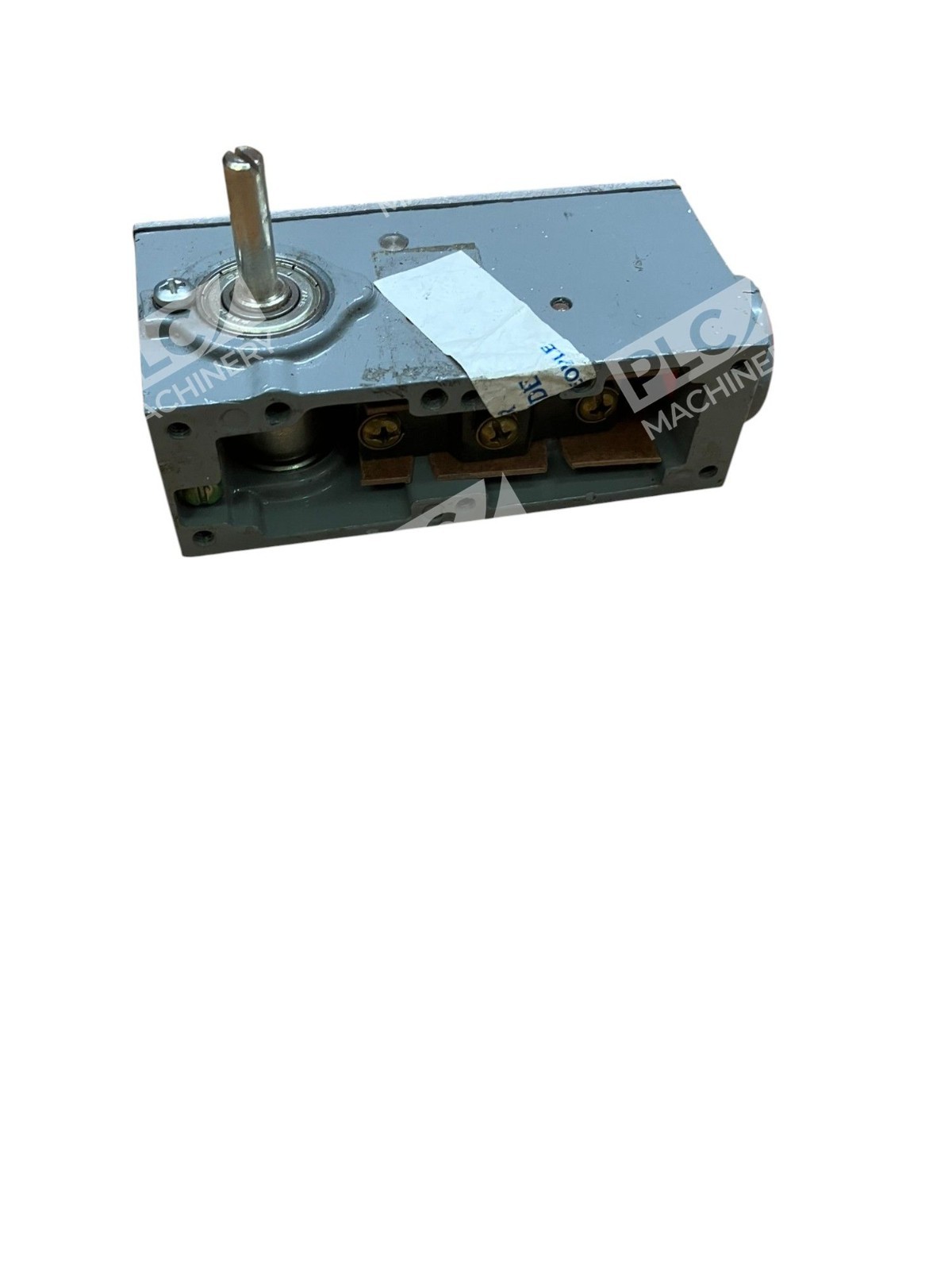

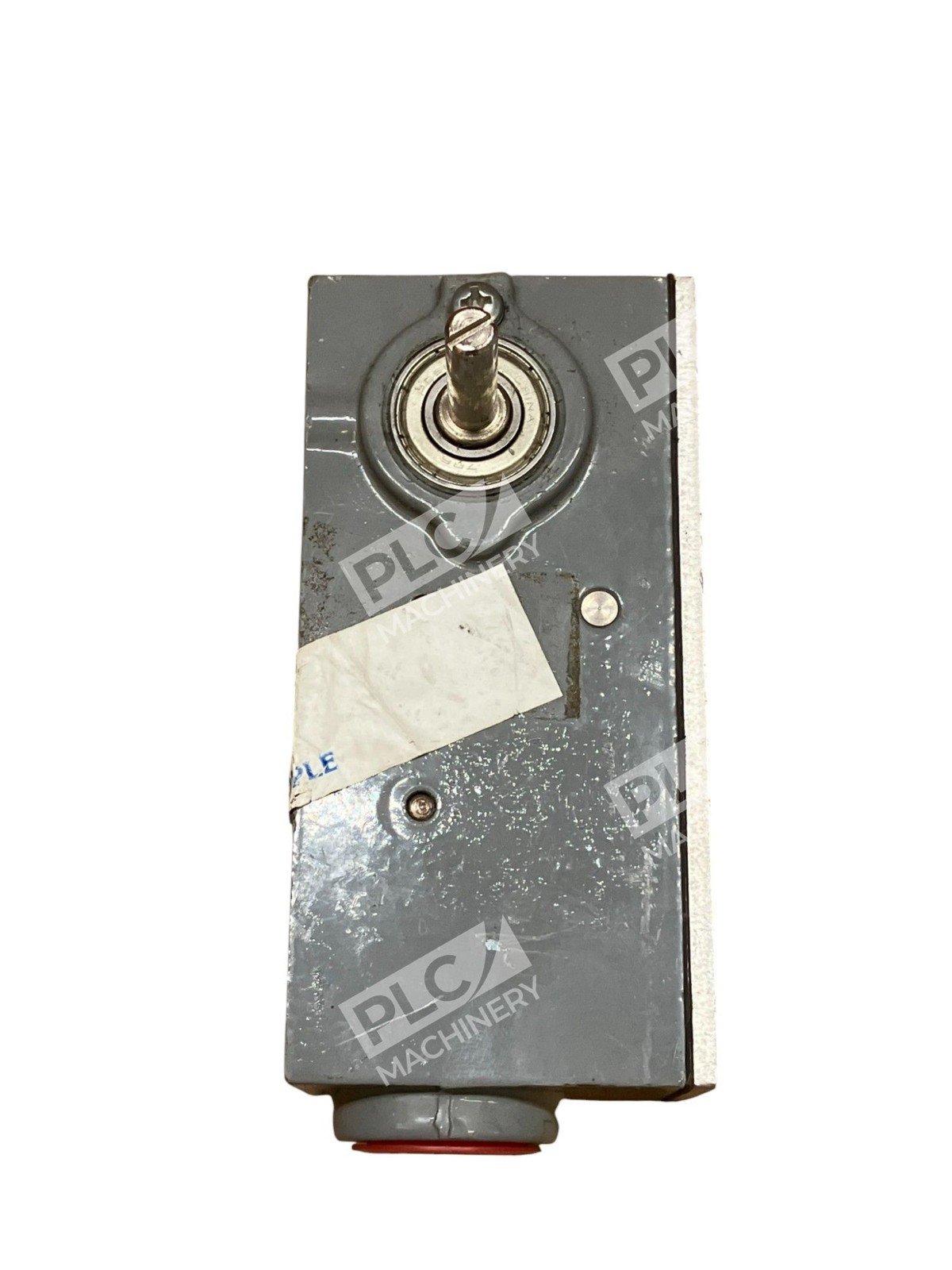

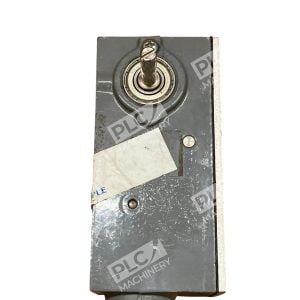

- Double-ended shaft design with included steel rod for rotary actuation
- Snap-Lock mechanism for secure terminal connections

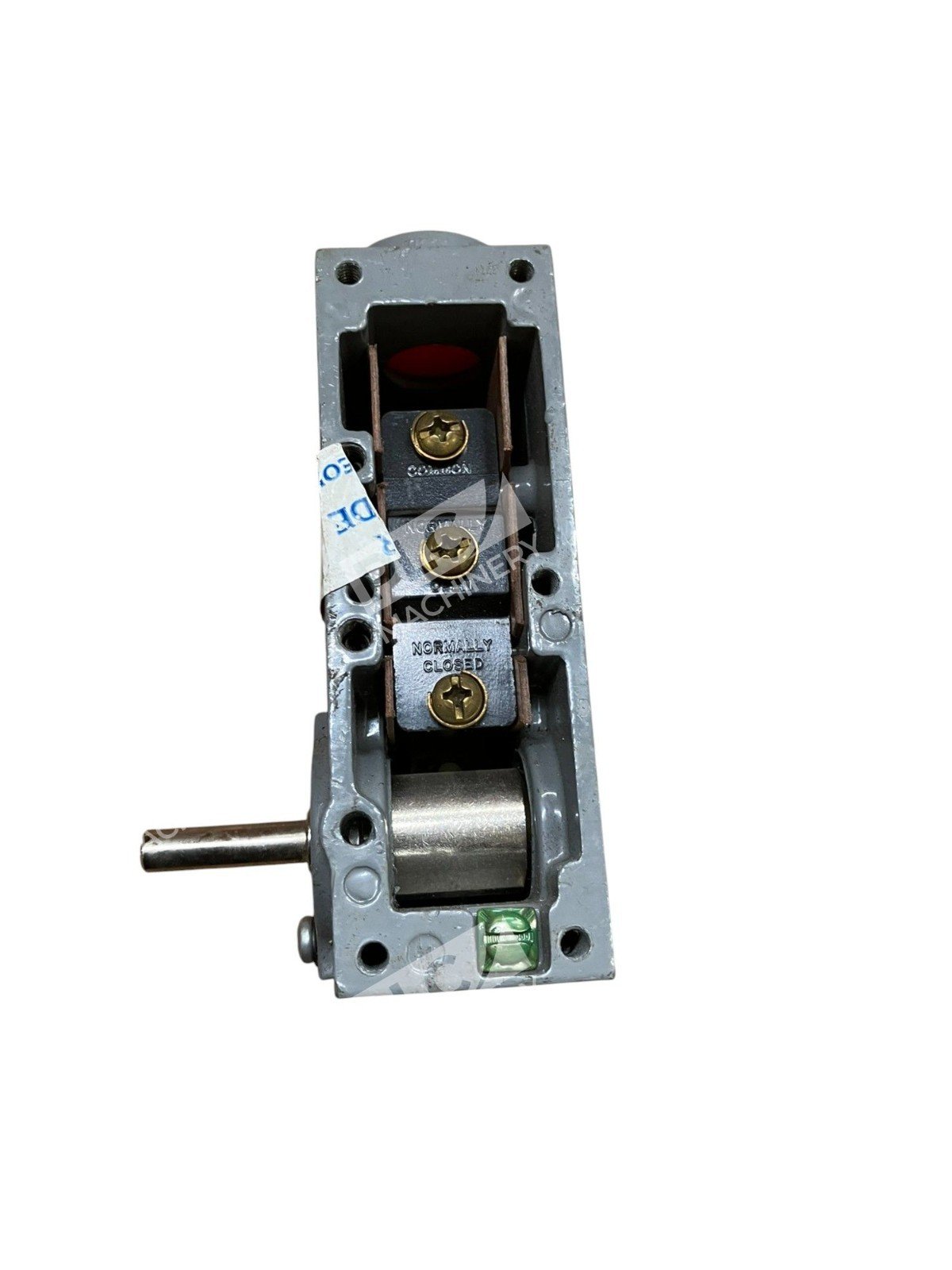

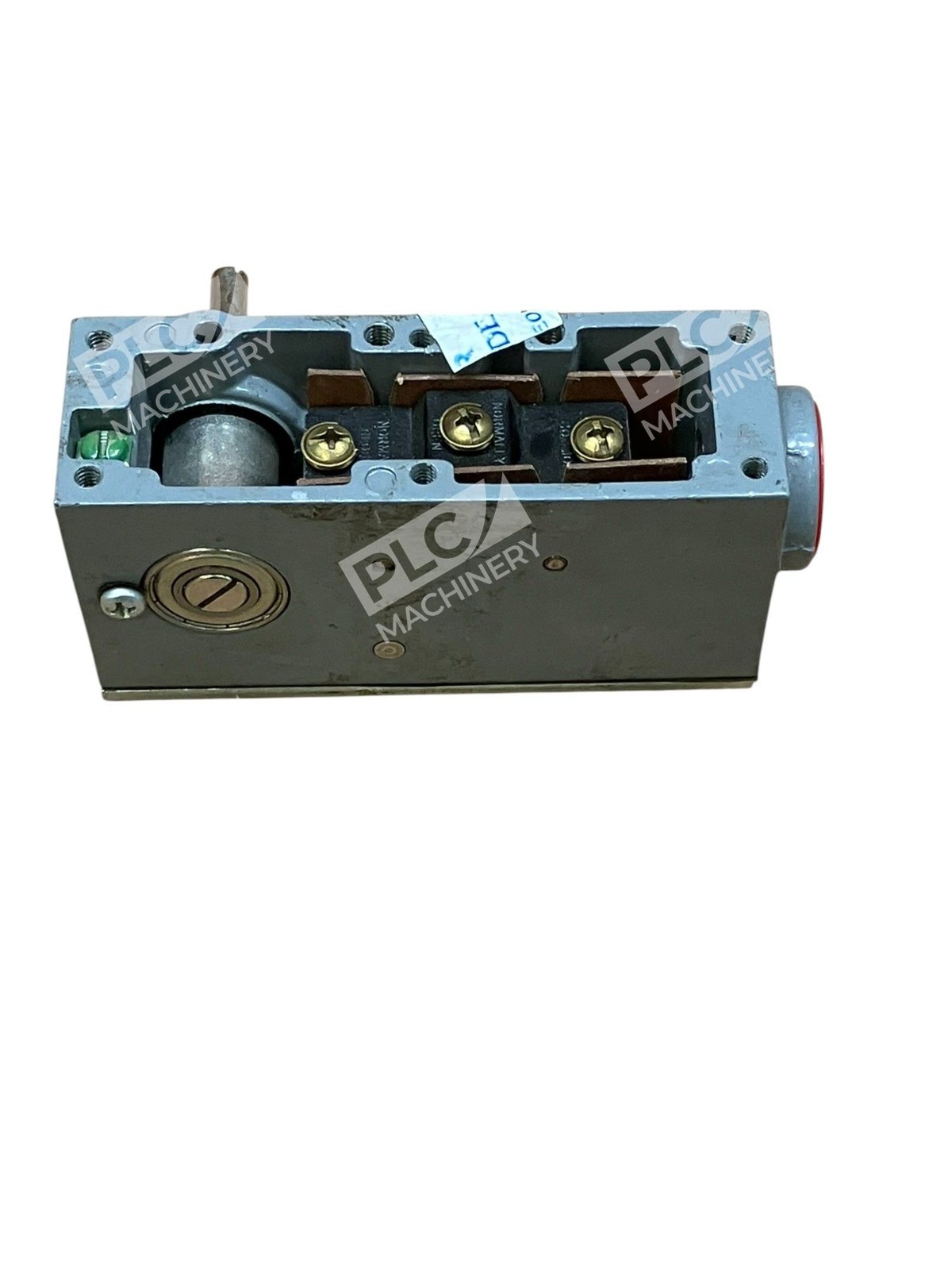

- No cover design reduces footprint and provides easy access to contacts
- Proven Namco reliability for harsh industrial environments
Technical Specifications
- Manufacturer: Namco Controls (Specialty Product Technologies)
- Model: EA150-30014
- Series: Snap-Lock EA150

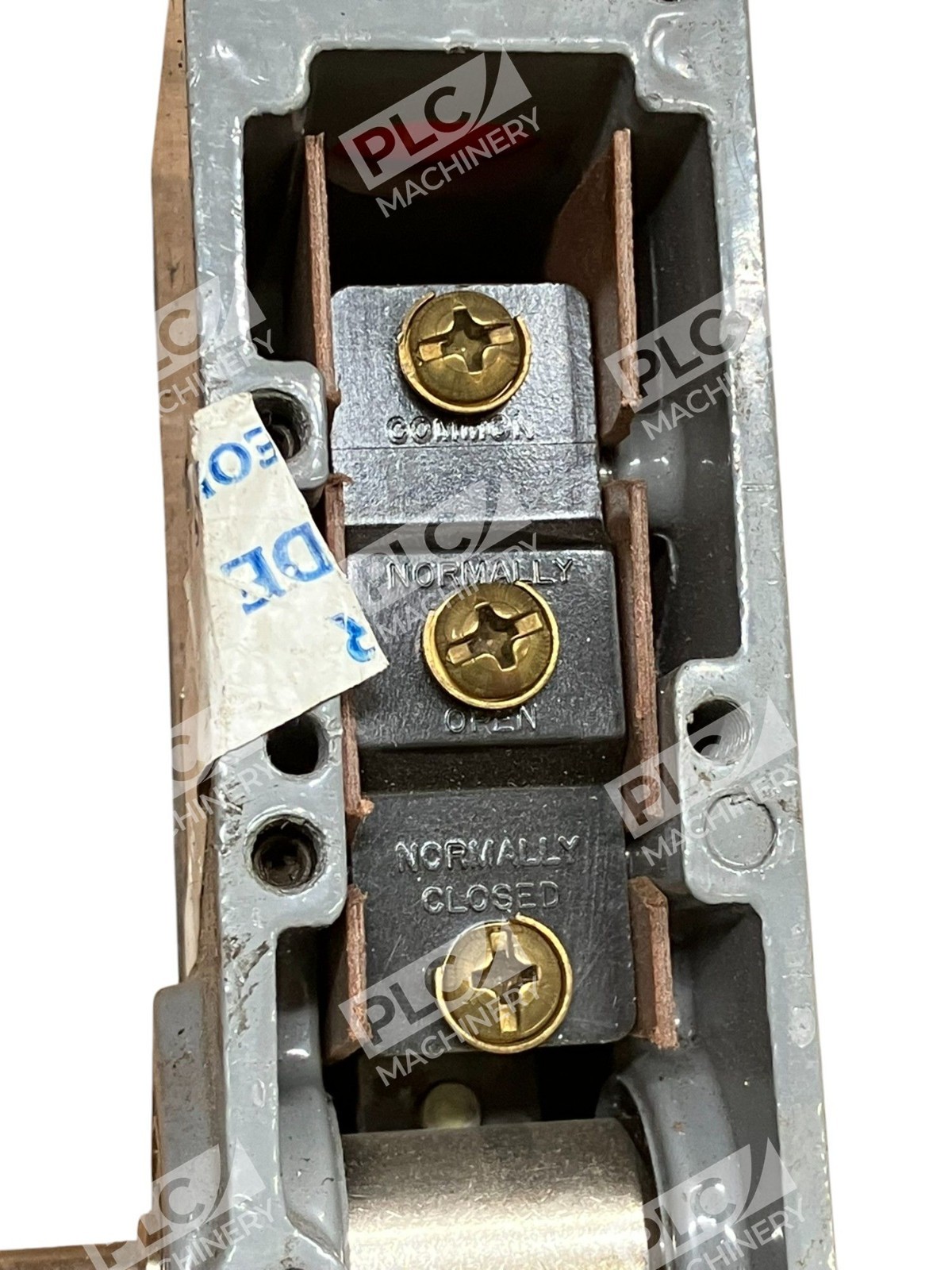

- Contact Configuration: 1NO/1NC
- Actuation Type: Rotary (Double-Ended Shaft)
- Voltage Rating: 125/460VAC
- Included Accessories: 1/4″ × 9″ Steel Rod
- Mounting: Rotary Operator
- Condition: Used, Fully Functional
Typical Applications
- Machine tool limit detection and end-of-travel stops
- Conveyor and material handling system position sensing
- Packaging machinery and assembly line controls
- Industrial automation panel-mounted safety interlocks
- Rotary equipment position monitoring and control
Compatibility & Replacements
Compatible With
- Standard industrial control panels and relay circuits
- PLC and motor control center (MCC) applications
- Rotary actuator and cam-driven machinery
- AC-powered motor starter circuits (125V and 460V systems)
- Heavy-duty industrial automation systems
Replaces / Drop-In Replacement For
- Direct replacement for other EA150-30014 units
- Alternative to other Namco Snap-Lock EA150 series switches in similar applications
- Substitute for comparable 1NO/1NC rotary limit switches from other manufacturers with similar footprints
Works With
- Standard 125VAC and 460VAC industrial control systems
- Relay logic and hard-wired control circuits
- Motor control centers and industrial switchgear
- Rotary mechanical actuators and lever systems
- Any NEMA-compliant industrial automation platform
