Overview
The GE Multilin 269PLUS-100P-120VAC is a microprocessor-based motor management relay designed to protect and manage AC motors of various sizes and characteristics. This digital relay combines advanced thermal modeling with adaptive learning to optimize protection for individual motor applications. The 269PLUS series is widely used in industrial facilities requiring dependable motor supervision and fault detection.
Key Features
- Adaptive Learning Technology: The relay learns individual motor parameters including inrush current, negative sequence current, cool-down rates, and acceleration time to improve protection accuracy over time.
- Comprehensive Fault Detection: Monitors thermal overload, phase unbalance, phase loss, stall, and locked rotor conditions with latched trip, alarm, and two auxiliary programmable relays.
- Thermal Modeling: Calculates real-time motor I²t thermal stress based on actual load current and stator RTD feedback for precise thermal protection.

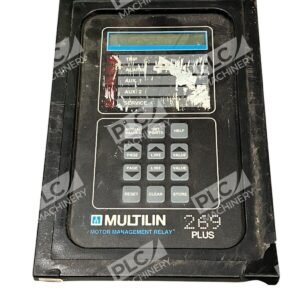

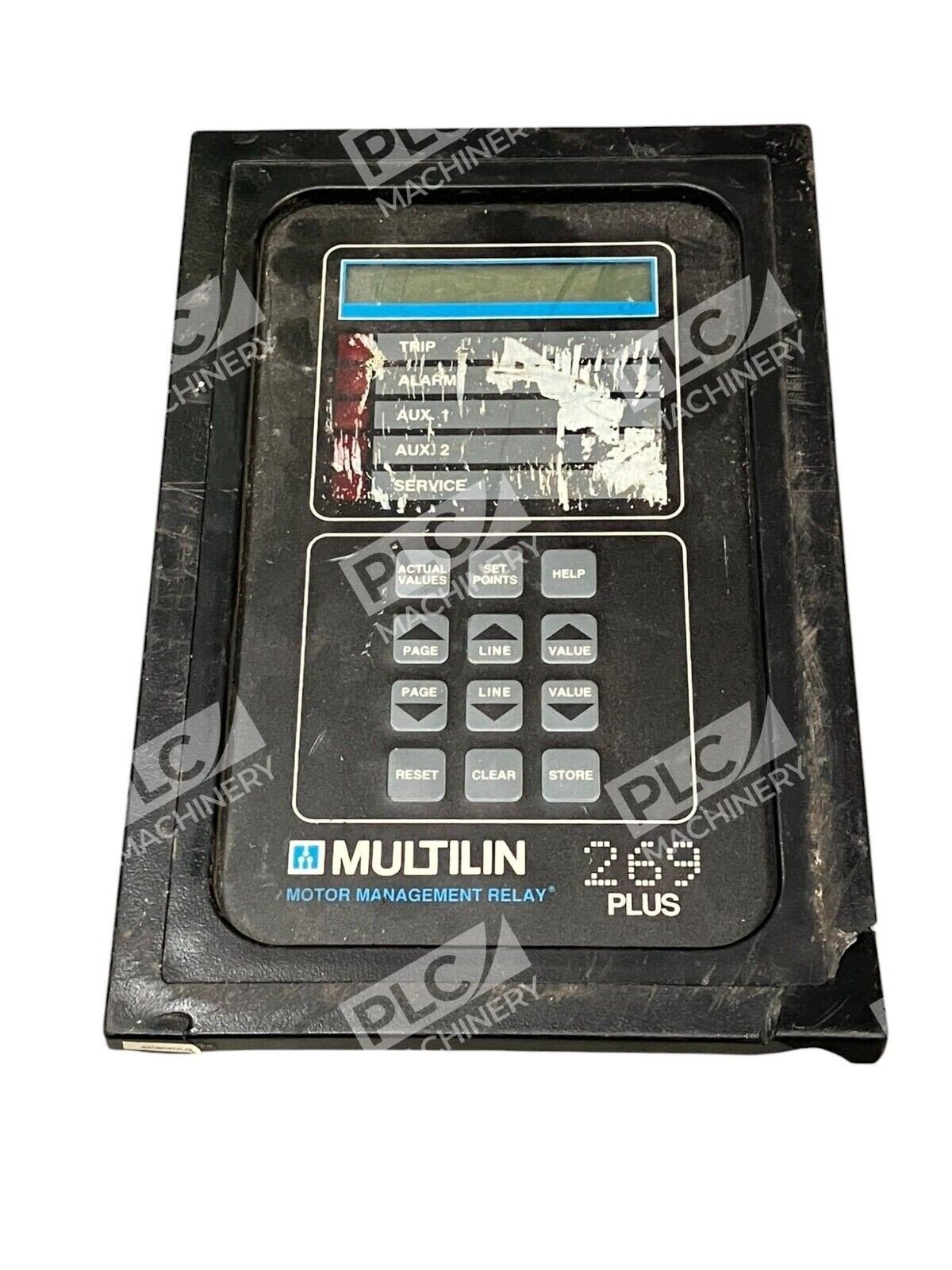

- Front-Panel Interface: 48-character alphanumeric display with 12-position keypad for parameter setup, monitoring, diagnostics, and troubleshooting.
- RS-485 Communication: Optional meter communication port for remote monitoring and integration with control systems and supervisory software.
- Flexible Configuration: Multiple relay contact options and fail-safe codes allow customization for different application requirements.
Technical Specifications

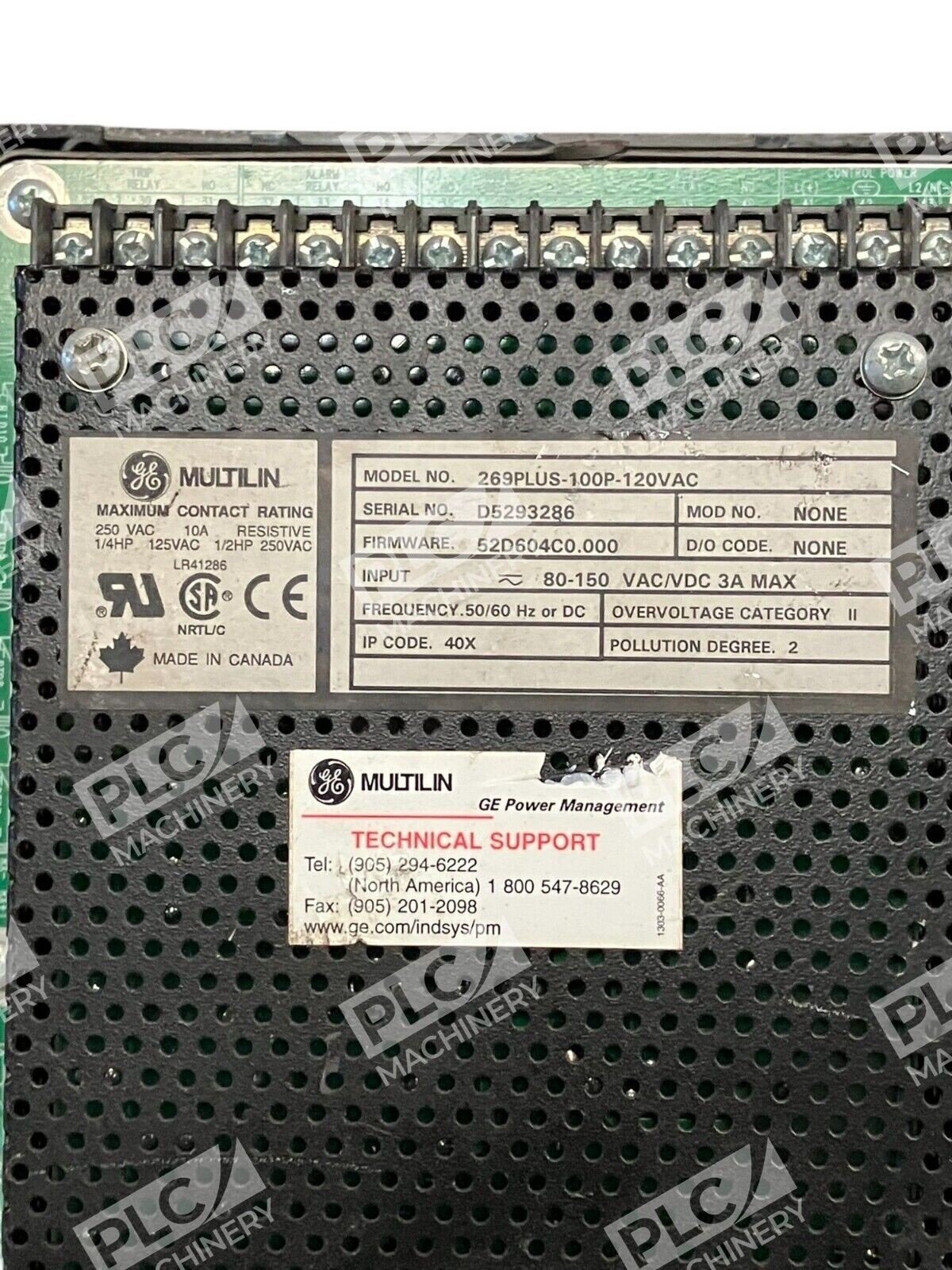

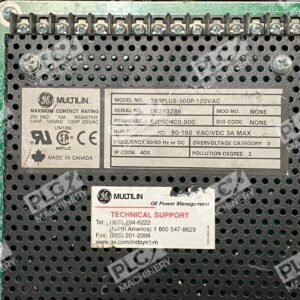

- Part Number: 269PLUS-100P-120VAC
- Manufacturer: GE Multilin
- Control Power Voltage: 120 VAC
- RTD Type: 100 Ω Platinum
- Frequency: 50/60 Hz
- Max Power Consumption: 20 VA
- Voltage Ride-Through: 100 ms
- Operating Temperature: -25°C to 60°C
- Maximum Altitude: 2000 m
- Mounting: Panel-mount with compact plastic and metal housing
- Weight: 3.5 kg (7.75 lbs)
- Relay Contacts: Form C (NO/NC) with silver alloy contacts
- Instruction Manual: GEK-106287C / 1601-0013-D3
Typical Applications
The 269PLUS-100P-120VAC is ideal for protection and management of medium-sized AC induction motors in industrial environments including:
- Pump and fan motor applications with variable loading
- Compressor and blower systems requiring thermal stress monitoring
- Process equipment motors where learning-based protection improves reliability
- Facilities requiring CE and industrial compliance for motor protection
- Systems where benchtop testing or on-site commissioning is necessary
Compatibility & Replacements
Compatible With
- GE motor control centers (MCCs) and starter configurations

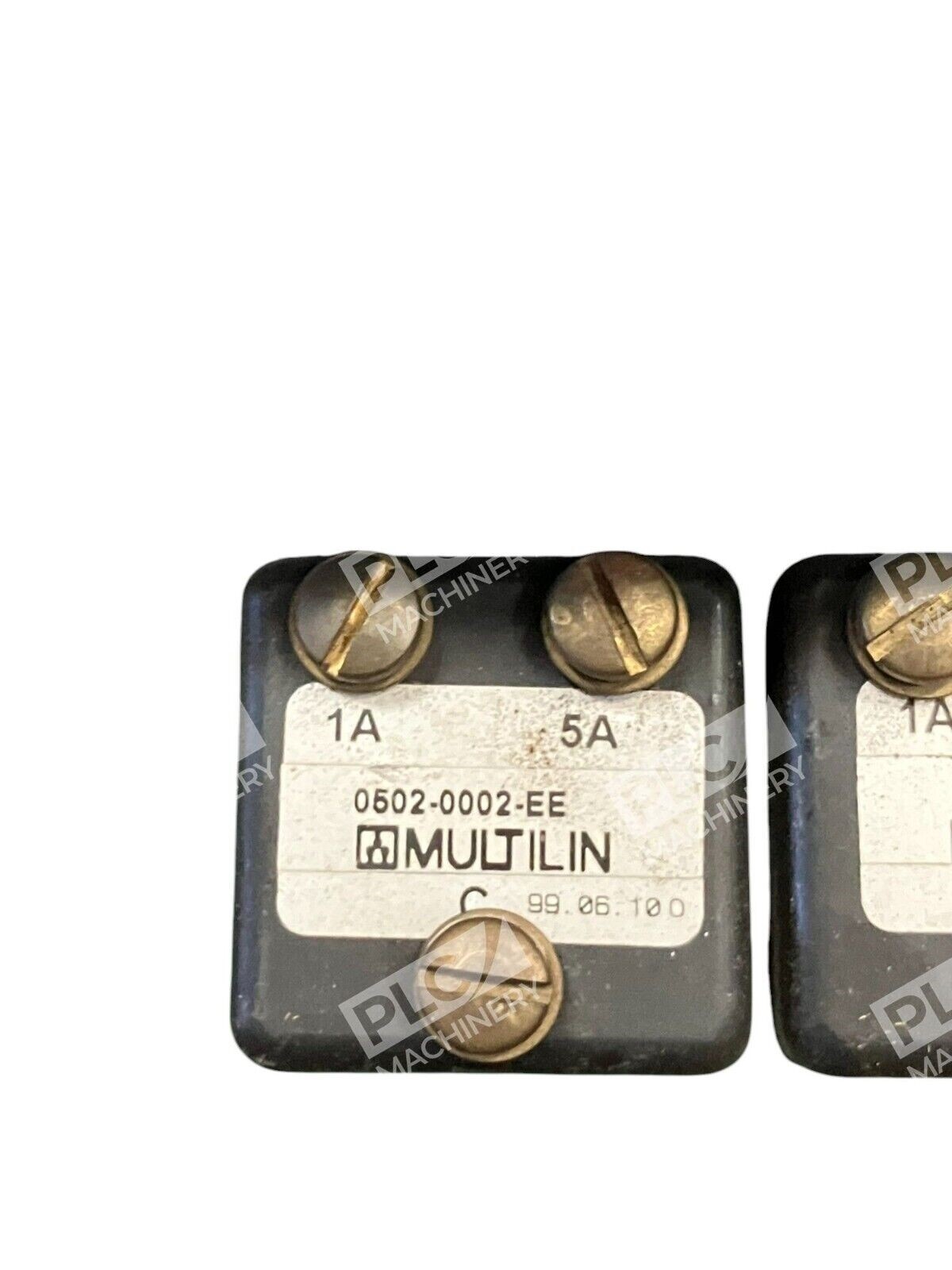

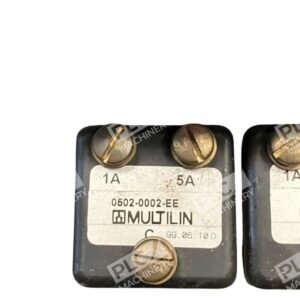

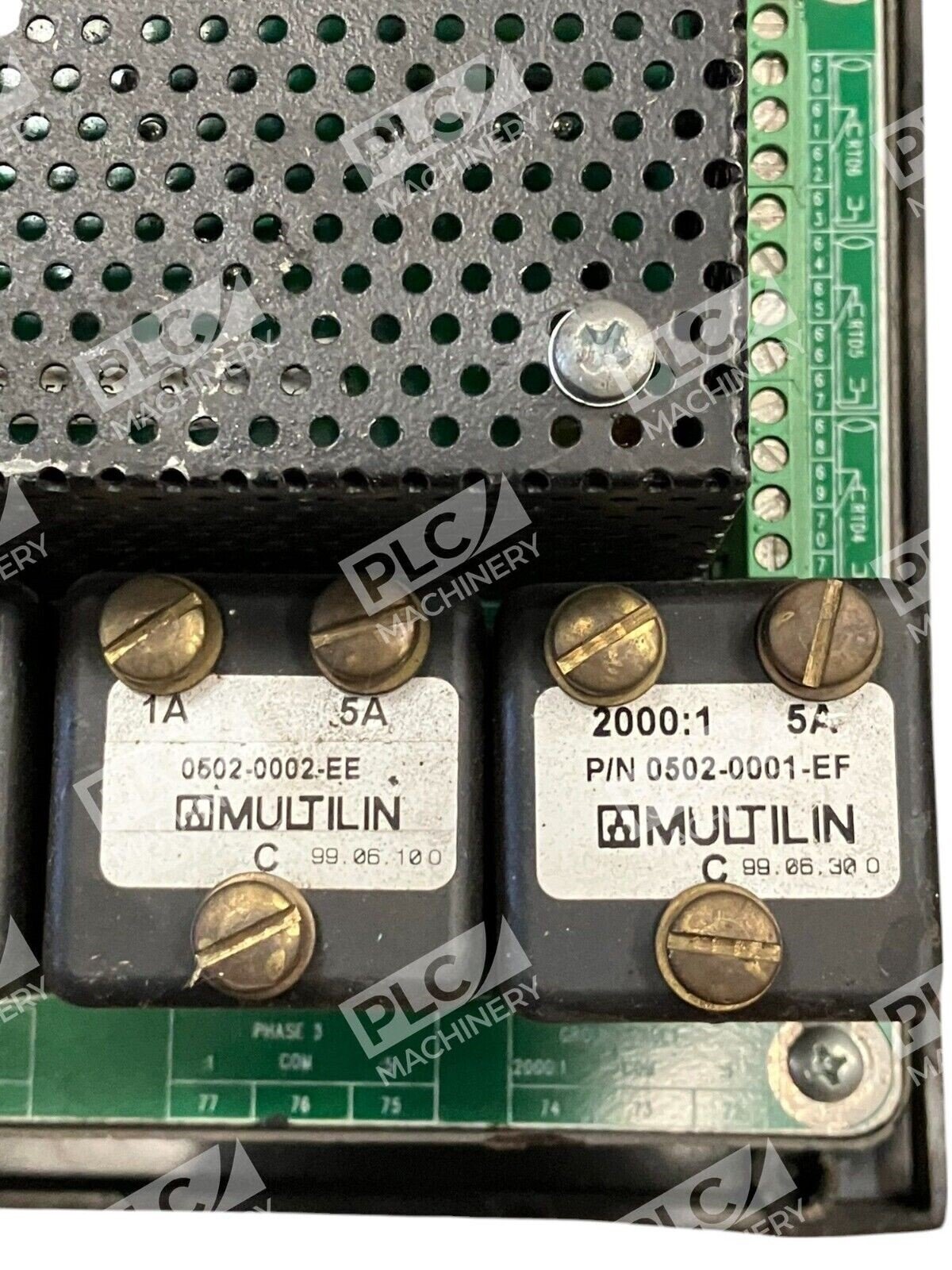

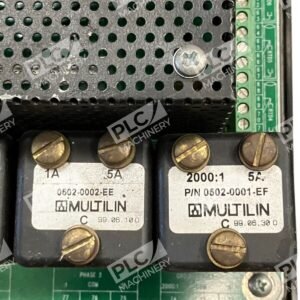

- Current transformers (CTs) ranging from small to large primary ratios
- RTD temperature sensors (stator-mounted or auxiliary ambient RTDs)
- RS-485 industrial communication networks for remote monitoring
- 269PC software platform for advanced configuration and diagnostics
- AC/DC dual-voltage control power supplies (universal supply terminals)
Replaces / Drop-In Replacement For
The 269PLUS-100P-120VAC can replace earlier versions of the 269 series motor relay and other GE Multilin models with equivalent voltage and RTD ratings. Related standard models in the 269PLUS family include 269PLUS-100P-HI, 269PLUS-120N-120, and 269PLUS-DO variants. Verify compatibility with your system integrator before ordering to confirm proper CT ratios, RTD types, and relay contact arrangements for your specific application.
Works With
- Software: 269PC configuration and commissioning software for programming and monitoring
- Communication: RS-485 serial protocol for SCADA and building management system integration
- Control Platforms: Standard industrial control systems, motor control centers, and field controllers
- Sensors: Phase and ground current transformers (CTs), RTD temperature sensors (100Ω platinum)
- Power Systems: 120VAC industrial control power supplies and universal AC/DC supply architectures
