Overview

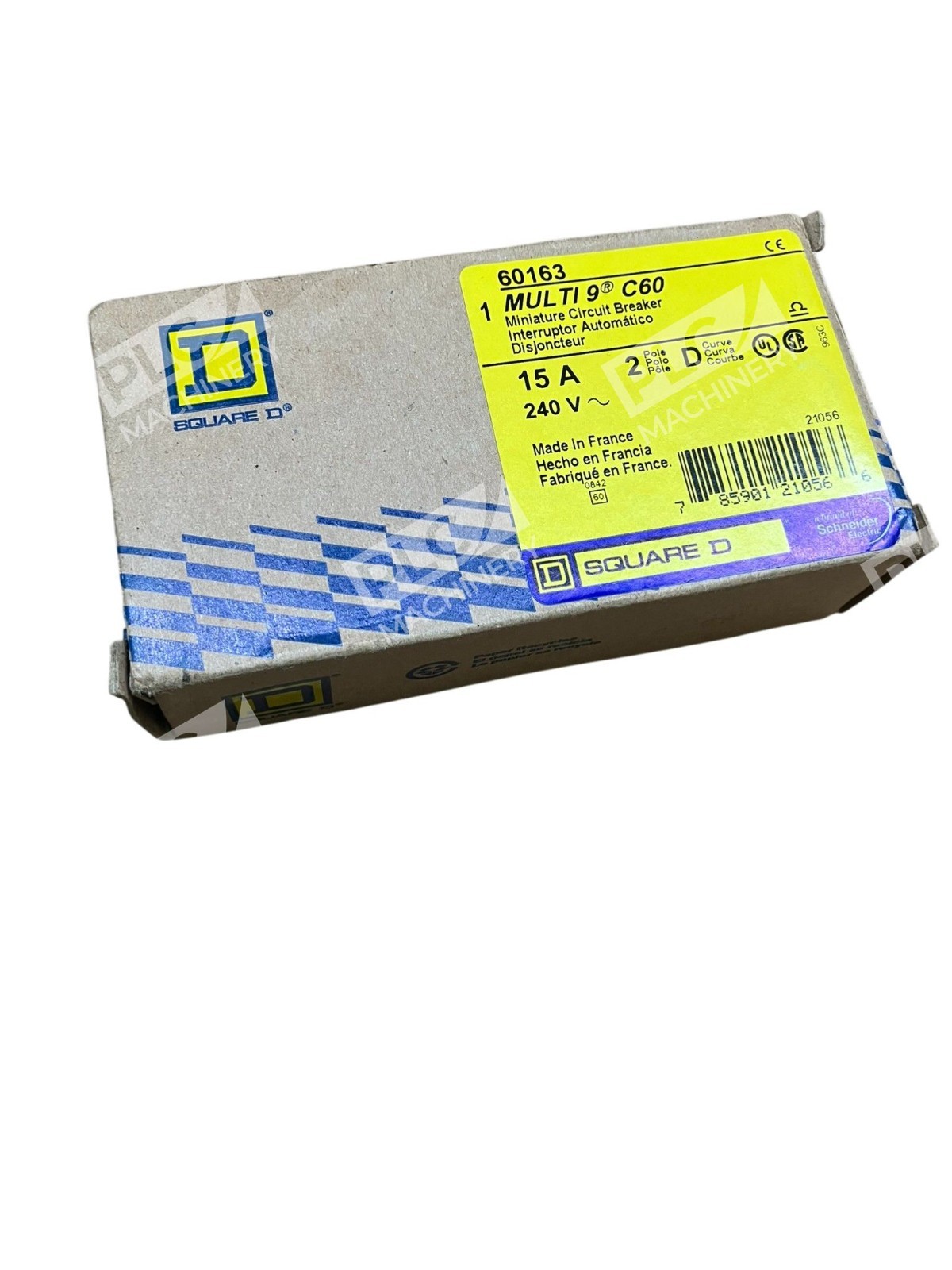

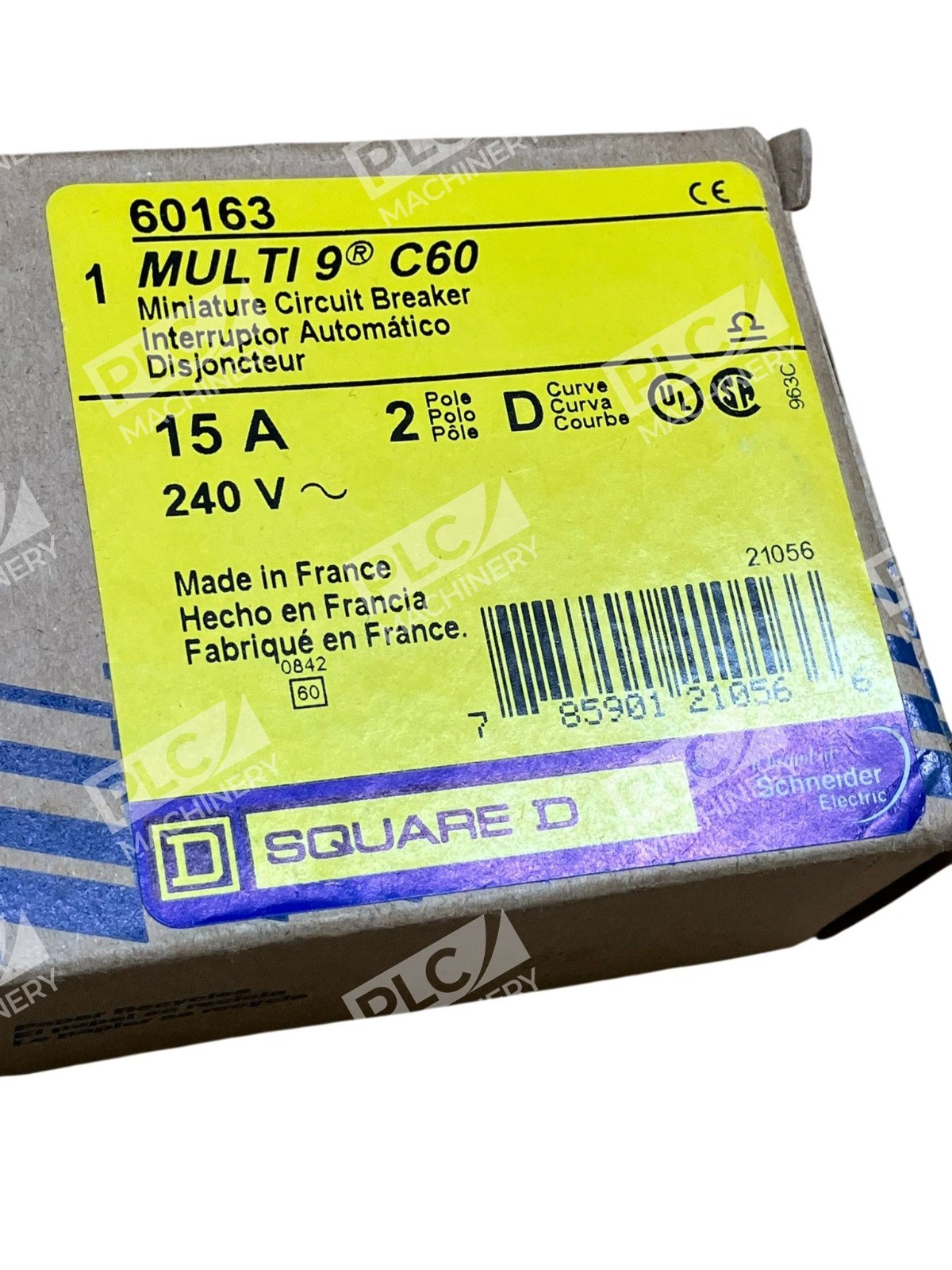

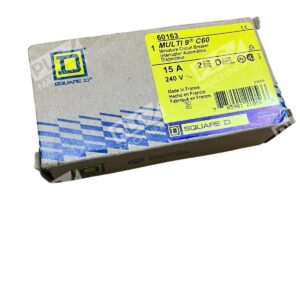

The Square D 60163 is a Multi 9 C60 miniature circuit breaker designed for industrial branch circuit protection. This 2-pole, 15A unit features a D-curve thermal magnetic trip characteristic and is rated for 240 VAC at 10 kA interrupting capacity. The Square D 60163 combines reliable overload and short-circuit protection with modular DIN rail mounting in a compact footprint ideal for control panels and distribution equipment.
Key Features
- D-Curve Trip Characteristic: Designed for standard resistive and inductive loads with moderate inrush currents, reducing nuisance tripping
- UL 489 / CSA C22.2 No. 5 Listed: Certified for branch circuit protection and industrial automation applications
- Compact Modular Design: Single 0.35-inch (9 mm) module per pole mounts on standard 35 mm DIN rail
- Box Lug Terminal Connections: Pressure-plate terminals accept copper wire up to #2 AWG for reliable field connections
- High Endurance: 20,000 mechanical operation cycles and 10,000 electrical cycles for long service life
- Reverse Feeding Capable: Permits reverse-feeding of line power when required by system design
Technical Specifications
| Manufacturer | Square D (Schneider Electric) |
| Model Number | 60163 |
| Product Line | Multi 9 C60 |
| Poles | 2 |
| Rated Current | 15 Amperes |
| Voltage Rating (AC) | 240 VAC / 415 VAC / 440 VAC |
| Voltage Rating (DC) | 125 VDC |
| Trip Curve | D-Curve (Thermal Magnetic) |
| Interrupting Capacity | 10 kA @ 240 VAC |
| Mounting | 35 mm DIN Rail |
| Module Width | 0.35 inches (9 mm) per pole |
| Terminal Type | Box Lug (Pressure Plate) |
| Certifications | UL 489, CSA C22.2 No. 5.1, IEC 60947-2 |
| Mechanical Endurance | 20,000 cycles |
| Electrical Endurance | 10,000 cycles |

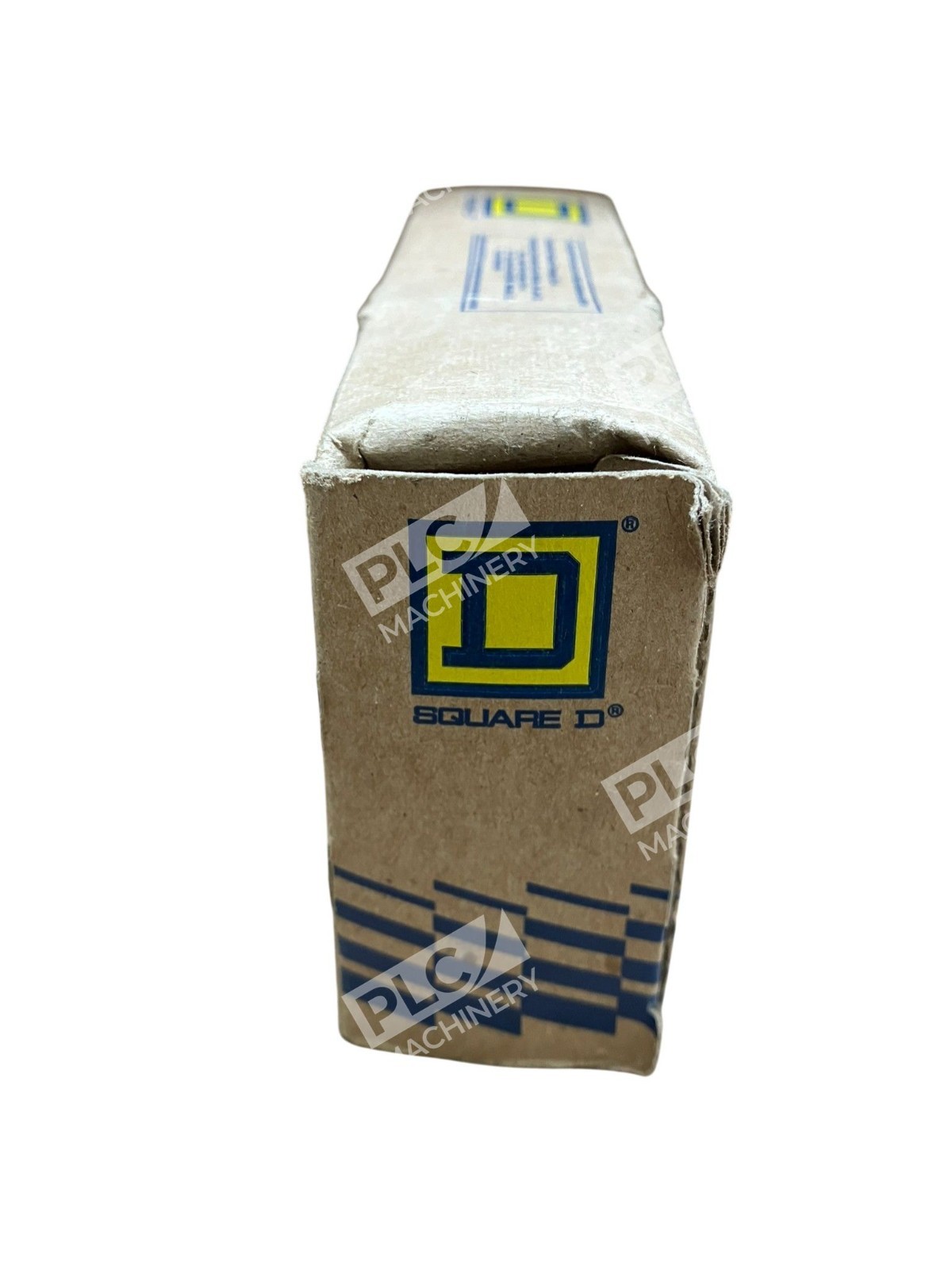

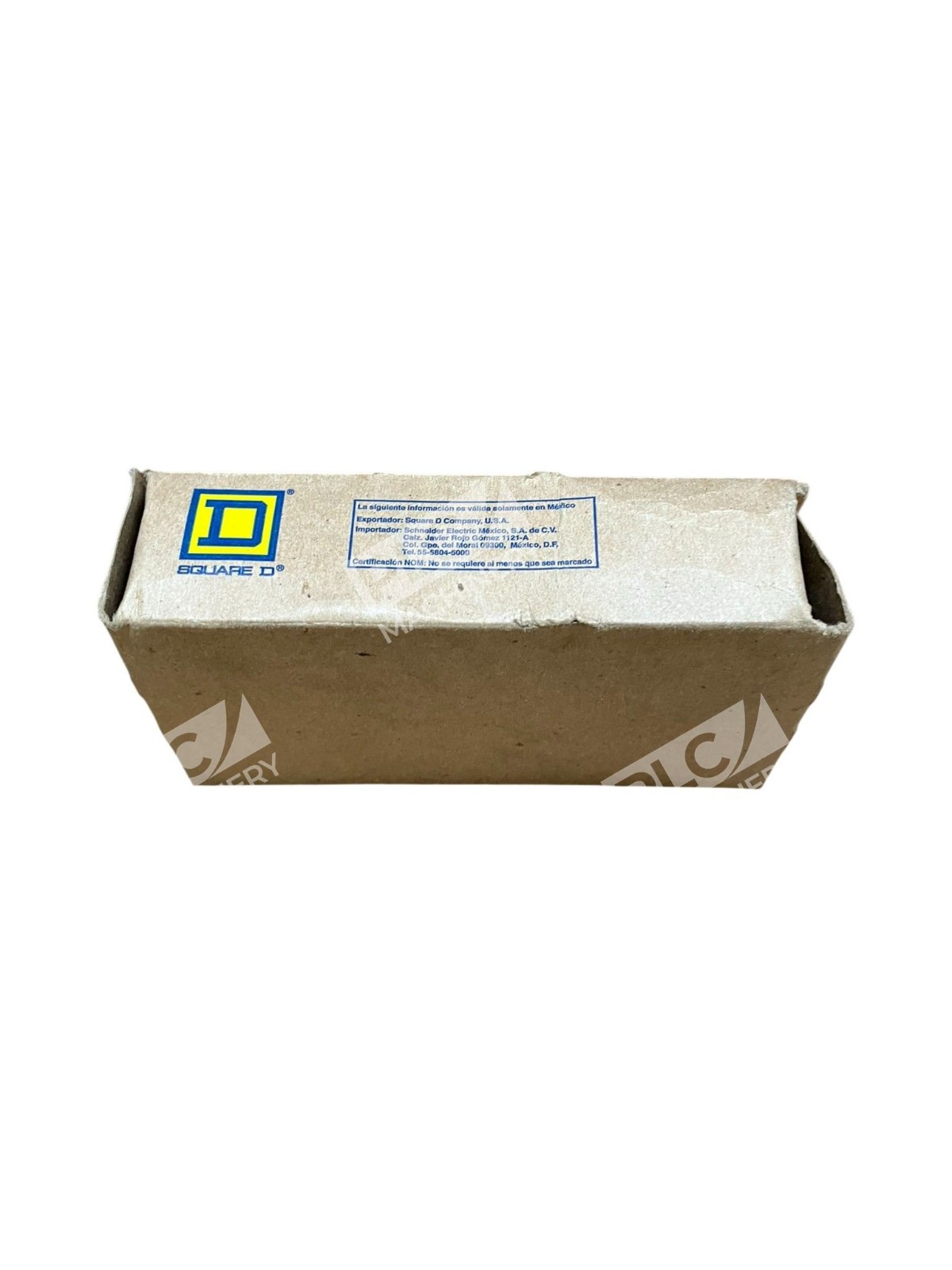

| Condition | New in Box |
Typical Applications
The Square D 60163 is widely used in industrial automation, control panel design, machine tool manufacturing, and facility electrical distribution systems. The D-curve trip characteristic makes it suitable for circuits with moderate inrush currents including:
- General-purpose industrial loads and lighting circuits
- Motor branch circuit protection (with appropriate coordination)
- OEM control panel assembly and equipment integration
- Retrofit fuse replacement in existing panel designs
- HVAC and process control systems
Compatibility & Replacements
Compatible With
- Standard 35 mm DIN mounting rail systems
- Multi 9 modular protection ecosystem (shares common rail and coordination)
- Box lug terminal wiring up to #2 AWG copper
- Industrial control panels and electrical enclosures rated for 240 VAC, 415 VAC, or 440 VAC
- IEC 60947-2 and UL 489 compliant distribution systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The Square D 60163 directly replaces other Multi 9 C60 catalog numbers with identical specifications but different voltage or trip ratings. Always confirm part number match and electrical ratings before installation.
Works With
- Multi 9 C60 supplementary protectors and accessories
- Square D (Schneider Electric) modular equipment assemblies
- Standard industrial electrical distribution design standards (NEC, IEC, CSA)
- DIN rail-mounted contactors, relays, and control modules
