Overview

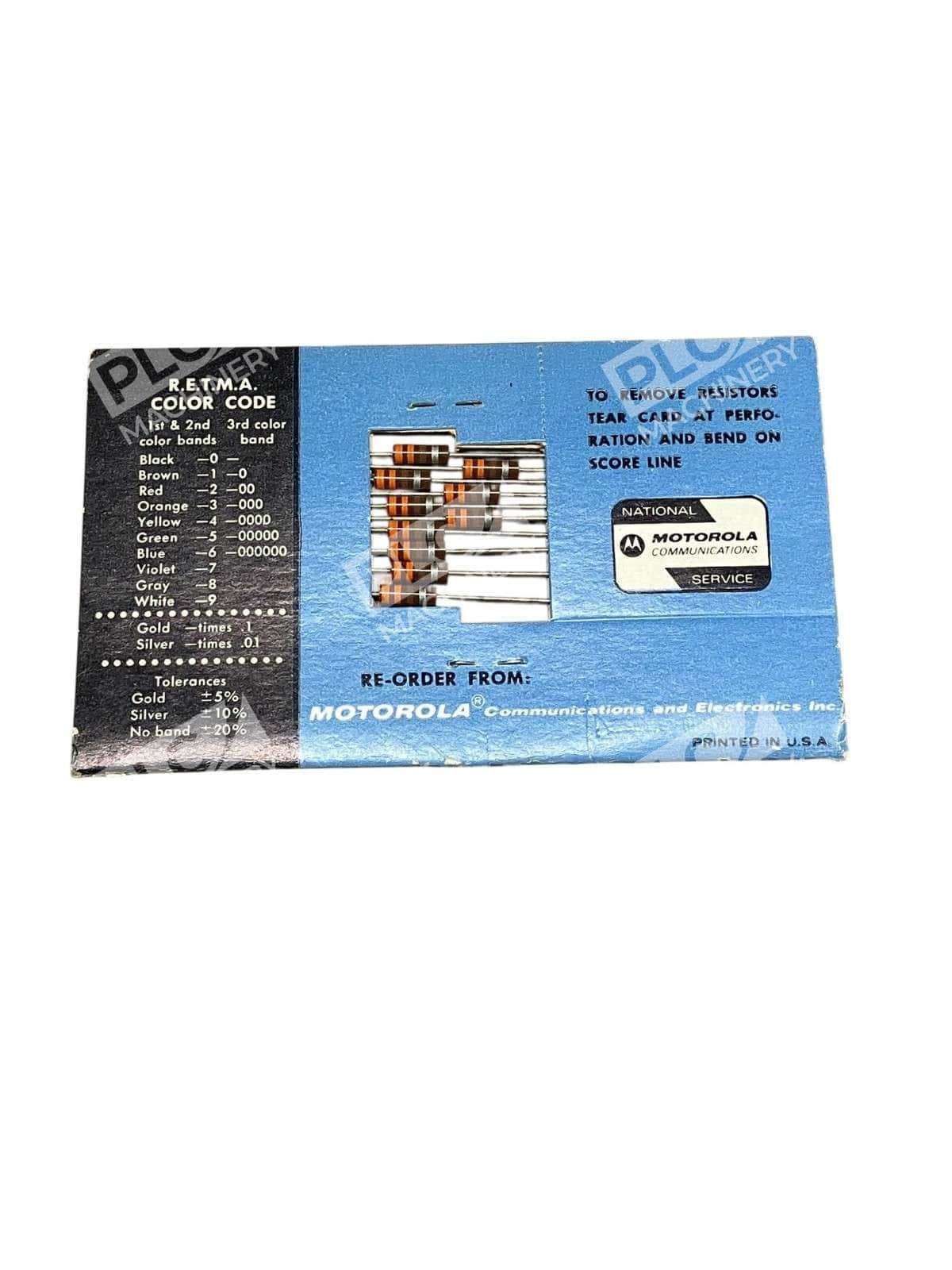

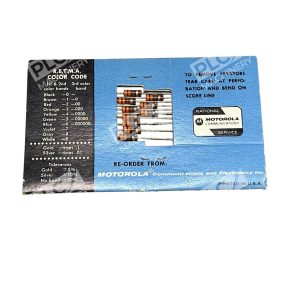

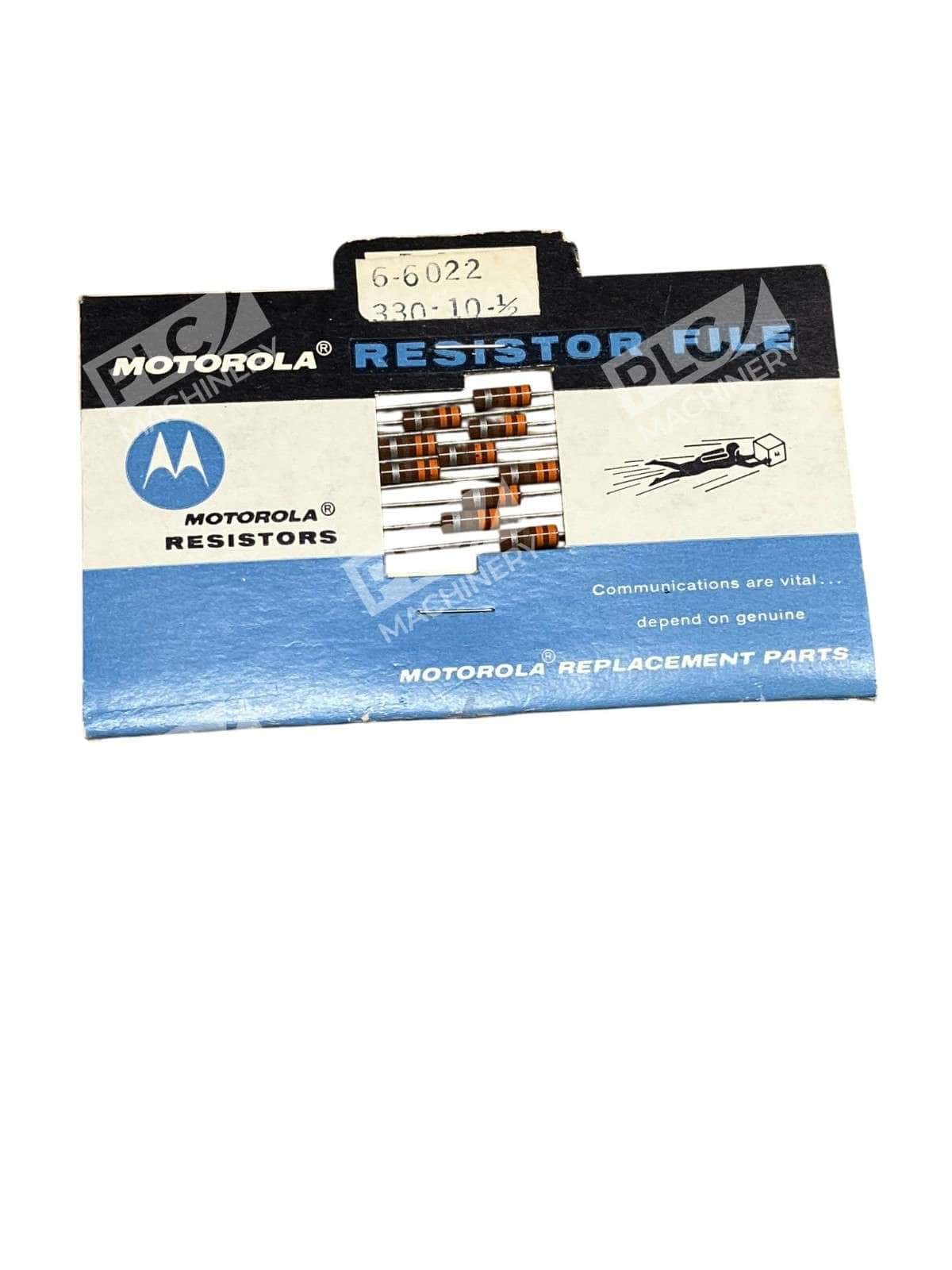

The Motorola 6-6022 is a fixed carbon composition resistor featuring a resistance value of 330 ohms with a power rating of 0.5W (1/2W). This axial-lead component carries a tolerance rating of ±10%, making it suitable for general-purpose applications where moderate precision is acceptable. As a vintage new-old-stock (NOS) component manufactured in the United States, it represents reliable resistor technology from the mid-to-late 20th century.
Key Features
- Carbon composition construction for reliable performance in legacy and vintage equipment
- Axial-lead through-hole design for soldering into PCBs and wiring harnesses
- ±10% tolerance suitable for current limiting, biasing, and network applications
- 0.5W (1/2W) power dissipation rating appropriate for low-to-moderate current circuits
- New in box (NOS) condition ensures original condition and functionality
- Made in the United States with established reliability in industrial and commercial equipment
Technical Specifications
- Resistance: 330 Ω (ohms)
- Tolerance: ±10%
- Power Rating: 0.5W (1/2W)
- Construction: Carbon Composition
- Lead Type: Axial
- Manufacturer: Motorola
- Part Number: 6-6022
- Condition: New Old Stock (NOS)
- Origin: Made in USA
Typical Applications
- Equipment restoration and vintage electronics repair
- Audio amplifier biasing and coupling networks
- Power supply current limiting and load resistances
- Test and measurement equipment calibration
- Industrial control circuits and relay networks
- Legacy telecommunications and broadcast equipment
Compatibility & Replacements
Compatible With
- Any circuit requiring a 330 Ω, 1/2W resistor with ±10% tolerance
- Vintage tube amplifiers and radio receivers
- Industrial control panels and distribution equipment
- Test equipment and measurement instruments from the mid-20th century onward
Replaces / Drop-In Replacement For
Verify compatibility with your specific equipment before ordering. This 330 Ω 1/2W ±10% rating matches standard vintage resistor specifications. Common equivalent specifications exist across multiple manufacturers (Stackpole, Allen-Bradley, IRC, and other period manufacturers), but confirm the exact circuit context before substitution.
Works With
- Through-hole PCB designs (0.1″ grid standard)
- Hand-wired chassis and point-to-point wiring layouts
- Standard breadboarding and prototyping layouts
- Any analog or DC circuit topology requiring this resistance and power rating
