Overview

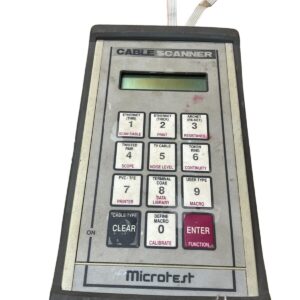

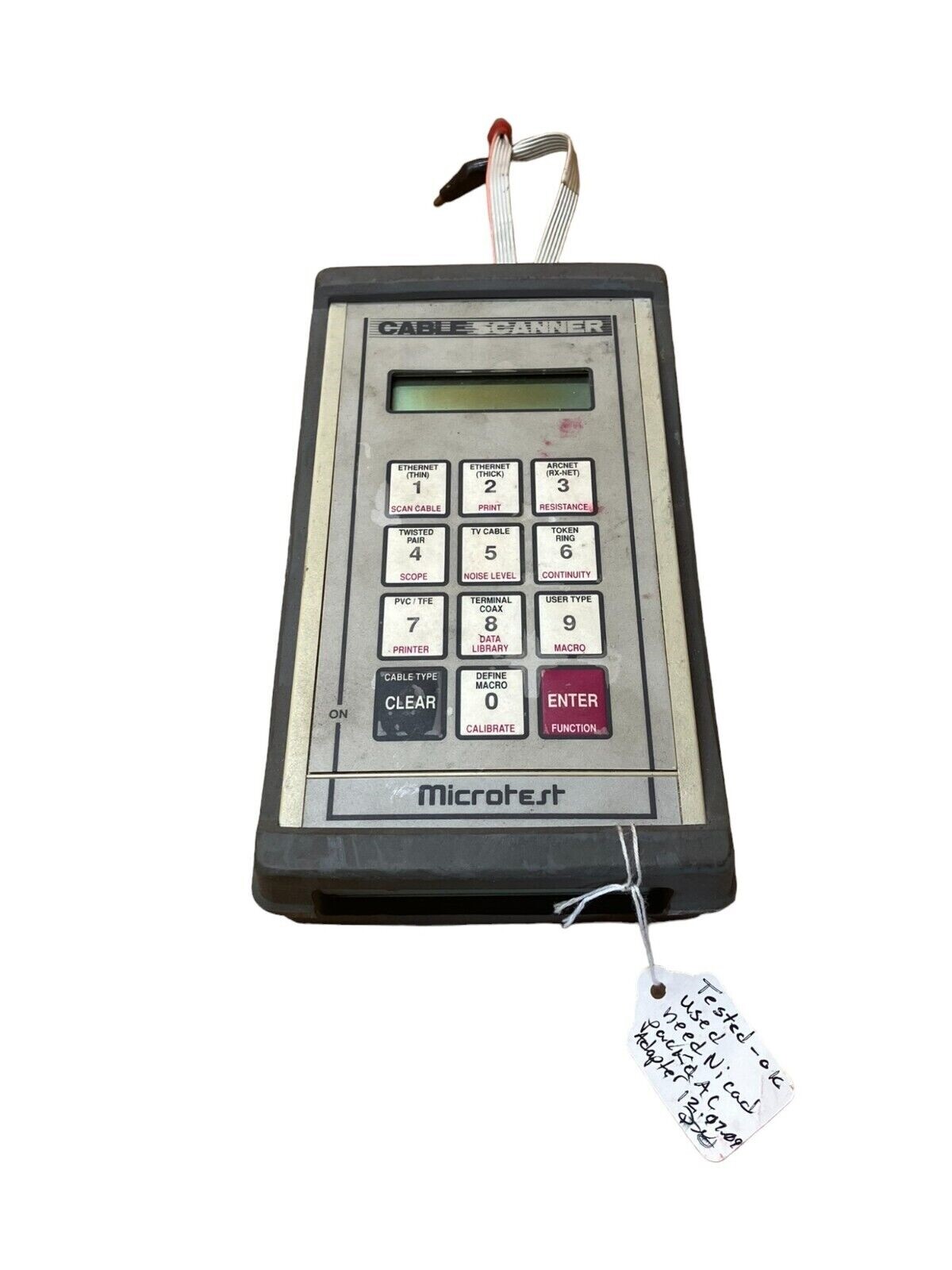

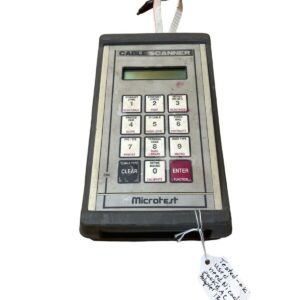

The Microtest Cable Scanner is a portable cable testing instrument designed for field verification and troubleshooting of copper twisted-pair cabling installations. Built to withstand job-site environments, this cable scanner combines essential testing functions into a compact handheld unit. It displays critical diagnostic data including wiremap, pair lengths, distance to fault, and cable identification—making it an industry standard tool for technicians, installers, and maintenance professionals who need quick, accurate cable verification in the field.
Key Features
- Graphical wiremap display — instantly identifies open, short, and crossed wires
- Pair length measurement — measures the full length of each cable pair with NVP calibration
- Distance-to-fault detection — pinpoints cable issues precisely
- Support for standard modular connectors (RJ45, RJ11) — no adapters required for most common deployments
- Compact, ergonomic design — fits easily into a tool pouch for on-site work
- LCD display — clear readout in both bright and low-light conditions
Technical Specifications
- Test Interface: Modular 8-pin connector (RJ45) and 4-pin connector (RJ11) support
- Display: Custom LCD screen for graphical wiremap and measurement readout
- Cable Type Support: Shielded and unshielded twisted-pair
- Measurement Range: Up to 1500 feet (457.2 m) with NVP calibration
- Operating Temperature: 32 to 122°F (0 to 50°C)
- Storage Temperature: 14 to 131°F (-10 to +55°C)
- Humidity Tolerance: 10 to 90% noncondensing
- Power Supply: Battery-operated (alkaline batteries)
- Series: Microtest Cable Scanner
- Condition: Used, fully functional
Typical Applications
- Cable installation verification and sign-off
- Network and telecommunications cabling troubleshooting
- Maintenance and repair diagnostics
- Field testing of Cat5/5e/6 twisted-pair cabling
- Quick fault location and intermittence detection
- Patch cable and permanent link verification
Compatibility & Replacements
Compatible With
- Twisted-pair cabling (Cat3, Cat5, Cat5e, Cat6)
- RJ45 connectors (Ethernet, industrial Ethernet)
- RJ11 connectors (telephone/analog circuits)
- Shielded and unshielded cable types
- Standard modular connector installations
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or technician before ordering. The Microtest Cable Scanner SKU C-1-10-28 is a used unit; cross-reference with your existing test equipment setup to ensure functional equivalency.
Works With
- Fluke Networks LinkWare cable test management software (for compatible models with data upload capability)
- Standard modular connectors and loopback adapters
- IntelliTone compatible toners for cable trace functionality
- NVP-based cable length calibration tools
