Overview

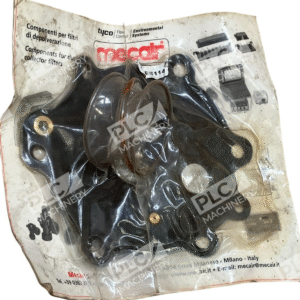

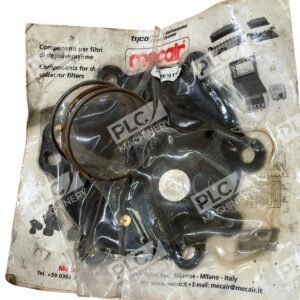

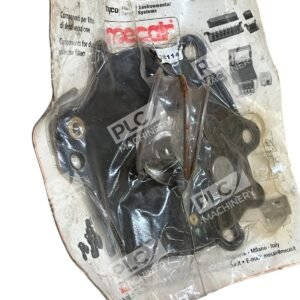

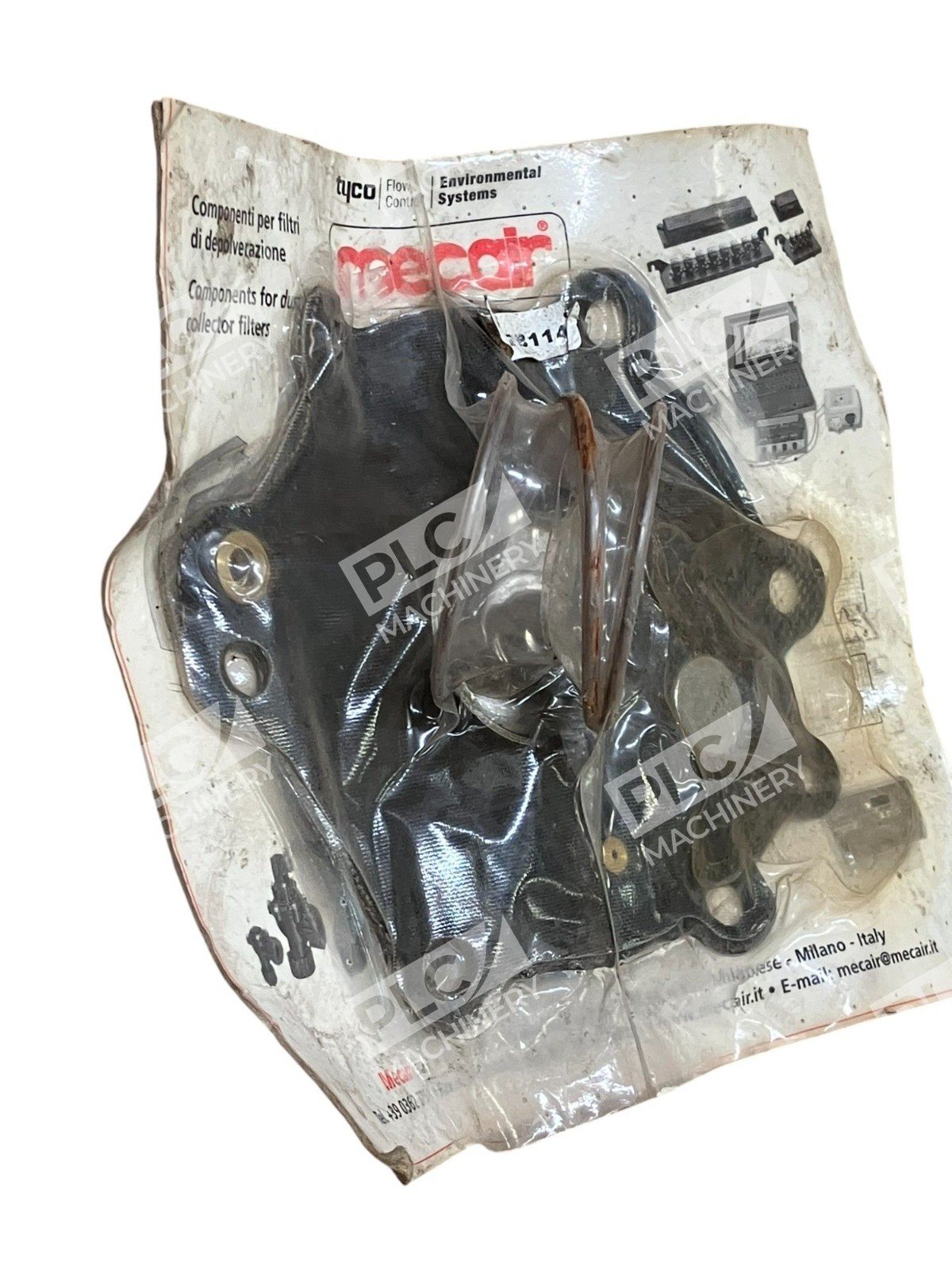

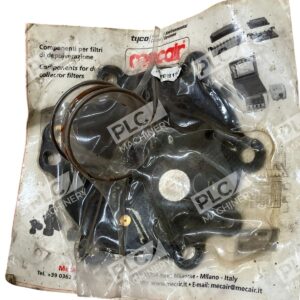

The Mecair KITDB114 is a comprehensive diaphragm repair kit designed for 1-1/2″ (DN 1-1/2″) single-stage pulse jet valves in dust collection and pneumatic systems. This kit provides all necessary components to restore worn or damaged diaphragms and maintain peak valve performance. Built with proven nitrile construction, the KITDB114 is a cost-effective solution for preventive maintenance and emergency repairs.
Key Features
- Complete Repair Components: Includes DB114 and DB16 diaphragms plus replacement spring (part M470162)
- Nitrile Buna Material: Durable elastomer construction rated for standard temperature applications
- Single-Stage Design: Optimized for 1-1/2″ DN diaphragm valve bodies
- Quick Installation: Direct replacement—no additional parts or tools required
- Contamination Prevention: Maintains valve seal integrity to keep systems clean and sterile
Technical Specifications
- Port Size: DN 1-1/2″ (1.5 inch)
- Diaphragm Material: Nitrile Buna
- Temperature Range: Standard industrial applications
- Kit Contents: 2x diaphragms (DB114, DB16), 1x spring assembly (M470162)
- Stage Type: Single-stage
- Weight: Approximately 1.0 lb
Typical Applications
- Dust collection systems and baghouse cleaning
- Pneumatic pulse valve maintenance and repair
- Industrial air filtration and air-cleaning systems
- Replacement for worn diaphragms in existing Mecair valve installations
Compatibility & Replacements
Compatible With
- Mecair VNP214 pulse jet valve
- Mecair VNP314 pulse jet valve
- Mecair VEM214 dust control valve
- Mecair VEM314 dust control valve
- All Mecair 1-1/2″ single-stage diaphragm valve bodies
Replaces / Drop-In Replacement For
- Original Mecair DB114 diaphragm repair kit
- KITDB114 (exact equivalent)
- Worn DB114 and DB16 diaphragm assemblies
Works With
- Pneumatic pulse valve control systems
- Dust collection and air filtration networks
- Standard industrial compressed air (0–8 bar operating range typical)
- Baghouse and cyclone separator installations
