Overview

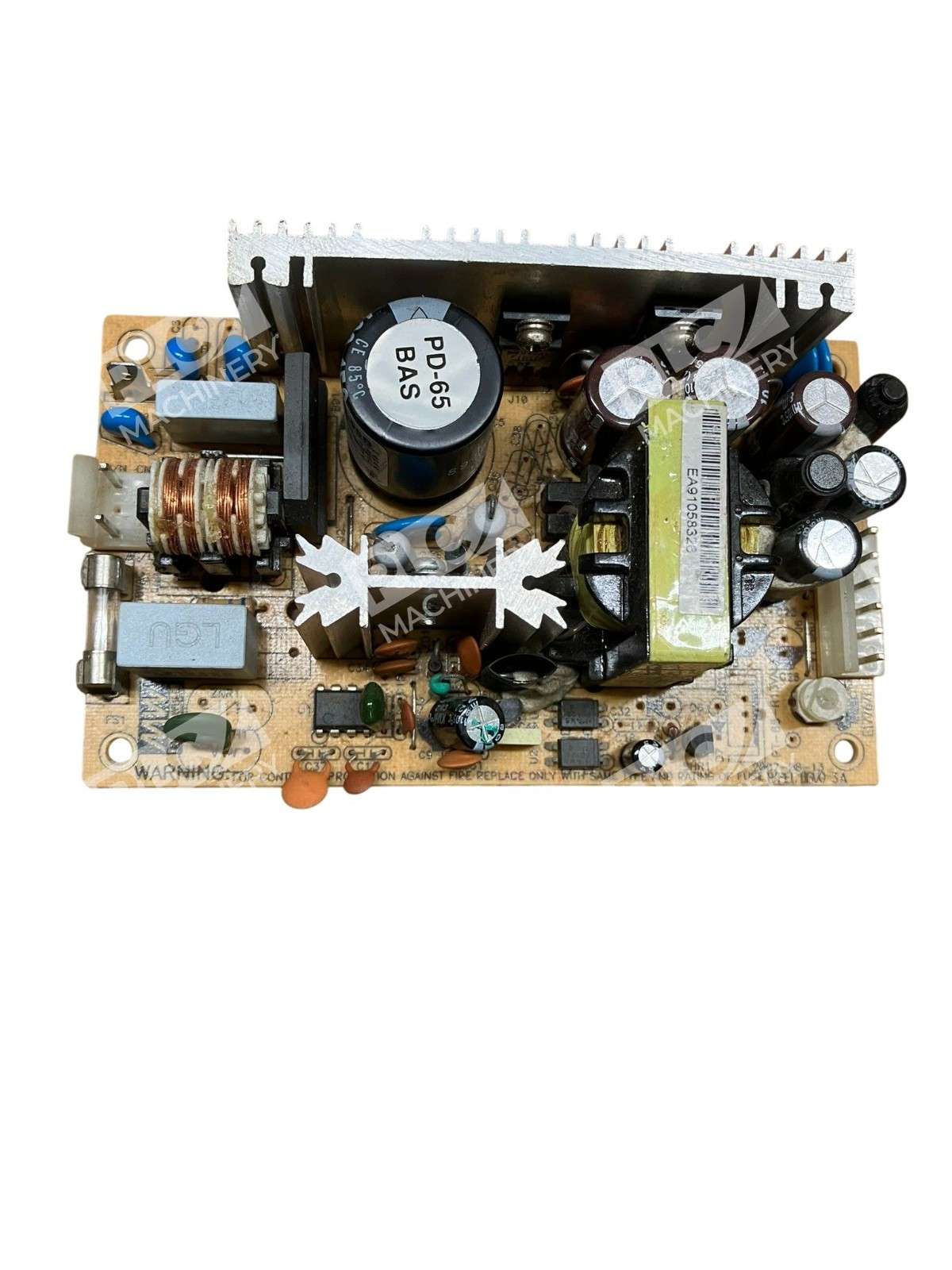

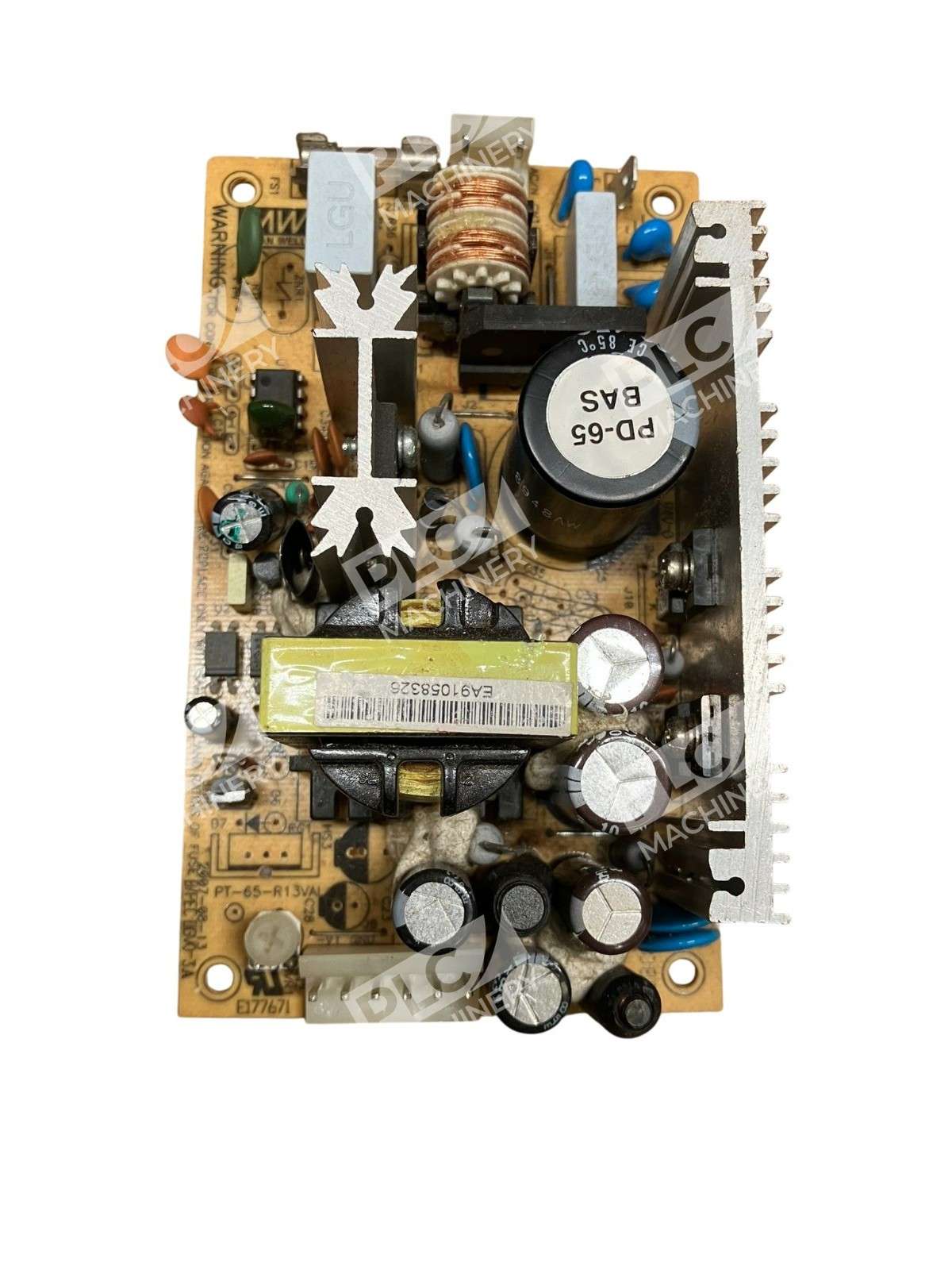

The Mean Well PT-65-R13VAI is a compact 65W open-frame switching power supply board designed for industrial control systems, embedded applications, and legacy equipment maintenance. This triple output switching power supply delivers reliable performance in space-constrained installations where form factor and efficiency are critical. As a discontinued unit, the PT-65-R13VAI remains in demand for repair, retrofitting, and replacement in established systems that require exact component compatibility.
Key Features
- 65W nominal power rating with triple output capability for multi-voltage applications
- Open-frame construction for compact installation and integration into larger assemblies
- Switching mode topology ensures high efficiency and reduced heat generation
- Multiple DC output rails support diverse load requirements
- Compact, lightweight design (0.44 lbs) for space-constrained equipment
- Industry-standard Mean Well reliability for long-term uptime in industrial environments
Technical Specifications
The PT-65-R13VAI provides stable, regulated power across multiple output channels. The unit operates across wide input voltage ranges typical of switching power supplies, and its open-frame design allows for easy thermal management and board-level integration. Key electrical characteristics include:
- Power Rating: 65W nominal
- Output Configuration: Triple output
- Form Factor: Open-frame switching power supply board
- Weight: 0.44 lbs (0.20 kg)
- Mounting: Board assembly, open-frame
- Manufacturer Status: Discontinued
Typical Applications
- Industrial control panels and PLC power distribution
- Embedded systems requiring stable, regulated multi-voltage DC supplies
- Legacy equipment repair and retrofit projects
- Test and measurement equipment power stages
- Computer-aided manufacturing (CAM) and automation system upgrades
- Replacement power module for existing assemblies with matching connector pin-outs
Compatibility & Replacements
Compatible With
- Industrial control systems requiring ±12V and +5V rails
- Embedded application boards with triple-rail power input
- Custom power distribution assemblies designed for PT-65 series modules
- OEM equipment using standard board-mounted power supply connectors
- Legacy systems that specify Mean Well PT-65 series power supplies
Replaces / Drop-In Replacement For
The PT-65-R13VAI is designed as a direct replacement for original PT-65-R13VAI units in equipment where the exact model is specified. Verify connector pin-out and voltage rail assignments with your system integrator or equipment documentation before ordering, as PT-65 variant models may differ in output configuration.
Works With
- Standard board-mounted power connectors (Molex, JST, or proprietary multi-pin headers)
- Industrial control platforms (Allen-Bradley CompactLogix, SLC 500, ControlLogix)
- Embedded Linux and real-time operating systems requiring stable multi-rail power
- Test and measurement equipment with distributed DC power busses
- Custom automation assemblies with regulated +5V, ±12V, ±15V power requirements
