Overview

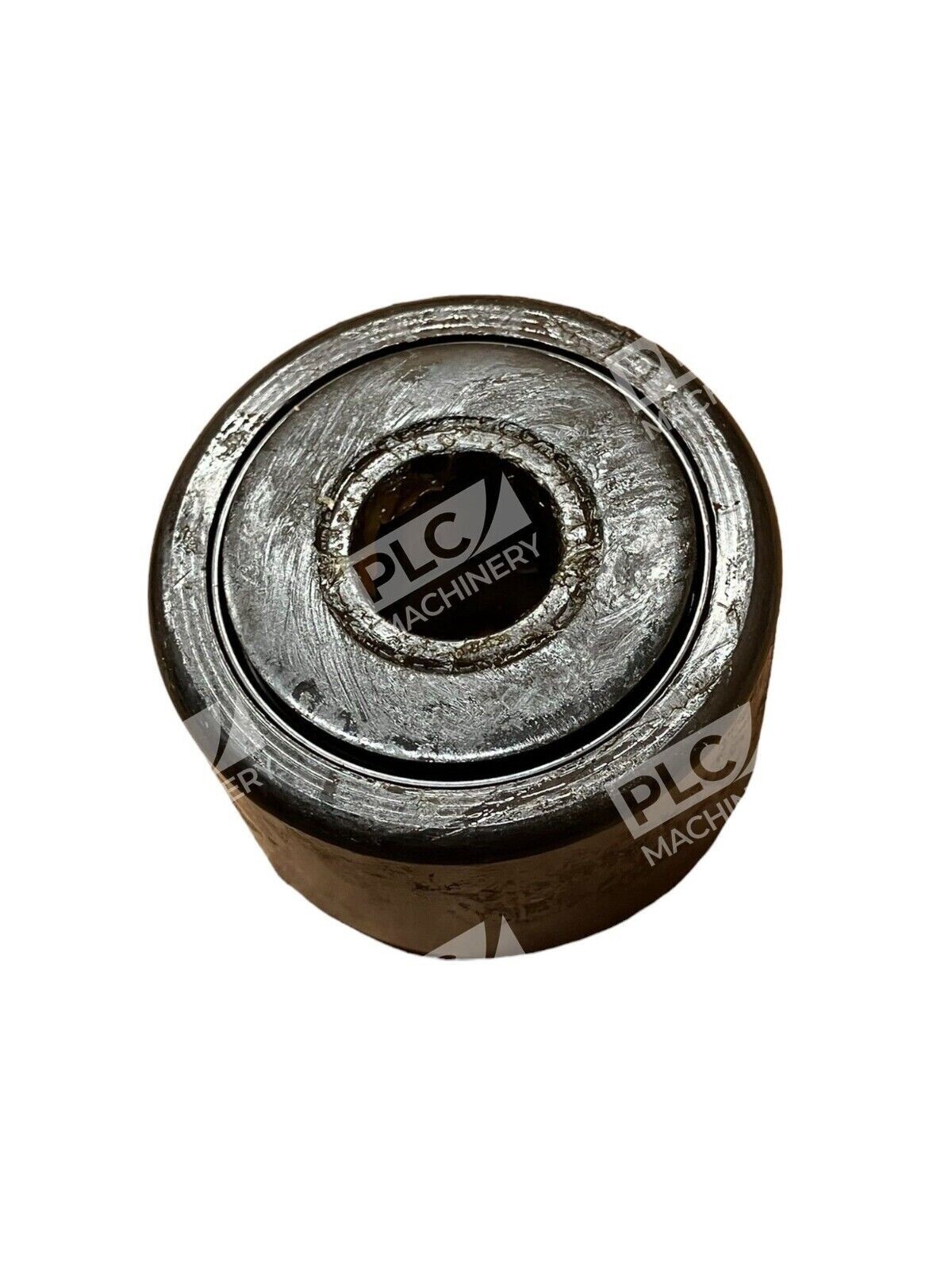

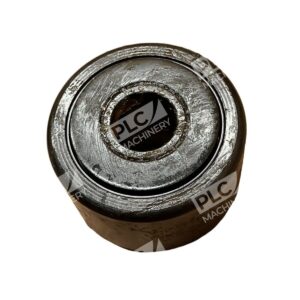

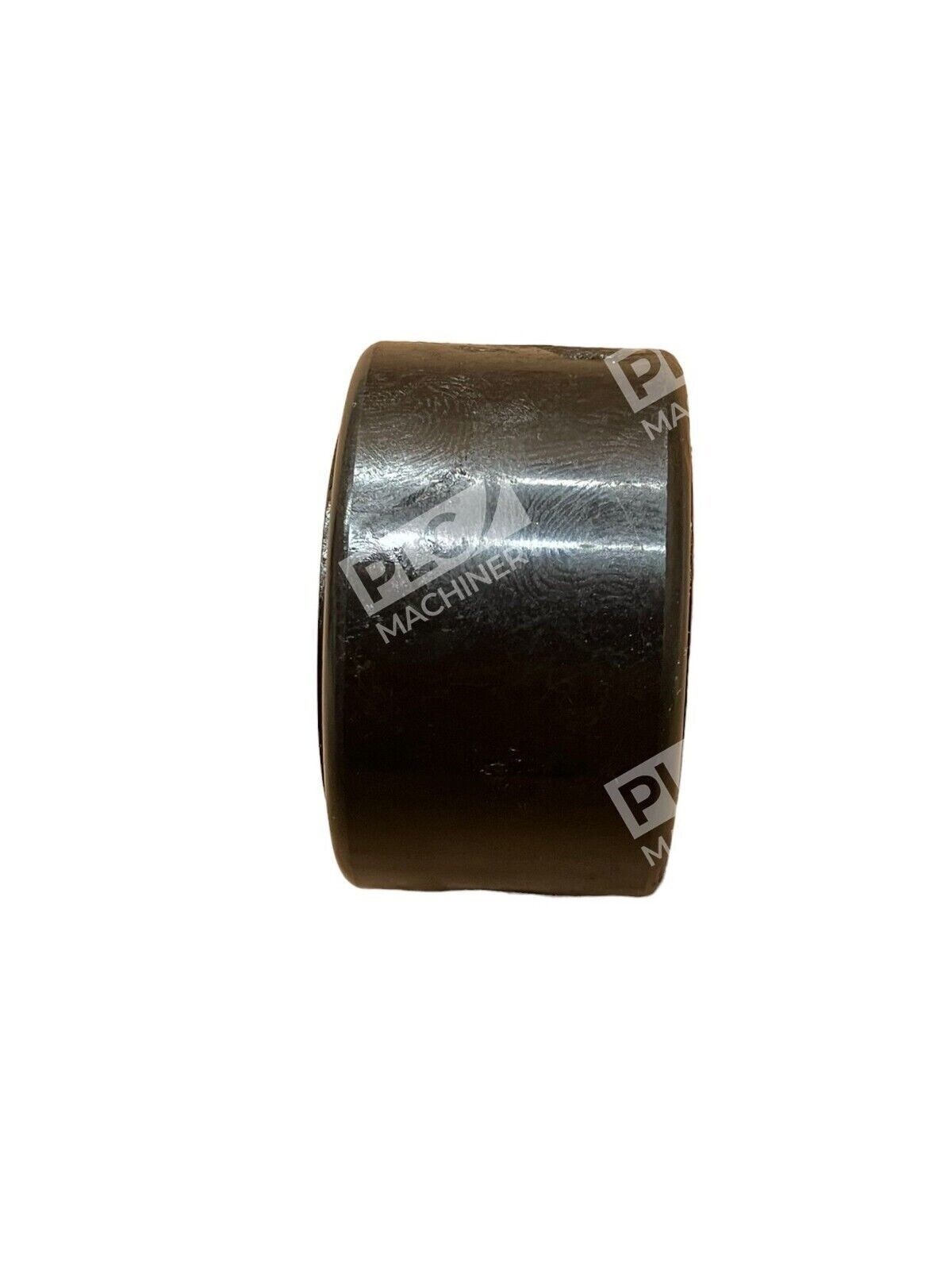

The McGill CCYR 3/4 S is a CAMROL® unmounted crowned yoke roller designed for precision cam follower applications. This sealed bearing features a crowned outer diameter and full-complement needle roller construction, ideal for mechanical automation, linear motion, conveyor systems, and rail-following mechanisms. The integrated LUBRI-DISC® seal provides long-term protection against contamination and ensures consistent lubrication without frequent regreasing.
Key Features
- Full-complement needle roller construction – Maximizes load-carrying capacity and shock resistance compared to caged designs
- LUBRI-DISC® integral seal – Prevents metal-to-metal contact, contains grease during operation, and provides blowout protection during relubrication
- Crowned roller profile – Accommodates minor shaft misalignment and reduces edge loading for extended bearing life
- Black oxide finish – All external surfaces protected against corrosion
- Yoke-style mounting – Allows flush installation between supports for compact, accessible layout
Technical Specifications
- Roller Diameter: 3/4 inch (0.75 in)
- Bore Diameter: 1/4 inch (0.25 in)
- Roller Width: 1/2 inch (0.5 in)
- Overall Width: 9/16 inch (0.5625 in)
- Bearing Element: Needle Rollers (full complement)
- Roller Shape: Crowned
- Radial Dynamic Load Capacity: 1,660 lbf
- Radial Static Load Capacity: 2,100 lbf
- Maximum Speed: 6,400 rpm
- Operating Temperature Range: −30 to +250 °F
- Roller Material: Chrome Steel
- Closure Type: Sealed
- Finish: Black Oxide
- Endplate Diameter: 0.6090 in
Typical Applications
The McGill CCYR 3/4 S is commonly used in:
- Cam-driven automation and indexing machinery
- Linear motion systems and rail guides
- Conveyor head pulleys and tracking systems
- Machine tool cam mechanisms
- Industrial production and packaging equipment
Compatibility & Replacements
Compatible With
- McGill CAMROL® mounting blocks and plates
- Standard 1/4-inch bore shaft and stud applications
- Cam tracks and rail systems designed for yoke-type followers
- General industrial automation equipment requiring sealed yoke rollers
Replaces / Drop-In Replacement For
- McGill CCYR 3/4 S (exact model match, part number 4060510000)
- Equivalent sealed crowned yoke rollers in the same bore/roller diameter class
Works With
- Standard greases and oils compatible with sealed needle roller bearings
- Automation controls and mechanical drive systems
- CAM follower raceways and support structures
- Intermittent and continuous duty mechanical applications
